Toyota Tundra. Manual - part 893





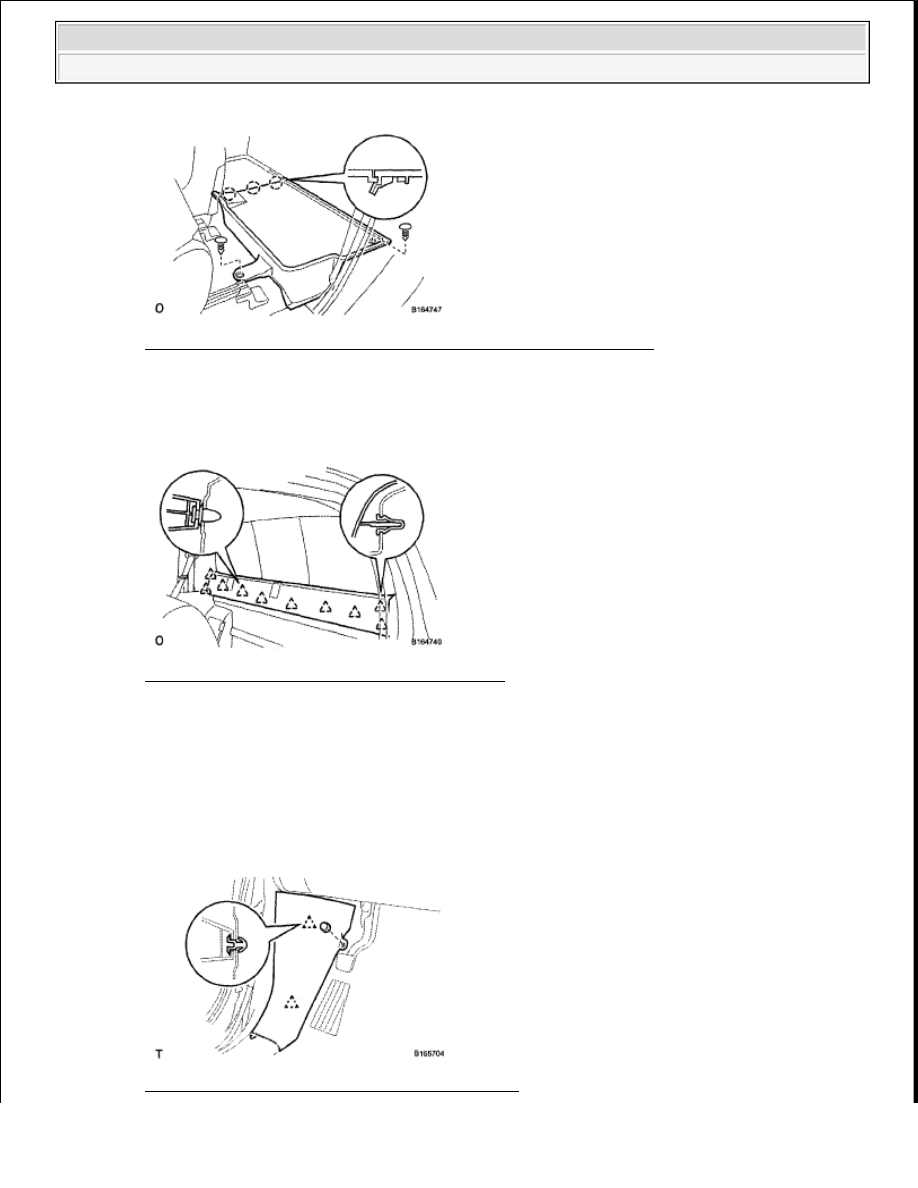

Fig. 200: Identifying Luggage Compartment Box Clips And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

19. INSTALL UPPER BACK PANEL GARNISH

a. Attach the 10 clips to install the back panel garnish.

Fig. 201: Identifying Back Panel Garnish Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

20. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

21. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

22. INSTALL COWL SIDE TRIM BOARD LH

a. Attach the 2 clips to install the cowl side trim board.

b. Install the clip.

Fig. 202: Identifying Cowl Side Trim Board Clip



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra































Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

23. INSTALL COWL SIDE TRIM BOARD RH

HINT:

Use the same procedures described for the LH side.

24. INSTALL FRONT DOOR SCUFF PLATE LH

a. Attach the 6 claws and 3 clips to install the scuff plate.

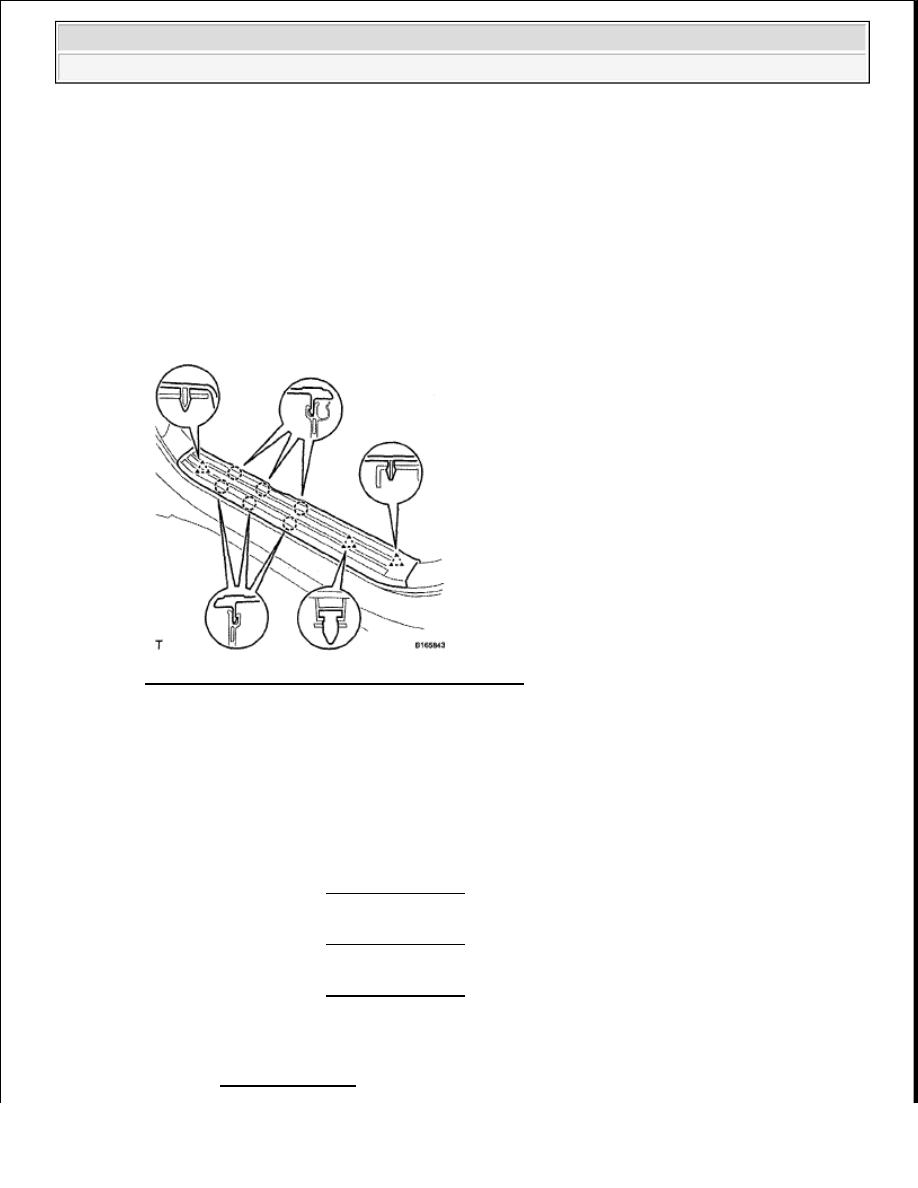

Fig. 203: Identifying Scuff Plate Claws And Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

25. INSTALL FRONT DOOR SCUFF PLATE RH

HINT:

Use the same procedures described for the LH side.

26. INSTALL FRONT SEAT ASSEMBLY (for Center Seat)

a. Install the front seat (see INSTALLATION ).

27. INSTALL FRONT SEAT ASSEMBLY (for Fold Down Seat Type)

a. Install the front seat (see INSTALLATION ).

28. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)

a. Install the front seat (see INSTALLATION ).

29. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTE:

Some systems need to be initialized after the cable is reconnected (see
INITIALIZATION ).



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra































30. CHECK SRS WARNING LIGHT

a. Check the SRS warning light (see DIAGNOSIS SYSTEM ).

OVERHEAD CONSOLE BOX (FOR SHORT TYPE)

COMPONENTS

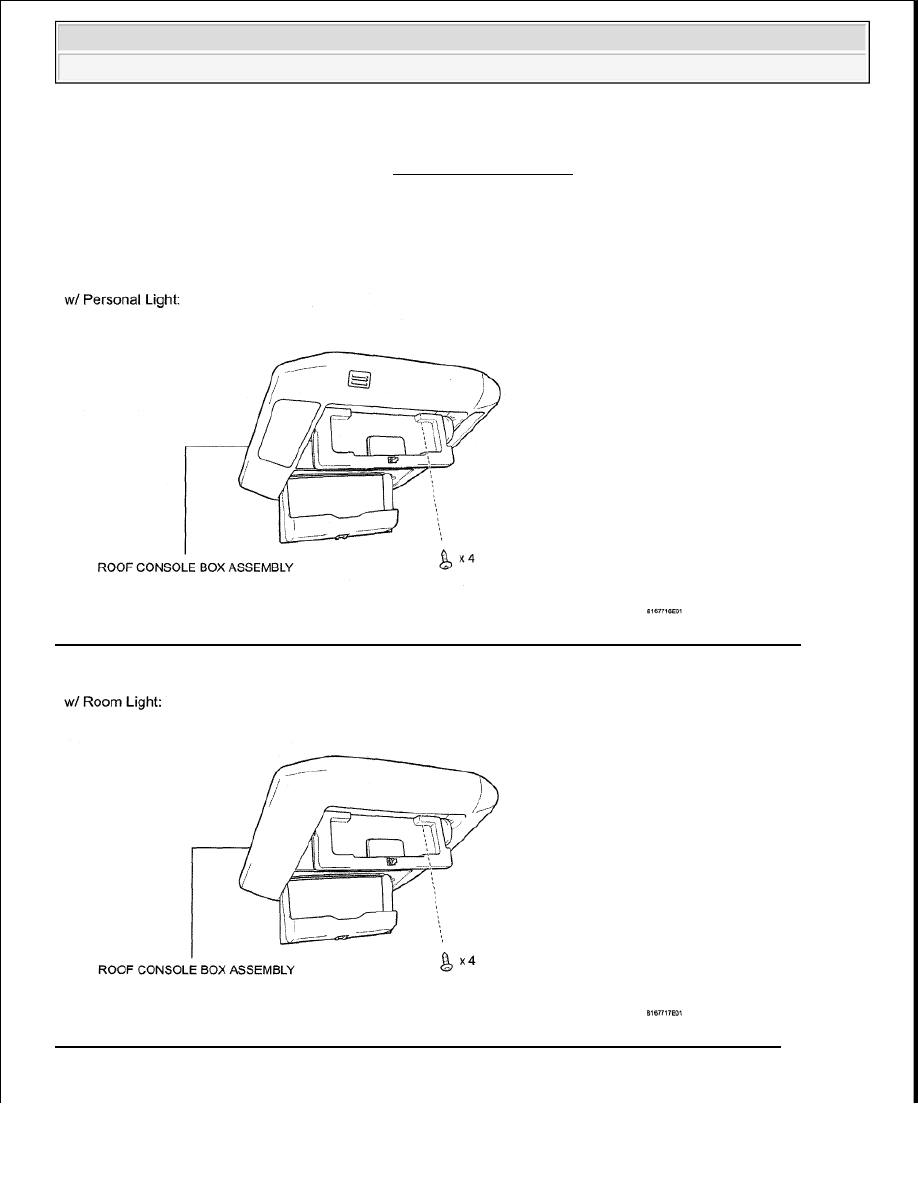

Fig. 204: Identifying Overhead Console Box Components - With Personal Light (For Short Type)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 205: Identifying Overhead Console Box Components - With Room Light (For Short Type)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra































REMOVAL

1. REMOVE ROOF CONSOLE BOX ASSEMBLY

a. Remove the 4 screws.

b. Disconnect the connector and then remove the roof console box.

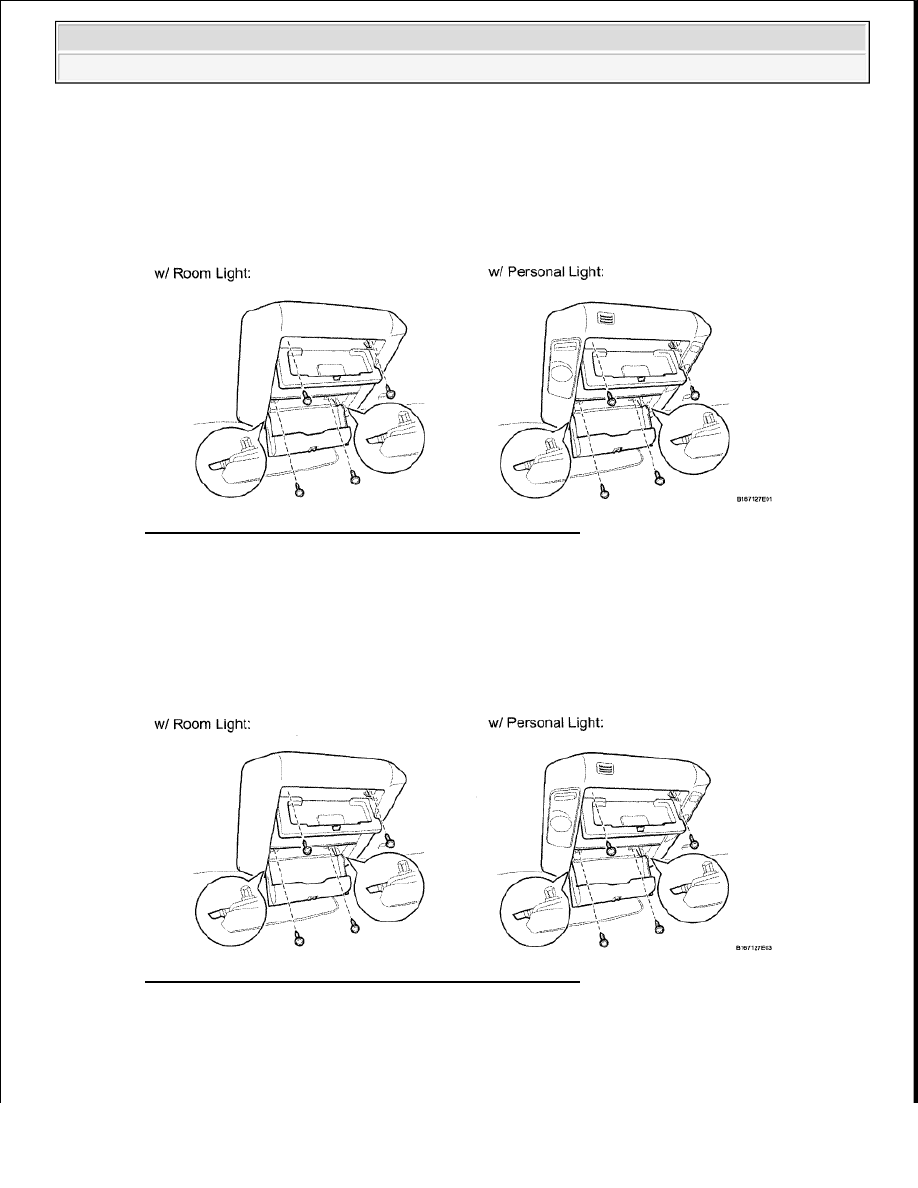

Fig. 206: Identifying Roof Console Box Assembly Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSTALLATION

1. INSTALL ROOF CONSOLE BOX ASSEMBLY

a. Connect the connector.

b. Install the roof console box with the 4 screws.

Fig. 207: Identifying Roof Console Box Assembly Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

OVERHEAD CONSOLE BOX (FOR LONG TYPE)

COMPONENTS



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra
