Toyota Tundra. Manual - part 882

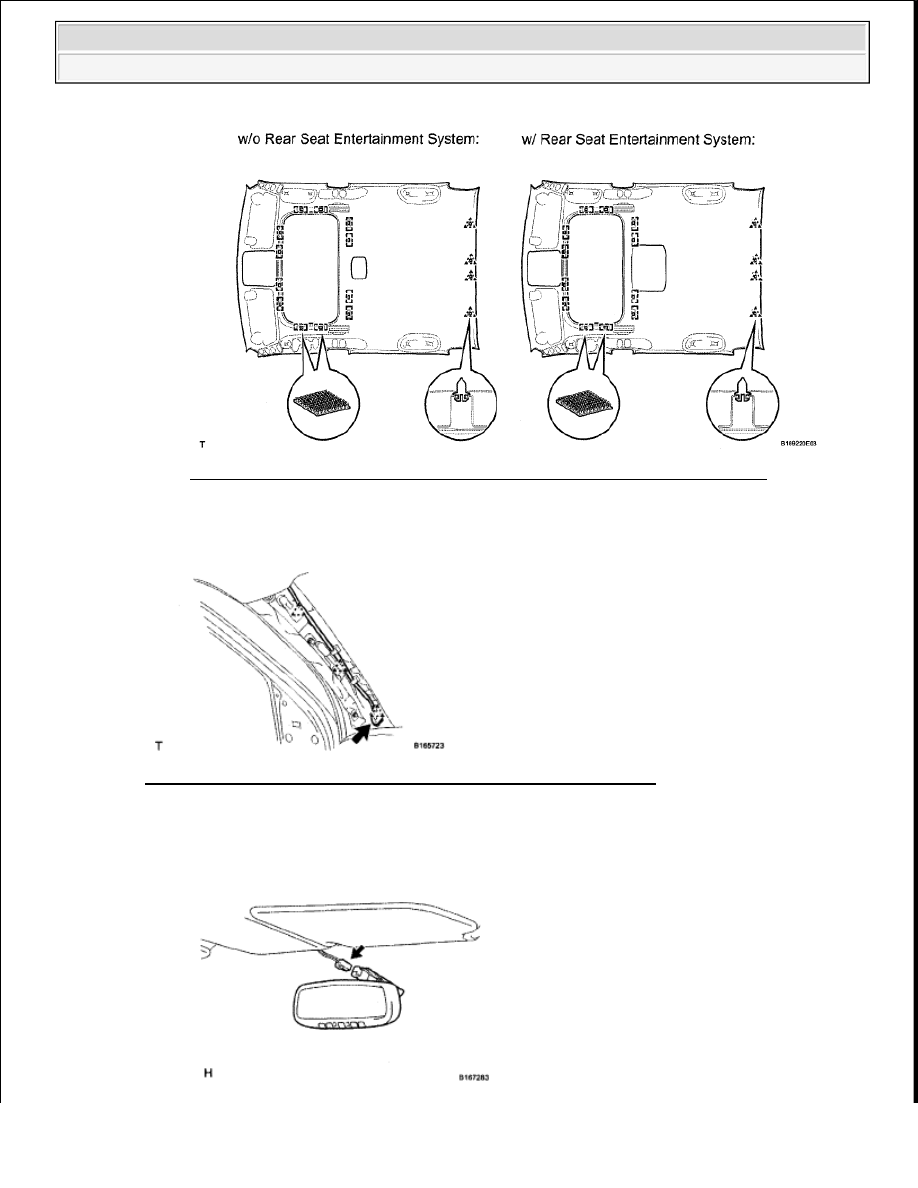

Fig. 111: Identifying Roof Headlining Clips (W/O Sliding Roof)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. w/ Sliding Roof:

Install the roof headlining.

1. Attach the 4 clips and 12 fasteners to install the roof headlining.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra

Fig. 112: Identifying Roof Headlining Clips And Fastener (W/Sliding Roof)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

d. Connect the roof wire connector and attach each clamp.

Fig. 113: Identifying Roof Headlining Wire Connector And Clamp
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

e. w/ EC Mirror:

1. Connect the EC mirror connector.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra

Fig. 114: Locating EC Mirror Connector (W/EC Mirror)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

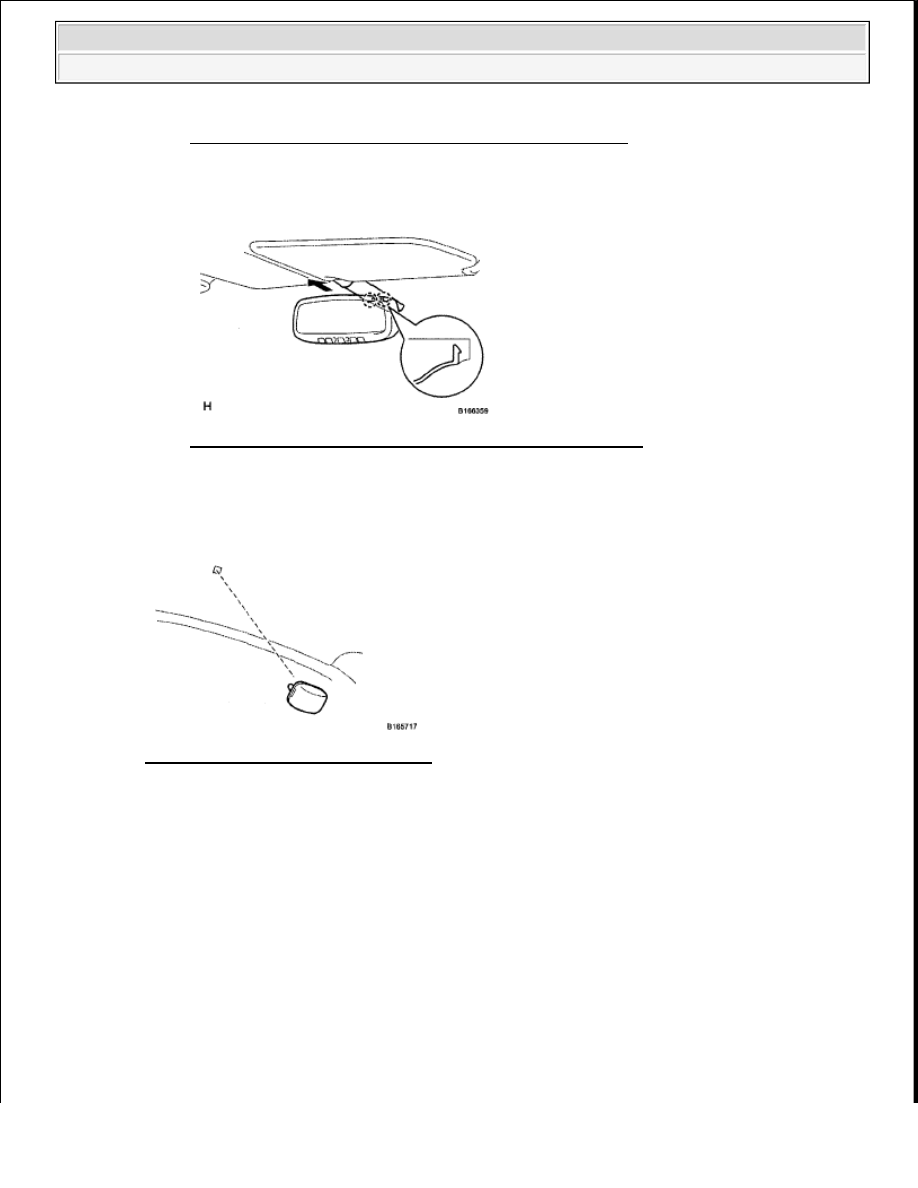

2. Attach the 2 claws to install the inner rear view mirror cover.

Fig. 115: Identifying Inner Rear View Mirror Cover Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL ASSIST GRIP PLUG

a. Install a new assist grip plug.

Fig. 116: Identifying Assist Grip Plug
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. INSTALL ASSIST GRIP SUB-ASSEMBLY

HINT:

Use the same procedure for the other 2 assist grips.

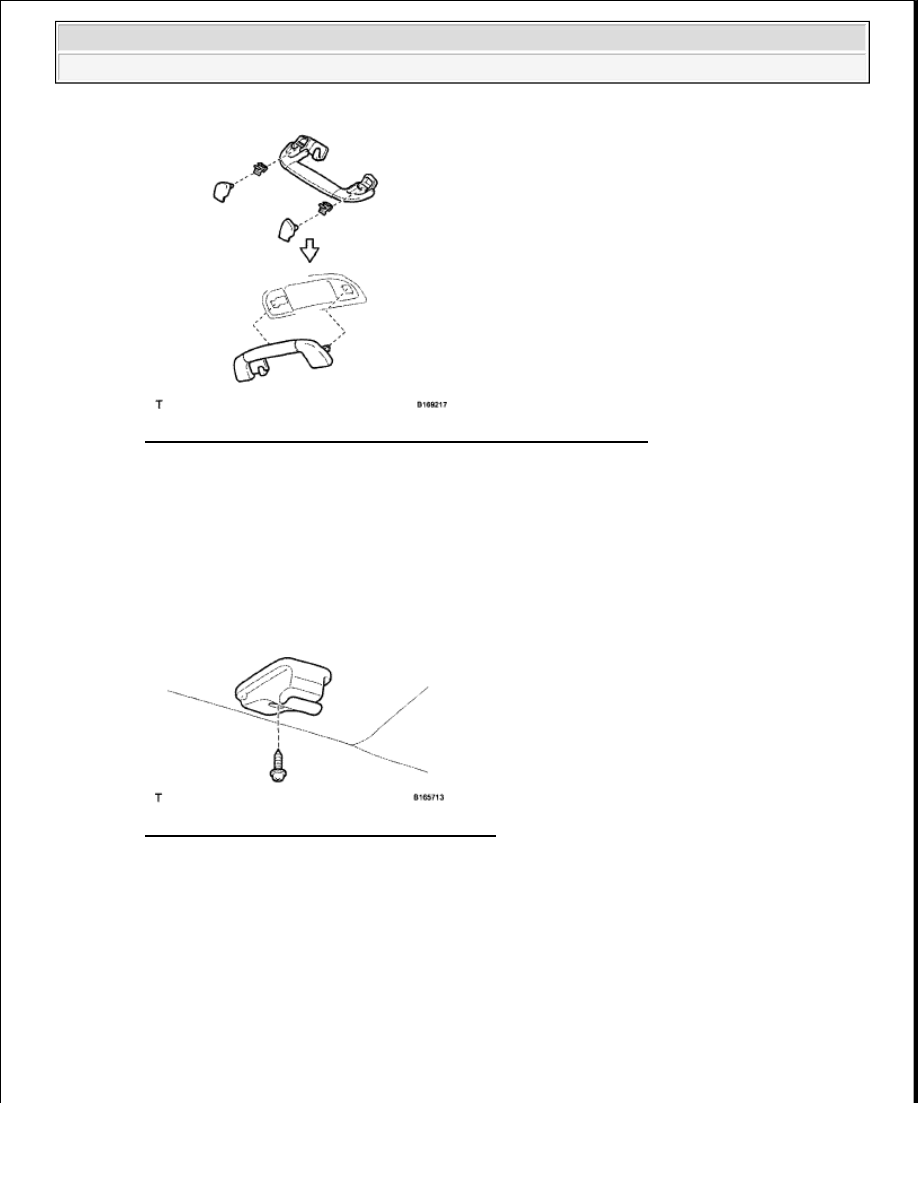

a. Install the 2 clips and 2 covers to the assist grip, as shown in the illustration.

b. Install the assist grip.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra

Fig. 117: Identifying Assist Grip Sub-Assembly Clips And Covers
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. INSTALL VISOR HOLDER (w/o Illumination)

HINT:

Use the same procedure to install the visor holder on the other side.

a. Install the visor holder with the screw.

Fig. 118: Identifying Screw And Visor Holder
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

5. INSTALL VISOR ASSEMBLY LH

a. w/o Illumination:

Install the visor.

1. Install the visor with the 3 screws.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra
