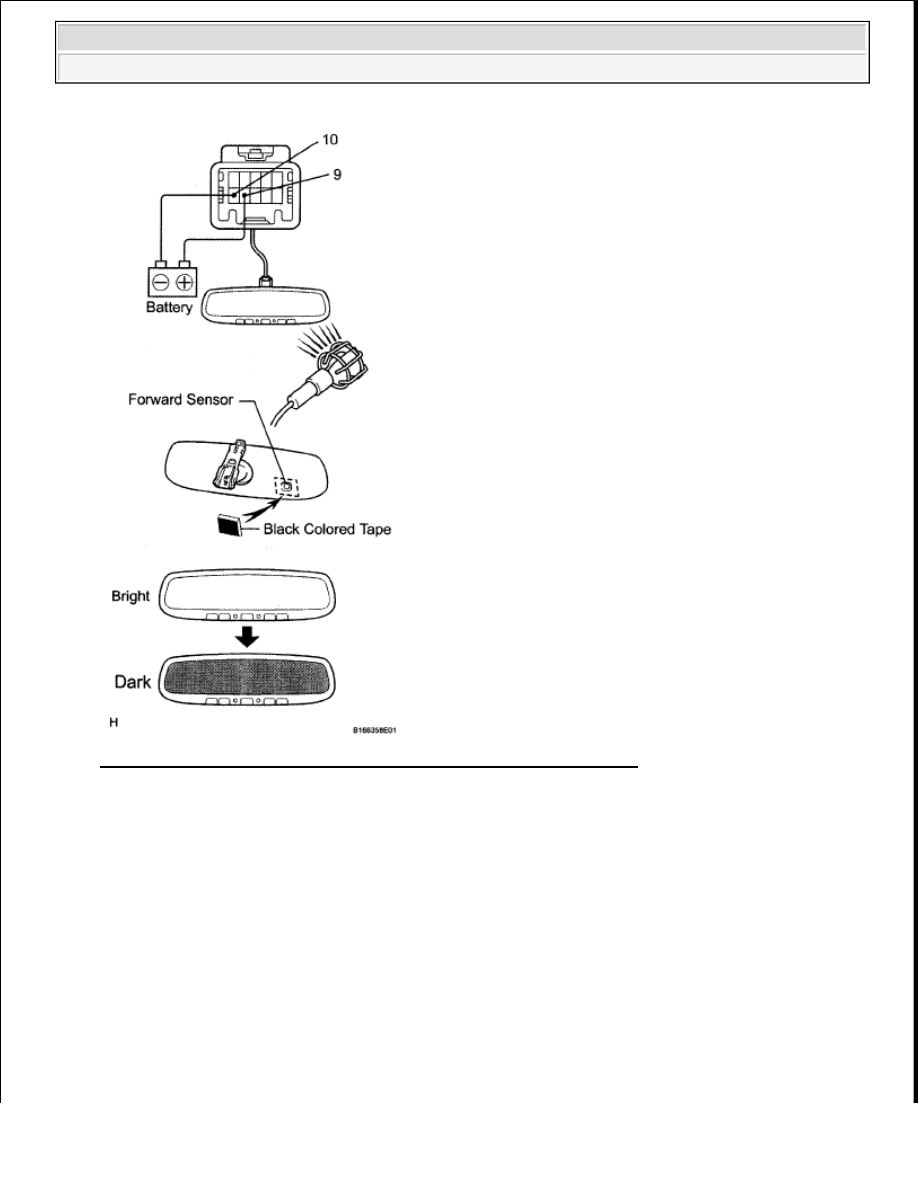

Fig. 51: Inspecting Inner Rear View Mirror Assembly (W/EC Mirror)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

a. Check operation of the electrochromic inner mirror.

1. Connect the battery positive (+) lead to terminal 9 and the negative (-) lead to terminal 10.

2. Attach black colored tape to the forward sensor to prevent it from sensing.

3. Shine an electric light on the mirror. Check that the mirror surface changes from bright to

dark.

HINT:

When the environment is very bright, the antiglare operation may occur immediately after the
tape is applied.

If the result is not as specified, replace the mirror assembly.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Mirror - Tundra

INSTALLATION

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)

a. Using a T20 "TORX" socket wrench, install the inner rear view mirror with the screw.

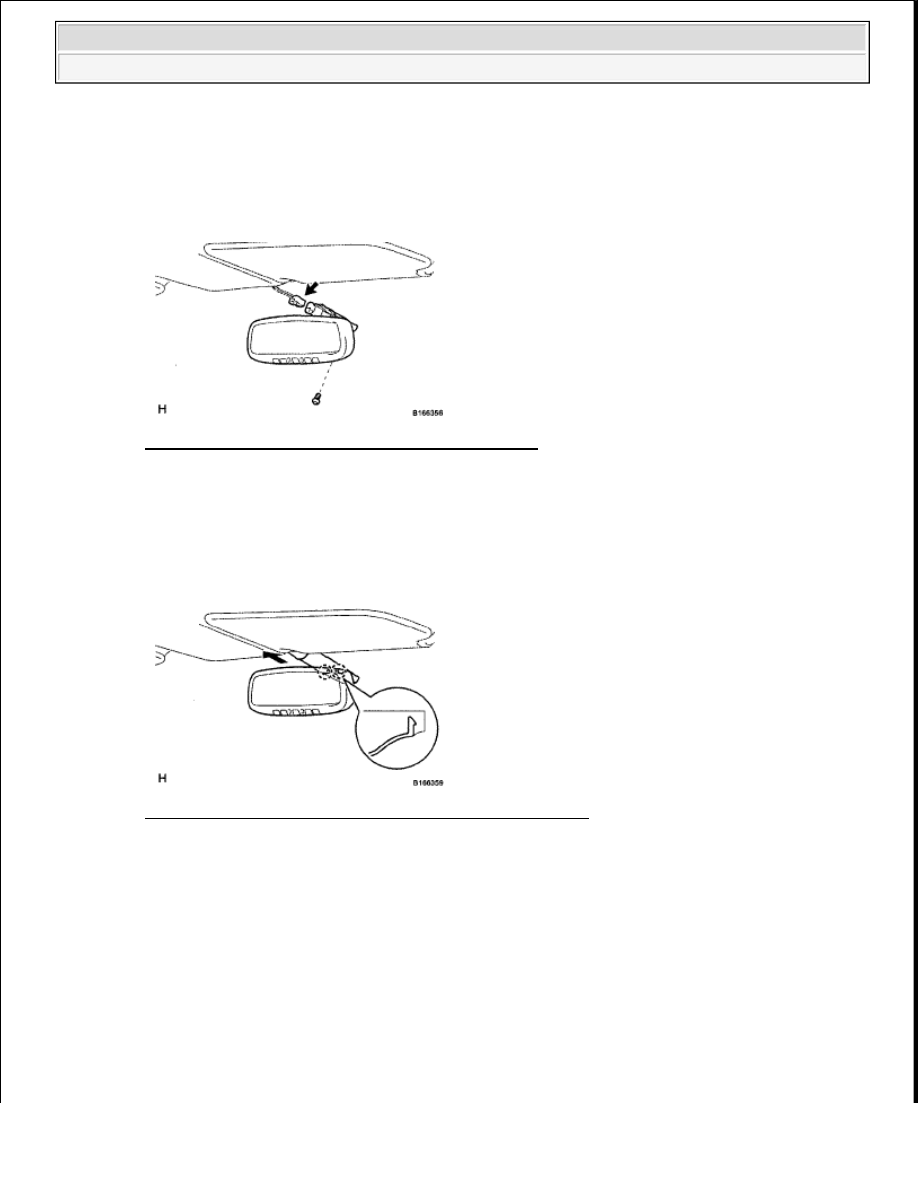

Fig. 52: Identifying Inner Rear View Mirror Screw
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Torque: 1.6 N*m (16 kgf*cm, 14 in.*lbf)

b. Connect the connector.

c. Attach the 2 claws to install the inner rear view mirror cover.

Fig. 53: Identifying Inner Rear View Mirror Cover Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)

a. Using a T20 "TORX" socket wrench, install the inner rear view mirror with the screw.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Mirror - Tundra

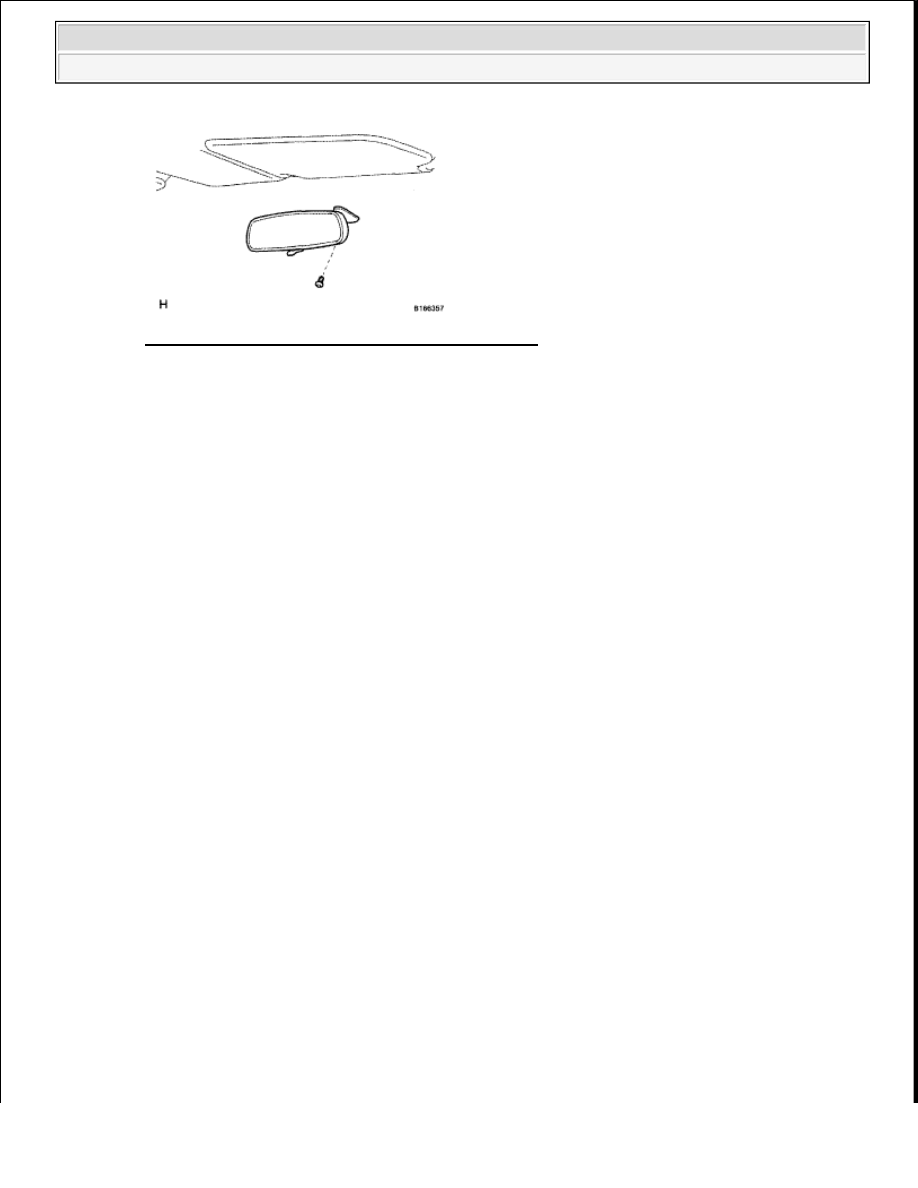

Fig. 54: Identifying Inner Rear View Mirror Screw
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Torque: 1.6 N*m (16 kgf*cm, 14 in.*lbf)

OUTER REAR VIEW MIRROR

COMPONENTS

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Mirror - Tundra

Fig. 55: Identifying Outer Rear View Mirror Replacement Components (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
