Fig. 44: Set Compass Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

6. ZONE SETTING MODE

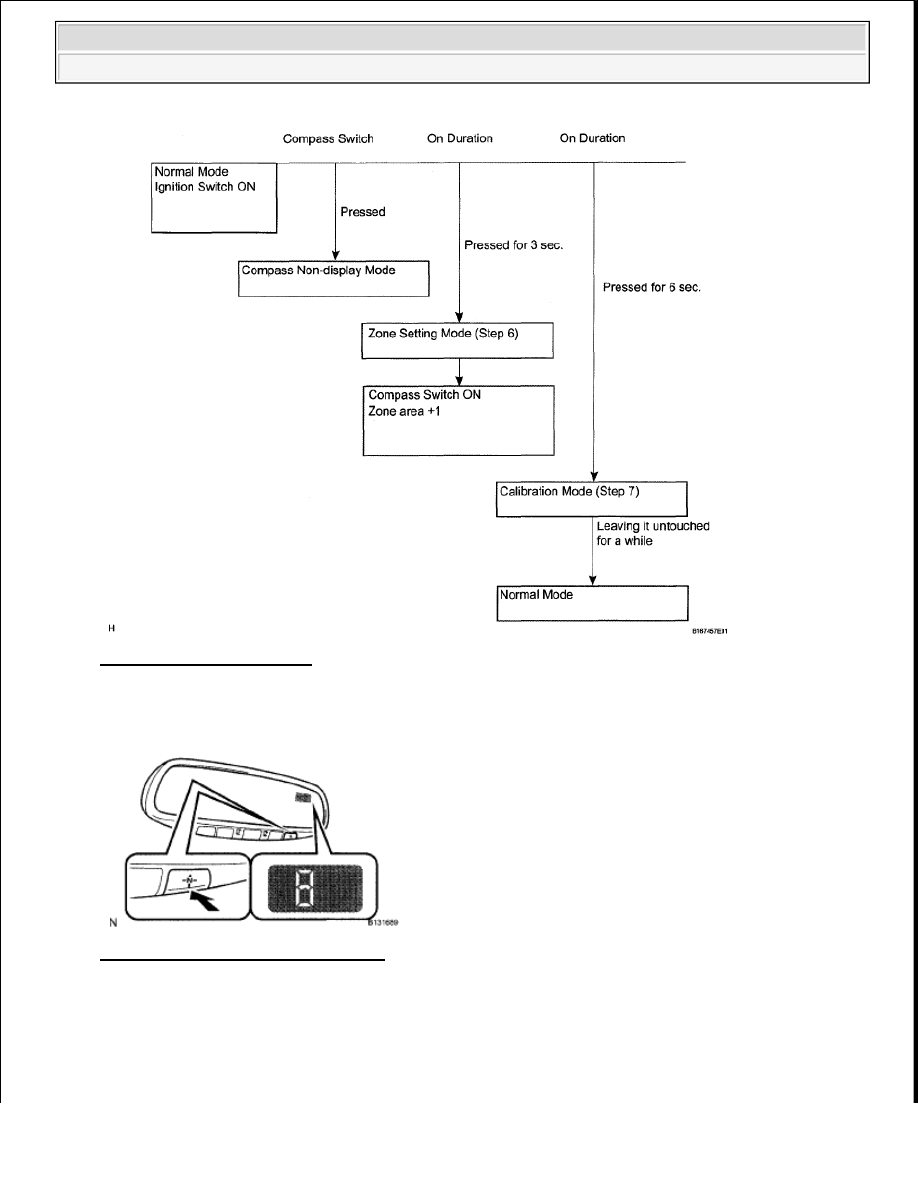

Fig. 45: Identifying Compass Display
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

a. Pressing the compass switch for 3 seconds in the normal mode will activate the zone setting mode.

A number (1 -15) is displayed on the compass display.

HINT:



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Mirror - Tundra































In the initial state, "8" is displayed.

b. The displayed number increases +1 every time the compass switch is pressed. Referring to the map,

check the number for the area where the vehicle will be used and set the zone number.

c. Leave it untouched for several seconds after setting and check that the compass display shows an

azimuthal direction (N, NE, E, SE, S, SW, W or NW) or "CAL".

7. CALIBRATION SETTING MODE

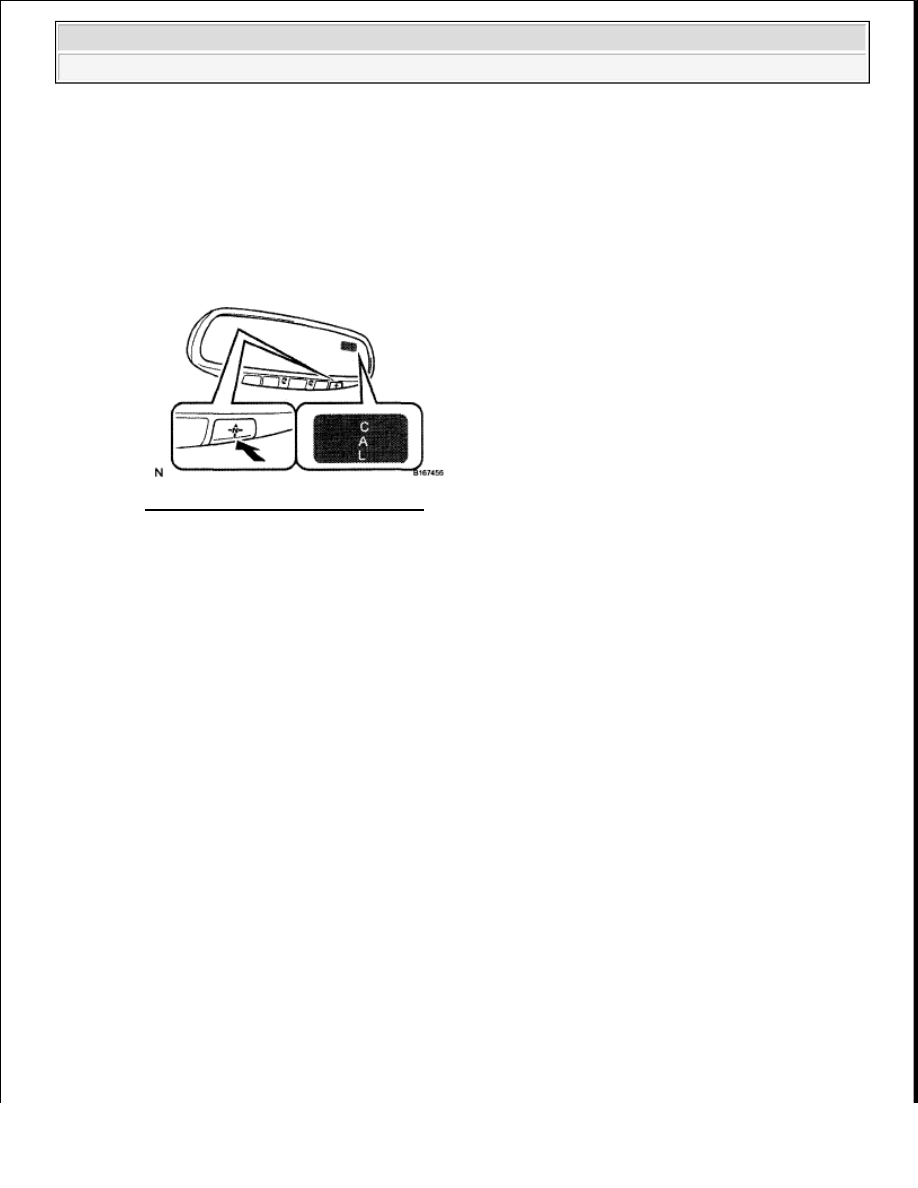

Fig. 46: Identifying Compass Switch
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

a. Pressing the compass switch for 6 seconds in the normal mode will activate the calibration setting

mode. "CAL" is displayed on the compass display.

b. Drive the vehicle at a slow speed of 8 km/h (5 mph) or less in a circular direction.

c. Driving in a circle 1 to 3 times will display the azimuthal direction on the display, completing the

calibration.

HINT:

After the calibration is completed, it is not necessary to perform the above procedures unless the
magnetic field strength is drastically changed. If this happens, the azimuthal display will be
changed to "CAL".

d. The zone setting numbers are as follows:



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Mirror - Tundra

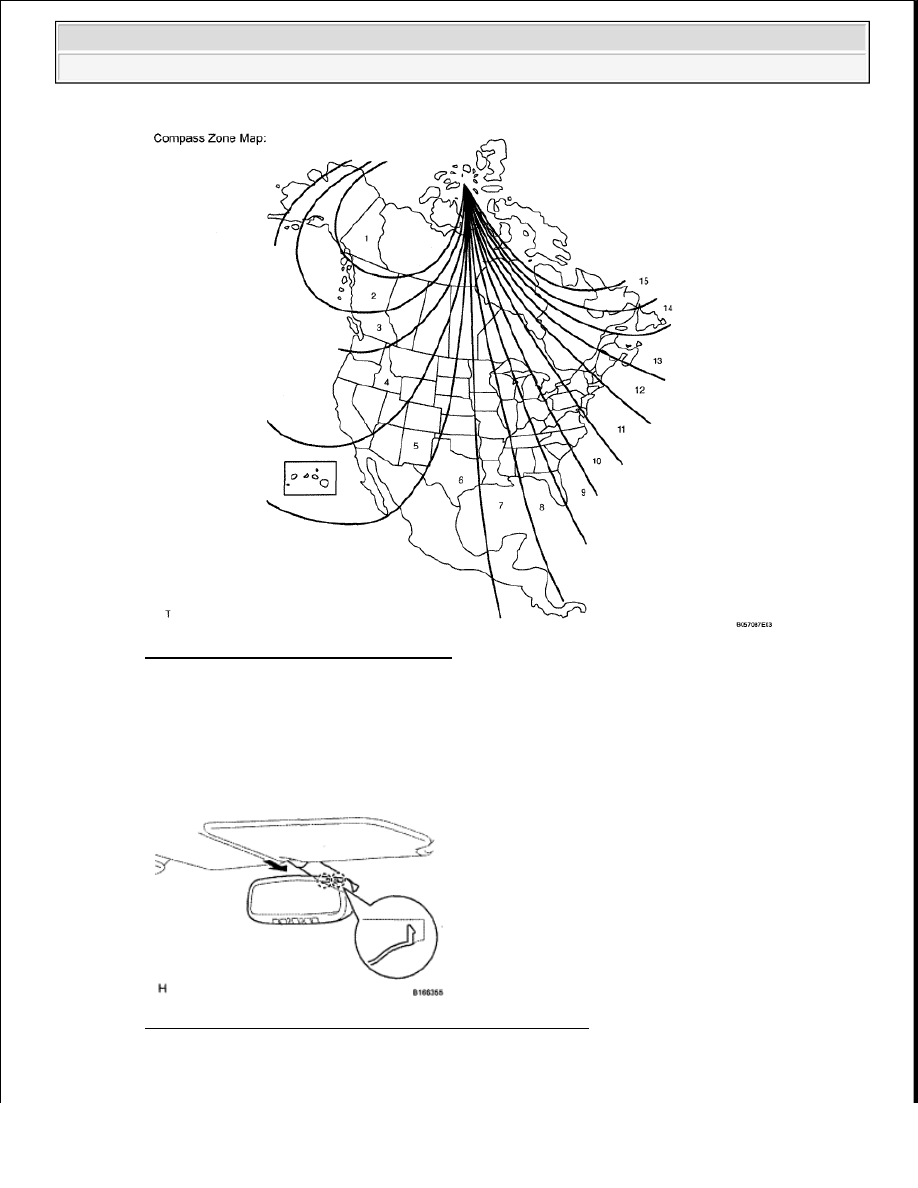

Fig. 47: Identifying Compass Zone Map
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)

a. Detach the 2 claws and remove the inner rear view mirror cover.

Fig. 48: Identifying Inner Rear View Mirror Cover Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Disconnect the connector.



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Mirror - Tundra































c. Using a T20 "TORX" socket wrench, remove the screw and inner rear view mirror.

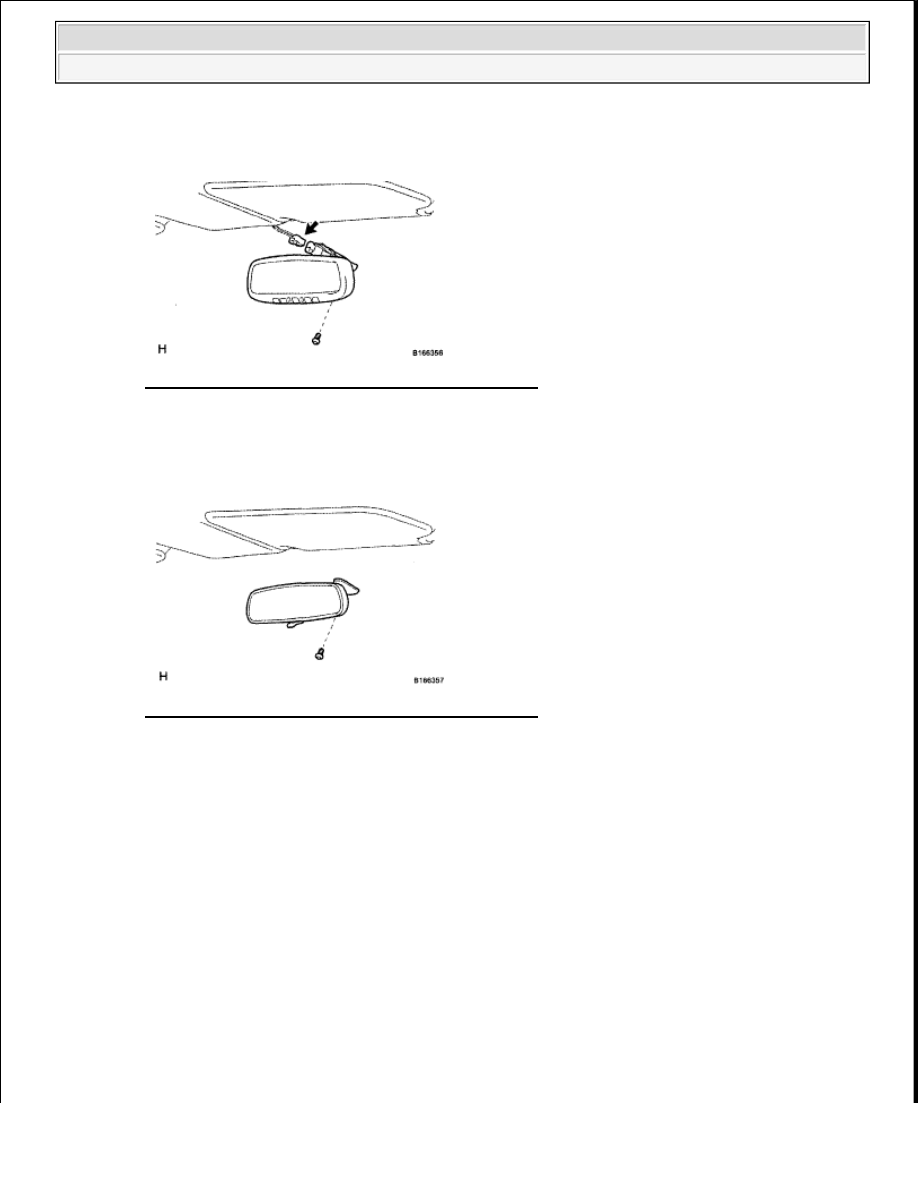

Fig. 49: Identifying Inner Rear View Mirror Screw
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)

a. Using a T20 "TORX" socket wrench, remove the screw and inner rear view mirror.

Fig. 50: Identifying Inner Rear View Mirror Screw
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSPECTION

1. INSPECT INNER REAR VIEW MIRROR ASSEMBLY (w/EC Mirror)



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Mirror - Tundra
