a. Connect the door control switch connector and power window regulator connector.

Fig. 93: Identifying Door Control Switch Connector And Power Window Regulator
Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Attach the 2 clips and 5 claws to install the armrest base panel.

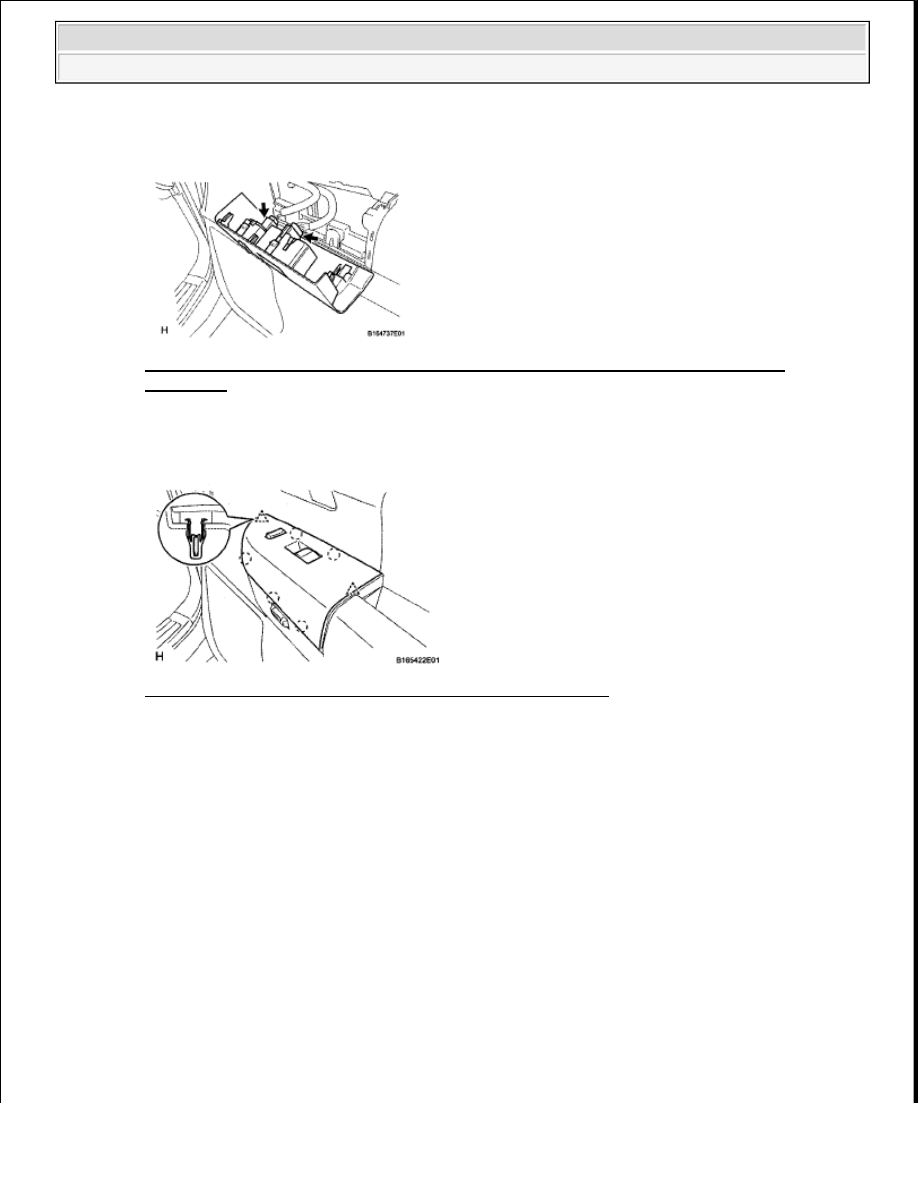

Fig. 94: Identifying Clips And Claws Of Armrest Base Panel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

UNLOCK WARNING SWITCH

COMPONENTS

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Door Lock - Tundra

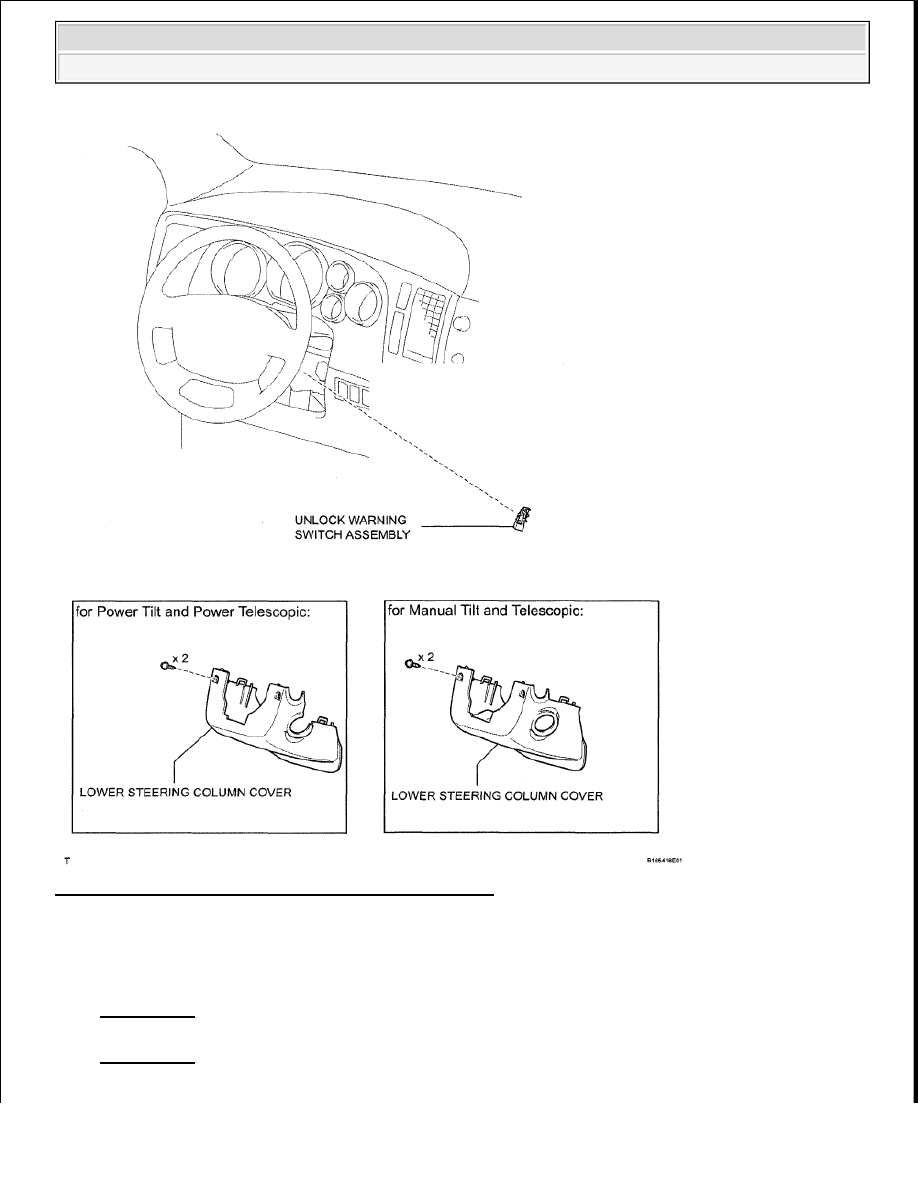

Fig. 95: Identifying Unlock Warning Switch Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. REMOVE LOWER STEERING COLUMN COVER (for Manual Tilt and Telescopic) (See

REMOVAL )

2. REMOVE LOWER STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See

REMOVAL )

3. REMOVE UNLOCK WARNING SWITCH ASSEMBLY

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Door Lock - Tundra

a. Disconnect the unlock warning switch connector.

Fig. 96: Identifying Unlock Warning Switch Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Detach the 3 claws and remove the cover.

c. Remove the contact pin cap.

d. Remove the unlock warning switch.

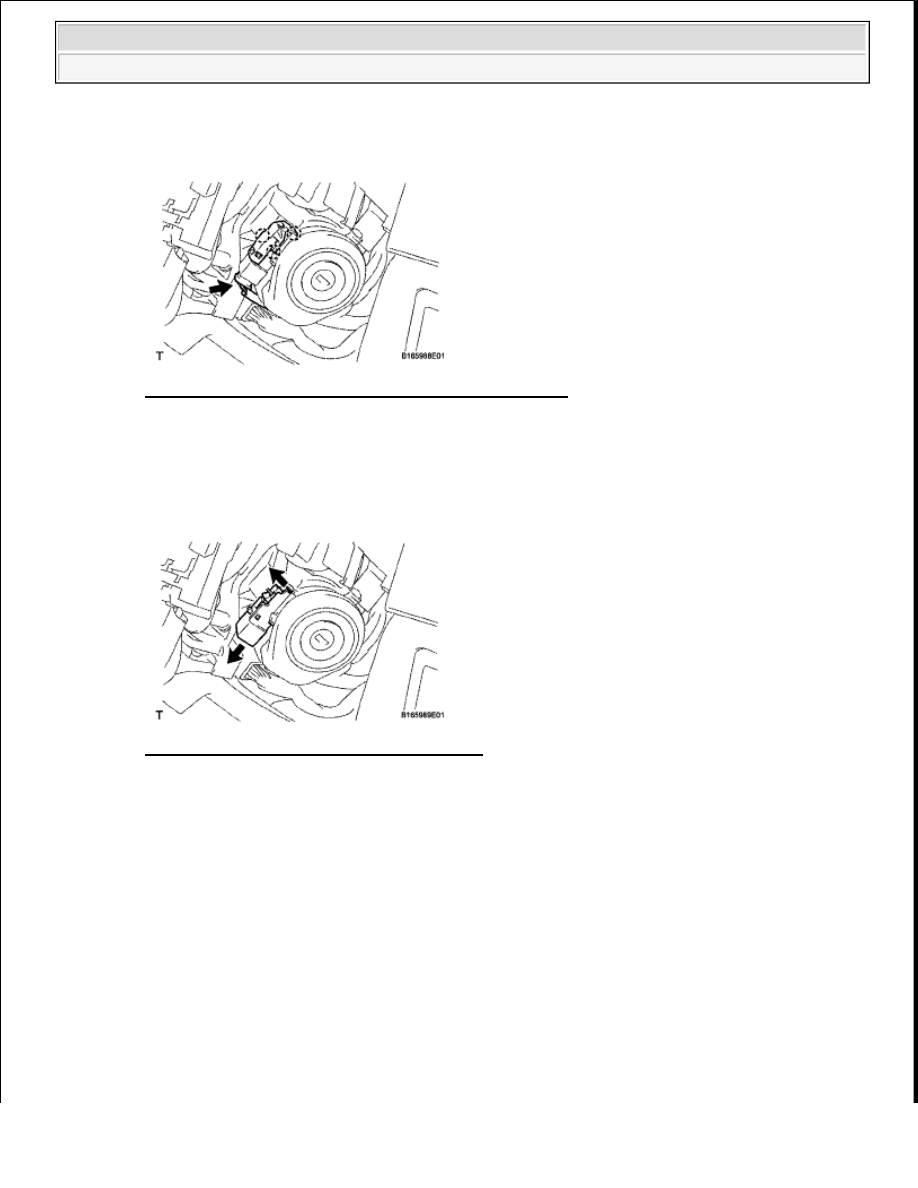

Fig. 97: Identifying Unlock Warning Switch
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSPECTION

1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Door Lock - Tundra

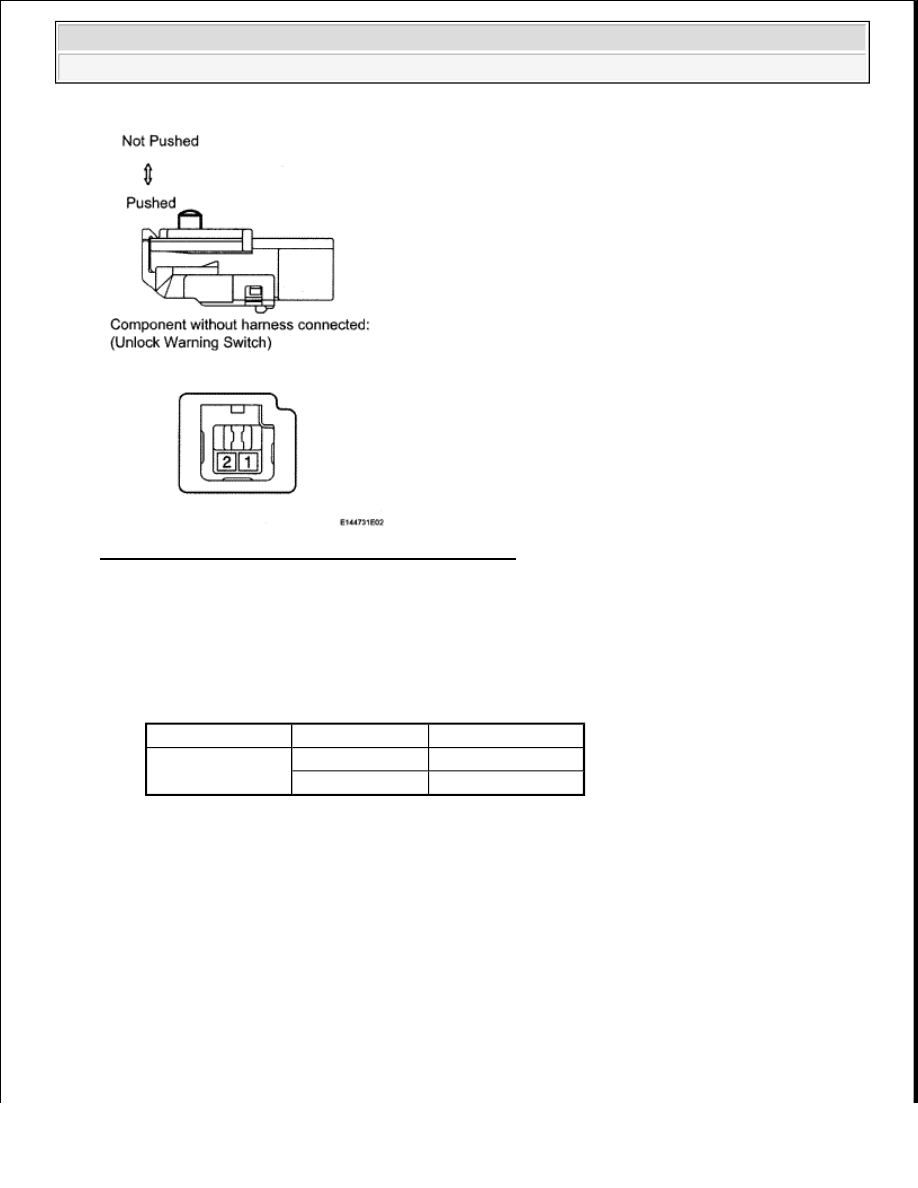

Fig. 98: Identifying Unlock Warning Switch Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

a. Measure the resistance according to the value(s) in the table below.

Standard resistance

UNLOCK WARNING SWITCH ASSEMBLY STANDARD RESISTANCE
SPECIFICATION

If the result is not as specified, replace the unlock warning switch assembly.

INSTALLATION

1. INSTALL UNLOCK WARNING SWITCH ASSEMBLY

Tester Connection Switch Condition Specified Condition

1 - 2

Not pushed

10 kohms or higher

Pushed

Below 1 ohms
