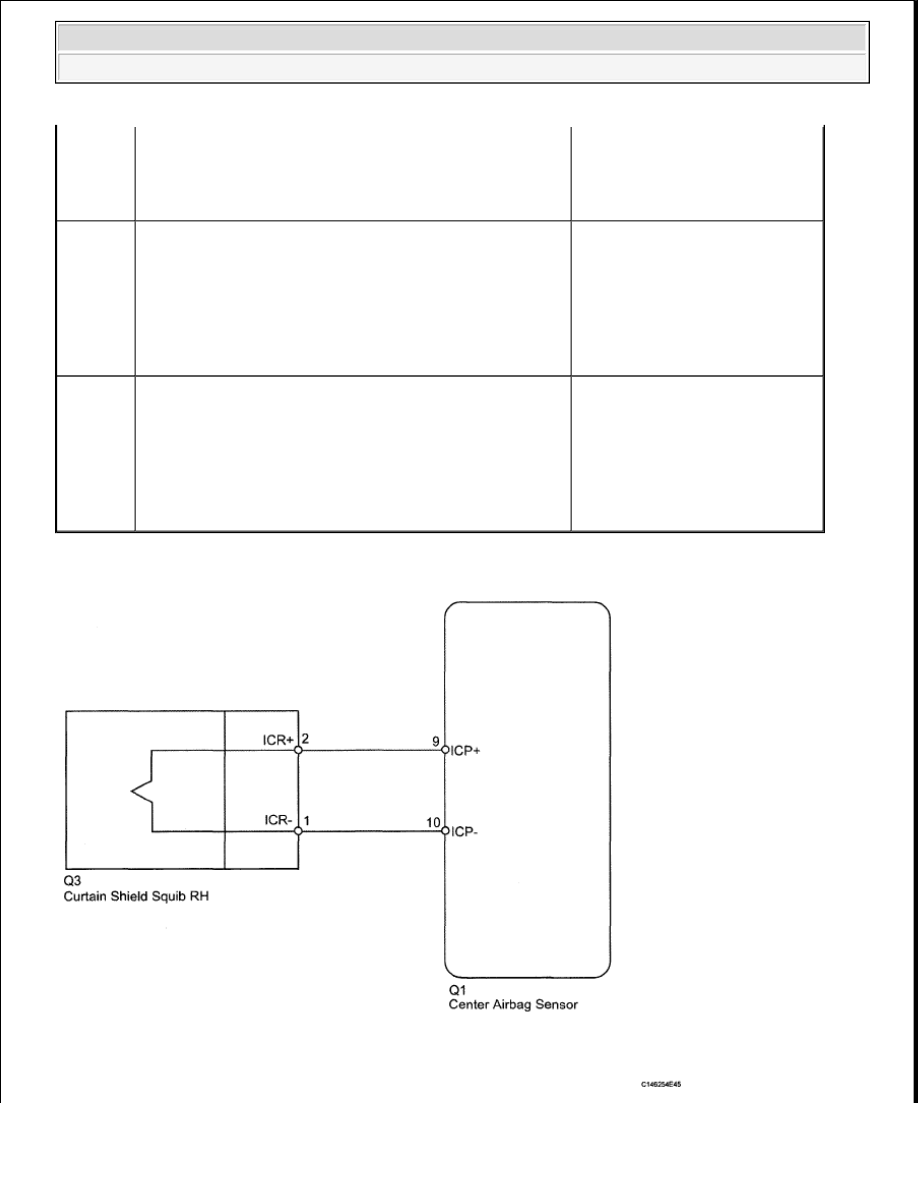

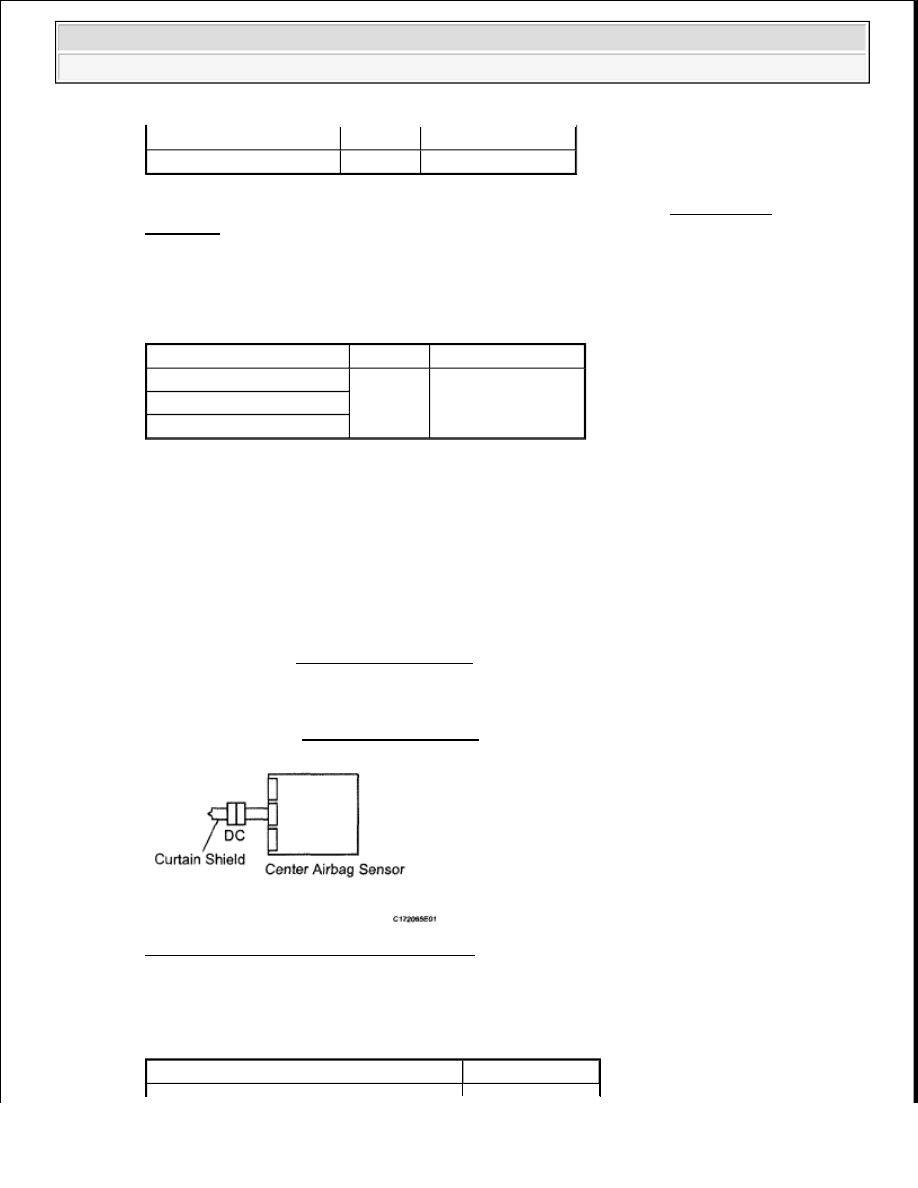

h. Release the activation prevention mechanism built into connector B (see DIAGNOSIS SYSTEM ). i. Measure the resistance according to the value(s) in the table below. Standard Resistance TESTER CONNECTION SPECIFIED CONDITION TABLE NG: REPLACE FLOOR WIRE OK: Go to next step 4. CHECK CENTER AIRBAG SENSOR a. Connect the connectors to the curtain shield airbag LH and the center airbag sensor. b. Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds. c. Turn the ignition switch ON, and wait for at least 60 seconds. d. Clear the DTCs (see DTC CHECK/CLEAR ). e. Turn the ignition switch OFF. f. Turn the ignition switch ON, and wait for at least 60 seconds. g. Check for DTCs (see DTC CHECK/CLEAR ). Fig. 175: Identifying Center Airbag Sensor Result RESULT TABLE Tester Connection Condition Specified Condition P3-1 (ICL-) - P3-2 (ICL+) Always Below 1 ohms Tester Connection Condition Specified Condition P3-1 (ICL-) - P3-2 (ICL+) Always 1 Mohms or higher P3-1 (ICL-) - Body ground P3-2 (ICL+) - Body ground Result Proceed to
2009 Toyota Tundra 2009 RESTRAINTS Supplemental Restraint System - Tundra
|
