Toyota Tundra. Manual - part 2504

Fig. 140: Identifying Personal Light Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Remove the 2 bulbs.

Fig. 141: Identifying Personal Light Bulbs
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REASSEMBLY

HINT:

When only replacing the personal light bulbs, use the following procedures.

1. INSTALL PERSONAL LIGHT BULB

a. Install the 2 bulbs.

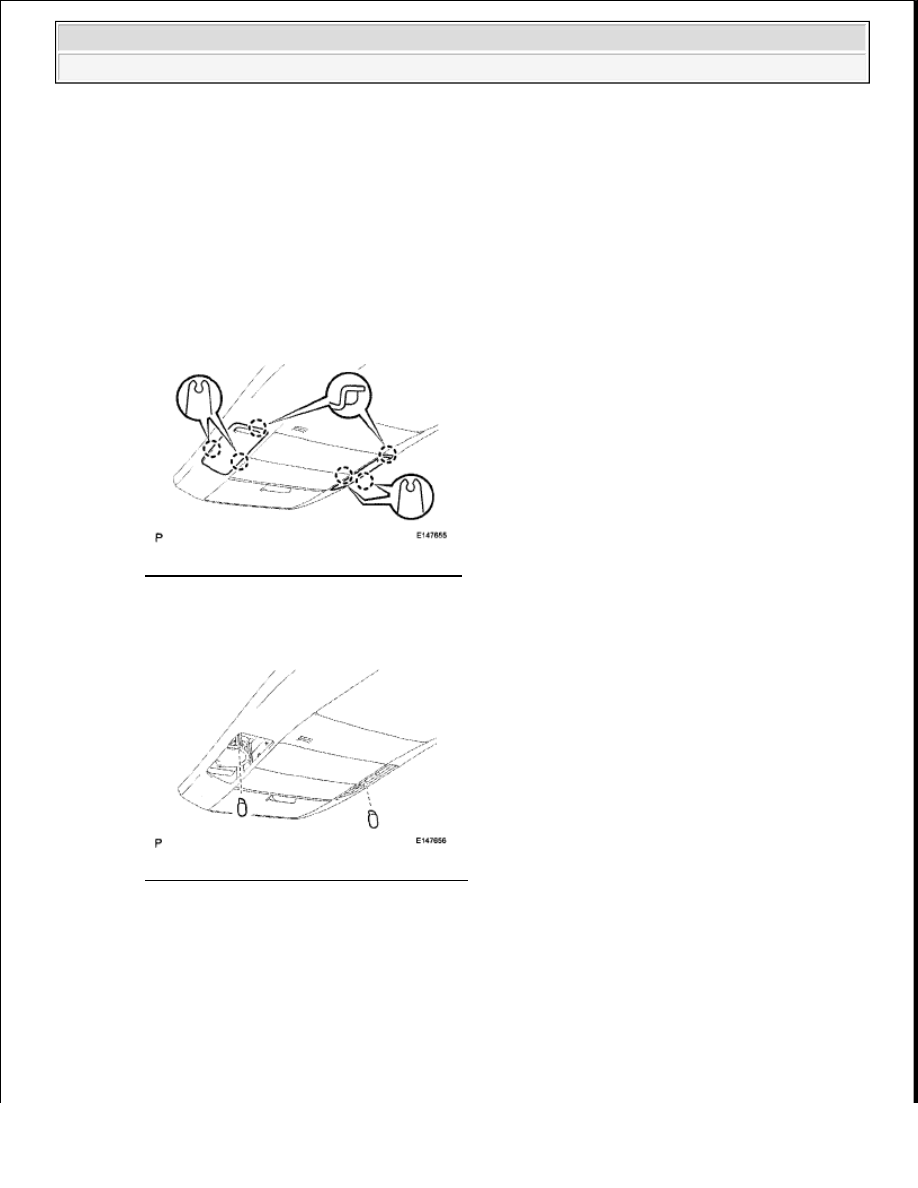

Fig. 142: Identifying Personal Light Bulbs
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Lighting - Tundra

b. Attach the 6 claws to install the 2 personal light lenses.

Fig. 143: Identifying Personal Light Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSTALLATION

1. INSTALL ROOF CONSOLE BOX ASSEMBLY (See INSTALLATION )

PERSONAL LIGHT ASSEMBLY (FOR LONG TYPE OVERHEAD CONSOLE
BOX)

COMPONENTS

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Lighting - Tundra

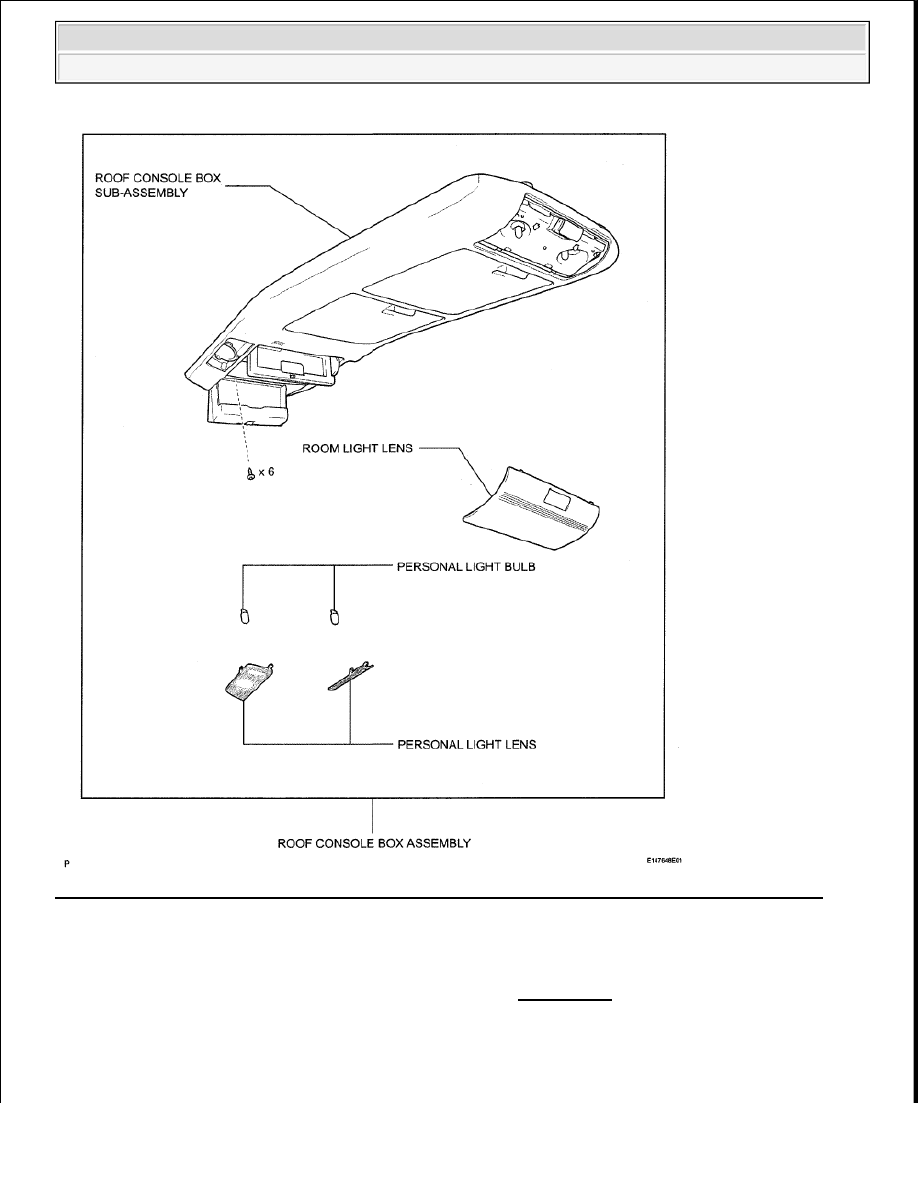

Fig. 144: Identifying Personal Light Assembly (For Long Type Overhead Console Box) Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. REMOVE ROOF CONSOLE BOX ASSEMBLY (See REMOVAL )

DISASSEMBLY

HINT:

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Lighting - Tundra

When only replacing the room light bulbs, use the following procedures.

1. REMOVE PERSONAL LIGHT BULB

a. Using a screwdriver, detach the 6 claws.

HINT:

Tape the screwdriver tip before use.

b. Remove the 2 personal light lenses.

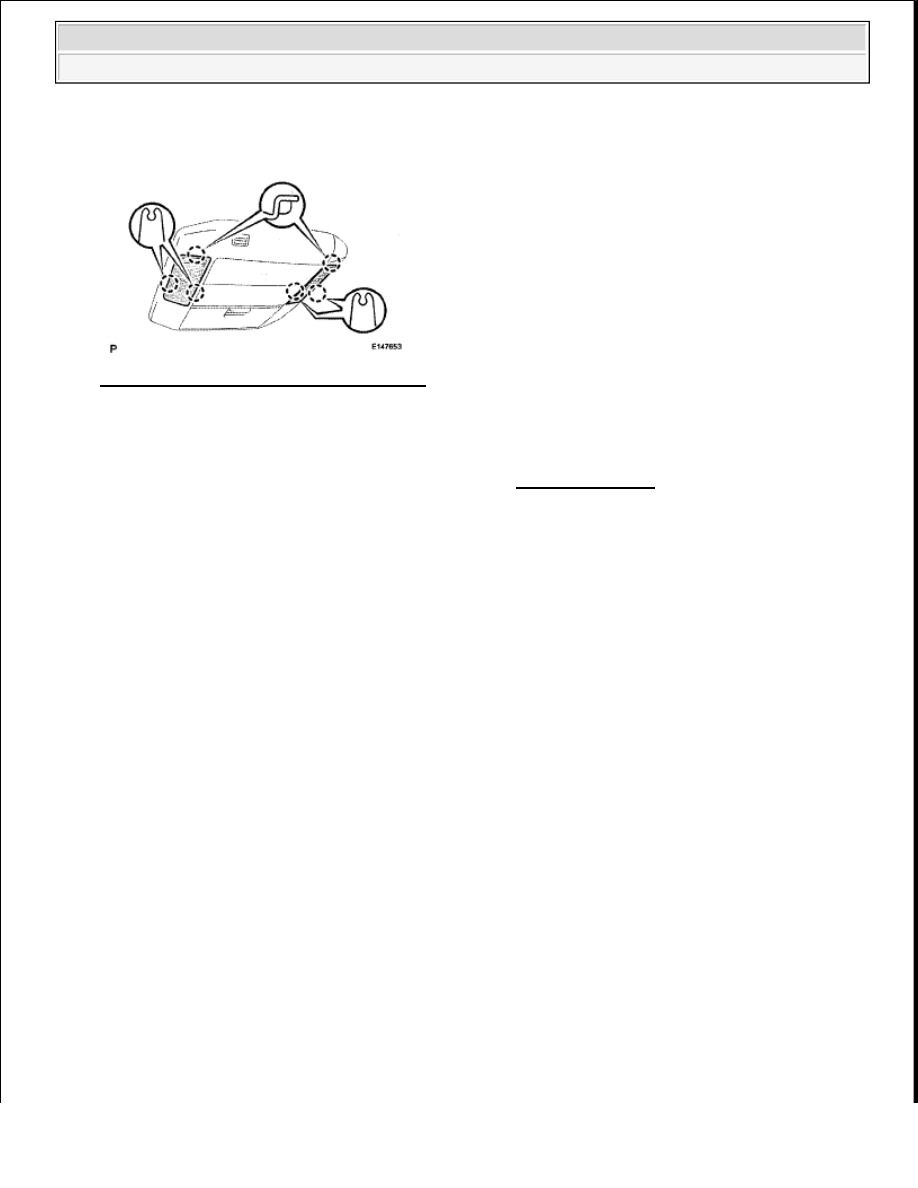

Fig. 145: Identifying Personal Light Lens
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Remove the 2 bulbs.

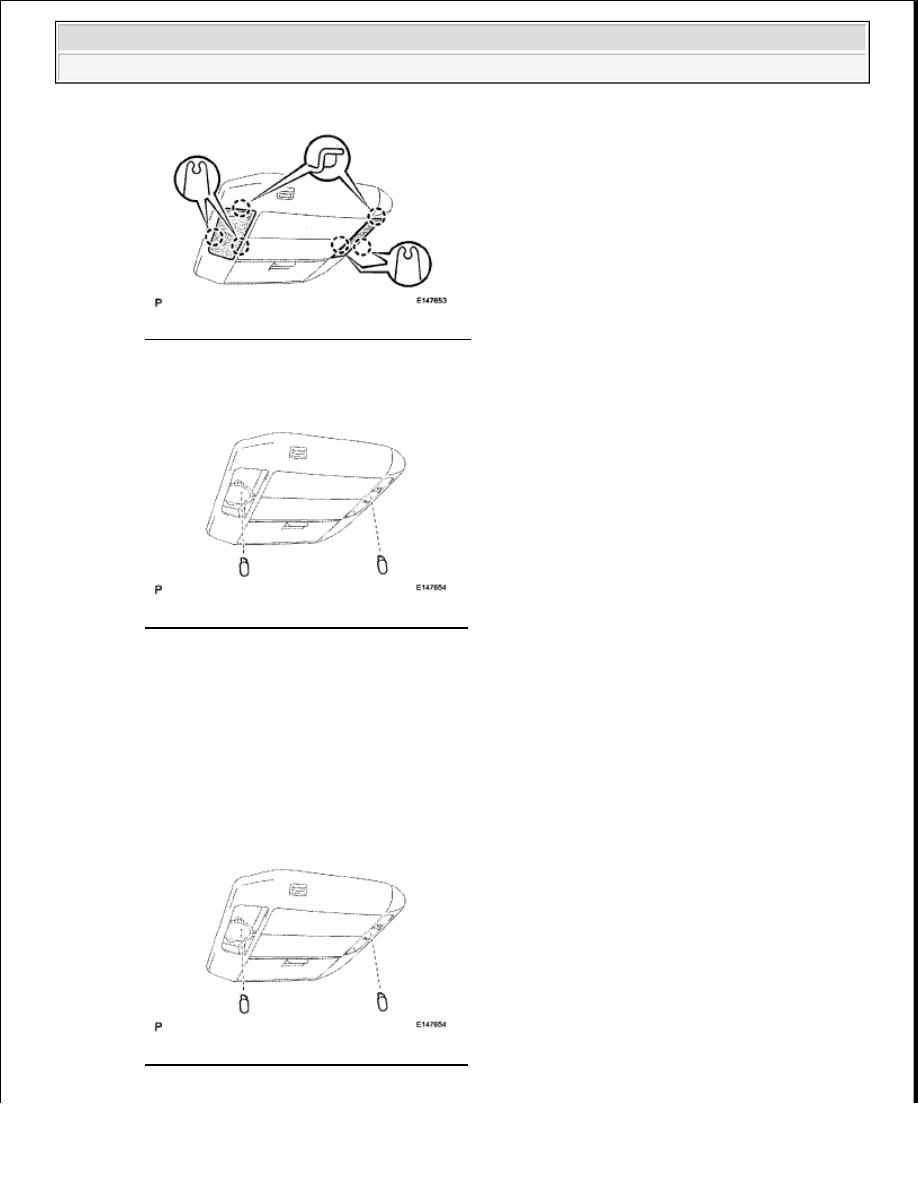

Fig. 146: Identifying Personal Light Bulbs
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REASSEMBLY

HINT:

When only replacing the room light bulbs, use the following procedures.

1. INSTALL PERSONAL LIGHT BULB

a. Install the 2 bulbs.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Lighting - Tundra
