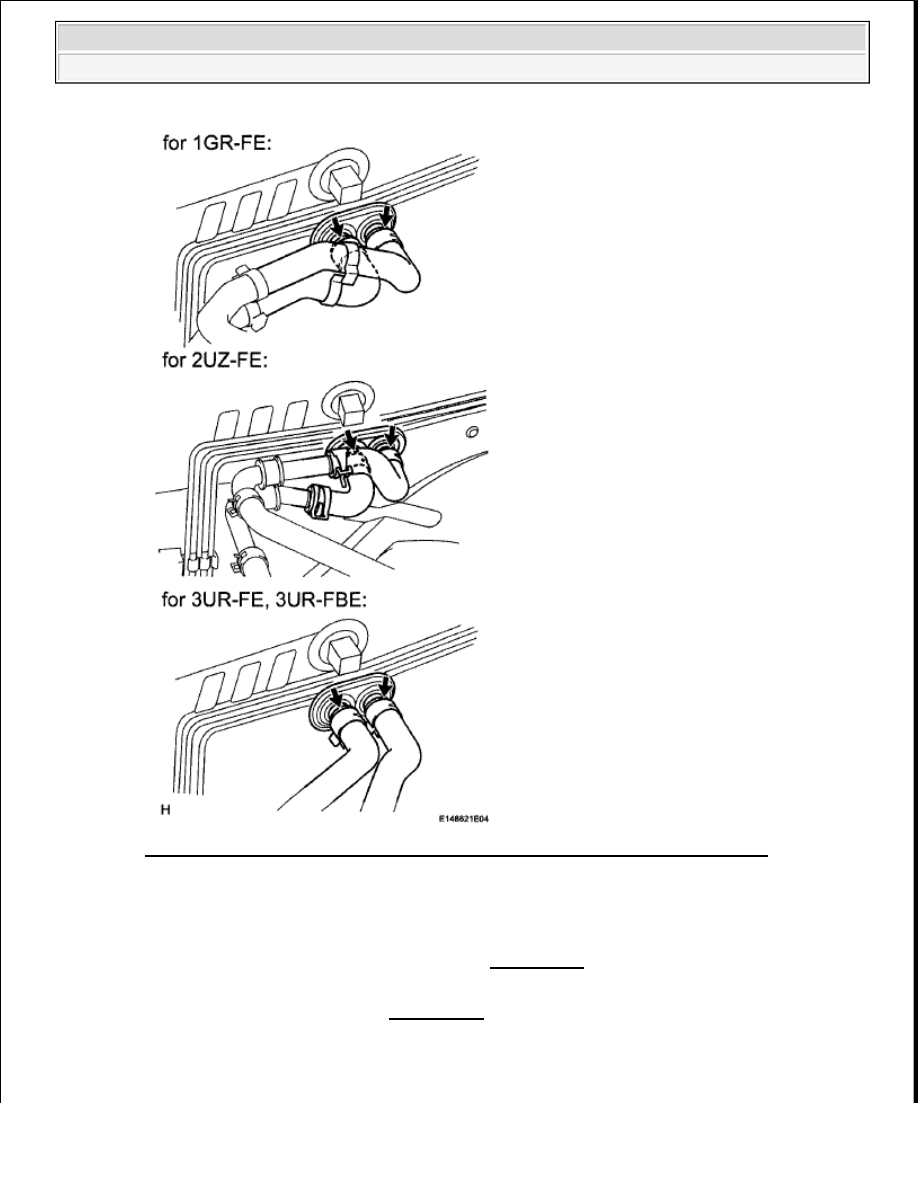

Fig. 168: Locating Inlet Heater Water Hose And Outlet Heater Water Hose Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Disconnect the 2 heater water hoses.

7. REMOVE FRONT WIPER MOTOR AND BRACKET

a. Remove the front wiper motor and bracket (see REMOVAL ).

8. REMOVE STEERING COLUMN ASSEMBLY

a. Remove the steering column (see REMOVAL ).

9. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY

a. for Column Shift Type:

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

Remove the instrument panel (see REMOVAL ).

b. for Floor Shift Type:

Remove the instrument panel (see REMOVAL ).

10. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY

a. Disconnect the clamps, connectors and wire harness.

b. Remove the 8 bolts, 2 screws and 4 nuts.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

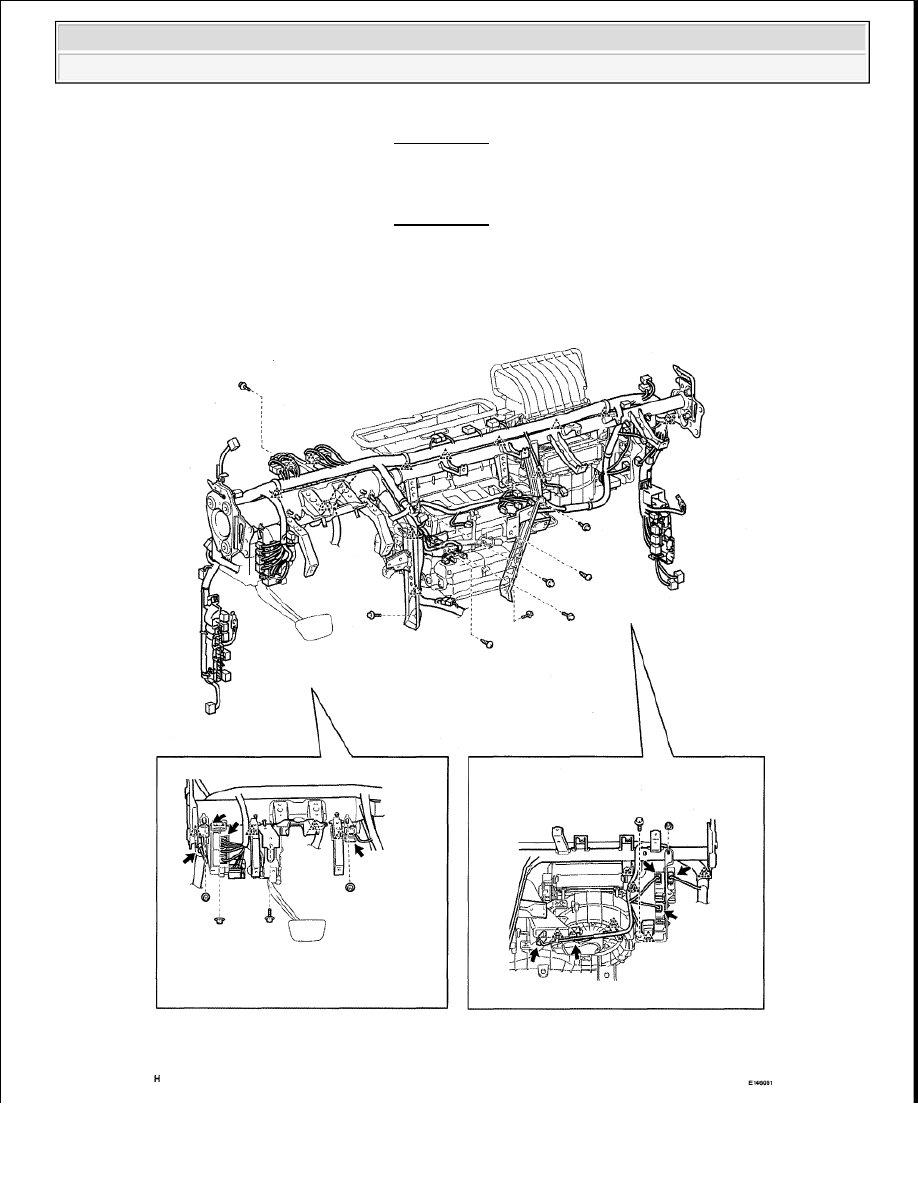

Fig. 169: Identifying Instrument Panel Reinforcement Assembly Bolts, Screws And Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Remove the instrument panel reinforcement.

1. Driver side:

Remove the 3 bolts and 3 caps.

2. Passenger side:

Using a T40 "TORX" socket, remove the 2 "TORX" bolts.

HINT:

When removing the bolts, the collars may come off with the bolts.

3. Passenger side:

Using a 12 mm hexagon wrench, remove the 2 collars.

Fig. 170: Identifying Instrument Panel Reinforcement Collar And Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

11. REMOVE AIR CONDITIONING UNIT

a. Remove the nut and air conditioning unit.

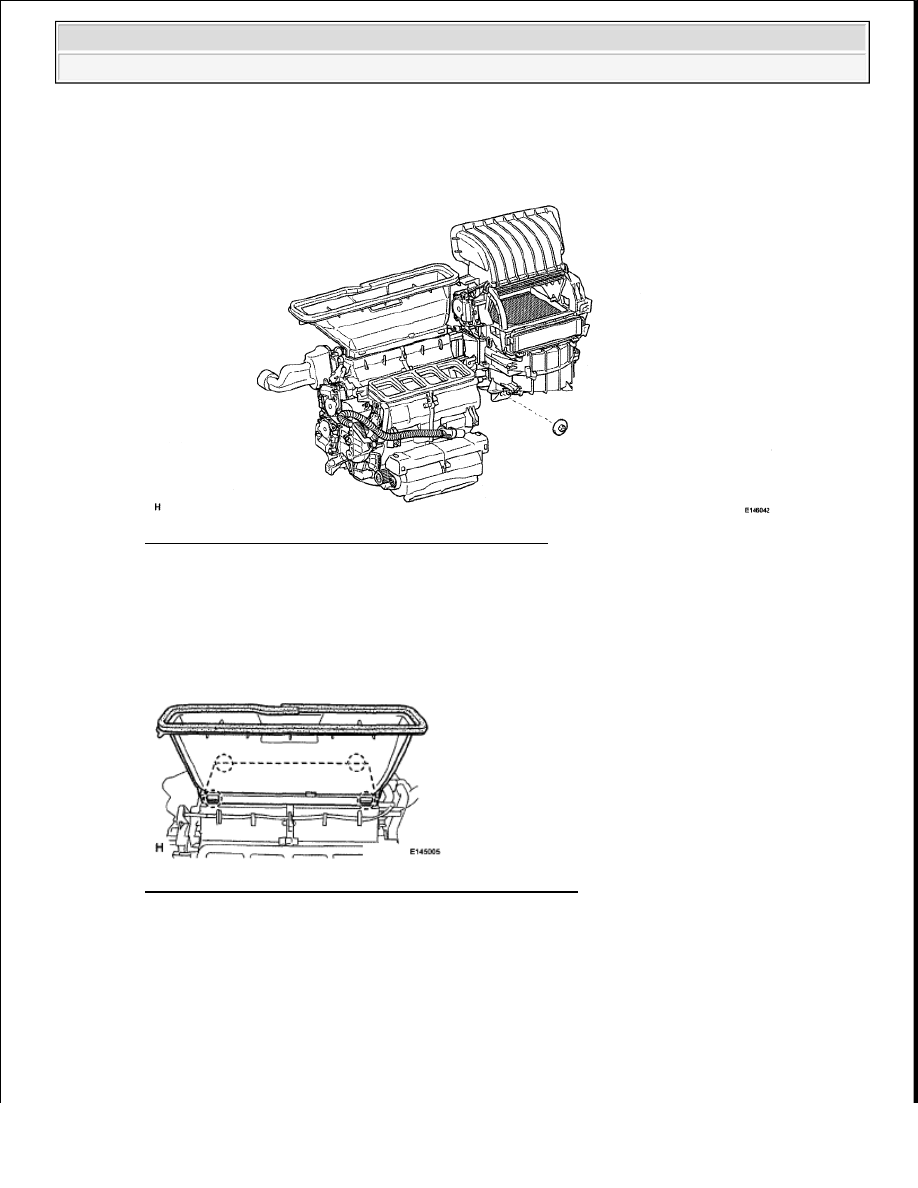

Fig. 171: Identifying Air Conditioning Unit And Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

DISASSEMBLY

1. REMOVE LOWER DEFROSTER NOZZLE ASSEMBLY

a. Detach the 4 claws and remove the nozzle.

Fig. 172: Identifying Lower Defroster Nozzle And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. REMOVE NO. 3 AIR DUCT SUB-ASSEMBLY

a. Detach the 4 claws and remove the duct.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra
