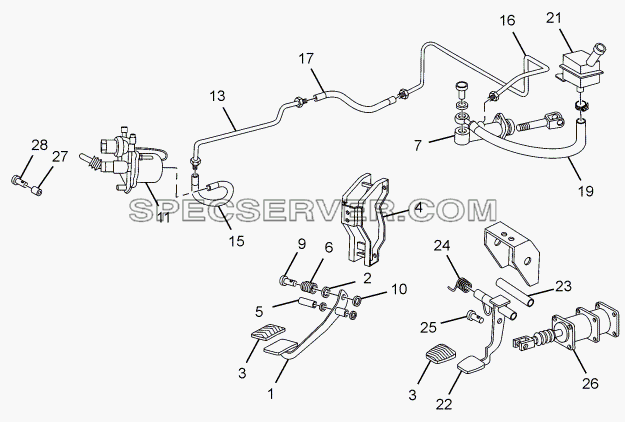

Запчасти: PEDALS(TILT CAB) для LPT 1618 ТС/52

PEDALS(TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

PEDALS(TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 14270201700 HOSE CLIP 17
- 264129100155 MAJOR REPAIR KIT CLUTCH MASTER CYLINDER, CONSISTING OF :
- 264129100156 MINOR REPAIR KIT CLUTCH MASTER CYLINDER
- 265129103401 SINTERED BUSH
- 265430107701 RUBBE STOPPER
- 275429106007 CLUTCH RELEASE LEVER
- 280929100113 MAJOR REPAIR KIT CLUTCH BOOSTER(70 DIA)
- 280929100114 MINOR REPAIR KIT CLUTCH BOOSTER(70 DIA)
- 280929350103 ASSY,BRACKET (CLUTCH BOOSTER MTG.)
- AIR PROOF GASKET
- AIR PROOF GASKET
- AIR PROOF GASKET
- AIR PROOF GASKET
- AIR SEAL
- BANJO BOLT
- CIRCLIP
- CIRCLIP
- CIRCLIP
- CRIMPING SLEEVE
- CUP SEAL
- CUP SEAL
- CUP SEAL
- CUP SEAL
- FORK
- GAITER
- GASKET
- GASKET
- HYDRAULIC PISTON
- MAIN AIR SEAL
- MAIN AIR SEAL
- MINOR KIT CLUTCH M/CYL
- O RING 12X2
- O RING 12X2
- O RING 14X2.2
- O RING 14X2.2
- O RING 19X2.5
- OIL RING 29X3.4
- OIL RING 29X3.4
- PUSH ROD
- PUSH ROD ASSY
- RUBBER BELLOW
- RUBBER PIPE
- SEAL
- SEAL
- SEAL
- SEAL
- SEAL
- SEAL
- SPRING
- SPRING
- SPRING CLIP
- VALVE POPPET
- WASHER
1 264329100133 ASSY. CLUTCH PEDAL COMPLETE
2 265129103401 SINTERED BUSH
3 265129107703 RUBBER COVER
4 264129100112 ASSY. SUPPORT COMPLETE
5 264129108602 SPACER
6 264129108701 TORSION SPRING
7 264129100153 ASSY. CLUTCH MASTER CYLINDER 19.05 DIA.
9 257329209904 CLUTCH PEDAL PIN
10 264129106301 BUSH (CLUTCH PEDAL)
11 287629100101 ASSY. CLUTCH BOOSTER 70 DIA.
13 280929100118 ASSY. TUBE
15 269929100169 ASSY. HOSE
16 280929100117 ASSY. TUBE
17 264129100199 ASSY. HOSE
17 264129110101 ASSY. HOSE
19 264129100175 ASSY.CONNECTING LINE
21 264129100182 ASSY. FLUID CONTAINER
22 280929100103 ASSY. BRAKE PEDAL COMPLETE
23 264129109902 SLEEVE
24 264129108701 TORSION SPRING
25 264129106703 BRAKE PIN
26 264143700102 ASSY. DUAL BRAKE VALVE
27 275129506301 BUSH
28 257329209904 CLUTCH PEDAL PIN

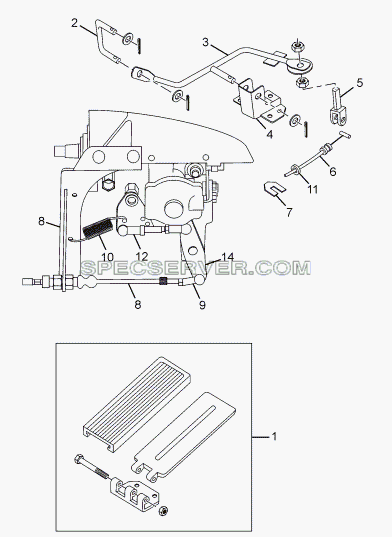

Запчасти: ACCELERATOR(TILT CAB) для LPT 1618 ТС/52

ACCELERATOR(TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

ACCELERATOR(TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 280930100101 ASSY. PEDAL PLATE WITH COVER
2 264130106004 LINK ROD
3 280930100103 ASSY. PEDAL LEVER (ACCELERATOR)
4 207430100105 ASSY. BRACKET WITH BUSH
5 264130109902 FORK
6 280930100104 ASSY. PULL CABLE (ACCELERATOR)
7 265142804201 HOLDER BRAKE HOSE
8 207430100102 ASSY. ACCELERATOR CABLE MTG. BRACKET
9 17271201001 BALL END B 10
10 259934108701 JAW SPRING
11 257343107502 RUBBER GROMMET
12 207430100101 ASSY. PULL ROD
14 207430100104 ASSY. INTERMEDIATE LEVER ACC. CONTROL

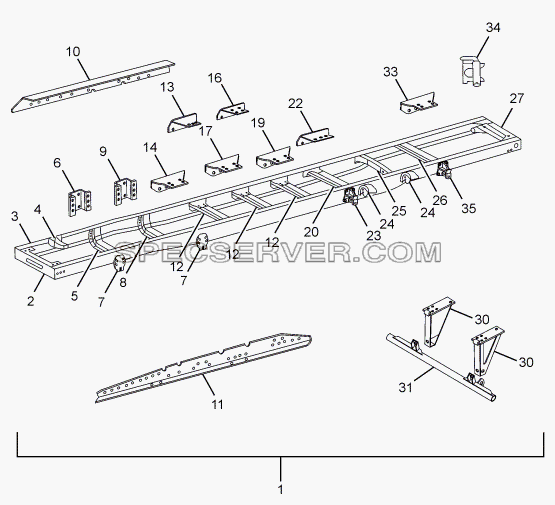

FRAME для LPT 1618 ТС/52 (список запасных частей)

FRAME для LPT 1618 ТС/52 (список запасных частей)

FRAME для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 257631506701 COUPLING PIN
- 278231700102 ASSY SUPPORT(LH)
- 278231700103 ASSY SUPPORT(RH)
- 280931207106 INTERMEDIATE PLATE
1 280931000102 ASSY. FRAME
2 280931200101 ASSY. BUMPER CROSS MEMBER
3 278231200129 ASSY. GUSSET -RH
3 278231200130 ASSY. GUSSET -LH
4 280931200107 ASSY. BRACKET -RH (RADIATOR MOUNTING)
4 280931200108 ASSY. BRACKET -LH (RADIATOR MOUNTING)
5 277031200115 ASSY. ENGINE CROSS MEMBER FRONT
6 280931200102 ASSY. SUPPORT (ENG. C/M FRONT)
7 257632103304 FRONT SPRING BRACKET FRONT & REAR (FOR FRONT SPRING)
8 280931200105 ASSY. ENGINE CROSS MEMBER REAR
9 280931200103 ASSY. SUPPORT (ENG. C/M REAR)
10 280931307114 REINFORCEMENT TOP RH (ENGINE CROSS MEMBER REAR)
10 280931307115 REINFORCEMENT TOP LH (ENGINE CROSS MEMBER REAR)
11 280931307107 REINFORCEMENT BOTTOM LH (ENGINE CROSS MEMBER REAR)
11 280931307108 REINFORCEMENT BOTTOM RH (ENGINE CROSS MEMBER REAR)
12 260031207105 CROSS MEMBER 4TH/5TH/6TH
13 278231307113 SUPPORT TOP RH (FOR 4TH C. M)
13 278231307114 SUPPORT TOP LH (FOR 4TH C. M)
14 280931307103 SUPPORT BOTTOM (FOR 4TH C. M)
16 257631307138 SUPPORT TOP(5TH/6TH C. M)
17 257631307130 SUPPORT BOTTOM (FOR 5TH C. M)
19 280931307102 SUPPORT BOTTOM (FOR 6TH C. M)
20 280931200112 ASSY.CROSS MEMBER REAR SPRING( 7TH C.M.)
22 280931307101 BOTTOM SUPPORT ( SPRING C.M. REAR FRONT)
23 278232403304 REAR SPRING BRACKET FRONT
24 257632403309 HELPER SPRING BRACKET
25 280931200106 ASSY.CROSS MEMBER( SHOCK ABSORBER REAR)
26 276831200114 ASSY.SPR.CROSS MEMBER W/T SUPP.( 9TH C.M. RE.MTG.)
27 280931200113 ASSY.END CROSS MEMBER (195 DEEP TAIL END)
30 280931700101 ASSY. BRACKET RH(RUPD)
30 280931700102 ASSY. BRACKET LH(RUPD)
31 278231700111 ASSY.REAR UNDERRUN PROTCTION DEVICE
33 206731207178 SUPPORT( REAR SPRING CROSS MEMBERS)
34 280931500101 TOW COUPLING
35 257632403311 REAR SPRING BRACKET REAR

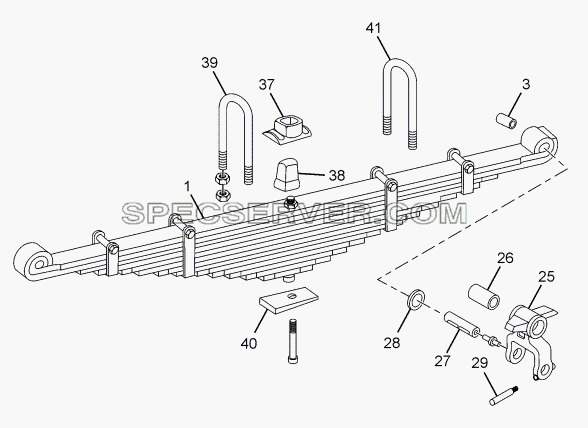

FRONT SPRING AND SUSPENSION для LPT 1618 ТС/52 (список запасных частей)

FRONT SPRING AND SUSPENSION для LPT 1618 ТС/52 (список запасных частей)

FRONT SPRING AND SUSPENSION для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 278232100130 ASSY. FRONT SPRING
3 257632103401 BUSH
25 257632100105 ASSY. SPRING SHACKLE FRONT
26 257632103401 BUSH
27 257632106702 SPRING PIN
28 257332400119 ASSY. SEALING
29 0429900037J COTTER PIN
37 257632203701 GUIDE PLATE
38 257632207701 RUBBER BIFFER
39 257532204207 'U' CLAMP
40 3423220084 CASTER PLATE
41 257532204206 'U' CLAMP






FRONT SHOCK ABSORBER для LPT 1618 ТС/52 (список запасных частей)

FRONT SHOCK ABSORBER для LPT 1618 ТС/52 (список запасных частей)

FRONT SHOCK ABSORBER для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 278232300103 ASSY. FRONT SHOCK ABSORBER
2 278232300104 ASSY. BRACKET RH(FRONT SHOCK ABSORBER) (UPPER)
2 278232300105 ASSY. BRACKET LH(FRONT SHOCK ABSORBER) (UPPER)
4 270032303302 BRACKET LOWER (FRONT SHOCK ABSORBER)
6 257632308201 LOCKING SHEET
8 257332608601 SPACER
8 278232308601 SPACER

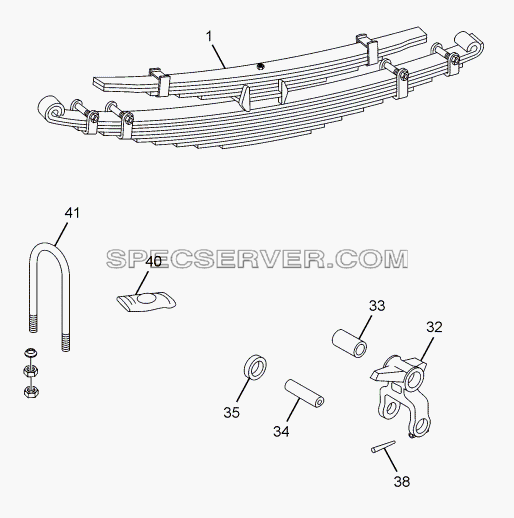

REAR SPRING AND SUSPENSION для LPT 1618 ТС/52 (список запасных частей)

REAR SPRING AND SUSPENSION для LPT 1618 ТС/52 (список запасных частей)

REAR SPRING AND SUSPENSION для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 284132400101 ASSY. REAR SPRING WITH AUXILIARY SPRING
32 257632400107 ASSY. SPRING SHACKLE REAR
33 257632403401 BUSH
34 257632406701 SPRING PIN
35 261832400101 ASSY. SEALING RING
38 0429900037J COTTER PIN
40 278232503702 GUIDE PLATE REAR (CASTING)
41 263232404217 'U' CLAMP






REAR SHOCK ABSORBER для LPT 1618 ТС/52 (список запасных частей)

REAR SHOCK ABSORBER для LPT 1618 ТС/52 (список запасных частей)

REAR SHOCK ABSORBER для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 280932600102 REAR SHOCK ABSORBER
2 11063996191 HEX BOLT M20X1.5X140
6 11063996205 HEX BOLT M20X1.5X90
9 280932600105 ASSY. REAR SHOCK ABSORBER BRACKET LH BOTTOM
9 280932600106 ASSY. REAR SHOCK ABSORBER BRACKET RH BOTTOM

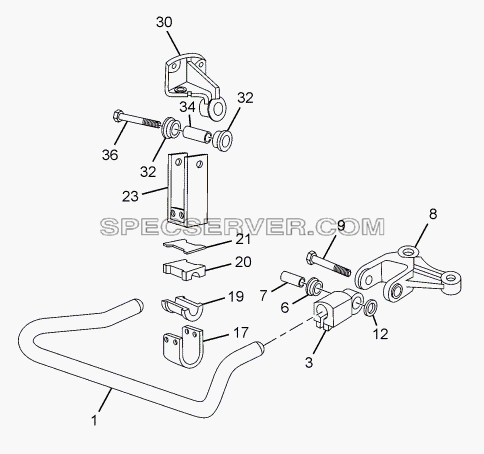

ANTI ROLLER BAR для LPT 1618 ТС/52 (список запасных частей)

ANTI ROLLER BAR для LPT 1618 ТС/52 (список запасных частей)

ANTI ROLLER BAR для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 257632800131 SUB ASSY. ANTI ROLL BAR FRONT
3 257632805104 EYE PIECE
6 257632807502 RUBBER BUSH
7 257632808402 SLEEVE
8 257632803311 BRACKET RH
8 257632803312 BRACKET LH
9 264032906702 MOUNTING PIN (TOP END)
12 257632808306 SHIM
12 257632808307 SHIM
12 257632808308 SHIM
17 257632807103 CLAMP
19 257632803402 BUSH HALF (BOTTOM)
20 257632803402 BUSH HALF (BOTTOM)
21 257632808302 SHIM
21 257632808303 SHIM
21 257632808304 SHIM
23 280932800101 ASSY. CONNECTING LINK
30 257632803307 BRACKET
32 257632807501 RUBBER BUSH
34 257632808401 SLEEVE
36 257632806703 MOUNTING PIN

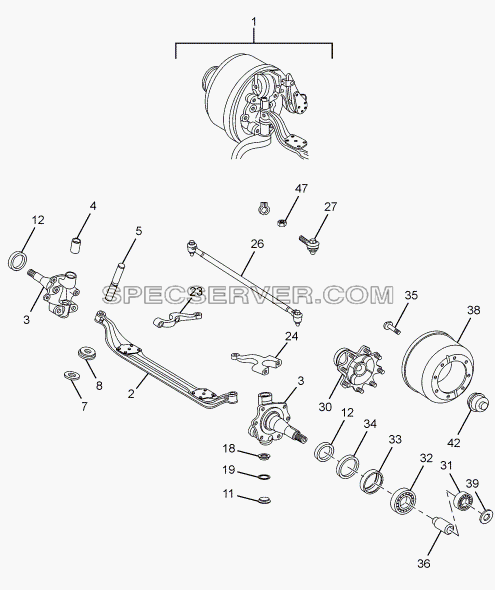

FRONT AXLE для LPT 1618 ТС/52 (список запасных частей)

FRONT AXLE для LPT 1618 ТС/52 (список запасных частей)

FRONT AXLE для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 257433408304 SHIM 1 THK
- 257433408305 SHIM 0.5 THK
- 257433408306 SHIM 0.3 THK
- 257433408307 SHIM 0.1 THK
- 257633206707 COTTER PIN ( KING PIN TO STUB AXLE)
- 257633209212 THRUST WASHER
- 257633209213 THRUST WASHER
- 257633209214 THRUST WASHER
- 257633209215 THRUST WASHER
- 257633209216 THRUST WASHER
- 257633209217 THRUST WASHER
- 257633209218 THRUST WASHER
- 257633209219 THRUST WASHER
- 257633209220 THRUST WASHER
- 257633209221 THRUST WASHER
- 257633209222 THRUST WASHER
- 885433011612 KING PIN REPAIR KIT WITH MINOR KIT &
- 885433021612 KING PIN REPAIR KIT WITH MINOR KIT & BUSH O/S II (38.45MM)
- 885433031612 KING PIN REPAIR KIT WITH MINOR KIT & BUSH O/S III (38.55MM)
- 885433041612 KING PIN REPAIR KIT WITH MINOR KIT & W/OBUSH STD (38.25MM)
- 885433051612 KING PIN REPAIR KIT WITH MINOR KIT&W/O BUSH O/S I (38.35MM)
- 885433061612 KING PIN REPAIR KIT WITH MINOR KIT&W/OBUSH O/S II (38.45MM)
- 885433071612 KING PIN REPAIR KIT WITH MINOR KIT&W/O BUSH O/S III(38.55MM)
- 885433081612 MINOR KIT
- 885433161612 KING PIN REPAIR KIT WITH MINOR KIT &
- BUSH O/S I (38.35MM)
- BUSH STD (38.25MM)
- CIRCLIP B-50
- COTTER BOLT
- GREASE NIPPLE
- HEX NUT M 8
- KING PIN BUSH
- KING PIN BUSH
- KING PIN BUSH
- KING PIN O/S I
- KING PIN O/S I
- KING PIN O/S II
- KING PIN O/S II
- KING PIN O/S III
- KING PIN O/S III
- KING PIN STD
- KING PIN STD KING PIN BUSH
- MINOR KIT
- MINOR KIT
- MINOR KIT
- MINOR KIT
- MINOR KIT
- MINOR KIT
- MINOR KIT
- O RING
- SEALING CAP
- SPRING WASHER
1 280933000101 ASSY FRONT AXLE COMPLETE WITH BRAKES
2 257633105110 FRONT AXLE BEAM STD
3 257533200125 ASSY STUB AXLE STD
4 257533203401 BUSH (FOR KING PIN)
5 257633206709 KING PIN STD.
7 257533209203 THRUST WASHER UPPER STD
7 257533209207 THRUST WASHER LOWER STD
8 257633203110 TAPERED ROLLER THRUST BEARING STD
11 257533206301 DUST CAP, STUB AXLE
12 257633208601 SPACER
18 257633208202 SEALING CAP (STUB AXLE)
19 257633207702 GASKET RING
23 257633805108 STEERING ARM TOP
24 257633805104 STEERING ARM LH
24 257633805106 STEERING ARM RH
26 257633800103 ASSY. TIE ROD
27 3382629 ASSY. BALL JOINT LH
27 3383429 ASSY. BALL JOINT RH
30 263133405501 WHEEL HUB (FRONT)
31 257633403103 TAPER ROLLER BEARING, OUTER
32 257633403101 TAPER ROLLER BEARING, INNER
33 257633408601 SPACER
34 257633407801 SEALING RING
35 263140106701 HUB BOLT (M22)
36 257333408602 SPACER TUBE
38 263142103701 BRAKE DRUM
39 257533409201 THRUST WASHER
42 257333403703 FRONT HUB COVER
47 12102299068 CASTLE NUT KING PIN REPAIR KITS

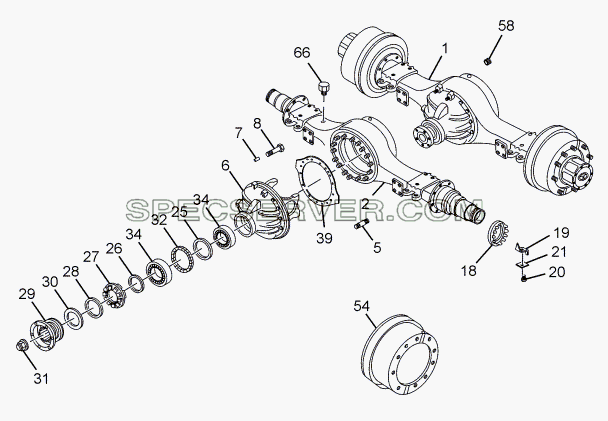

REAR AXLE RA 109RR для LPT 1618 ТС/52 (список запасных частей)

REAR AXLE RA 109RR для LPT 1618 ТС/52 (список запасных частей)

REAR AXLE RA 109RR для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 11632609649 STUD BM 12X80
- 257635308201 LOCKING PLATE (TO THREADED RING)
- 257635308302 SHIM 0.15 MM THICK
- 257635308303 SHIM 0.20 MM THICK
- 257635308304 SHIM 0.25 MM THICK
- 257635308305 SHIM 0.30 MM THICK
- 257635308306 SHIM 0.50 MM THICK
- 257635308307 SHIM 1.00 MM THICK
- 257635308308 SHIM 0.10 MM THICK
- 257635309902 LOCKING WIRE (INNER RACE)
- 257635309903 LOCKING WIRE (OUTER RACE)
- 266835108601 PRESSURE RING
- 273235307701 DUST SEAL
1 273235000257 ASSY. REAR AXLE RA 109 RR (41/7), 1044 MM, VASS BRAKES
2 273235100175 ASSY. REAR AXLE BEAM WITH PR. RINGS STUDS & DOWELS
5 11632609401 STUD BM 12X40
6 273235110107 ASSY. CARRIER HOUSING
7 13050909209 CYLINDRICAL PIN 10 H 8X20
8 273235113201 BOLT (PLUMMER BLOCK COVER)
18 257635306501 THREADED RING
19 257635308201 LOCKING PLATE (TO THREADED RING)
20 11323996191 HEX. SCREW M 8X12
21 3129941201 LOCKING PLATE
25 257635308601 SPACER (BETWEEN PINION BRG.)
26 273235308601 SPACER (BETWEEN PINION BRG. & FLANGE)
27 257635306503 THREADED RING
28 257335307705 OIL SEAL DOUBLE LIP
29 273235300180 ASSY.COUPLING FLANGE
30 273235308201 DUST COVER (PRESS TYPE)
31 3273530172 HEX. NUT (FORGED)
32 257635308604 SPACER RING 7.74 MM THICK
32 257635308605 SPACER RING 7.72 MM THICK
32 257635308606 SPACER RING 7.70 MM THICK
32 257635308607 SPACER RING 7.68 MM THICK
32 257635308608 SPACER RING 7.66 MM THICK
32 257635308609 SPACER RING 7.64 MM THICK
32 257635308610 SPACER RING 7.62 MM THICK
32 257635308611 SPACER RING 7.60 MM THICK
32 257635308612 SPACER RING 7.58 MM THICK
32 257635308613 SPACER RING 7.56 MM THICK
32 257635308614 SPACER RING 7.54 MM THICK
32 257635308615 SPACER RING 7.52 MM THICK
32 257635308616 SPACER RING 7.50 MM THICK
32 257635308617 SPACER RING 7.48 MM THICK
32 257635308618 SPACER RING 7.46 MM THICK
32 257635308619 SPACER RING 7.44 MM THICK
32 257635308620 SPACER RING 7.42 MM THICK
32 257635308621 SPACER RING 7.40 MM THICK
32 257635308622 SPACER RING 7.38 MM THICK
32 257635308623 SPACER RING 7.76 MM THICK
34 257635303102 TAPER ROLLER BEARING (PINION)
34 257635303104 CYLINDRICAL ROLLER BEARING
39 257635115302 GASKET (CARRIER)
54 263142103701 BRAKE DRUM
58 266335107201 MAGNETIC DRAIN PLUG
66 266835150102 PRESSURE RELIEF VALVE
