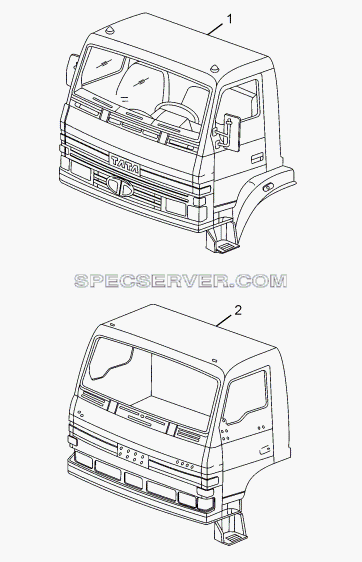

Запчасти: NONSLEEPER CAB (TILT CAB) для LPT 1618 ТС/52

NONSLEEPER CAB (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	274760000133	ASSY. CAB COMPLETE
2	274760000132	ASSY. BODY SHELL PAINTED

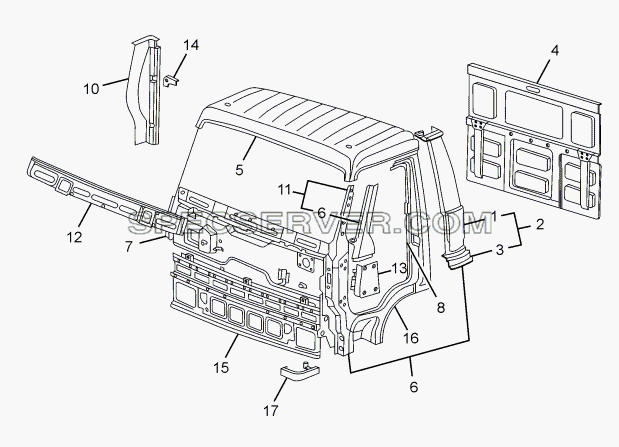

Запчасти: CAB - SHEET METAL (TILT CAB) для LPT 1618 ТС/52

CAB - SHEET METAL (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	274763708205	PANEL OUTER REAR LH
1	274763708206	PANEL OUTER REAR RH
2	274763100132	ASSY. OUTER PANEL WELDED LH
2	274763100133	ASSY. OUTER PANEL WELDED RH
3	274763708216	PANEL SIDE OUTER EXTENSION LH
3	274763708217	PANEL SIDE OUTER EXTENSION RH
4	274764700106	ASSY. REAR WALL
5	274765700103	ASSY. ROOF PANEL
6	274763100134	ASSY SIDE WALL OUTER LH
6	274763100135	ASSY. SIDE WALL OUTER RH
7	274760100149	ASSY. FIRE WALL AND INNER PANEL
8	274763100128	ASSY. OUTER PANEL CORNER TOP LH
8	274763100129	ASSY. OUTER PANEL CORNER TOP RH
10	274763600107	ASSY. PANEL INNER CORNER REAR LH
10	274763600108	ASSY. PANEL INNER CORNER REAR RH
11	274763100150	ASSY. DOOR POST FRONT LH
11	274763100151	ASSY. DOOR POST FRONT RH
12	274760100131	ASSY. PANEL OUTER W/S BOTTOM
13	274781100108	ASSY. COVER LH (PANEL OUTER CORNER FRONT)
13	274781100109	ASSY. COVER RH (PANEL OUTER CORNER FRONT)
14	264160108268	SUPPORT CENTRE END LH
14	264160108269	SUPPORT CENTRE END RH
15	274760100103	ASSY. SUPPORT FRONT GRILL
16	274763100126	ASSY. STEP PANEL OUTER LH
16	274763100127	ASSY. STEP PANEL OUTER RH
17	274760100101	ASSY. PANEL CORNER BOTTOM LH
17	274760100102	ASSY. PANEL CORNER BOTTOM RH

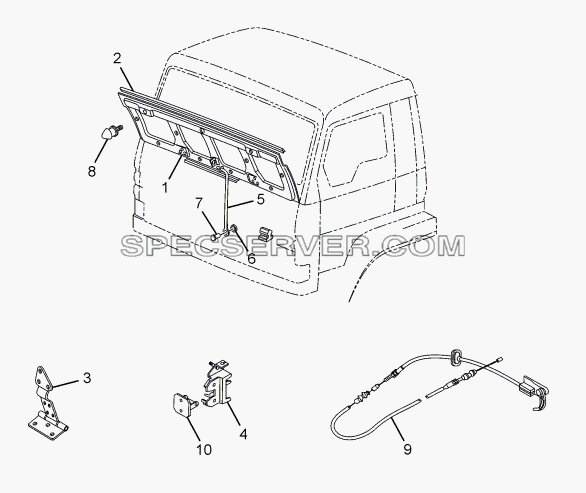

Запчасти: CENTRE FLAP (TILT CAB) для LPT 1618 ТС/52

CENTRE FLAP (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	267375100101	ASSY. CENTRE FLAP
2	264181106323	BOTTOM BEADING (CENTRE FLAP)
3	264175200116	ASSY. HINGE (CENTRE FLAP)
4	264175200107	ASSY. LOCK (CENTRE FLAP)
5	264175200119	ASSY. STAY ROD
6	264175206306	BUSH (CENTRE FLAP STAY ROD)
7	264175106706	PIN (CENTRE FLAP STAY ROD)
8	265188700113	ASSY. RUBBER BUFFER
9	264175200127	ASSY. RELEASE CABLE (CENTRE FLAP)
10	264175200122	ASSY. STRIKER (CENTRE FLAP)

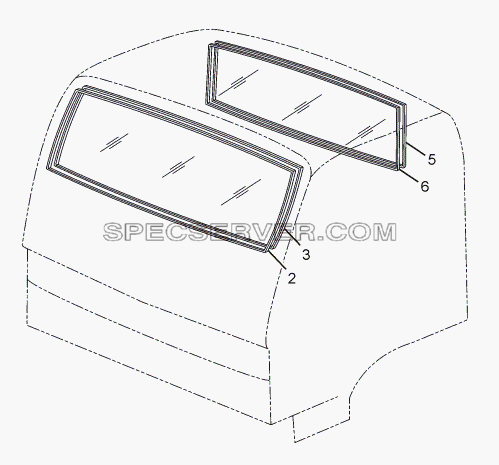

Запчасти: WIND SHIELD GLASS (LAMINATED) для LPT 1618 ТС/52

WIND SHIELD GLASS (LAMINATED) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
2	274767102301	WINDSHIELD GLASS (5.76 THK.)
3	264167106305	RUBBER MOULD (5.76 THK W/S GLASS)
5	264167806301	RUBBER MOULD (REAR WINDOW FOR TRUCK)
6	265167802302	GLASS PANE REAR WINDOW

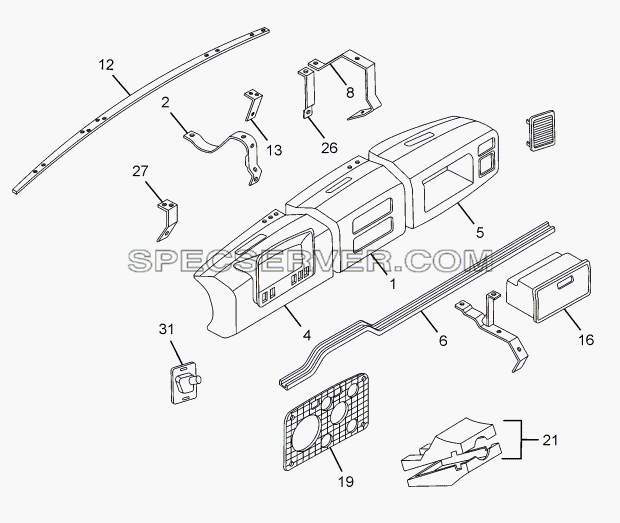

Запчасти: DASH BOARD (TILT CAB) для LPT 1618 ТС/52

DASH BOARD (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264168900131	ASSY. REINFORCEMENT INSIDE (GLOVE BOX)
-	264168900186	ASSY BRACKET (AIR DISTRIBUTOR TO VENT)
-	264168906370	GARNISH (SIDE DEFROST)
-	265183106336	ELBOW DUCT (FOR VENT NOZZLE)
-	274768900119	ASSY DASHBOARD COMPLETE -LHD, GRAY
1	274768906309	DASHBOARD (CENTRE)
2	264168900128	ASSY. REINFORCEMENT MIDDLE LH
2	264168900129	ASSY. REINFORCEMENT MIDDLE RH
4	274768906347	DASHBOARD LH
5	264168906373	DASHBOARD RH (GREY)
6	274768908205	REINFORCEMENT (FRONT)
8	264168900132	ASSY. REINFORCEMENT OUTSIDE (GLOVE BOX)
12	264168900135	ASSY. REINFORCEMENT TOP
13	264168900147	ASSY. BRACKET LH
16	264168900195	ASSY. GLOVE BOX (GREY)
19	274768908206	INSTRUMENT PANEL
21	274768900101	SET OF NACELLE
26	264168900113	ASSY. BRACKET LH
27	264168900114	ASSY. BRACKET RH
31	264168906357	COVER CLUTCH FLUID BOTTLE

Запчасти: FLOOR MAT, LINING,PADDING для LPT 1618 ТС/52

FLOOR MAT, LINING,PADDING для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	274768400111	CARPET FELT KIT
-	274769000104	KIT FOR ROOF AND SIDE LINING
-	274769506303	MOULDED ROOF LINING (HCV - NON SLEEPER CAB)

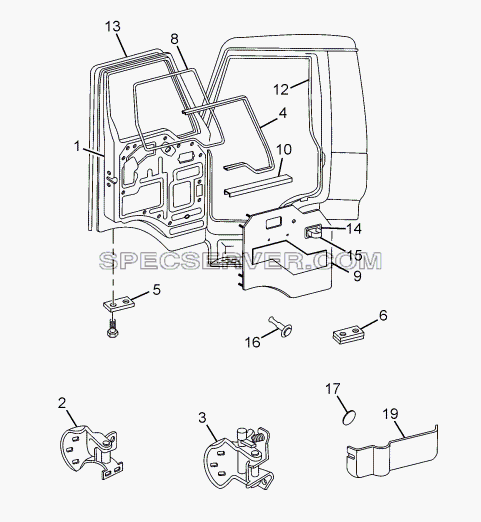

Запчасти: DOOR (TILT CAB) для LPT 1618 ТС/52

DOOR (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264172300140	ASSY. DOOR STRAP FRONT
-	265172506316	GRAB HANDLE (ON DOOR)
1	264172200142	ASSY. DOOR SHELL LH
1	274772200105	ASSY. DOOR SHELL RH
2	264172300111	ASSY. HINGE TOP LH (DOOR)
2	264172300112	ASSY. HINGE TOP RH (DOOR)
3	264172300118	ASSY. HINGE BOTTOM LH (DOOR)
3	264172300119	ASSY. HINGE BOTTOM RH (DOOR)
4	264172200113	ASSY. GUIDE CHANNEL LH
4	264172200114	ASSY. GUIDE CHANNEL RH
5	264172300124	ASSY. DOVETAIL BOTTOM (DOOR)
6	264172306303	DOVETAIL BOTTOM (BODY SIDE)
8	264172502501	VELVET CHANNEL
9	264172700103	ASSY. PADDING DOOR LH
9	264172700104	ASSY. PADDING DOOR RH
10	264172500103	ASSY.WEATHER STRIP RH
10	264172500104	ASSY.WEATHER STRIP LH
12	264172300122	ASSY. SEALING MOULD LH (OUTER)
12	264172300123	ASSY. SEALING MOULD RH (OUTER)
13	264172300137	ASSY. SEALING INNER LH
13	264172300138	ASSY. SEALING INNER RH
14	265172506321	HOUSING(ASH TRAY)
15	265468900189	ASSY ASH TRAY
16	265472700103	ASSY. DOOR PAD CLIP
17	267881106305	REFLEX REFLECTYOR
19	265472706317	MAGAZINE POCKET (GREY) LH
19	265472706318	MAGAZINE POCKET (GREY) RH

DOOR LOCK для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264172300132	KITS FOR LOCKS CONSISTING OF:
-	265472306313	SNAP CONNECTOR RH
-	ASSY. GLOVE BOX LOCK
-	ASSY. KEY
-	ASSY. OUTER DOOR HANDLE LH
-	ASSY.OUTER DOOR HANDL RH
-	STEERING LOCK CUM IGNITION SWITCH
1	265872300107	DOOR LOCK FRONT RH
1	265872300108	DOOR LOCK FRONT LH
2	265872300127	ASSY. INNER HANDLE
5	265472300124	ASSY. OUTER HANDLE LH
5	265472300125	ASSY. OUTER HANDLE RH
6	264172306004	LINK LH (INNER HANDLE)
6	264172306005	LINK RH (INNER HANDLE)
7	264172306006	LINK (POP - UP KNOB) LH
7	264172306007	LINK RH (POP-UP KNOB)
8	264172306302	KNOB (INNER LOCK)
15	265472300212	ASSY. STRIKER (DOOR LOCK) LOCK KITS

WINDING REGULATOR AND GLASS (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	264172500101	ASSY. WINDING REGULATOR LH
1	264172500102	ASSY. WINDING REGULATOR RH
4	267872300114	ASSY HANDLE [WINDOW WINDING]
6	274772502301	DOOR GLASS LH (‘E’ CERTIFIED)
6	274772502302	DOOR GLASS RH (‘E’ CERTIFIED)

INTERNAL AND EXTERNAL FITMENTS (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264181106322	INNER BEADING
-	264181106340	EX' DECAL, SILVER
-	264181900114	ASSY. COVER BAZZLE LH
-	264181900115	ASSY. COVER BAZZLE RH
-	264181906326	COVER STEP BOARD
-	265881100119	ASSY. INNER HANDLE
-	274781906310	COVER STEP BOARD BOTTOM -LH
-	274781906311	COVER STEP BOARD BOTTOM -RH
-	274788806301	BEADING (FRONT PANEL)
21	274781900107	ASSY CENTRE GRILL (FRONT) WITH 'T' EMBLEM
22	268075200105	‘T’ EMBLEM OVAL STYLISED
23	264181900101	ASSY. BAZZLE RH
23	264181900102	ASSY. BAZZLE LH
26	264181900169	ASSY. COVER SIDE LH CENTER FLAP
27	264181900170	ASSY. COVER SIDE RH CENTER FLAP
28	264181900168	ASSY. COVER MIDDLE CENTER FLAP
29	264181906332	GRILL LH
30	264181906333	GRILL RH
31	264181906331	GRILL MIDDLE
32	274781100107	ASSY.GRAB HANDLE
33	264181100175	ASSY. COVER LH (CENTRE FLAP HINGE)
34	264181100176	ASSY. COVER RH (CENTRE FLAP HINGE)
35	257581100101	ASSY.SUNVISOR RH
35	257581100102	ASSY.SUNVISOR LH
36	274781100116	ASSY. FRAME COMPLETE, REAR VIEW MIRROR
38	274781506901	GRAB HANDLE (ON FRONT POST)
41	265181006304	ASSY. LETTER 'T'
42	265181006305	ASSY. LETTER 'A'
45	267981800104	ASSY. TATA 1618C MASCOT
46	274768900112	ASSY. BAZEL INDICATOR BANK
47	257586800102	ASSY.FIRE EXTINGUSHER COML. W/T MTG. BRKT.
55	257681100152	REAR VIEW MIRROR OUTSIDE RH
56	257681100153	REAR VIEW MIRROR OUTSIDE LH
57	257681100146	ASSY PROXIMITY MIRROR
58	274781100119	ASSY REAR VIEW MIRROR OUTER(WIDE ANG)
