Запчасти: DIPSTICK для LPT 1618 ТС/52

DIPSTICK для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

Запчасти: FITMENTS ON ENGINE для LPT 1618 ТС/52

FITMENTS ON ENGINE для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	278603114701	BOTTOM COVER (FLY WHEEL HSG.)
2	278509114201	CLAMP (BABY FILTER)
3	208854309901	TEMPERATURE TRANSDUCER (DOUBLE POLE)
4	275154509901	OIL PRESSURE SWITCH (BIPOLAR)
8	278601173310	BRACKET (DIPSTICK MOUNTING)
9	257642914201	CLAMP
10	278618179901	ADAPTOR (FOR OIL PRESSURE TRANSDUCER)
16	278509113301	BRACKET (FUEL FILTER MOUNTING)
20	284181900101	ASSY ENGINE SHIELDING LH
20	284181900102	ASSY ENGINE SHIELDING RH
21	284181900105	ASSY ENGINE HEAT SHIELD REAR

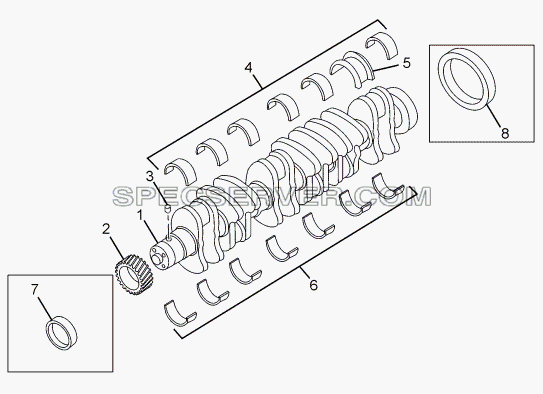

Запчасти: CRANKSHAFT AND MAIN BEARING для LPT 1618 ТС/52

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	278601999801	SET OF MAIN BEARING (STD) CONSISTING OF :
-	278601999802	SET OF MAIN BEARING (RS I) CONSISTING OF : (0.25 MM OVERSIZE)
-	278603990106	SET OF MAIN BEARING (RS II) CONSISTING OF:(0.50 MM OVERSIZE)
-	278603990107	SET OF MAIN BEARING(RS III) CONSISTING OF:(0.75 MM OVERSIZE)
-	278603990108	SET OF MAIN BEARING (RS IV) CONSISTING OF :(1.0 MM OVERSIZE)
1	278603990103	ASSY. CRANKSHAFT
2	278603999905	GEAR CRANKSHAFT
3	278603999906	DOWEL PIN
4	BEARING MAIN (UPPER)
4	BEARING MAIN (UPPER)
4	BEARING MAIN (UPPER)
4	BEARING MAIN (UPPER)
4	BEARING MAIN (UPPER)
5	BEARING CRANKSHAFT ( THRUST)
5	BEARING CRANKSHAFT ( THRUST)
5	BEARING CRANKSHAFT ( THRUST)
5	BEARING CRANKSHAFT ( THRUST)
5	BEARING CRANKSHAFT ( THRUST)
6	BEARING MAIN (LOWER)
6	BEARING MAIN (LOWER)
6	BEARING MAIN (LOWER)
6	BEARING MAIN (LOWER)
6	BEARING MAIN (LOWER)
7	278603999907	SLEEVE WEAR (FRONT)
8	278603999908	SLEEVE WEAR (REAR)

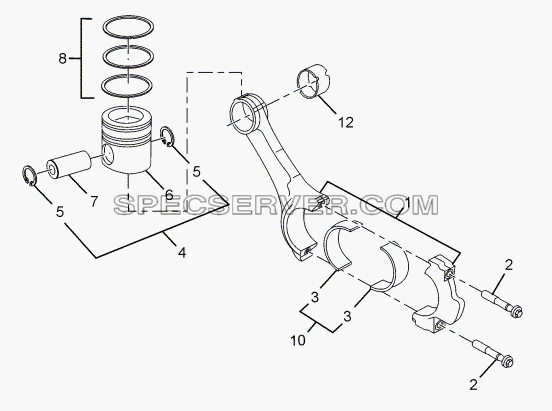

Запчасти: CONNECTING ROD AND PISTON для LPT 1618 ТС/52

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	COMPRESSION RING
-	COMPRESSION RING
-	COMPRESSION RING
-	COMPRESSION RING
-	COMPRESSION RING
-	COMPRESSION RING
-	CON.ROD BEARING SET
-	OIL RING
-	OIL RING
-	OIL RING
1	278603990102	ASSY. CON. ROD
2	278603999901	SCREW CONNECTING ROD M 11X1.25X59 BARE PISTON SET
3	BEARING CON. ROD (0.25 MM OVERSIZE)
3	BEARING CON. ROD (0.75 MM OVERSIZE)
3	BEARING CON. ROD (1.0 MM OVERSIZE)
3	BEARING CON. ROD. STD
3	BEARING CON.ROD (0.5 MM OVERSIZE)
4	278603999940	SET OF BARE PISTON R/S II (EURO-II) CONSISTS OF :
4	278603999973	SET OF BARE PISTON STD (EURO -II) CONSISTS OF :
4	278603999975	SET OF BARE PISTON R/S I (EURO-II) CONSISTS OF :
5	RETAINING RING
5	RING RETAINING
5	RING RETAINING PISTON RING SET
6	PISTON
6	PISTON
6	PISTON
7	PIN PISTON
7	PIN PISTON
7	PIN PISTON
8	278603999977	SET OF PISTON RINGS STD CONSISTS OF
8	278603999978	SET OF PISTON RINGS R/S I CONSISTS OF :
8	278603999979	SET OF PISTON RINGS R/S II CONSISTS OF
10	278603999980	SET OF CON. ROD BEARING STD CONSISTS OF :
10	278613999901	SET OF CON. ROD BEARING R/S IV CONSISTS OF :
10	278613999902	SET OF CON. ROD BEARING R/S III CONSISTS OF :
10	278613999903	SET OF CON. ROD BEARING R/S II CONSISTS OF :
10	278613999904	SET OF CON. ROD BEARING R/S I CONSISTS OF :
12	278615999923	BUSH CON. ROD

VIBRATION DAMPER для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

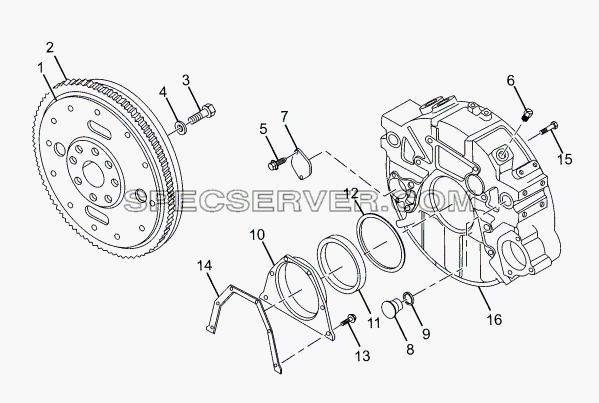

FLYWHEEL AND FLYWHEEL HOUSING для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

SPACER BEARING (CLUTCH REAR) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
2		278603999944	BEARING BALL

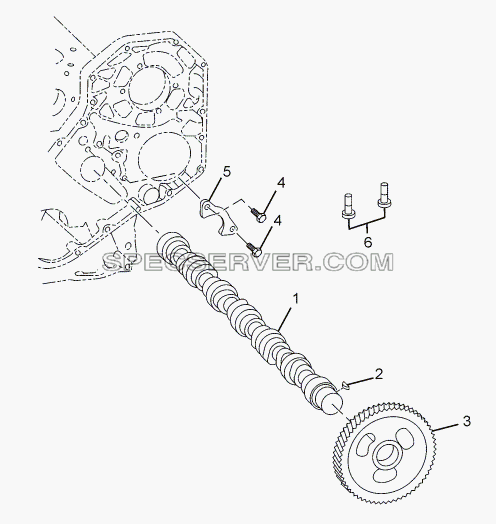

CAMSHAFT AND TAPPETS для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

ROCKER LEVER для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

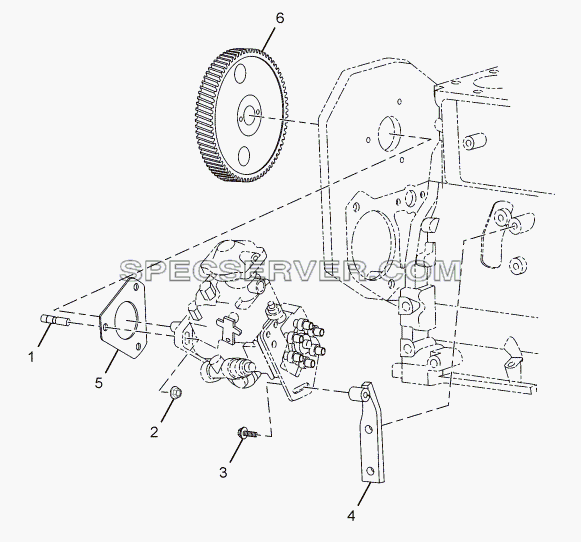

FUEL PUMP COUPLING для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей
