Wiring Systems: 9A-30

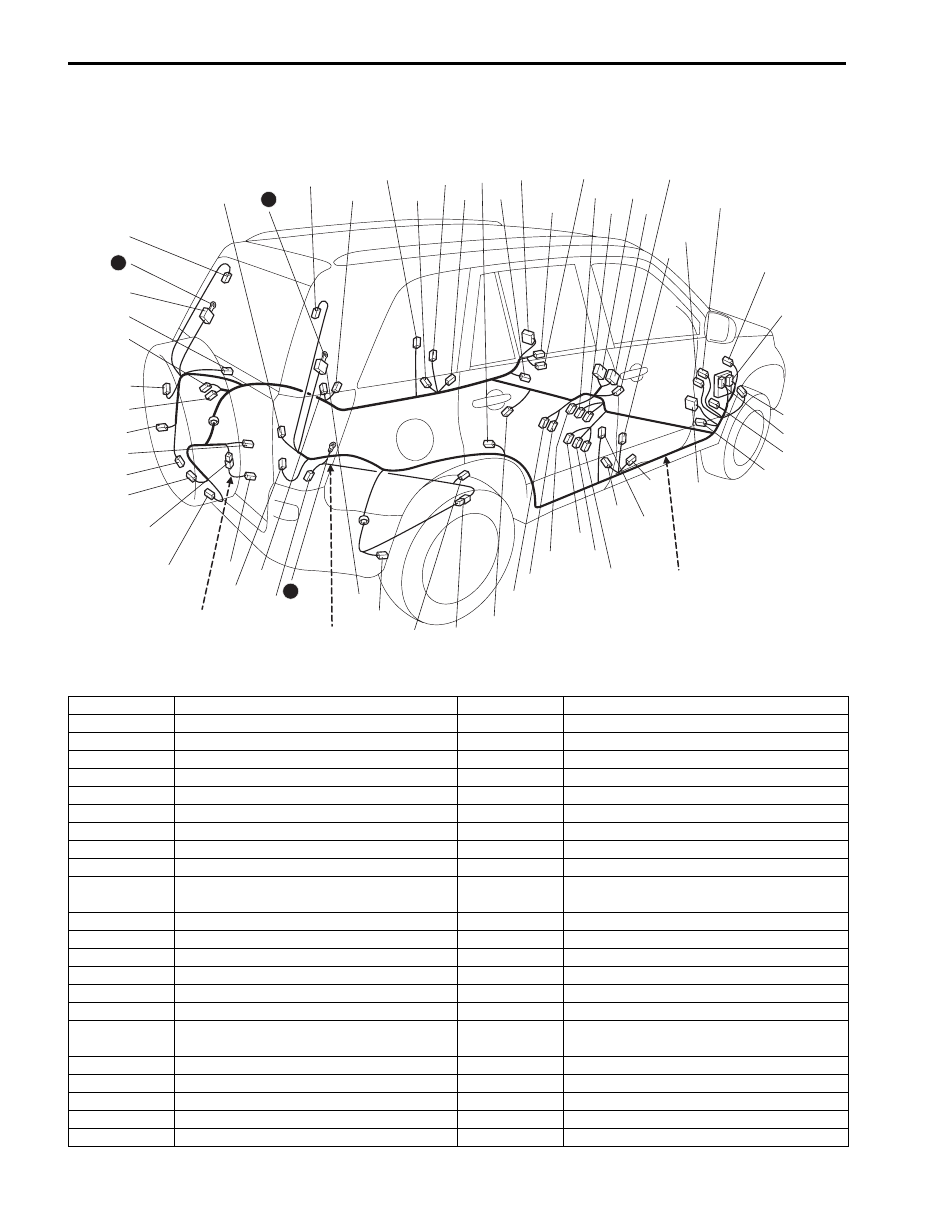

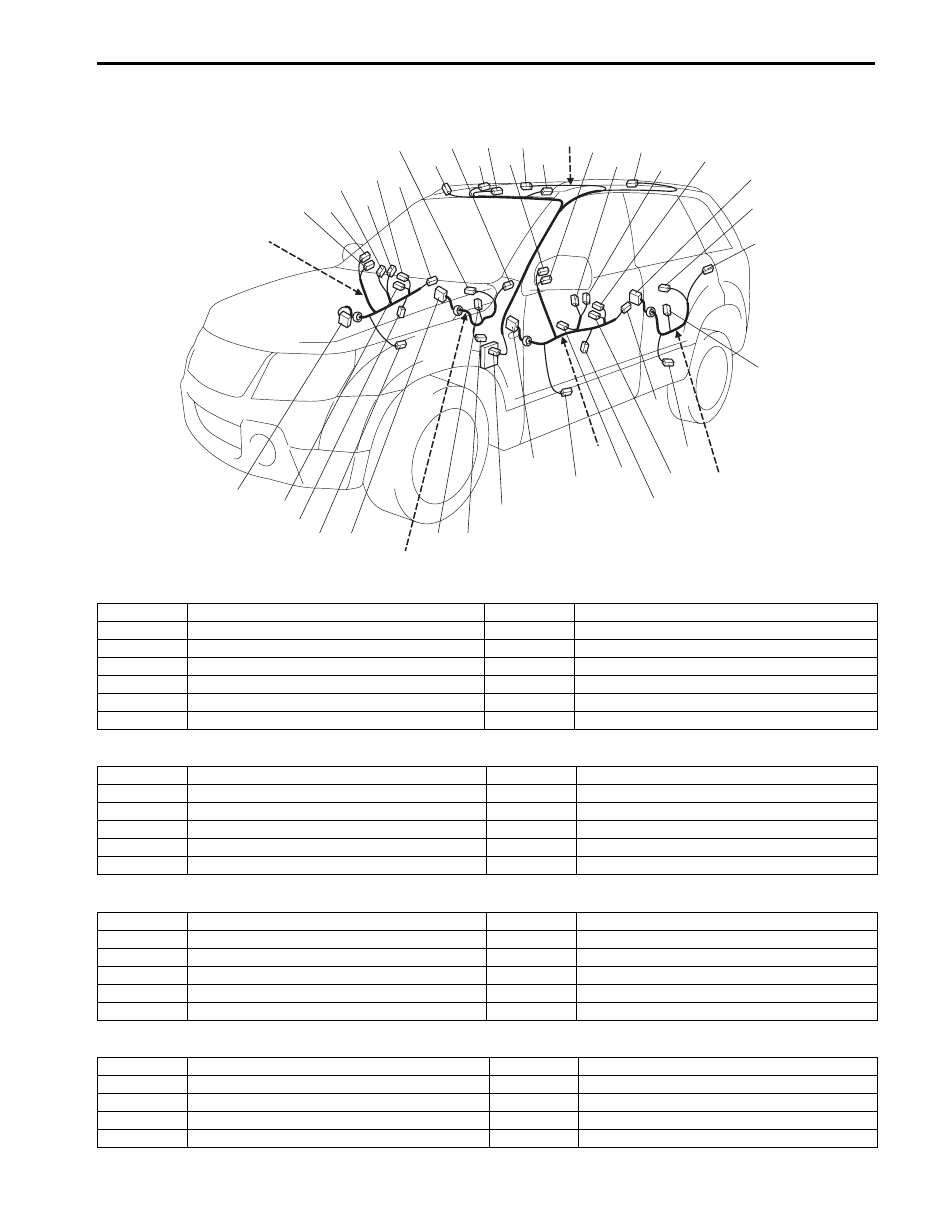

J: Front and rear door wire, rear door joint wire / K: Roof wire (LHD, 5dr)
J: Front door wire (Drive side)
J: Front door wire (Passenger side)
J: Rear door wire
K: Roof wire
J02
J15
J32
J29
J13
J19
J03
J07
K04
K06
K02
K07
K05
K03
J10
J24
J25
J01
(TO L07)
J16
(TO L13)
J28
J14
J04
J17
J18
K01
J20
J11
J12
J08
J31
J05
J26
J06
J22
J23
Rear door wire
Rear door wire
Front door wire
J27
J09
(TO L31)
J21
(TO L37)
K
J
I5JB0A910912-04
No./Color
Connective position
No./Color
Connective position
J01/GRY
Floor harness (To L07)
J11/N
Power mirror motor (L)
J05/BLK
Front power window motor (Driver side)
J12/N
Front speaker (L)
J06/N
Front door lock motor (Driver side)
J26/N
Door antenna (Driver side)
J07/N
Power mirror switch (Driver side)
J27/N
Request switch (Driver side)
J08/GRY
Power window main switch
J31/N
Curtsy lamp (Driver side)
J10/BLK
Tweeter (L)
No./Color
Connective position
No./Color
Connective position
J02/BLK
Tweeter (R)
J14/BLK
Front power window motor (Passenger side)
J03/N
Power mirror motor (R)
J15/N
Power window sub switch
J04/N
Front speaker (R)
J28/N
Door antenna (Passenger side)
J09/GRY
Floor harness (To L31)
J29/N
Request switch (Passenger side)
J13/N
Front door lock motor (Passenger side)
J32/N
Curtsy lamp (Passenger side)
No./Color
Connective position
No./Color
Connective position
J16/N
Floor harness (To L13)
J21/N
Floor harness (To L37)
J17/N
Rear speaker (R)
J22/N
Rear speaker (L)
J18/BLK
Rear power window motor (R)
J23/BLK
Rear power window motor (L)
J19/N
Rear power window sub switch (R)
J24/N
Rear power window sub switch (L)
J20/N
Rear door lock motor (R)
J25/N
Rear door lock motor (L)
No./Color
Connective position
No./Color
Connective position
K01/N
J/B
K05/N
Vanity lamp (Passenger side)
K02/N
Interior light
K06/N
Sliding roof unit
K03/N
Rear interior light
K07/N
Console (Sliding roof switch & console lamp)
K04/N
Vanity lamp (Driver side)
