Suzuki Grand Vitara JB419. Manual - part 138
Wiring Systems: 9A-22
Instrument Panel
S5JB0B910A003

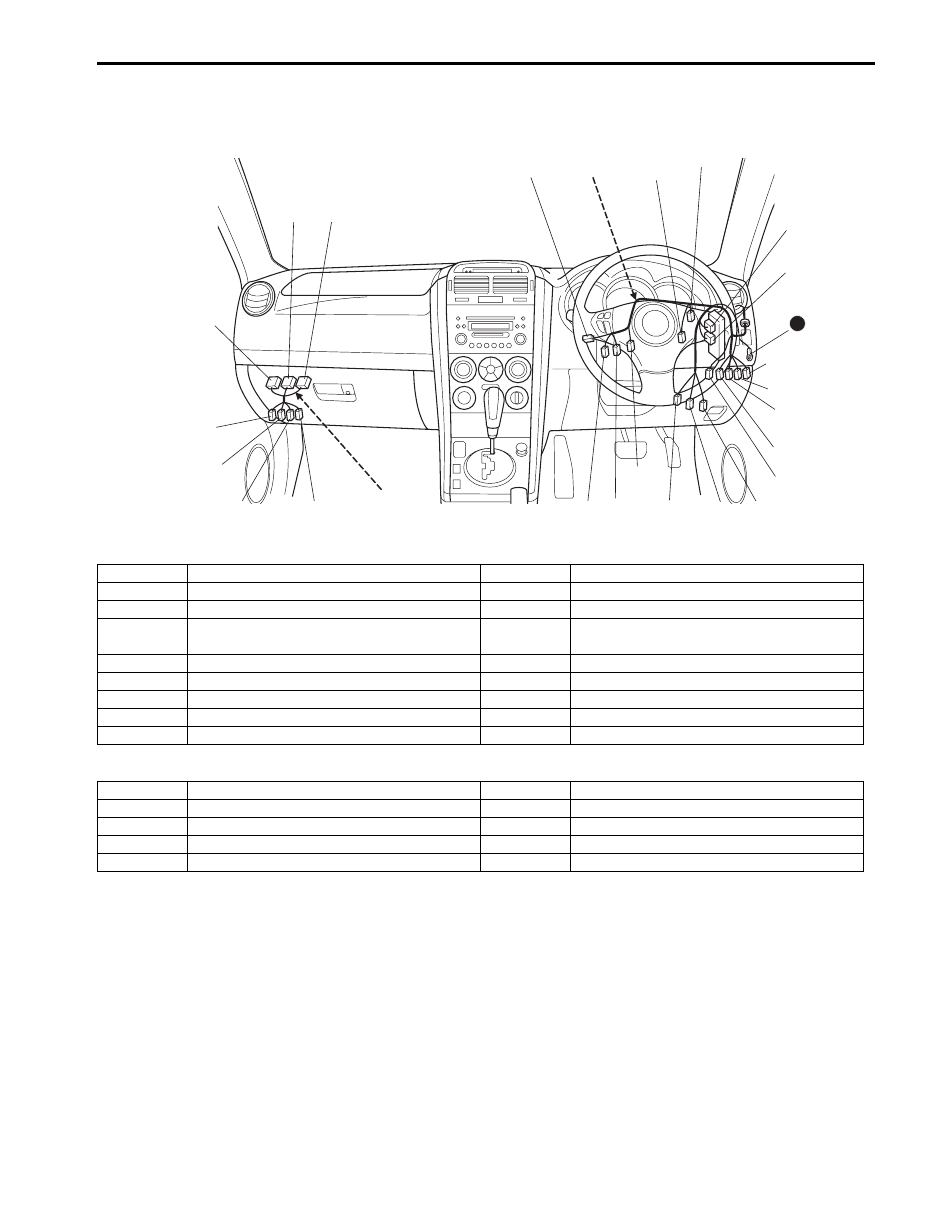

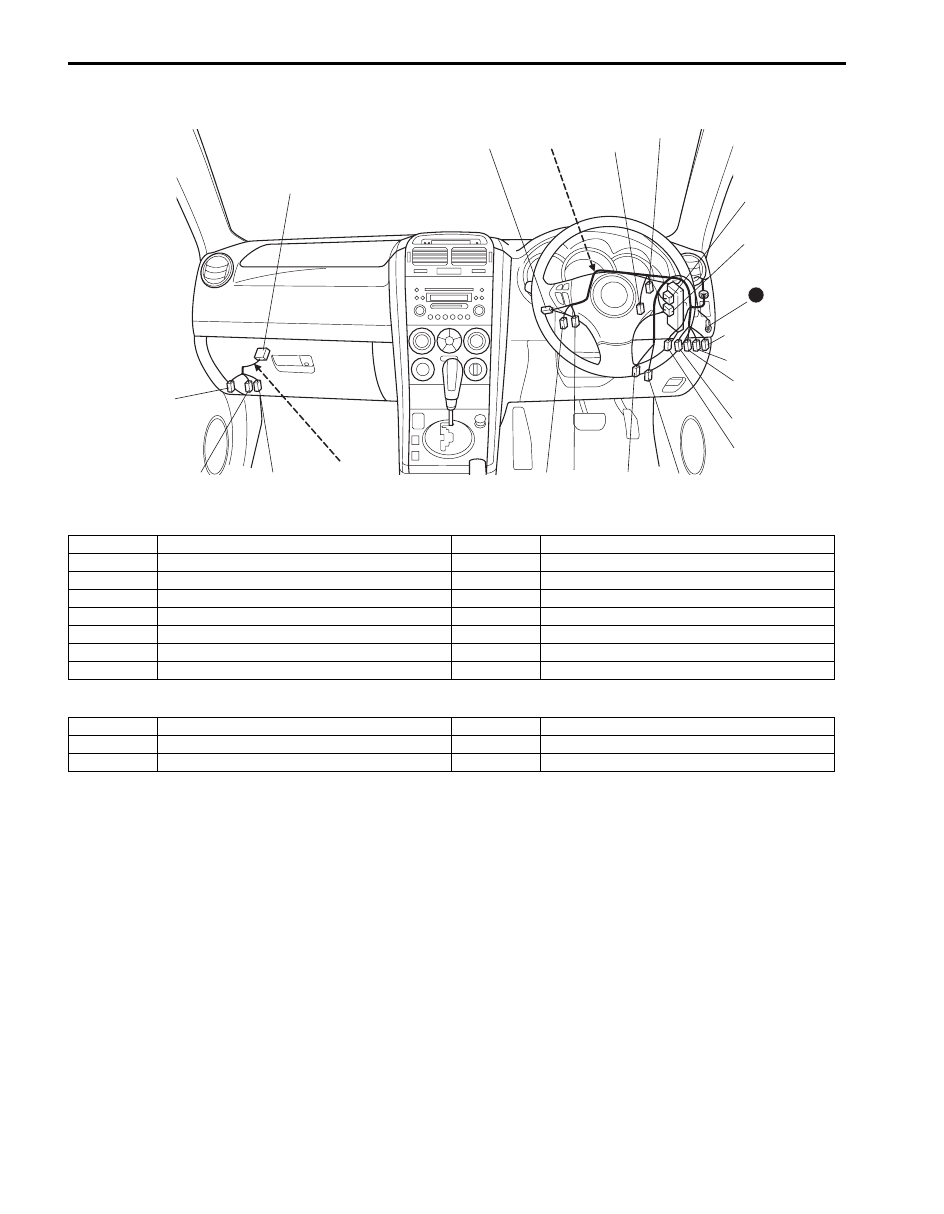

E: Main harness, Controller wire (Petrol RHD)
E: Main harness
E: Controller wire
10
E76
(TO G04)
E79
(TO L03)
E74
(TO G36)
E75
(TO G37)
E88
(TO C49)
E89
(TO C50)
E87
(TO C48)
E90
(TO G71)
E92
E93
E91
E67
(A/T)
E77
(TO G06)
E78
(TO G05)
E80
(TO L01)
E67
(M/T)
E70
E82
E83
E68
E69
E72
Controller wire
E71
E
I5JB0A910907-04
No./Color
Connective position
No./Color
Connective position
E67/N
Brake lamp switch
E76/N
Instrument panel harness (To G04)
E68/BLK
Acceleration pedal sensor
E77/YEL
Instrument panel harness (To G06)
E69/N (IF
EQPD)
Diagnosis connector #1
E78/GRY Instrument panel harness (To G05)
E70/BLK
Diode #1
E79/YEL
Floor harness (To L03)
E71/N
Clutch switch
E80/N
Floor harness (To L01)
E72/N
Clutch 4WD switch
E82/N
J/B
E74/N
Instrument panel harness (To G36)
E83/N
J/B
E75/N
Instrument panel harness (To G37)
No./Color
Connective position
No./Color
Connective position
E87/N
Engine harness (To C48)
E91/N
4WD control module
E88/N
Engine harness (To C49)
E92/N
TCM
E89/N
Engine harness (To C50)
E93/N
TCM
E90/BLU
Instrument panel harness (To G71)
