Suzuki Grand Vitara JB419. Manual - part 139

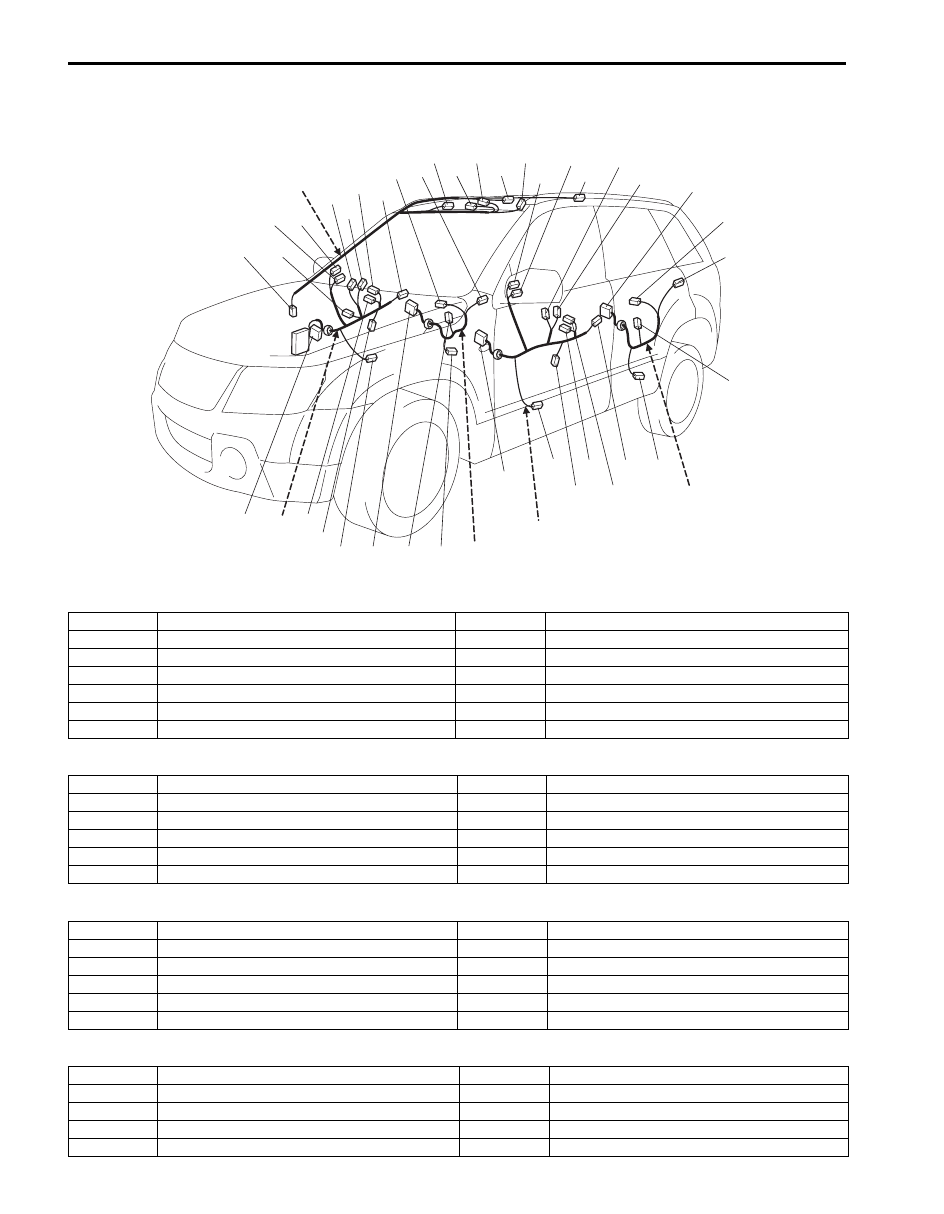

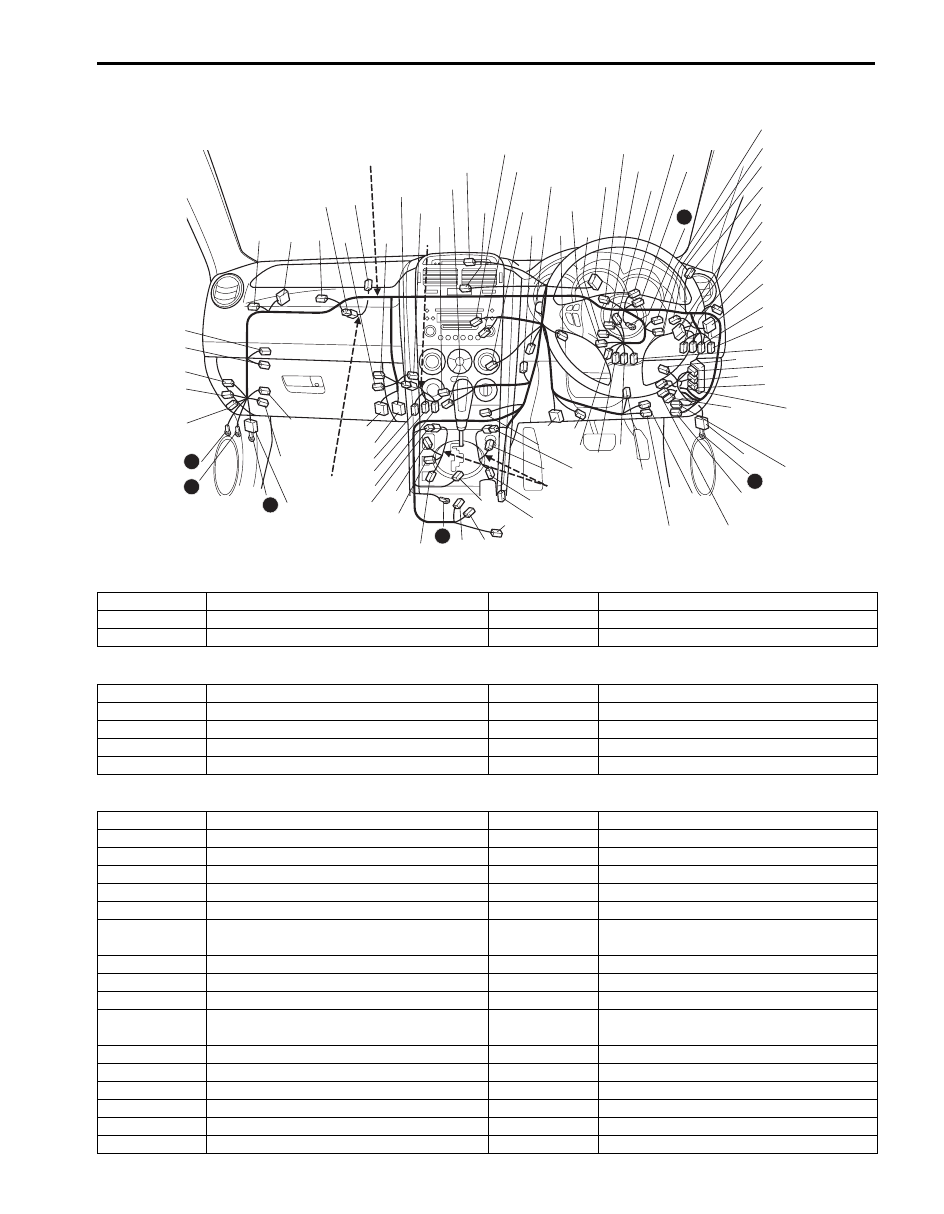

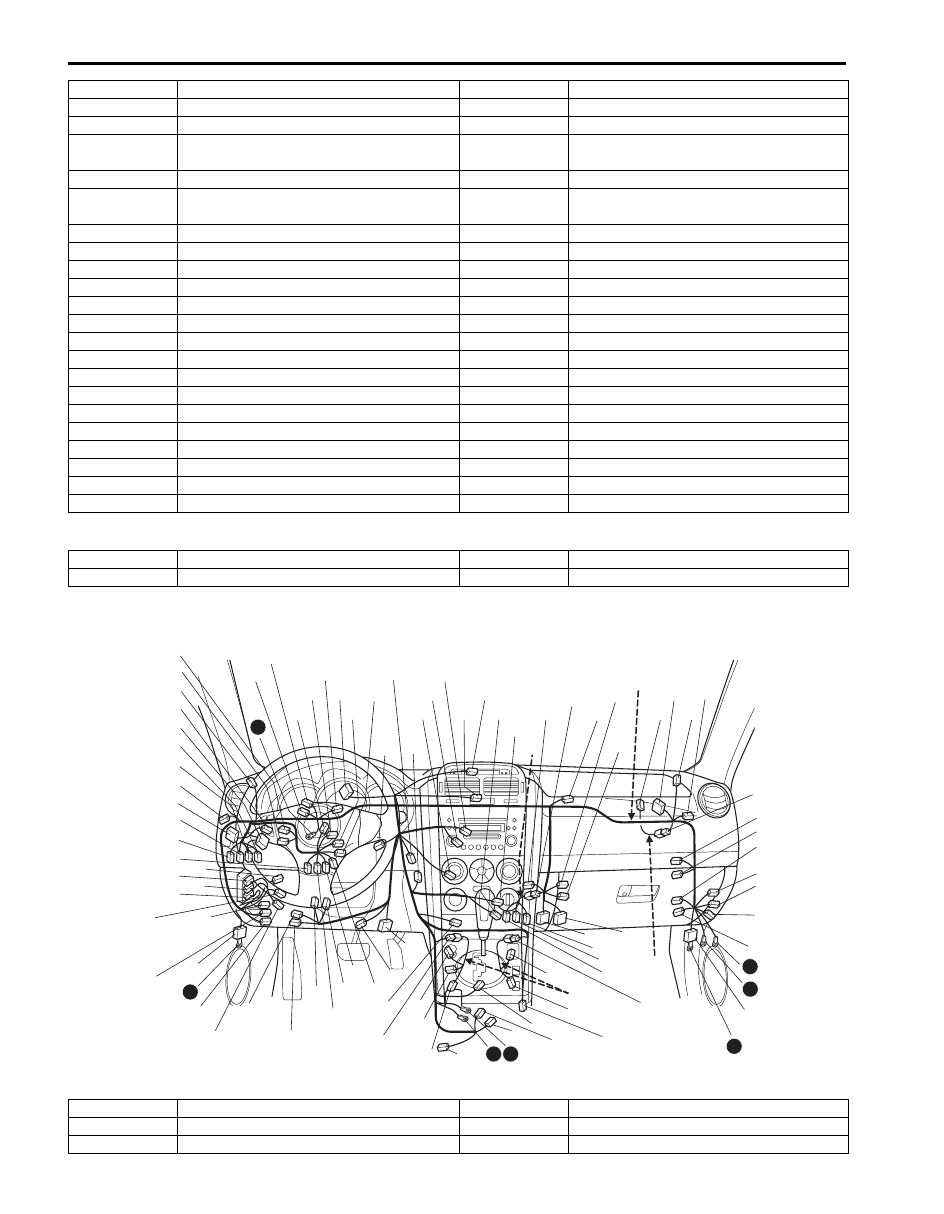

Wiring Systems: 9A-26
B: A/C wire / F: Console wire / G: Instrument panel harness / Q: A/B wire (RHD)
B: A/C wire
F: Console wire
G: Instrument panel harness
17
11
G04
(TO E76)
G08
(TO L09)
G07
(TO L08)
G14
Q02
G77
G44
G78
G63
G48
G13
G12
G52
G59
G15
G17
G81
G80
G60
G53
G28
G76
G23
G75
G74
G22
G32
G49
G30
G41
G29
G82
G31
G40
G39
G01
G02
G06
(TO E77)
G05
(TO E78)
G36
(TO E74)
G55
(TO L29)
G71
(TO E90)
G72
(TO L27)
G10
(J20A)
G73
(TO L28)
G69
G37
(TO E75)
14
12
15
16
G09
G34
G47
G46
G26
G27
G79
G58
G20
F04
F06
F07
(A/T)
F08
B05
B06
B04
G62
G51
G19
G18
G11
F02
G38
G50
G25
G43
G03
G24
G21
G54
G45
G33
G
B
F
Q
{
G56
F01
{
G57
F05
{
G16
B03
{
G67
Q01
I5JB0B910912-06
No./Color
Connective position
No./Color
Connective position
B03/N
Instrument panel harness (To G16)
B05/YEL
Fresh/Recircle actuator
B04/YEL
Temperature control actuator
B06/YEL
Mode selecting actuator
No./Color
Connective position
No./Color
Connective position
F01/N
Instrument panel harness (To G56)
F06/GRN
Seat heater switch (Passenger side)
F02/GRN
Seat heater switch (Driver side)
F07/N (A/T)
A/T mode select switch
F04/N
Cigar lighter (ACC socket #3)
F08/N
ACC socket #2
F05/N
Instrument panel harness (To G57)
No./Color
Connective position
No./Color
Connective position
G01/N
J/B
G39/ORN
HLC switch
G02/N
J/B
G40/N
Headlight beam leveling switch
G03/N
J/B
G41/GRY
ILL cancel switch
G04/N
Main harness (To E76)
G43/BLK
Diagnosis connector #4
G05/GRY
Main harness (To E78)
G44/N
Smart ECM
G06/YEL
Main harness (To E77)
G45/N (IF
EQPD)
Steering angle sensor
G07/N
Floor harness (To L08)
G46/YEL (8ch) A/B SDM
G08/BLU
Floor harness (To L09)
G47/YEL (4ch) A/B SDM
G09/N
J/C
G48/ORN
Hazard switch
G10/N (J20A,
H27A, DSL)
J/C
G49/N
Sunlight sensor
G11/N
Audio antenna
G50/N
A/T shift lever
G12/BLU
Audio
G51/N
Auto leveling control module
G13/N
Navigation
G52/GRY
Auto A/C
G14/YEL
Multi information display
G53/N
Room temperature sensor
G15/N
EVAP thermistor
G54/BLK
Steering switch
G16/N
A/C wire (To B03)
G55/YEL
Floor harness (To L29)
