Suzuki Grand Vitara JB627. Manual - part 393





9E-25 Glass / Windows / Mirrors:

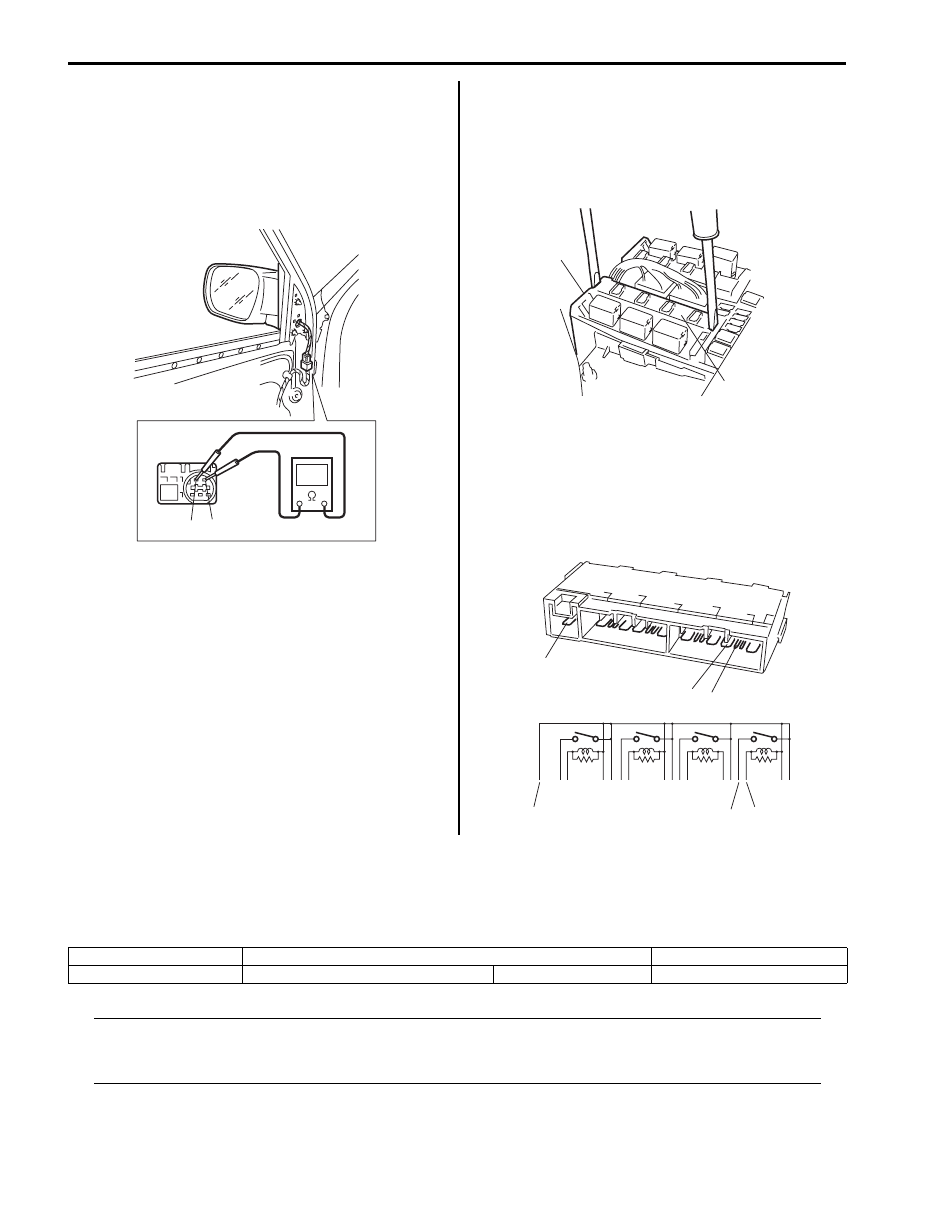

Door Mirror Heater Inspection (If Equipped)

S6JB0B9506022

1) Remove door trim referring to step 1) to 3) of “Front

Door Glass Removal and Installation”.

2) Disconnect door mirror connector (1).
3) Check for continuity between terminals “a” and “b”.

If no continuity, replace outside mirror.

Door Mirror Heater Relay Inspection (If
Equipped)

S6JB0B9506023

1) Disconnect negative (–) cable from battery.
2) Remove door mirror heater relay (included in

integration relay) (1) from main fuse box (2).

3) Check that there is no continuity between terminals

“a” and “b”.
If there is continuity, replace relay.

4) Check that there is continuity between terminals “a”

and “b” when a 12 V battery is connected to terminal
“a” and “c”.
If malfunction is found, replace integration relay.

Special Tools and Equipment

Recommended Service Material

S6JB0B9508001

NOTE
Required service material is also described in the following.
“Front Door Window Components”
“Rear Door Window Components”



“a”

“b”

I5JB0A950041-01

2

1

I5JB0A950031-01

“a”

“c”

“b”

“a”

“c”

“b”

I5JB0A950042-02

Material

SUZUKI recommended product or Specification

Note

Grease

SUZUKI Super Grease A

P/No.: 99000–25011

)

 / )

Security and Locks:  9F-1

Body, Cab and Accessories

Security and Locks

General Description

Key Coding Construction

S6JB0B9601001

Key Usage and Identification
Key is used for ignition and door lock cylinders. Key is cut on both edges to make them reversible.
Key identification is obtained from five character key code stamped on key code tag. Using this key code, key code
cutting combination can be determined from a code list (available to owners of key cutting equipment from suppliers).

Component Location

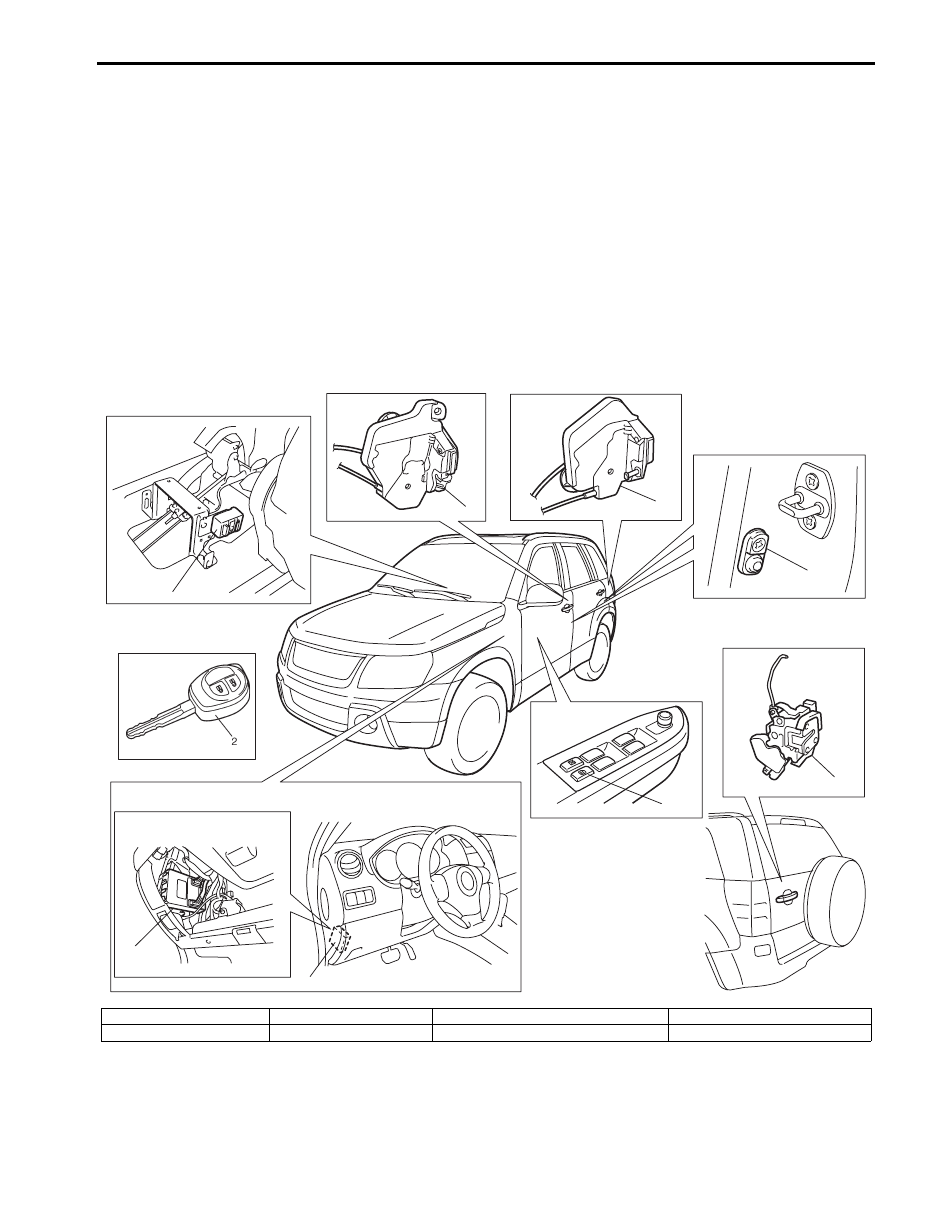

Power Door Lock and Keyless Entry System Component Location

S6JB0B9603001

3

4

5

7

6

8

8

1

I5JB0A960001-03

1. Keyless entry receiver

3. Power door lock switch

5. Rear door actuator (5 door model only)

7. Door switch

2. Transmitter

4. Front door actuator

6. Rear end door actuator

8. BCM

9F-2 Security and Locks:

Diagnostic Information and Procedures

Power Door Lock System Symptom Diagnosis

S6JB0B9604001

NOTE

• Use of SUZUKI scan tool makes it easy to check whether a faulty condition is on the input side or

output side of BCM. For checking procedure, refer to “Diagnosis Using Output Test Function of
SUZUKI Scan Tool” under “Scan Tool Data in Section 10B”.

• Check each part in the order from the top of the following list.



Power Door Lock System Operation Inspection

S6JB0B9604002

1) Check the following operation:

a) Turn the driver side key cylinder is turned LOCK once, check all doors lock.
b) Turn the driver side door key cylinder is turned UNLOCK position with door key twice, check all doors unlock.

If malfunction is found, go to “Power Door Lock System Symptom Diagnosis”.

Condition

Possible cause

Correction / Reference Item

All door can not be locked
/ unlocked by all of
switches

Circuit fuse blown

Replace fuse and check for short circuit.

Wiring or grounding faulty

Repair circuit.

BCM faulty

Replace after making sure that none of above
parts is faulty.

All door can not be locked
/ unlocked by only power
door lock switch

Circuit fuse blown

Replace fuse and check for short circuit.

Power door lock switch faulty

Check power door lock switch referring to
“Power Door Lock Switch Inspection”
.

Wiring harness connected to power door
lock switch faulty

Repair.

Wiring or grounding faulty

Repair circuit.

BCM faulty

Replace after making sure that none of above
parts is faulty.

All door can not be locked
/ unlocked by only key
cylinder switch

Circuit fuse blown

Replace fuse and check for short circuit.

Key cylinder switch faulty

Check key cylinder switch referring to “Door
Key Cylinder Switch Inspection”.

Wiring or grounding faulty

Repair circuit.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Only one door can not be
locked / unlocked

Power door lock actuator faulty

Check actuator referring to “Power Door Lock
Actuator Inspection”.

Wiring harness connected to applicable
door lock actuator faulty

Repair.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Security and Locks:  9F-3

Keyless Entry System Symptom Diagnosis (If Equipped)

S6JB0B9604003

NOTE

• Confirm that power door lock system is in good condition before referring to the following possible

causes.

• Check each part in the order from the top of the following list.



Condition

Possible cause

Correction / Reference Item

All door can not be locked
/ unlocked by only
keyless entry transmitter

Transmitter battery dead

Replace battery referring to “Replacement of
Transmitter Battery (Other than Keyless Start
Model)”.

Door switch faulty

Check door switch referring to “Door Switch
(Front / Rear / Rear End Door) Inspection in
Section 9C”
.

Transmitter faulty

Replace transmitter.

Key reminder switch in ignition switch
faulty

Check ignition switch referring to “Ignition
Switch Inspection in Section 9C”.

Wiring or grounding faulty

Repair circuit.

Keyless entry receiver faulty

Check keyless entry receiver referring to
“Keyless Entry Receiver and Its Circuit
Inspection”.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Interior light does not
light when doors are
unlocked by keyless entry
transmitter

Wiring or grounding faulty

Repair circuit.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Hazard warning lights do
not light when doors are
locked/unlocked by
keyless entry transmitter

Turn signal and hazard warning relay
faulty

Check turn signal and hazard warning relay
referring to “Turn Signal and Hazard Warning
Relay Inspection in Section 9B”.

Wiring or grounding faulty

Repair circuit.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Transmitter code can not
be programmed to BCM

Door switch faulty

Check door switch referring to “Door Switch
(Front / Rear / Rear End Door) Inspection in
Section 9C”
.

Keyless entry receiver faulty

Check keyless entry receiver referring to
“Keyless Entry Receiver and Its Circuit
Inspection”.

Key reminder switch in ignition switch
faulty

Check ignition switch referring to “Ignition
Switch Inspection in Section 9C”.

Wiring or grounding faulty

Repair circuit.

BCM faulty

Replace after making sure that none of above
parts is faulty.
