Suzuki Grand Vitara JB627. Manual - part 391

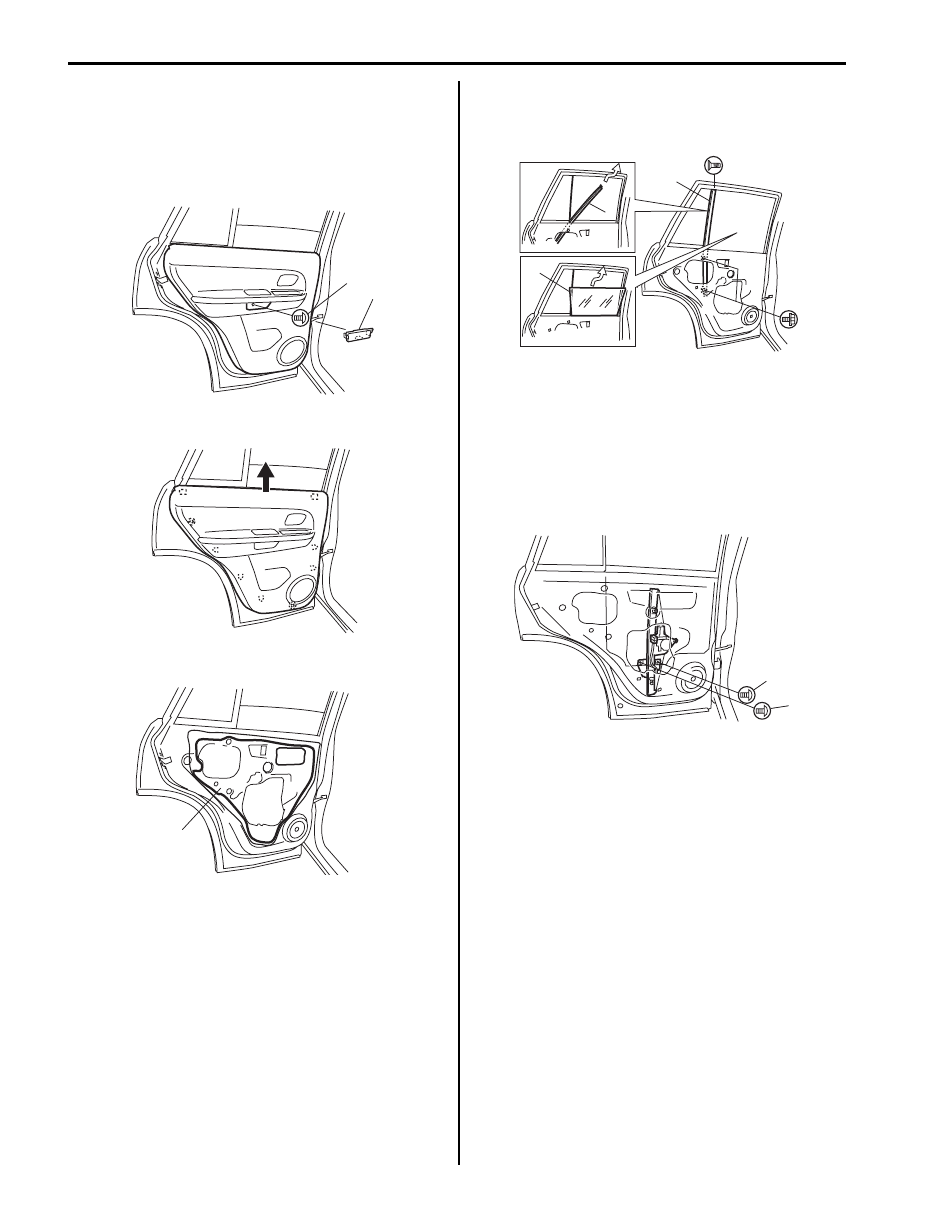

9E-17 Glass / Windows / Mirrors:

Rear Door Glass Removal and Installation

S6JB0B9506008

Removal

1) Remove door trim screw cover (1).
2) Remove door trim screw (2).

3) Remove door trim (1) as shown.

4) Remove door sealing cover (1).

5) Detach rear part of glass run from door sash (1), and

remove door sash (1).

6) Remove door glass (2) as shown.

Installation
Reverse removal procedure noting the following
instructions.
• If there is deformity for glass run, replace it with a new

one.

• Tighten rear door window mounting screw (a) first and

then (b).

2

1

I5JB0A950019-01

I5JB0A950020-01

1

I5JB0A950021-01

1

1

2

I5JB0A950022-01

(a)

(b)

I5JB0A950023-01

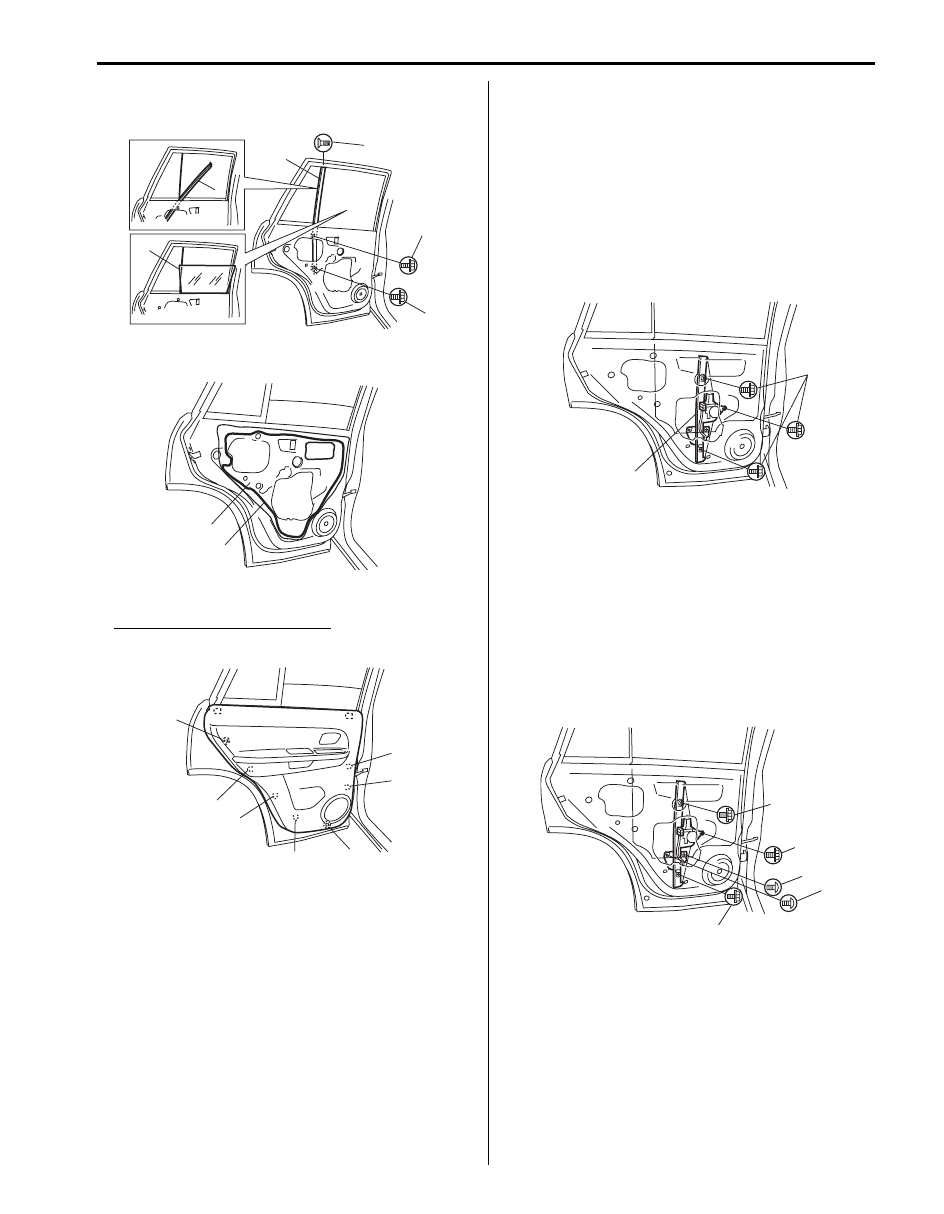

Glass / Windows / Mirrors:  9E-18

• Tighten door sash mounting screw and bolts in order

of (a), (b) and (c).

• Secure door sealing cover (1) with adhesive (2).

• Install rear door trim.

Rear door trim attaching order
(1)

 (2)  (3)  (4)  (5)  (6)  (7)

Rear Door Window Regulator Removal and
Installation

S6JB0B9506009

Removal

1) Remove door glass referring to “Rear Door Glass

Removal and Installation”.

2) Disconnect power window motor lead wire at coupler

and loosen clamp.

3) Loosen regulator mounting screws (1), and then

remove rear window regulator (2).

Installation
Reverse removal procedure noting the following.
• Apply grease to sliding and rotating portions of

window regulator.

:  Grease 99000–25011 (SUZUKI Super Grease A)

• Tighten rear door window regulator mounting screws

in order of (a), (b) and (c).

• Tighten rear door window mounting screw (1) first and

then (2).

Rear Door Window Regulator Inspection

S6JB0B9506010

Check the following point:
• Check regulator sliding and rotating parts.
• Check rollers for wear and damage.

1

1

2

(a)

(b)

(c)

I5JB0A950024-02

1

2

I5JB0A950025-01

1

2

3

4

5

6

7

I5JB0A950026-01

1

2

I5JB0A950027-01

“2”

(b)

(a)

(c)

“1”

I5JB0A950028-01

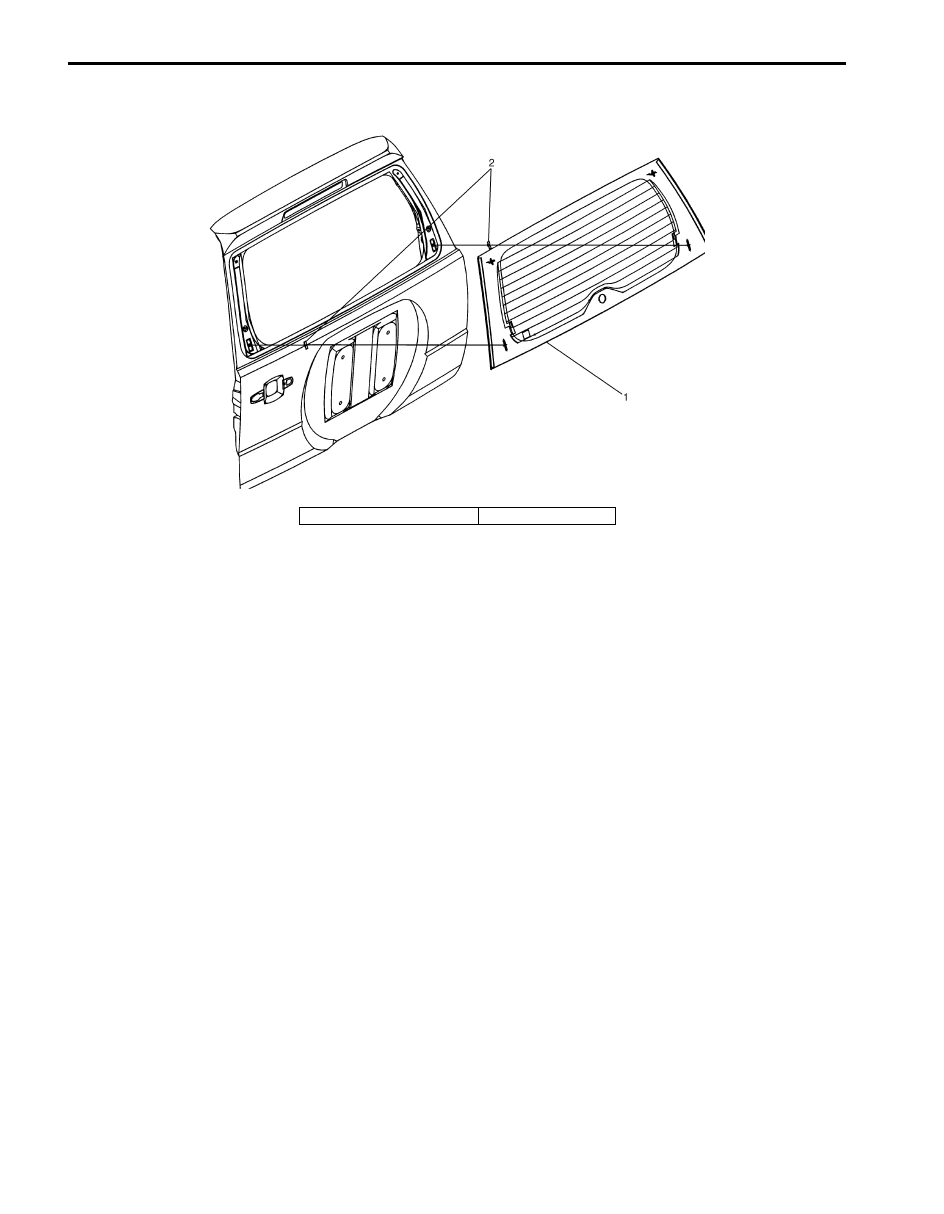

9E-19 Glass / Windows / Mirrors:

Rear End Door Window Components

S6JB0B9506011

I5JB0A950029-01

1. Rear end door glass

2. Fastener

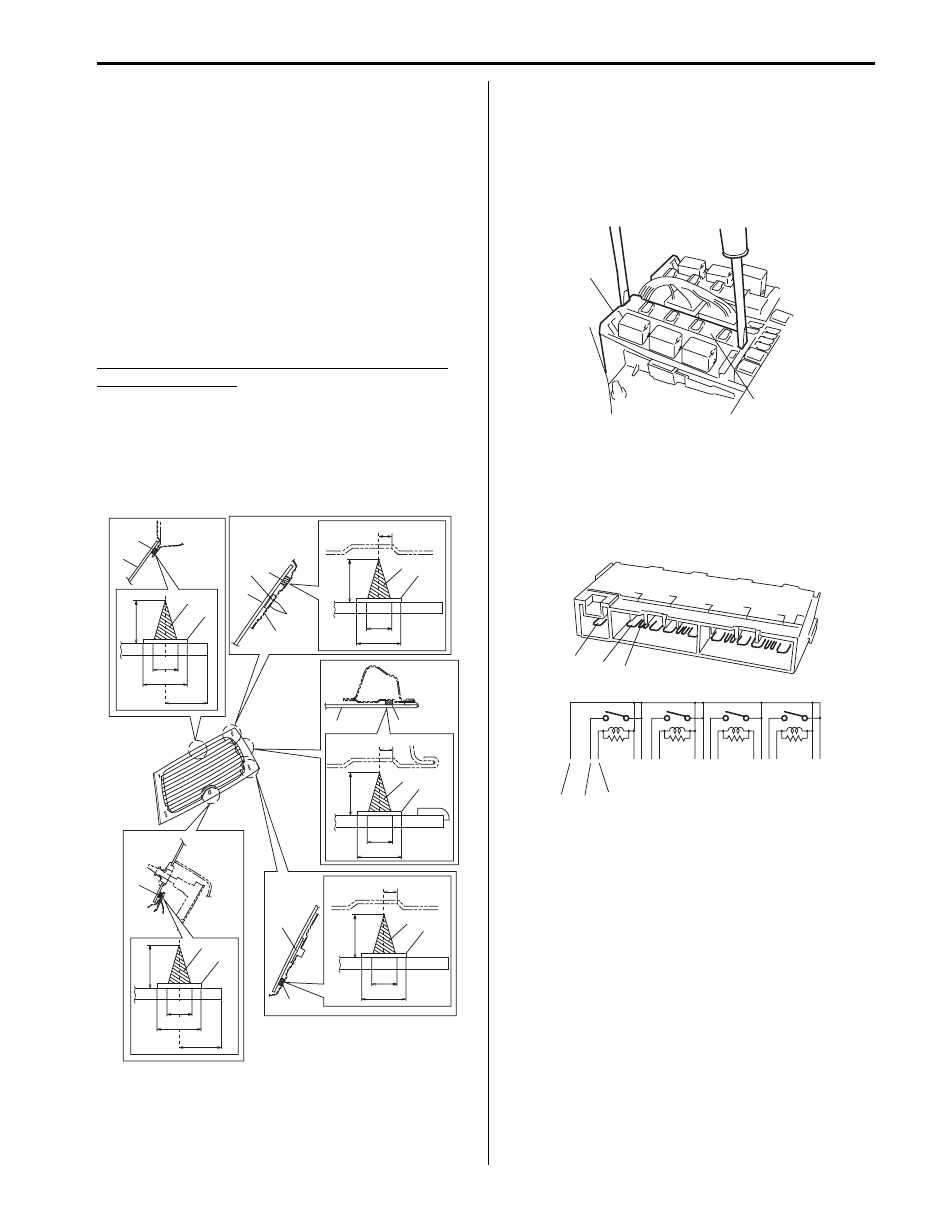

Glass / Windows / Mirrors:  9E-20

Rear End Door Glass Removal and Installation

S6JB0B9506012

Refer to “Windshield Removal and Installation” as
removal and installation procedures are basically the
same. However, note the following.
• Observe the following precautions when applying

adhesive (1) along glass (2) edge.

• Adhesive (1) should be applied evenly especially in

height.

• Be careful not to damage primer (3).
• With the position of fastener (4) properly aligned,

install glass (2) on rear end door panel (5).

• Press glass against body quickly after adhesive (1) is

applied.

Adhesive amount specifications and position for
rear end door glass
Width “a”: 7 mm (0.28 in.)
Height “b”: 14 mm (0.55 in.)
Width “c”: 16 mm (0.63 in.)
Position “d”: 15 mm (0.59 in.) for glass upper and
bottom section
Position “e”: 8 mm (0.31 in.)

Rear End Door Window Defogger Relay
Inspection

S6JB0B9506013

1) Disconnect negative (–) cable from battery.
2) Remove rear end door window defogger relay

(included in integration relay) (1) from main fuse box
(2).

3) Check that there is no continuity between terminal

“a” and “b”. If there is continuity, replace relay.

4) Check that there is continuity between terminals “a”

and “b” when a 12 V battery is connected to
terminals “a” and “c”.
If malfunction is found, replace it with a new one.

b

3

1

3

1

3

1

3

1

b

3

1

1

2

1

2

5

4

1

2

4

1

1

“a”

“a”

“c”

“d”

“c”

“a”

“e”

“b”

“b”

“c”

“a”

“e”

“c”

“d”

“b”

“e”

“c”

“a”

I5JB0A950030-01

2

1

I5JB0A950031-01

“c”

“b”

“a”

“b”

“a”

“c”

I5JB0A950032-02
