Suzuki Grand Vitara JB627. Manual - part 392





9E-21 Glass / Windows / Mirrors:

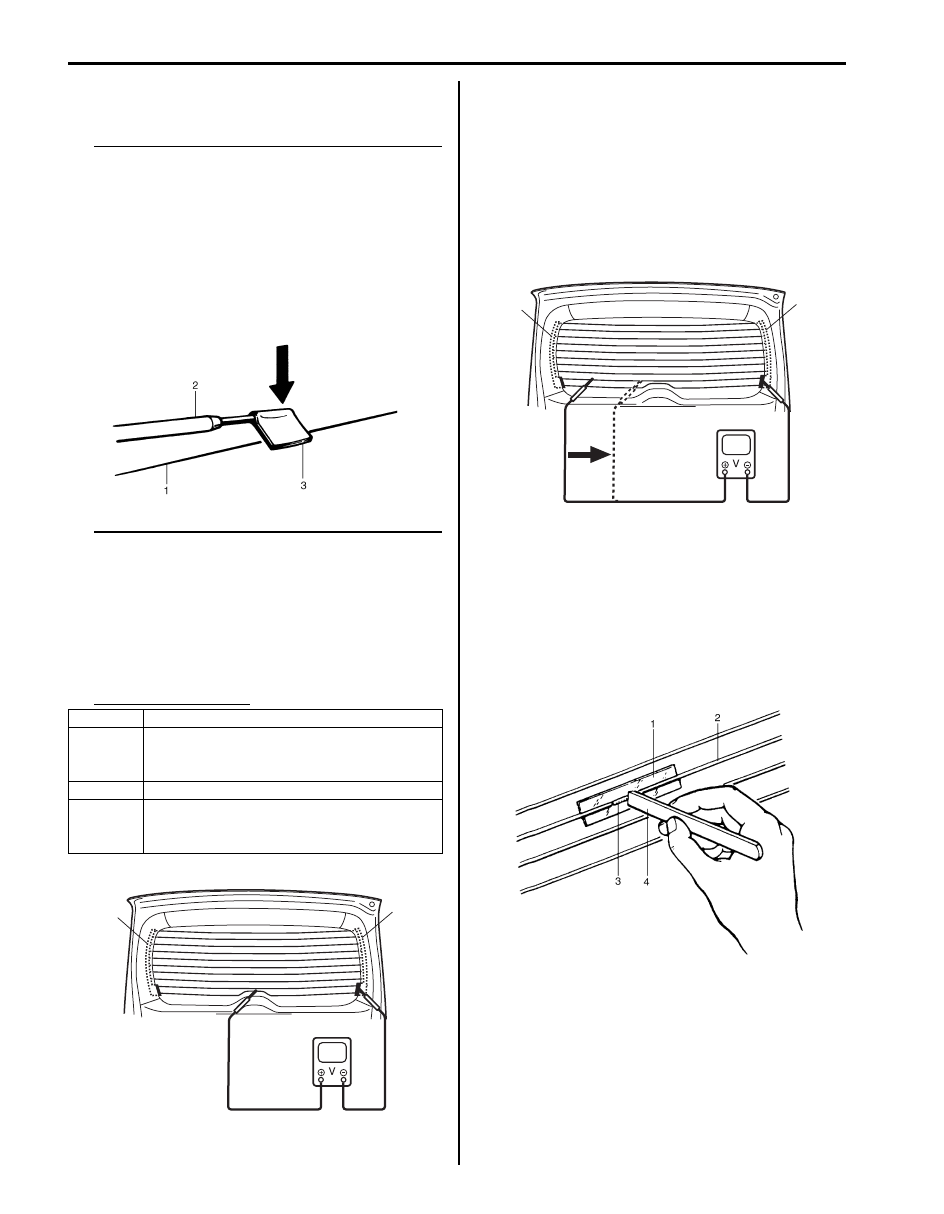

Rear End Door Window Defogger Wire
Inspection

S6JB0B9506014

NOTE

• When cleaning rear end door window

glass, use a dry cloth to wipe it along heat
wire (1) direction.

• When cleaning glass, do not use detergent

or abrasive-containing glass cleaner.

• When measuring wire voltage, use a tester

with positive probe (2) wrapped with a tin
foil (3) which should be held down on wire
by finger pressure.



Wire Damage Inspection

1) Start engine.
2) Turn on defogger switch.
3) Measure voltage at the center of each defogger wire

(1), and check defogger wire condition according to
the following table.
If defogger wire open is found, go to next step.

Defogger wire voltage

4) Touch voltmeter negative (–) lead to defogger wire

ground terminal end (1).

5) Touch voltmeter positive (+) lead with a foil strip to

defogger wire power source terminal end (2), then
move it along wire to defogger wire ground terminal
end (1).
The place where voltmeter fluctuates from 10 – 12 V
to 0 – 1 V is where there is open.
If found defective, repair defogger wire referring to
“Rear End Door Window Defogger Wire Repair”.

Rear End Door Window Defogger Wire Repair

S6JB0B9506015

1) Use white gasoline for cleaning.
2) Apply masking tape (1) at both upper and lower

sides of heat wire (2) to be repaired.

3) Apply commercially-available repair agent (3) with a

fine-tip brush (4).

4) 2 to 3 minutes later, remove masking tapes (1).

5) Leave repaired heat wire as it is for at least 24 hours

before operating the defogger again.

Power Window Main Switch Inspection

S6JB0B9506016

Switch for driver side window

1) Remove driver side door trim referring to step 1) to

3) of “Front Door Glass Removal and Installation”.

2) Remove power window main switch from door trim.

Voltage

Circuit

0 – 1 V Defogger wire open between its center

and defogger wire power source terminal
end (2)

4 – 6 V Normal condition

10 – 12 V Defogger wire open between its center

and defogger wire ground terminal end
(3)

I2RH01950002-01

2

1

I5JB0A950033-01

2

1

I5JB0A950034-01

I2RH01950005-01

Glass / Windows / Mirrors:  9E-22

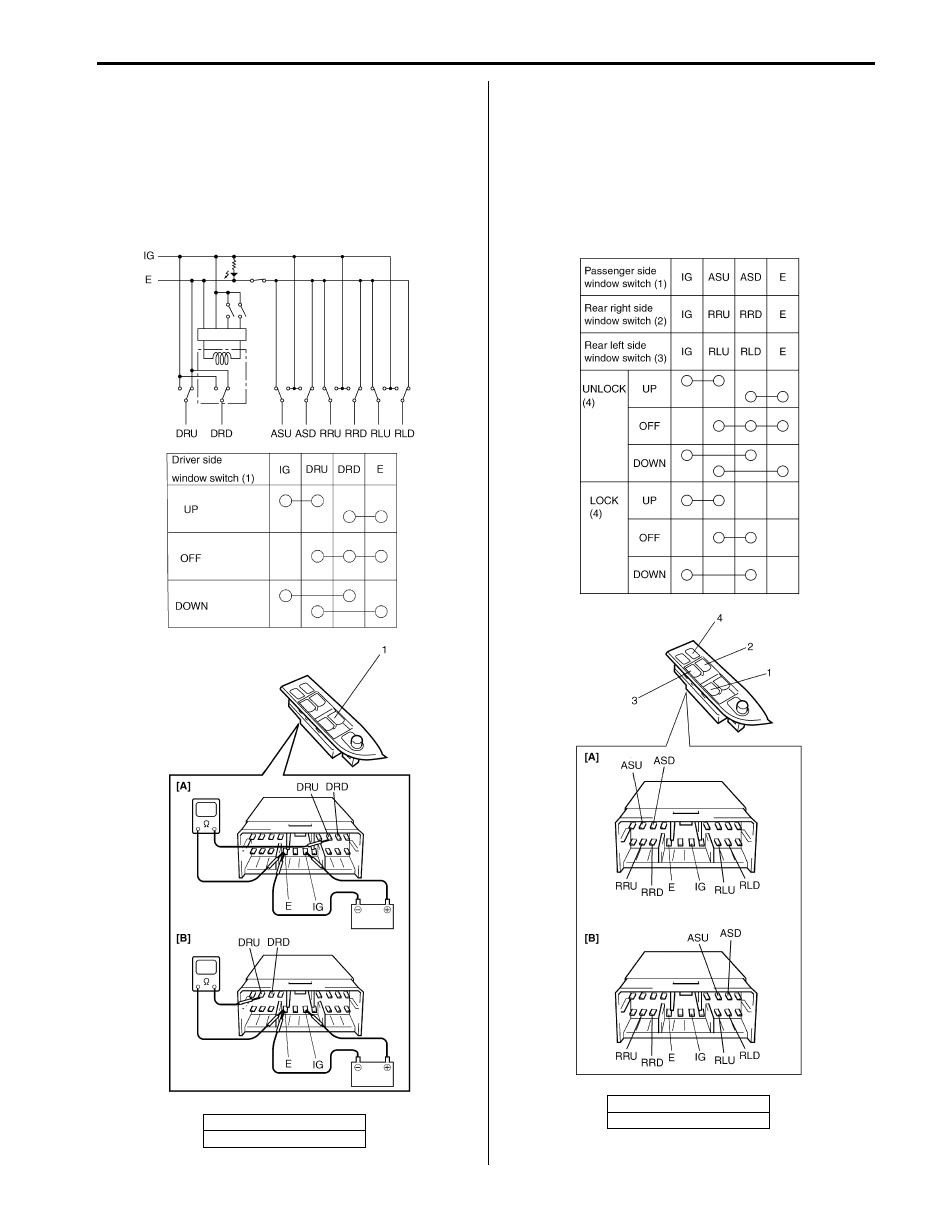

3) Connect 12 V battery positive (+) terminal to terminal

“IG” of power window main switch and its negative (–
) terminal to terminal “E” of power window main
switch.

4) Check for continuity between terminals as shown

below.
If check result is not as specified, replace power
window main switch.

Switch for other window than driver side

1) Remove driver side door trim referring to step 1) to

3) of “Front Door Glass Removal and Installation”.

2) Remove power window main switch from door trim.
3) Check for continuity between terminals as shown

below.

If check result is not as specified, replace power window
main switch.

[A]: LH steering vehicle
[B]: RH steering vehicle

I5JB0A950035-03

[A]: LH steering vehicle
[B]: RH steering vehicle

I5JB0A950036-02

9E-23 Glass / Windows / Mirrors:

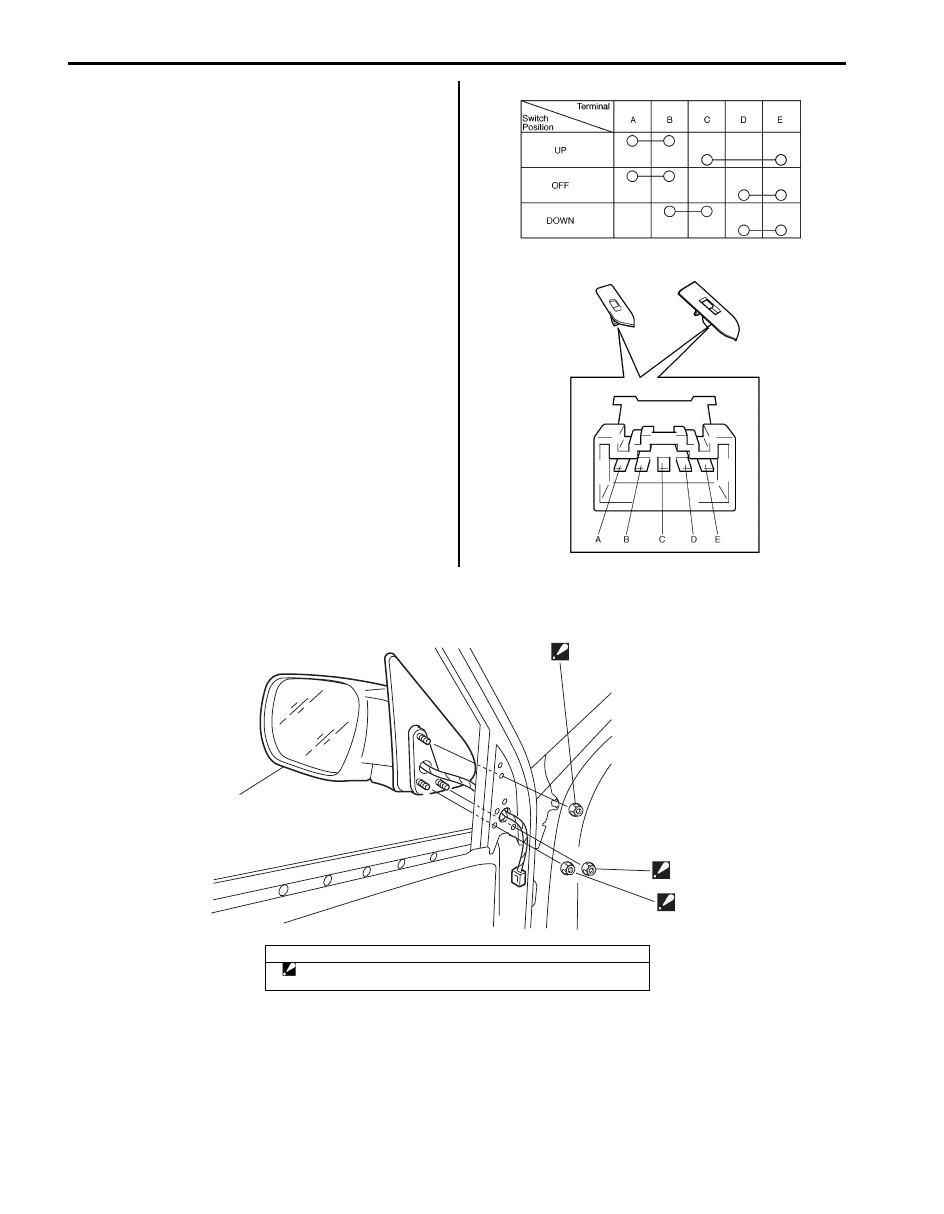

Power Window Sub Switch Inspection

S6JB0B9506017

1) Remove front and/or rear door trim from door panel,

refer to Step 1) to 3) of “Front Door Glass Removal
and Installation”
 and/or “Rear Door Glass Removal
and Installation”
.

2) Remove power window sub switch from door trim.
3) Check for continuity between terminals at each

switch condition.

If check result is not as specified, replace switch.

Door Mirror Components

S6JB0B9506018

I5JB0A950037-01

“1”

“3”

“2”

1

2,

2,

2,

I5JB0A950038-02

1. Door mirror
2. Door mirror mounting nut

:Tighten nuts in such order as indicated in the figure.

Glass / Windows / Mirrors:  9E-24

Door Mirror Removal and Installation

S6JB0B9506019

When removing or installing door mirror, refer to the
figure in “Door Mirror Components”.

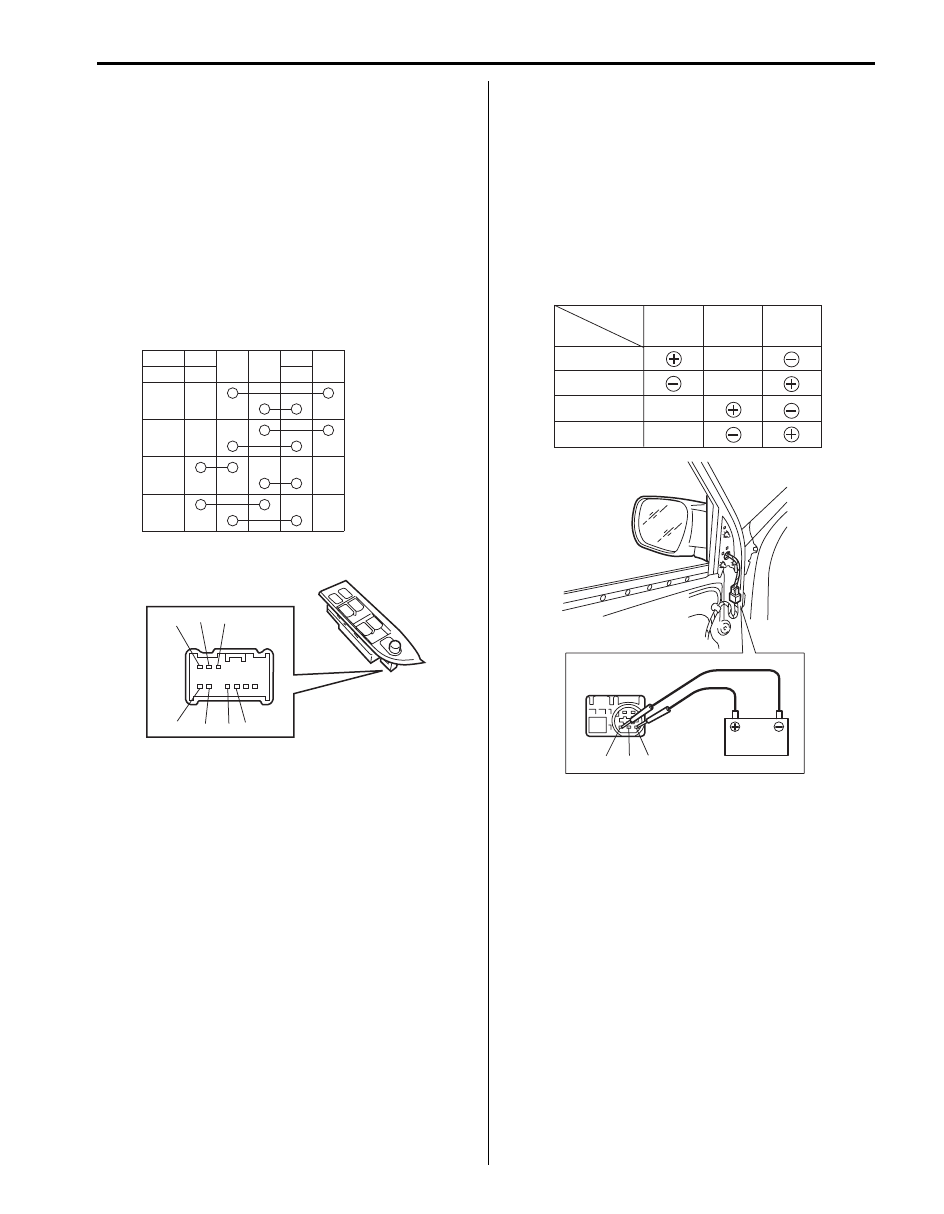

Power Door Mirror Switch Inspection

S6JB0B9506020

1) Remove driver side door trim referring to step 1) to

3) of “Front Door Glass Removal and Installation”.

2) Remove power window main switch from door trim.
3) Check for continuity between terminals at each

switch position.
If check result is not as specified, replace door mirror
switch.

Power Door Mirror Actuator Inspection

S6JB0B9506021

1) Remove door trim referring to step 1) to 3) of “Front

Door Glass Removal and Installation”.

2) Disconnect door mirror coupler (1).
3) Check that door mirror operates properly when

battery voltage is applied to connector terminals.

4) Connect battery positive (+) and negative (–)

terminal to the door mirror terminals as shown.
If it does not follow the table’s operation, replace
door mirror assembly.

A

B

C

D

E

F

G

Up

Down

Left

Right

L

R

A

B

C

D

E

F

G

I5JB0A950039-01

B

C

A

Operation

Terminal

Up

Down

Left

Right

C

B

A

I5JB0A950040-01
