Suzuki Grand Vitara JB416 / JB420. Manual - part 6

0A-5 General Information:

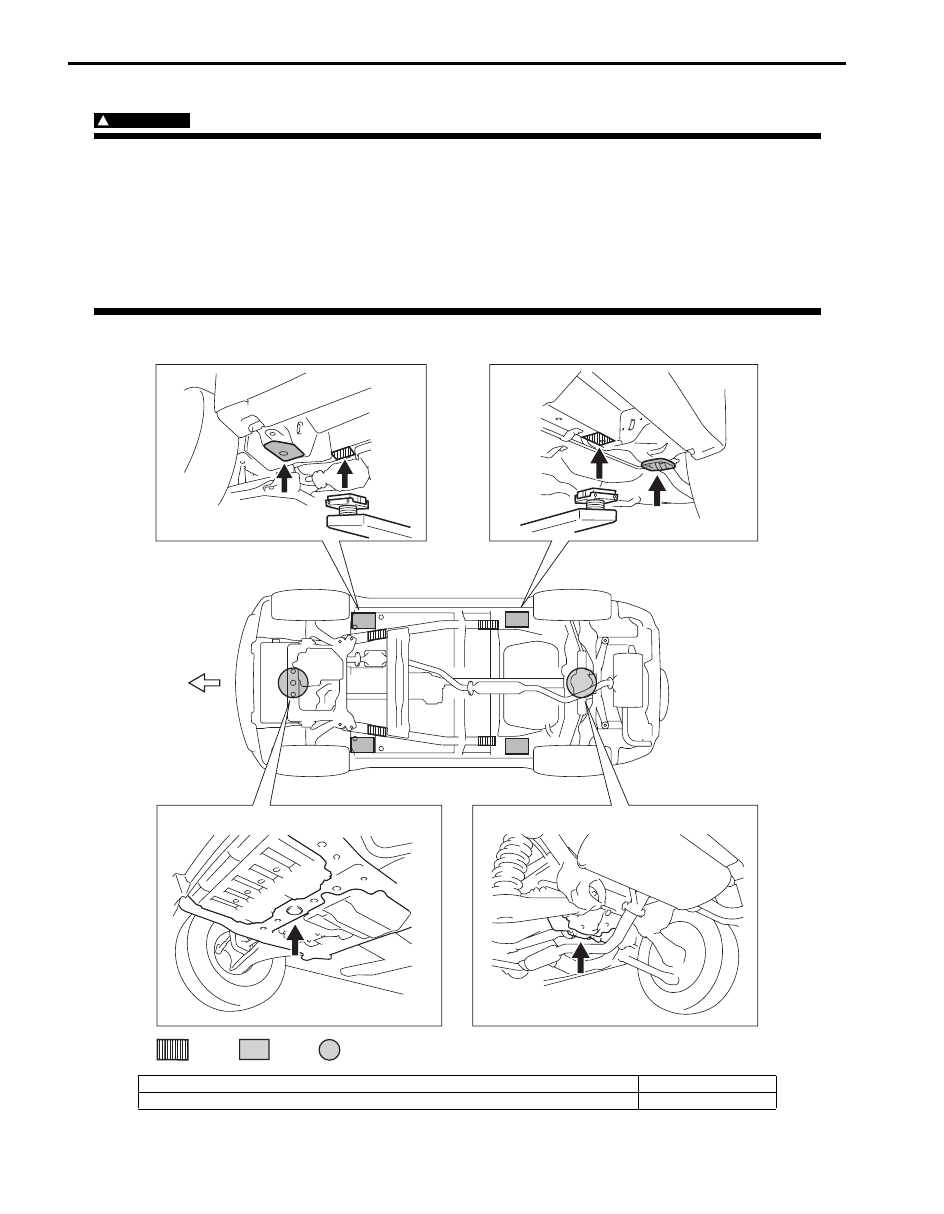

Vehicle Lifting Points

S5JB0A0101006

WARNING

• Before applying hoist to underbody, always take vehicle balance throughout service into

consideration. Vehicle balance on hoist may change depending of what part to be removed.

• Before lifting up the vehicle, check to be sure that end of hoist arm is not in contact with brake pipe,

fuel pipe, bracket or any other part.

• When using frame contact hoist, apply hoist as shown (right and left at the same position). Lift up

the vehicle till 4 tires are a little off the ground and make sure that the vehicle will not fall off by
trying to move vehicle body in both ways. Work can be started only after this confirmation.

• Make absolutely sure to lock hoist after vehicle is hoisted up.

: 1

: 3

: 2

I5JB0A010002-02

1. Support position for frame contact hoist (when engine assembly is not removed) and safety stand

3. Floor jack position

2. Support position for frame contact hoist (when engine assembly is removed)

4. Vehicle front

General Information: 0A-6

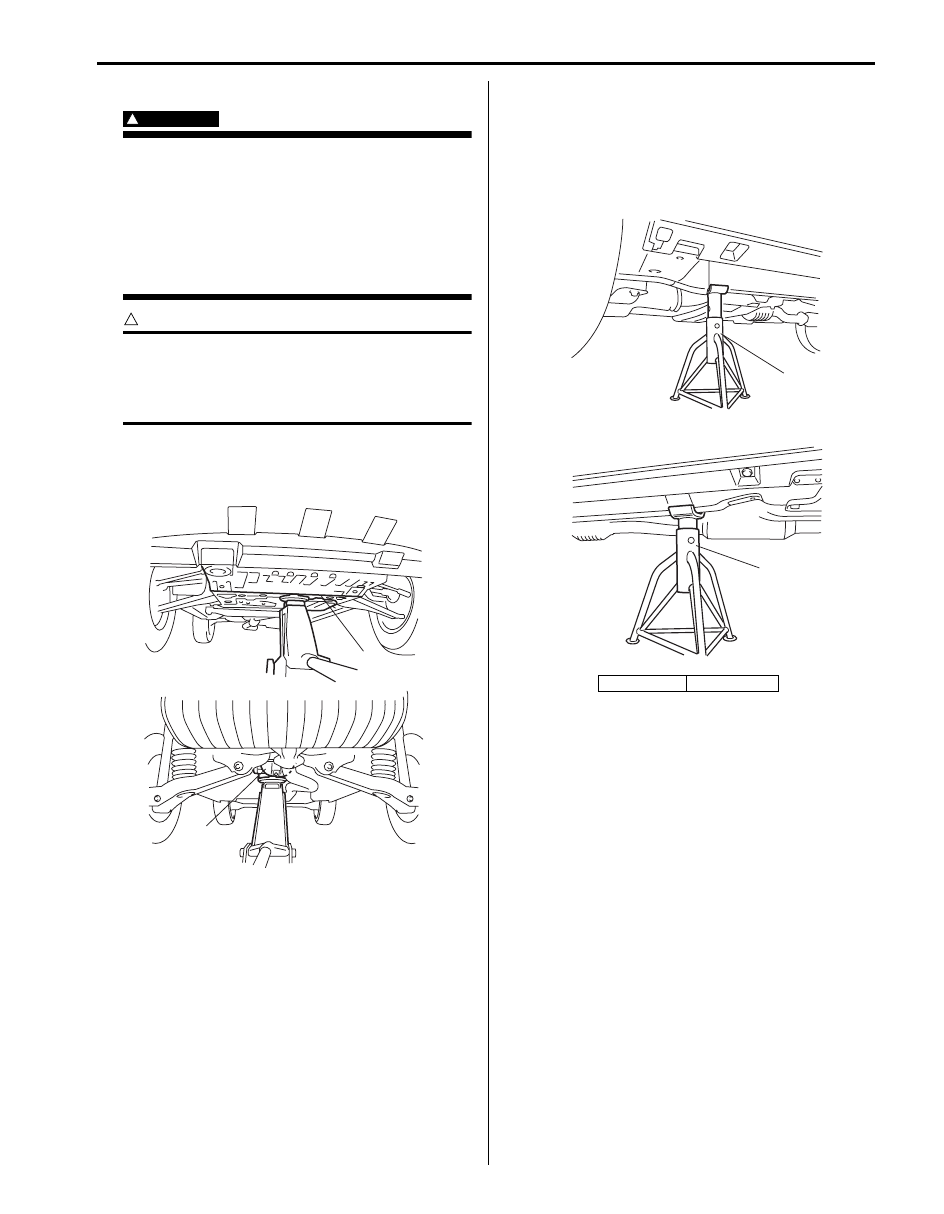

When using floor jack

WARNING

• If the vehicle to be jacked up only at the

front or rear end, be sure to block the
wheels on ground in order to ensure
safety.
After the vehicle is jacked up, be sure to
support it on stands. It is extremely
dangerous to do any work on the vehicle
raised on jack alone.

CAUTION

• Never apply jack against engine under

cover, suspension parts (i.e., stabilizer,
etc.) or vehicle floor, or it may get
damaged.

In raising front or rear vehicle end off the floor by jacking,
be sure to put the jack against the center portion of the
front suspension frame (1) or rear differential (2).

To perform service with either front or rear vehicle end
jacked up, be sure to place safety stands (1) under
chassis frame so that body is securely supported.
And then check to ensure that chassis frame does not
slide on safety stands (1) and the vehicle is held stable
for safety’s sake.

I5JB0A010003-01

[A]: Front

[B]: Rear

[A]

[B]

I5JB0A010004-02

0A-7 General Information:

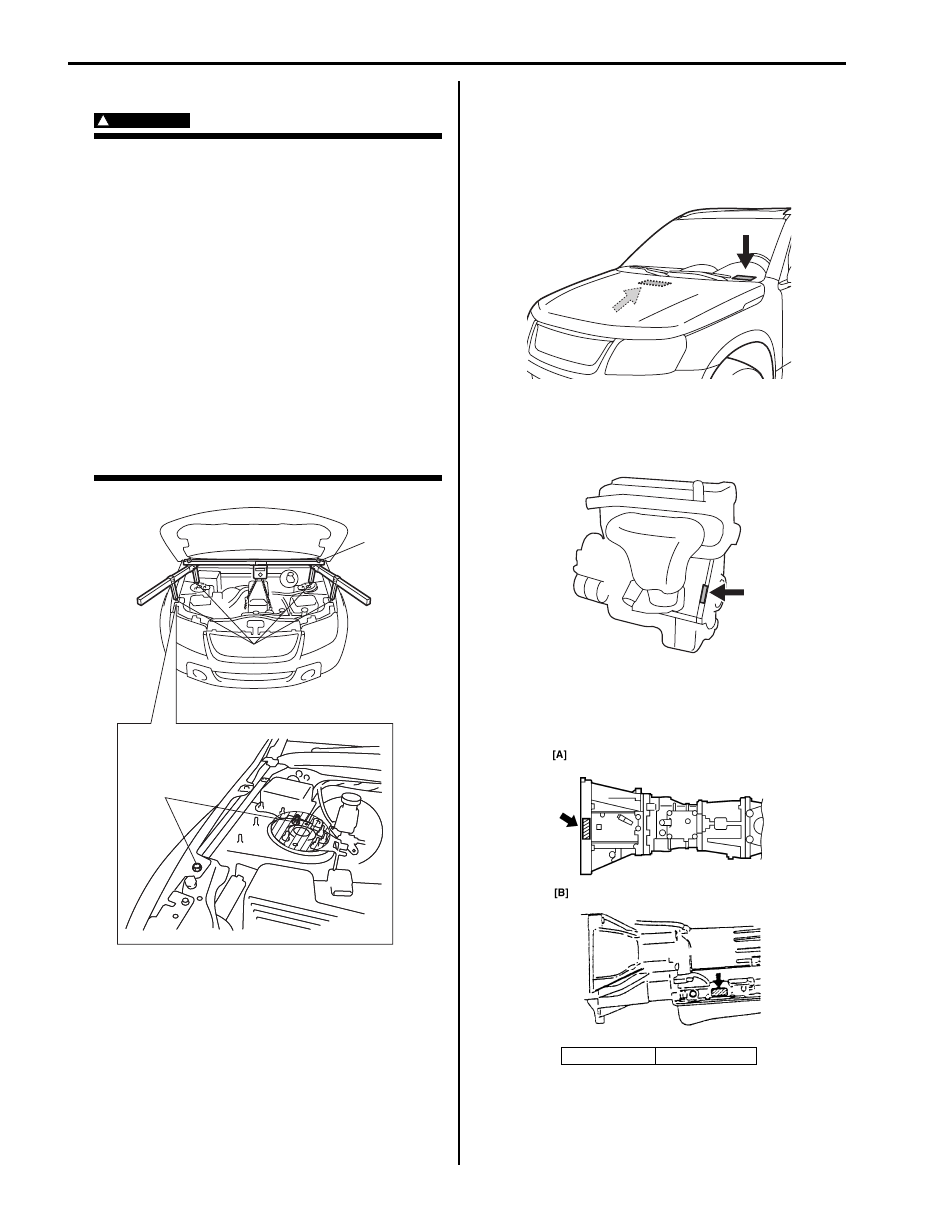

Engine Supporting Points

S5JB0A0101010

WARNING

When using engine supporting device (1), be
sure to observe the followings.
Otherwise, not only deformation of vehicle
body and/or engine hook but also personal
injury may result.
• Apply supporting device at the specified

positions (2) indicated in figure

• Install supporting device taking a well-

balanced posture.

• Do not contact supporting device with

other parts than specified positions and
engine hooks.

• Do not remove engine rear mounting

(transfer mounting) while supporting.

• Set support device so that side force

applies to hook excessively.
Excessive side force will deform hook.

Vehicle Identification Number

S5JB0A0101007

The vehicle identification number is punched on the front
dash panel in engine room and it is also attached on the
left front top of instrument panel depending on vehicle
specification.

Engine Identification Number

S5JB0A0101008

The number is punched on the cylinder block.

Transmission Identification Number

S5JB0A0101009

The number is located on the transmission case.

I5JB0A010005-02

[A]: M/T [B]: 4A/T

I5JB0A010001-02

I5JB0A010006-01

I5JB0A010007-03

General Information: 0A-8

Component Location

Warning, Caution and Information Label Location

S5JB0A0103001

The figure shows main labels among others that are attached to vehicle component parts.
When servicing and handling parts, refer to WARNING / CAUTION instructions printed on labels.
If any WARNING / CAUTION label is found stained or damaged, clean or replace it as necessary.

NOTE
Air bag labels are attached on the vehicle equipped with air bag system only.

I5JB0A010008-04

1. Blank

5. A/C label

9. Jacking label

2. Radiator cap label

6. Air bag label on sun visor

10. Parking label (if equipped)

3. Blank

7. Air bag label and utility vehicle label on sun visor

11. Side air bag label (Both RH and LH)

4. Engine cooling fan label

8. Blank

12. Child seat label on instrument panel
