PRECAUTIONS

SR-3

< PRECAUTION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Diagnosis sensor unit must always be installed with their arrow marks “

⇐

” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before installa-
tion and replace as required.

• The spiral cable must be aligned in the neutral position since its rotations are limited. Do not turn steering

wheel and column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper functioning after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.
• Always replace instrument panel pad following front passenger air bag deployment.

Occupant Classification System

INFOID:0000000003751422

Replace occupant classification system control unit and passenger front seat cushion as an assembly.
• With VENTILATION SEAT: Refer to

SE-89, "Exploded View"

.

• Without VENTILATION SEAT: Refer to

SE-130, "Exploded View"

.

SR-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

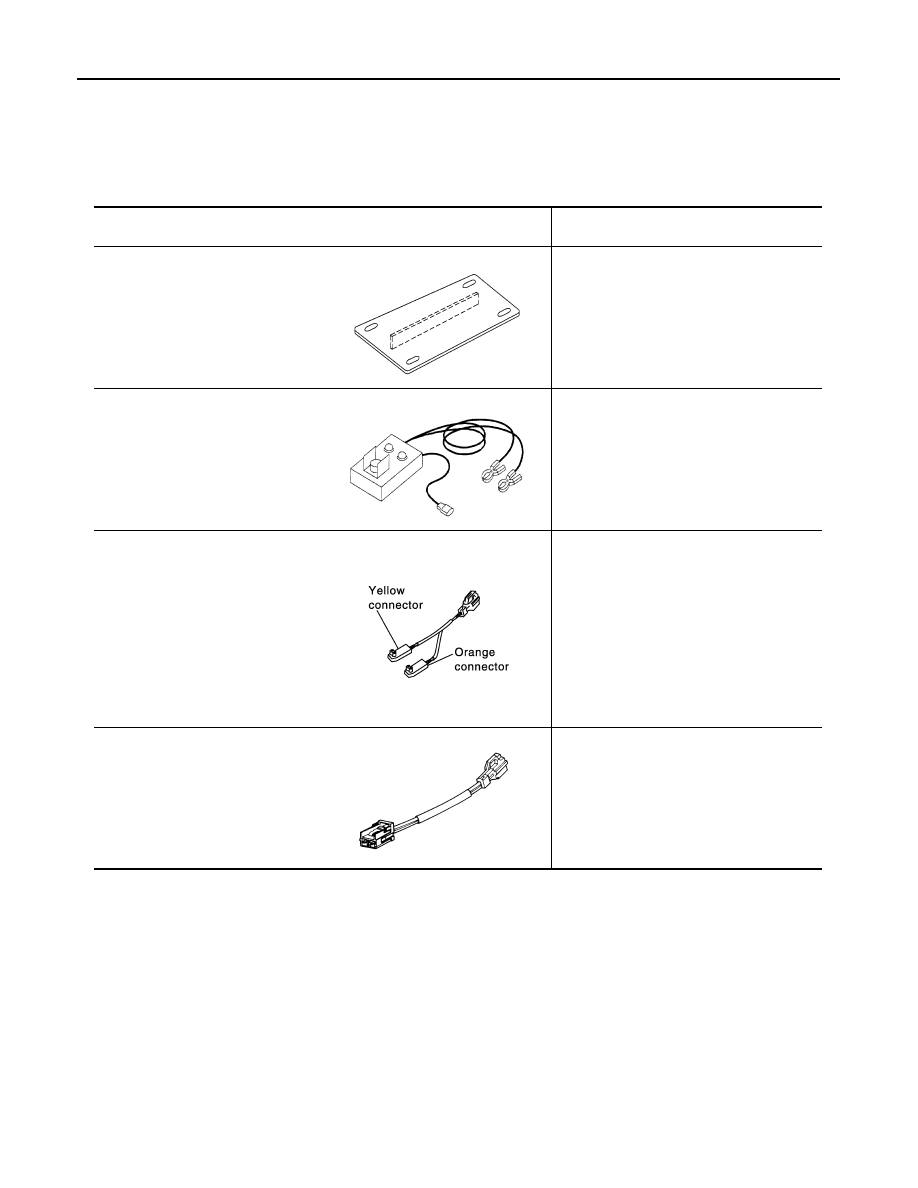

Special Service Tool

INFOID:0000000003838653

Tool number

Tool name

Description

KV99105300
Air bag module bracket

Anchors air bag module

KV99106400
Deployment tool

Disposes of air bag module and front seat
belt pre-tensioner

KV99110500
Deployment tool adapter
• Deployment tool adapter for driver

air bag module (Yellow connector)

• Deployment tool adapter for front

seat belt pre-tensioner (Yellow
connector)

• Deployment tool adapter for side

curtain air bag module (Yellow
connector)

• Deployment tool adapter for front

passenger air bag module

• Connects between the deployment tool

and driver air bag module

• Connects between the deployment tool

and front seat belt pre-tensioner

• Connects between the deployment tool

and side curtain air bag module

• Connects between the deployment tool

and front passenger air bag module

KV99108300
Deployment tool adapter for front
side air bag module

Connects between the deployment tool and
front side air bag module

S-NT354

S-NT357

PHIA0184E

ZZA1166D

PREPARATION

SR-5

< PREPARATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

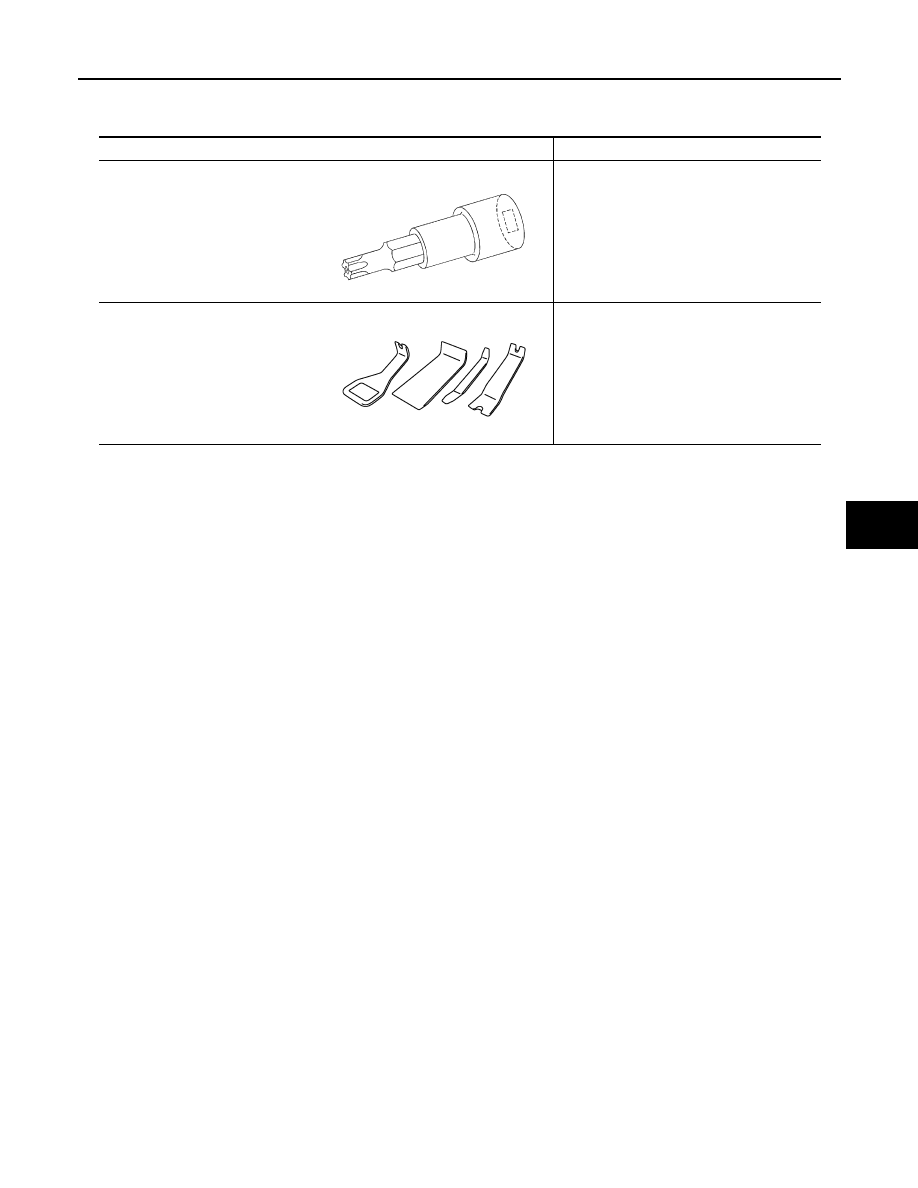

Commercial Service Tool

INFOID:0000000003838654

Tool name

Description

Tamper resistant TORX bit

Removes of driver air bag module

Remover tool

Removes clip, pawl and metal clip

S-NT757

PIIB7923J

SR-6

< ON-VEHICLE REPAIR >

DRIVER AIR BAG MODULE

ON-VEHICLE REPAIR

DRIVER AIR BAG MODULE

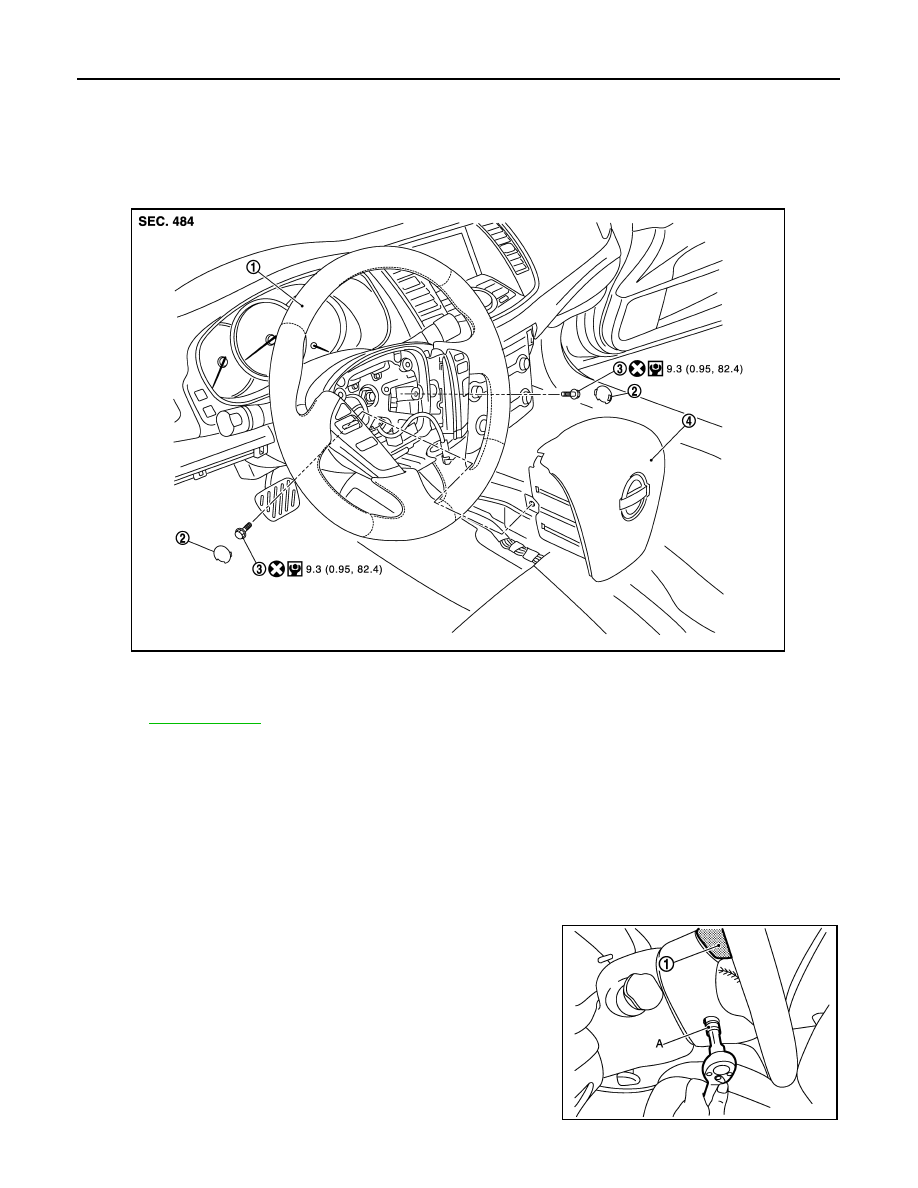

Exploded View

INFOID:0000000003838665

Removal and Installation

INFOID:0000000003838666

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.

• Always work from the side of air bag module. Never work in front of it.
• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the side lids (LH/RH).

2.

Remove the driver air bag module (1) mounting TORX bolt (LH/
RH) with TORX bit (A).

1.

Steering wheel

2.

Side lid (LH/RH)

3.

TORX bolt (LH/RH)

4.

Driver air bag module

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0613GB

JMHIA0614ZZ
