DRIVER AIR BAG MODULE

SR-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

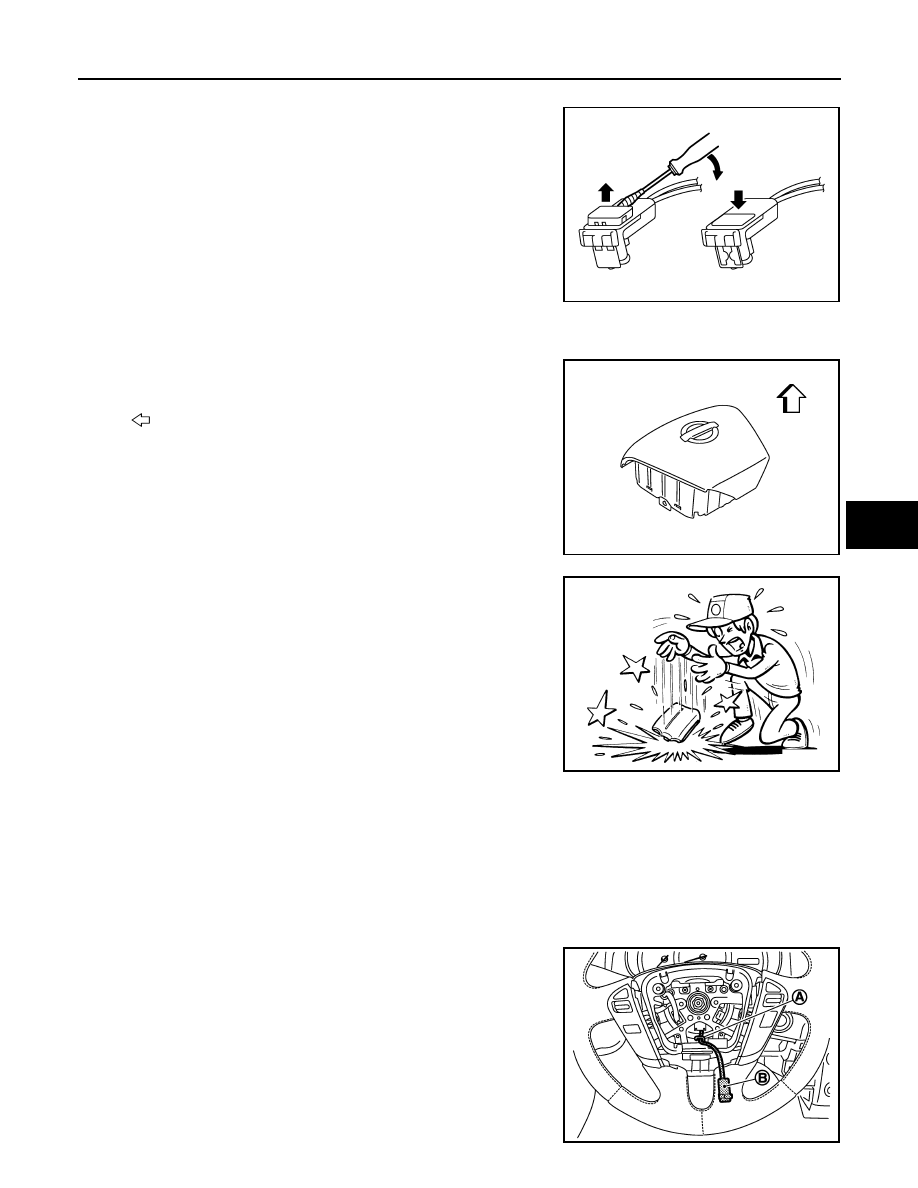

3.

Pull out driver air bag module.

4.

Disconnect driver air bag harness connector.
NOTE:
• For installing/removing driver air bag harness connector, insert

thin screwdriver wrapped in tape into notch, lift lock and
remove connector.

• Install connector with lock raised, and push lock into connec-

tor.

• After installing the connector, check that the lock is pushed

securely into it.

5.

Remove the driver air bag module.

CAUTION:

• Always place driver air bag module with pad side facing

upward.

• Never impact the driver air bag module.
• Replace the driver air bag module if it has been dropped or

sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into driver air bag module.
• Never disassemble driver air bag module.
• Never expose the driver air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent or water to come in contact with the driver air bag module.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use old TORX bolts after removal; replace with new bolts.
• Fix the driver air bag harness (B) to the harness fixing hook

(A).

PHIA0953J

: Upward

JMHIA0504ZZ

JMHIA0009ZZ

JMHIA0615ZZ

SR-8

< ON-VEHICLE REPAIR >

DRIVER AIR BAG MODULE

• Tighten the TORX bolts after completely adjusting the centers of fixing holes on the driver air bag

module side and the steering wheel side. If the holes are misaligned, the bolt threads are damaged
and the module is not installed securely.

• In the case that a malfunction is detected by the air bag warning lamp, after repair or replacement of

the malfunctioning parts, reset the memory by self-diagnosis or by CONSULT-III.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

Refer to

SRC-10, "Diagnosis Description"

.

SPIRAL CABLE

SR-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

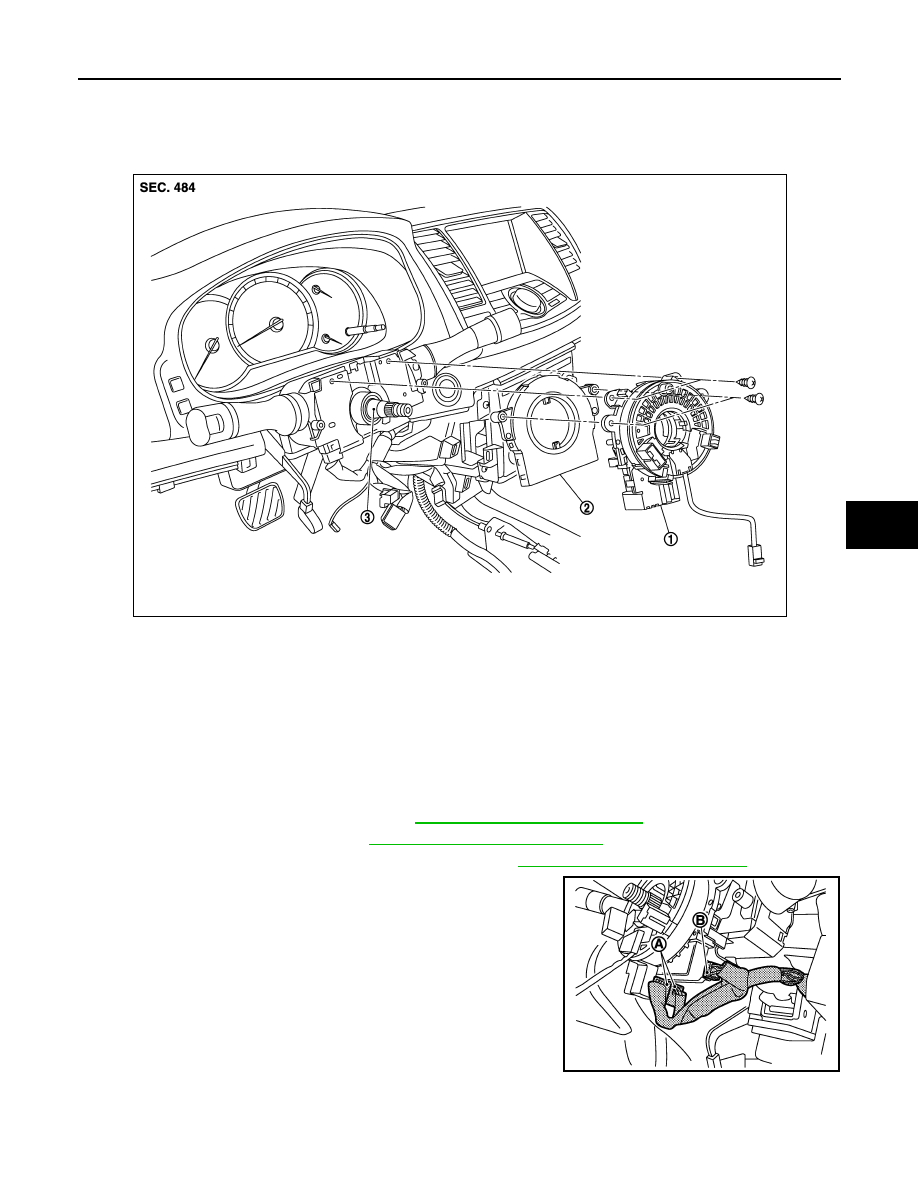

SPIRAL CABLE

Exploded View

INFOID:0000000003838667

Removal and Installation

INFOID:0000000003838668

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.

• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the driver air bag module. Refer to

SR-6, "Removal and Installation"

.

2.

Remove the steering wheel. Refer to

ST-12, "Removal and Installation"

.

3.

Remove the steering column cover (upper/lower). Refer to

IP-12, "Removal and Installation"

.

4.

Disconnect spiral cable body side harness connectors (A) and
steering angle sensor harness connectors (B).
NOTE:
Disconnect spiral cable body side harness connectors after
removing the spiral cable.

5.

Remove the spiral cable fixing screws.

1.

Spiral cable

2.

Steering angle sensor

3.

Steering column assembly

JMHIA0616ZZ

JMHIA0617ZZ

SR-10

< ON-VEHICLE REPAIR >

SPIRAL CABLE

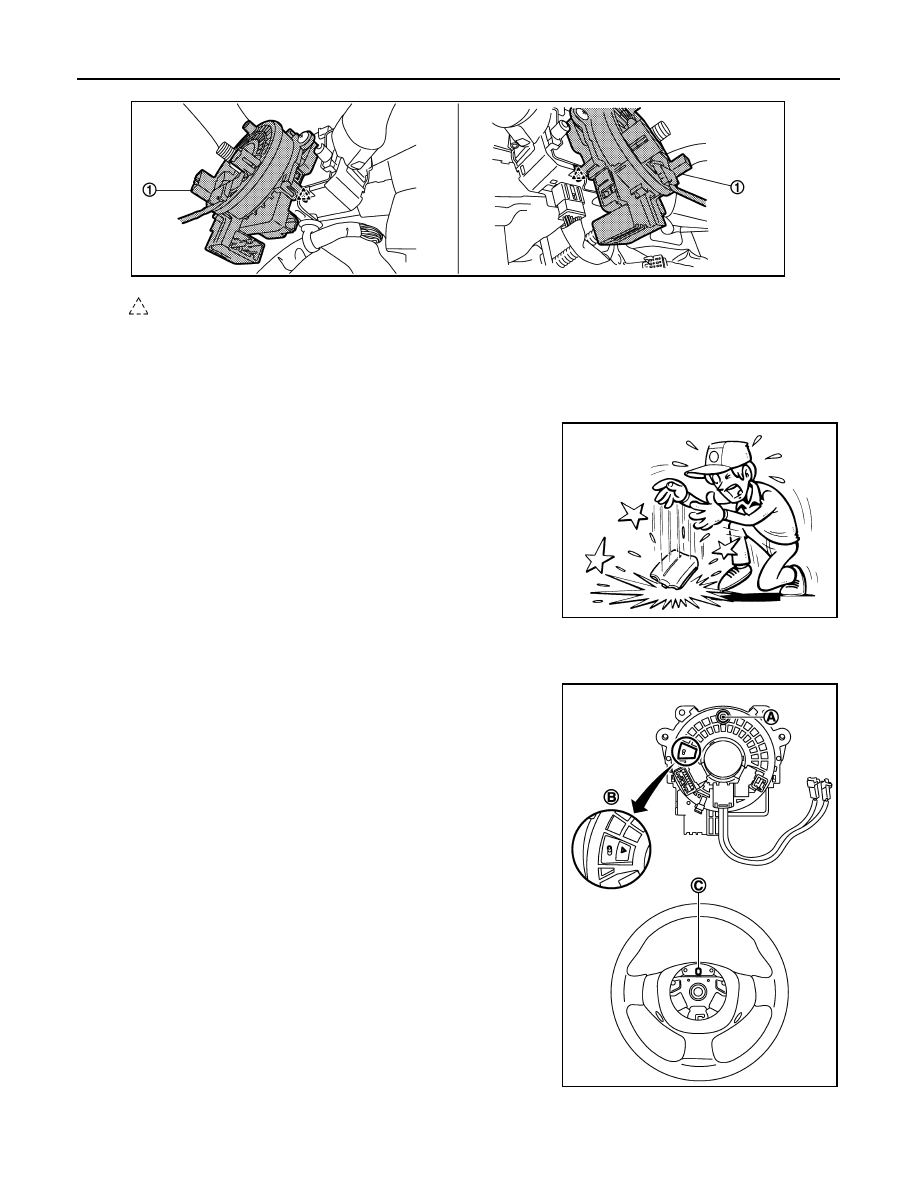

6.

Remove the spiral cable (1) side pawls (LH/RH).

7.

Pull the spiral cable out forward.

CAUTION:

• Never disassemble the spiral cable.
• Never apply lubricant to the spiral cable.
• Never allow oil, grease, detergent or water to come in contact with the spiral cable.
• Never impact the spiral cable.
• Replace the spiral cable if it has been dropped or sustained

an impact.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• The spiral cable may snap during steering operation if the

cable is installed in an improper position.
The neutral position is set as follows.

• Carefully turn the spiral cable clockwise to the end position.

Then turn it counterclockwise (about 2 and a half turns) and
stop turning at the mark (B) on which the stopper insertion
holes are in the same position.

• The service part is installed in the neutral position by the

stopper and can be set without adjusting after the stopper is
removed.

• Never over turn the spiral cable or go beyond the number of

turns required. (These will cause the cable to snap.)

• Adjust the spiral cable locating pin (A) to the steering wheel

locating pin hole (C).

• In the case that a malfunction is detected by the air bag warning lamp, after repair or replacement of

the malfunctioning parts, reset the memory by self-diagnosis or by CONSULT-III.

: Pawl

JMHIA0618ZZ

JMHIA0009ZZ

JMHIA0657ZZ
