VEHICLE SECURITY SYSTEM CAN NOT BE CANCELED

VEHICLE SECURITY SYSTEM CAN NOT BE CANCELED

INTELLIGENT KEY

INTELLIGENT KEY : Description

INFOID:0000000003815107

Before performing the diagnosis in the following table, check “Work Flow”. Refer to

SEC-5, "Work Flow"

.

INTELLIGENT KEY : Diagnosis Procedure

INFOID:0000000003815108

1.

CHECK INTELLIGENT KEY

Check Intelligent Key.
Refer to

DLK-84, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK INTELLIGENT KEY SYSTEM

Check Intelligent Key system.
Refer to

SEC-9, "System Description"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Refer to

SEC-5, "Work Flow"

.

3.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-35, "Intermittent Incident"

.

NO

>> GO TO 1.

DOOR REQUEST SWITCH

DOOR REQUEST SWITCH : Description

INFOID:0000000003815109

Before performing the diagnosis in the following table, check “Work Flow”. Refer to

SEC-5, "Work Flow"

.

DOOR REQUEST SWITCH : Diagnosis Procedure

INFOID:0000000003815110

1.

CHECK DOOR REQUEST SWITCH

Check door request switch.
Refer to

DLK-72, "Component Function Check"

.

Is the inspection normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK INTELLIGENT KEY SYSTEM

Check Intelligent Key system.
Refer to

DLK-14, "INTELLIGENT KEY SYSTEM : System Description"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Refer to

DLK-7, "Work Flow"

.

3.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-35, "Intermittent Incident"

.

NO

>> GO TO 1.

KEY SLOT INDICATOR DOES NOT ILLUMINATE

SEC-201

< SYMPTOM DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

KEY SLOT INDICATOR DOES NOT ILLUMINATE

Description

INFOID:0000000003815113

• Before performing the diagnosis in the following table, check “Work Flow”. Refer to

SEC-5, "Work Flow"

.

Diagnosis Procedure

INFOID:0000000003815114

1.

CHECK KEY SLOT ILLUMINATION

Check key slot illumination.
Refer to

DLK-88, "Component Function Check"

.

Is the inspection normal?

YES

>> GO TO 2.

NO

>> Repair or replace malfunctioning parts.

2.

CONFIRM THE OPERATION

Confirm the operation again.

Is the inspection normal?

YES

>> Check intermittent incident. Refer to

GI-35, "Intermittent Incident"

.

NO

>> GO TO 1.

SEC-202

< PRECAUTION >

[INTELLIGENT KEY SYSTEM]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003940028

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIRBAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000003940027

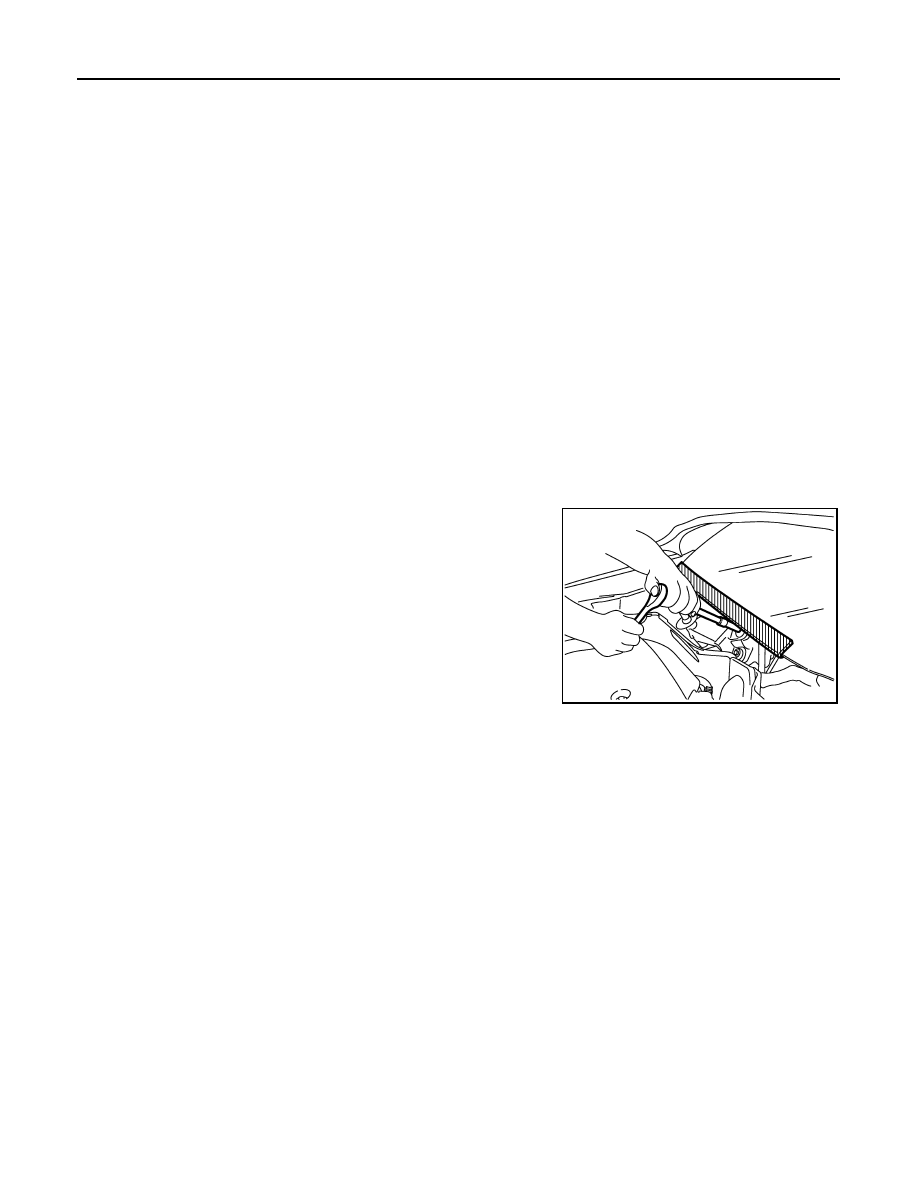

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Precaution Necessary for Steering Wheel Rotation after Battery Disconnect

INFOID:0000000003940026

NOTE:
• Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-

tion, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

This vehicle is equipped with a push-button ignition switch and a steering lock unit.
If the battery is disconnected or discharged, the steering wheel will lock and cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the procedure
below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

PIIB3706J

PRECAUTIONS

SEC-203

< PRECAUTION >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.
