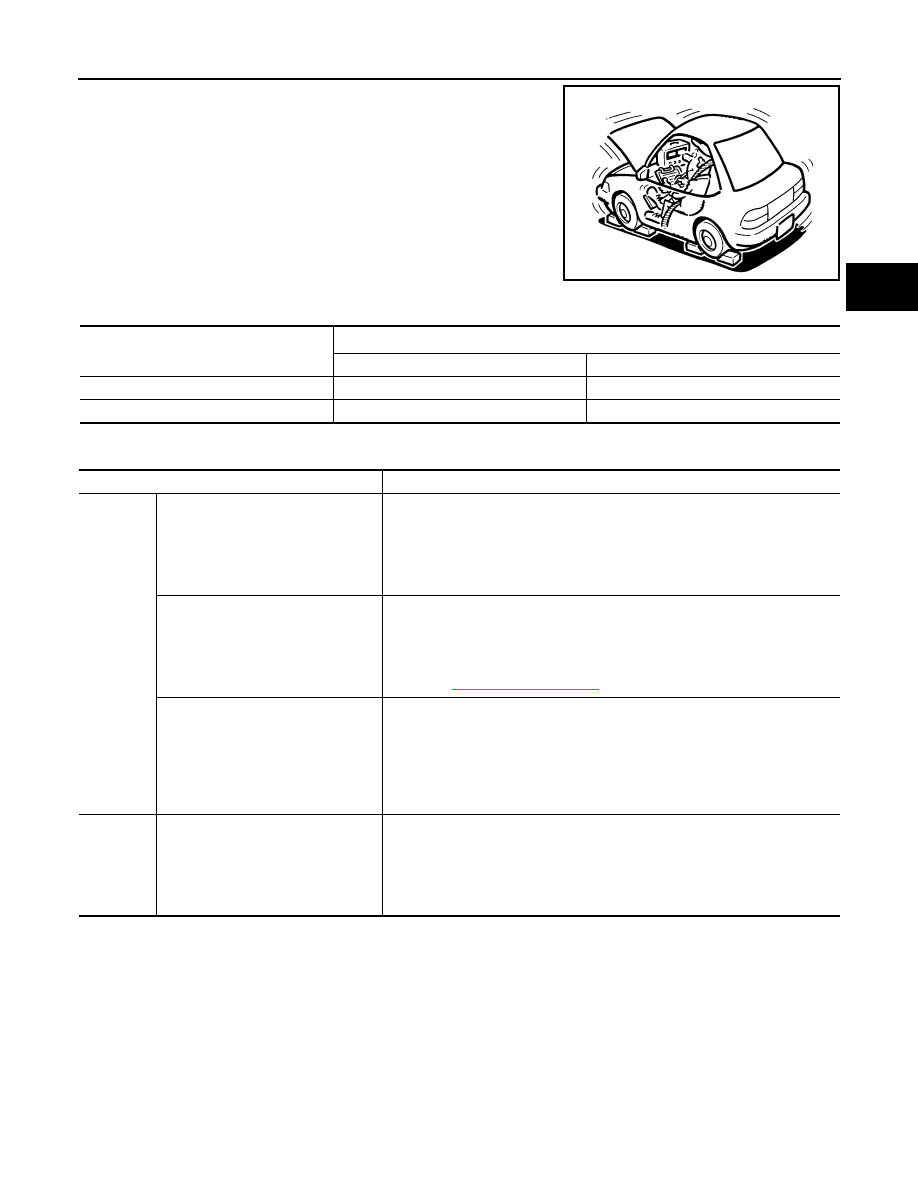

LINE PRESSURE TEST

TM-179

< ON-VEHICLE MAINTENANCE >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5.

Start engine and measure line pressure at idle and stall speed.

CAUTION:

• Keep the brake pedal pressed all the way down during

measurement.

• When measuring the line pressure at the stall speed, refer

to "STALL TEST".

LINE PRESSURE

JUDGEMENT OF LINE PRESSURE TEST

SAT493G

Engine speed

Line pressure [kPa (kg/cm

2

, psi)]

D, 2nd and 1st positions

R position

Idle speed

500 (5.1, 73)

778 (7.9, 113)

Stall speed

1,173 (12.0, 170)

1,825 (18.6, 265)

Judgement

Suspected parts

At idle

Line pressure is low in all positions.

• Oil pump wear
• Control piston damage
• Pressure regulator valve or plug sticking
• Spring for pressure regulator valve damaged
• Fluid pressure leakage between oil strainer and pressure regulator valve
• Clogged strainer

Line pressure is low in particular posi-
tion.

• Fluid pressure leakage between manual valve and particular clutch
• For example, line pressure is:

−

 Low in “R” and “1” positions, but

−

 Normal in “D”, and “2” positions.

Therefore, fluid leakage exists at or around low and reverse brake circuit.
Refer to

TM-14, "Shift Mechanism"

.

Line pressure is high.

• Accelerator pedal position signal malfunction
• A/T fluid temperature sensor damaged
• Line pressure solenoid valve sticking
• Short circuit of line pressure solenoid valve circuit
• Pressure modifier valve sticking
• Pressure regulator valve or plug sticking
• Open in dropping resistor circuit

At stall
speed

Line pressure is low.

• Accelerator pedal position signal malfunction
• Line pressure solenoid valve sticking
• Short circuit of line pressure solenoid valve circuit
• Pressure regulator valve or plug sticking
• Pressure modifier valve sticking
• Pilot valve sticking

TM-180

< ON-VEHICLE MAINTENANCE >

[TYPE 1 (4AT: RE4F03B)]

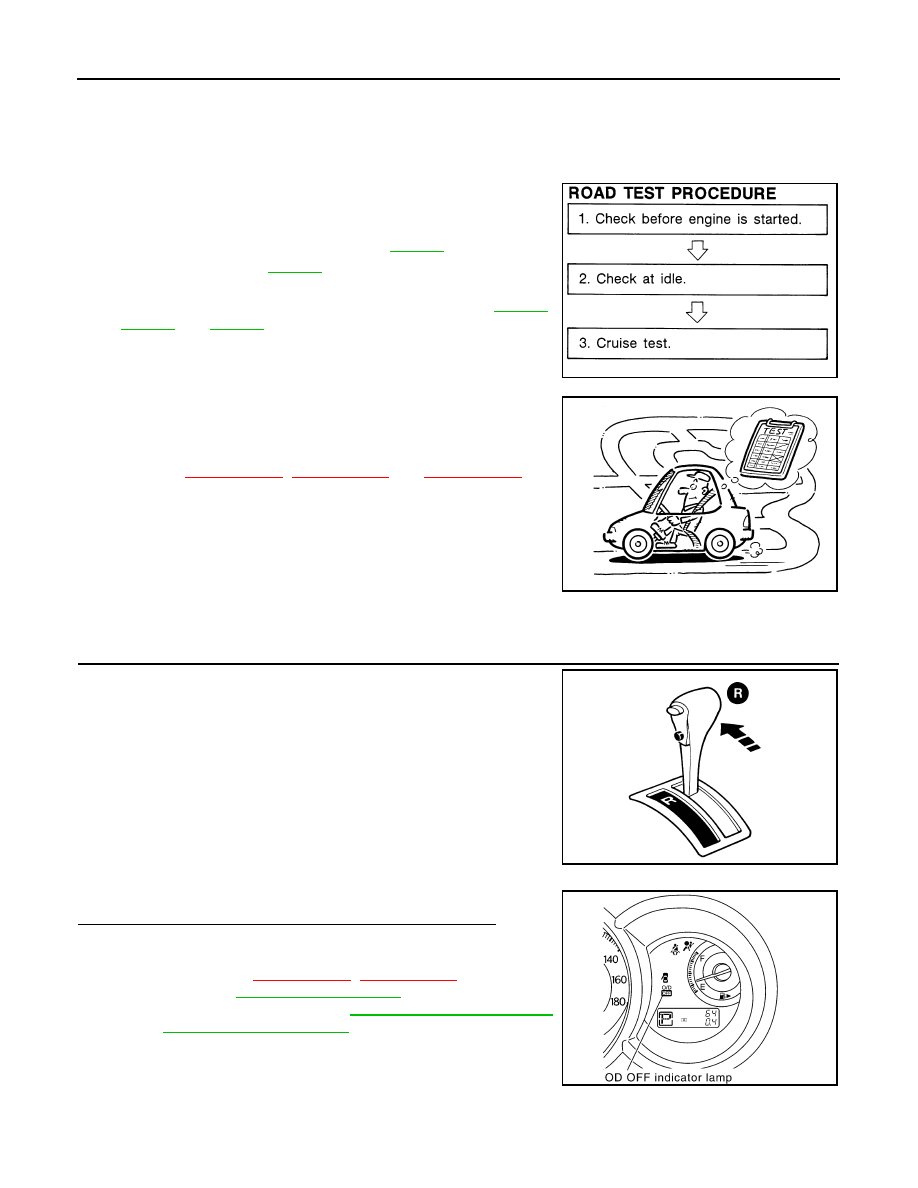

ROAD TEST

ROAD TEST

Description

INFOID:0000000001696152

DESCRIPTION

• The purpose of the test is to determine overall performance of A/T

and analyze causes of malfunctions.

• The road test consists of the following three parts:

1.

Check before engine is started. Refer to

TM-180

.

2.

Check at idle. Refer to

TM-181

.

3.

Cruise test
• Inspection all the item from Part 1 to Part 3. Refer to

TM-183

,

TM-185

 and

TM-186

.

• Before road test, familiarize yourself with all test procedures and

items to check.

• Perform tests on all items until specified symptom is found. Trou-

bleshoot the items which are checked out to be no good after road
test. Refer to

XX-XX, "*****"

,

XX-XX, "*****"

 and

XX-XX, "*****"

.

Check Before Engine Is Started

INFOID:0000000001696170

1.

CHECK OD OFF INDICATOR LAMP

1.

Park vehicle on flat surface.

2.

Move selector lever to “P” position.

3.

Turn ignition switch OFF. Wait at least 5 seconds.

4.

Turn ignition switch ON. (Do not start engine.)

Does OD OFF indicator lamp come on for about 2 seconds?

YES

>> 1.

Turn ignition switch OFF.

2.

Perform self-diagnosis and note NG items.
Refer to

XX-XX, "*****"

,

XX-XX, "*****"

.

3.

Go to

TM-181, "Check at Idle"

.

NO

>> Stop “Road Test”. Go to

TM-138, "OD OFF Indicator

Lamp Does Not Come On"

.

SAT786A

SAT496G

SAT772B

SCIA7140E

ROAD TEST

TM-181

< ON-VEHICLE MAINTENANCE >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

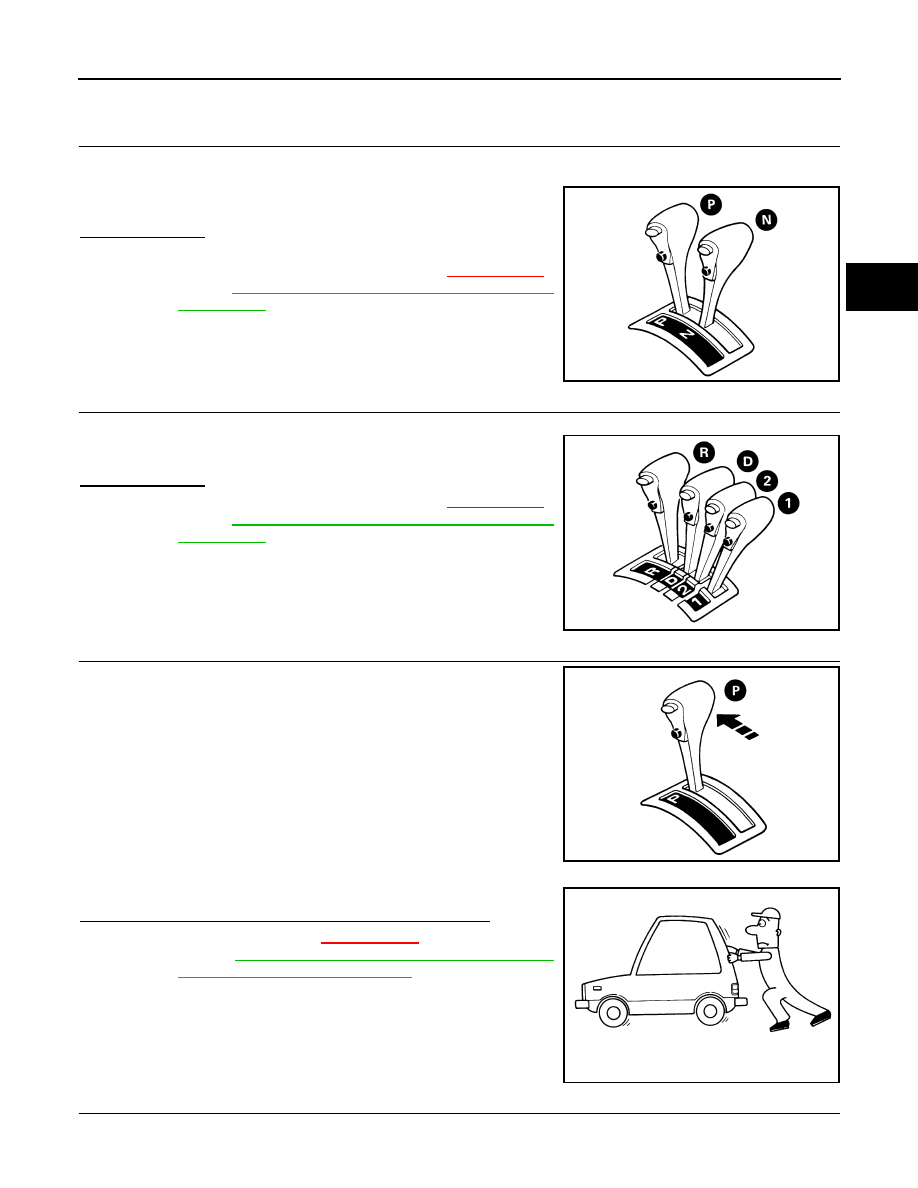

Check at Idle

INFOID:0000000001696171

1.

CHECK ENGINE START

1.

Park vehicle on flat surface.

2.

Turn ignition switch ON. (Do not start engine.)

3.

Move selector lever to “P” or “N” position.

4.

Turn ignition switch to “START” position.

Is engine started?

YES

>> GO TO 2.

NO

>> • Stop “Road Test”. Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-140, "Engine Cannot Be Started in "P" and

"N" Position"

.

2.

CHECK ENGINE START

1.

Turn ignition switch ON. (Do not start engine.)

2.

Move selector lever to “R”, “D”, “2” or “1” position.

3.

Turn ignition switch to “START” position.

Is engine started?

YES

>> • Stop “Road Test”. Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-140, "Engine Cannot Be Started in "P" and

"N" Position"

.

• Continue “Road Test”.

NO

>> GO TO 3.

3.

CHECK VEHICLE MOVE

1.

Move selector lever to “P” position.

2.

Turn ignition switch OFF.

3.

Release parking brake.

4.

Push vehicle forward or backward.

Does vehicle move when it is pushed forward or backyard?

YES

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-140, "In "P" Position, Vehicle Moves For-

ward or Backward When Pushed"

.

• Continue “Road Test”.

NO

>> GO TO 4.

4.

CHECK VEHICLE MOVE

1.

Apply parking brake.

SAT769B

SAT770B

SAT768B

SAT796A

TM-182

< ON-VEHICLE MAINTENANCE >

[TYPE 1 (4AT: RE4F03B)]

ROAD TEST

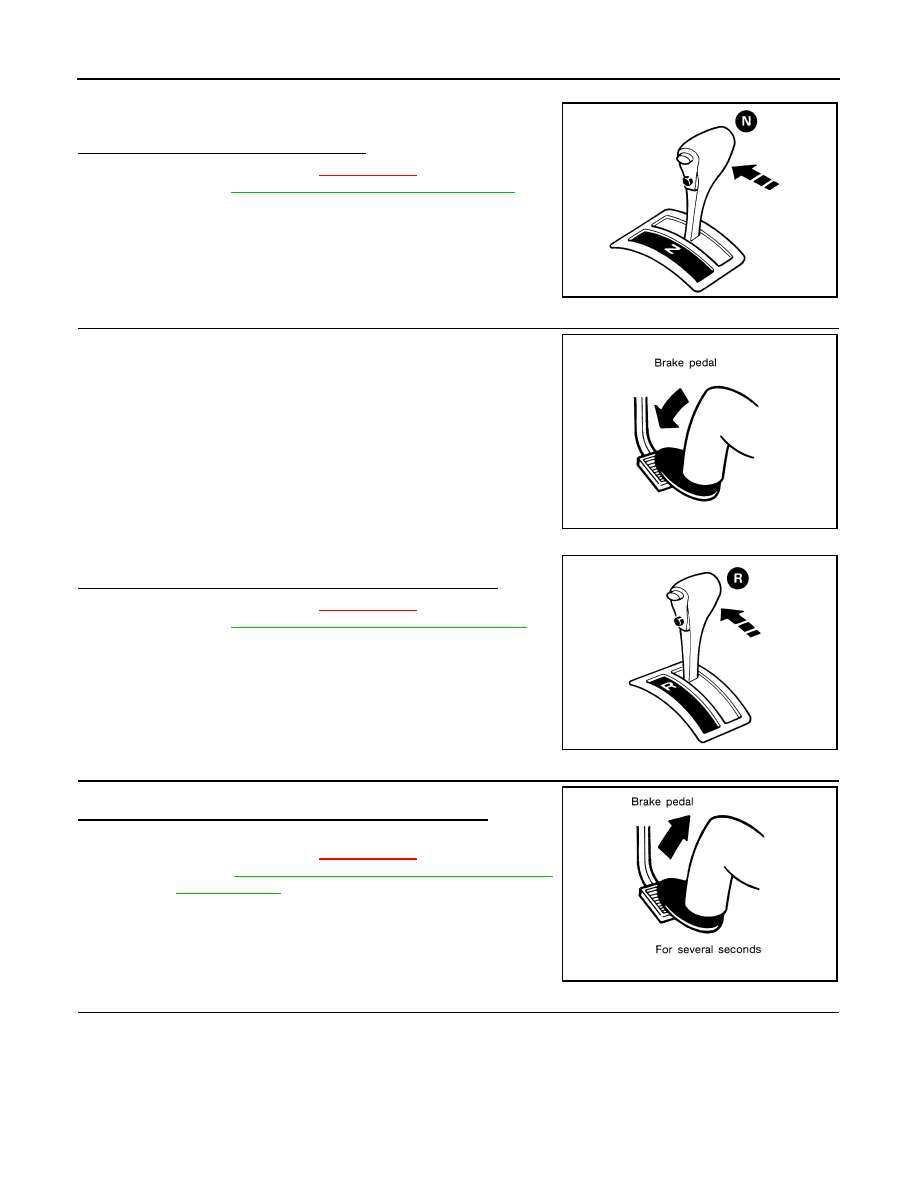

2.

Start engine.

3.

Move selector lever to “N” position.

4.

Release parking brake.

Does vehicle move forward or backward?

YES

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-141, "In "N" Position, Vehicle Moves"

.

• Continue “Road Test”.

NO

>> GO TO 5.

5.

CHECK SHIFT SHOCK

1.

Apply foot brake.

2.

Move selector lever to “R” position.

Is there large shock when changing from “N” to “R” position?

YES

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-142, "Large Shock "N"

→

 "R" Position"

  .

• Continue “Road Test”.

NO

>> GO TO 6.

6.

CHECK VEHICLE MOVE

Release foot brake for several seconds.

Does vehicle creep backward when foot brake is released?

YES

>> GO TO 7.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-142, "Vehicle Does Not Creep Backward

in "R" Position"

.

• Continue “Road Test”.

7.

CHECK VEHICLE MOVE

SAT771B

SAT797A

SAT772B

SAT799A
