LG936L Wheel Loader. Manual - part 14

Operation & Maintenance Manual──LG936L Wheel Loader

CHAPTER III OPERATION AND

APPLICATION

1 BE FAMILIAR WITH MACHINE

1.1 Control Systems and Gauges

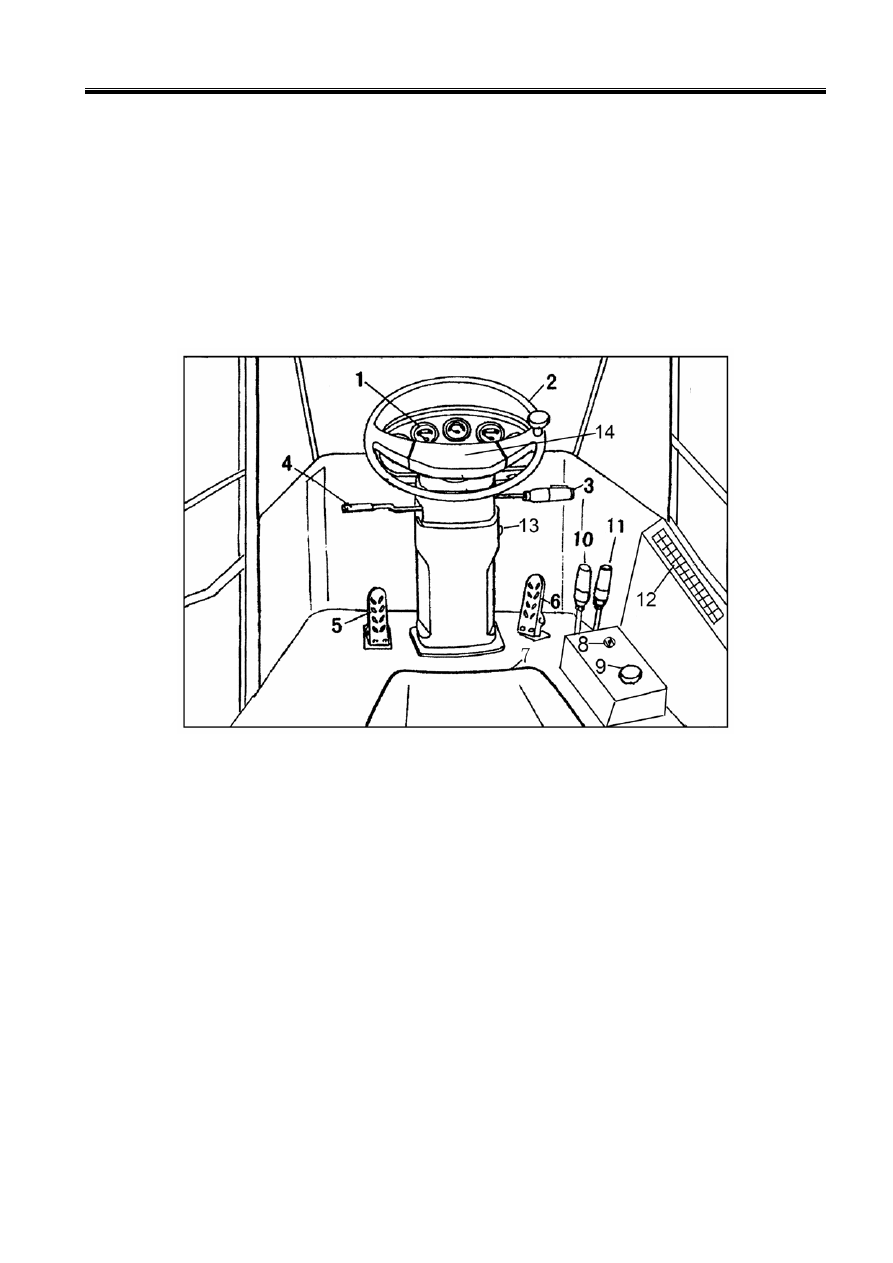

Figure 3-1 General view of control System (Double Control Lever, Manual Flameout)

1. Panel 2. Steering Wheel 3. Turning Switch

4. High and Low Speed Control Lever 5. Brake Pedal 6. Accelerator Pedal 7. Seat

8. Flameout Control Soft Knot 9.

Parking Brake Control Switch

10. Bucket Control Lever

11. Lift Arm Control Lever 12.Roker Switch 13. Starting Switch 14. Horn Button

Operation & Maintenance Manual──LG936L Wheel Loader

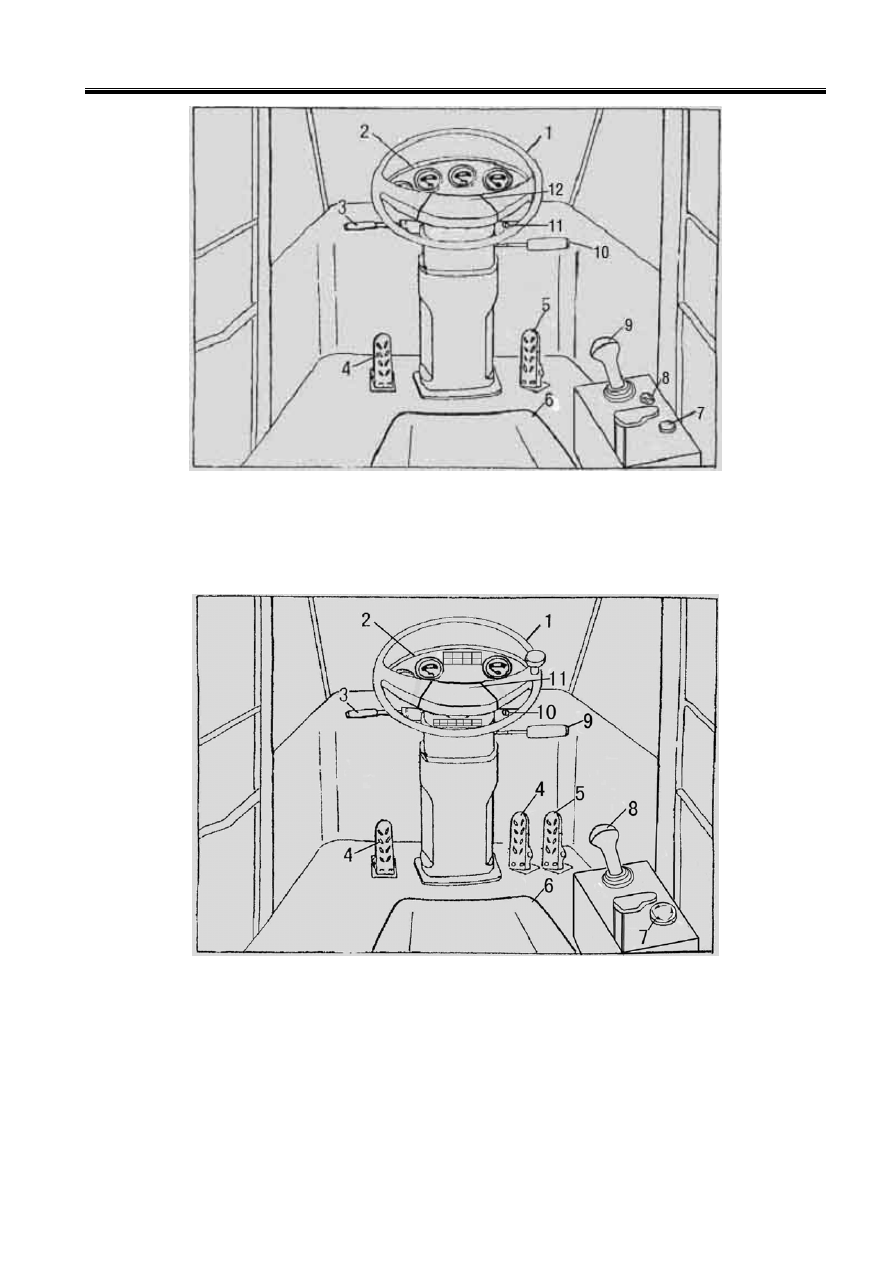

1. Steering Wheel 2. Panel 3. Turning Switch 4. Brake Pedal

5. Accelerator Pedal 6.Seat 7. Parking Brake Control Switch 8. Flameout Control Soft Knot

9. Equipment Control Lever 10. High and Low Speed Control Lever 11. Starting Switch

12. Horn Button

Figure 3-2 General view of control System (Pilot Single Lever, Manual Flameout)

1. Steering Wheel

2. Panel 3. High and Low Speed Control Lever

4.Brake Pedal(On both sides) 5.Accelerator Pedal 6. Seat 7. Parking Brake Control Lever

8. Equipment Control Lever 9.

Switch Group

10.

Starting Switch 11. Horn Button

Figure 3-3 General view of control System (Pilot Single Lever, Three Pedal )

Operation & Maintenance Manual──LG936L Wheel Loader

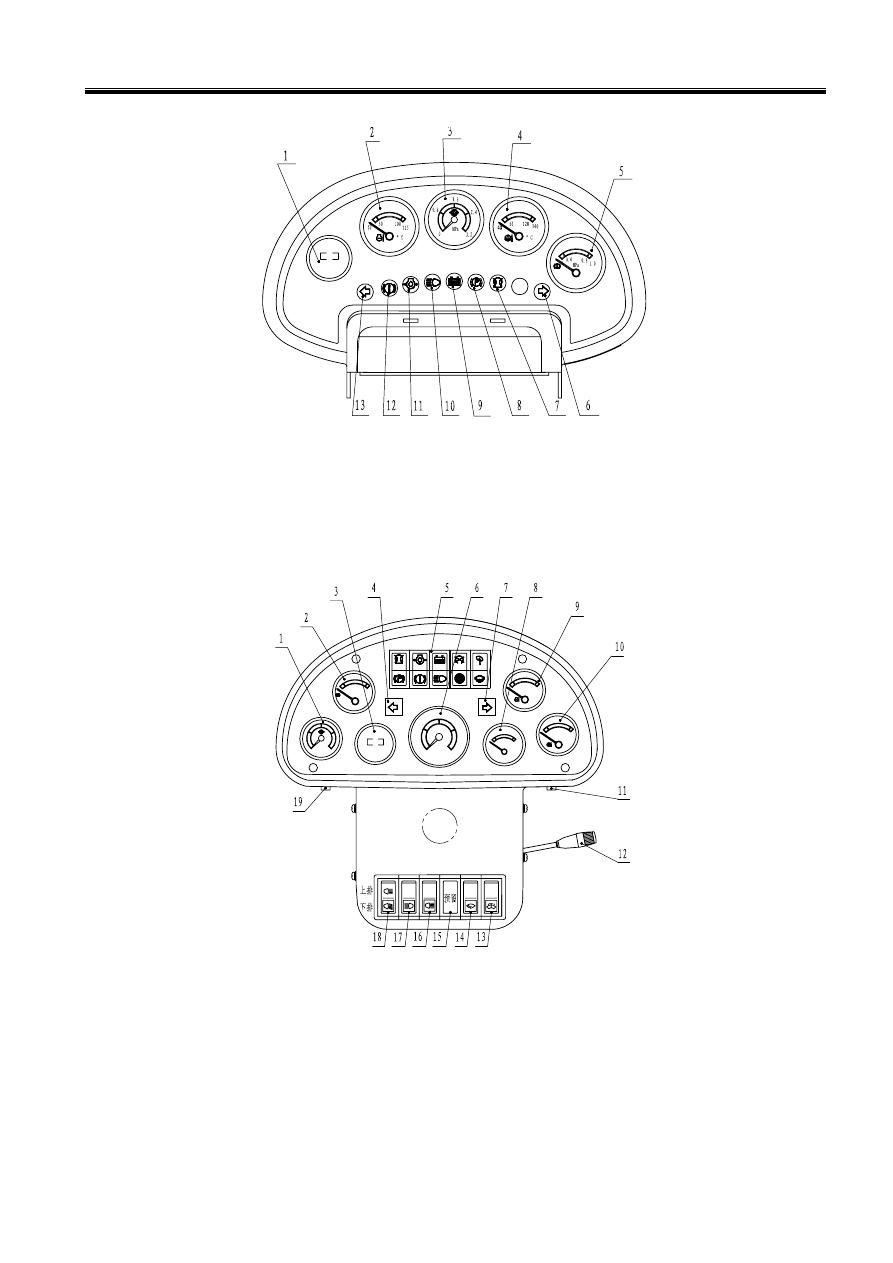

1. Working Chronometer 2. Engine Water Temperature Gauge 3. Gearbox Oil Pressure Gauge

4. Torque Converter Oil Temperature Gauge

5. Brake Air Pressure Gauge

6. Right Turn Indicator Lamp 7. Preheating Indicator Lamp 8. Parking Brake Indicator Lamp

9. Charge Indicator Lamp 10. High Beam Indicator Lamp

11. Engine Oil Pressure Warning Lamp 12. Low Brake Air Pressure Alarm Lamp

13. Left Turn Indicator Lamp

Figure 3-4 General view of gauges

1. Gearbox Oil Pressure Gauge 2. Air Pressure Gauge 3.Working Chronometer

4. Left Turn Indicator Lamp 5. Indicator Lamp 6. Revolution Indicator

7. Right Turn Indicator Lamp 8. Fuel Level Gauge 9. Engine Water Temperature Gauge

10. Torque Converter Oil Temperature Gauge 11. Starting Switch 12. Switch Group

13. Water Spraying Switch 14. Rain Wiper Switch 15. Cover Board

16. Rear Lighting Lamp Switch 17. Front Lighting Lamp Switch 18. Rear Headlight Switch

19. Warning Lamp Switch

Figure 3-5 General view of gauges (with Revolution Indicator and Fuel Level Gauge)

Operation & Maintenance Manual──LG936L Wheel Loader

1.2 Introduction of Gauges & Controls

The introduction of gauges & controls needed for operating the machine is below. Be sure to

understand their functions and methods for use.

1.2.1 Vehicle Gauges and Lights

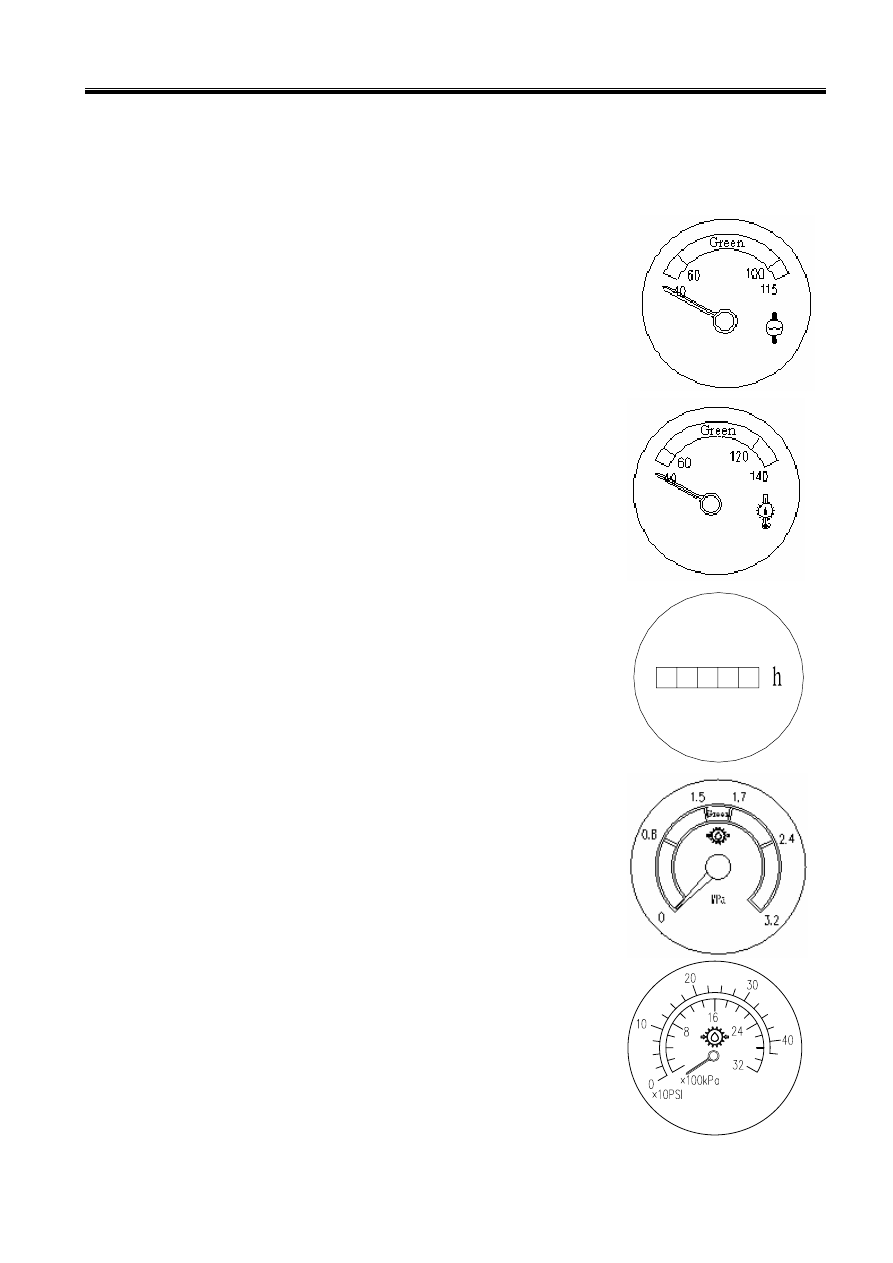

z Engine Water Temperature Gauge

This gauge indicates the temperature of engine water.

When the temperature index lies in the green ranges (60 ~100 ),

℃

the water temperature is normal.

Notice:

If the temperature index moves past green into the red range, be sure to

stop the machine for inspection.

Refer to

3.4.2 STEPS TO STOP ENGINE

in this chapter for

details of stopping the engine.

z Torque Converter Oil Temperature Gauge

This gauge shows the torque converter oil temperature

When the temperature index lies in the green range (60 ~120 ),

℃

the oil temperature is normal. If the temperature index moves past green

into the red ranges, be sure to stop the machine for inspection.

z Working Chronometer

This indicator shows the total operation hours of the machine; its

value can be used as a reference for inspection and maintenance.

z Gearbox Oil Pressure Gauge

This gauge indicates the pressure of the gear-shifting system.

If the pressure index lies in the green range (1.1MPa~1.5MPa), the

oil pressure is normal. Be sure to stop the machine for inspection if

the index moves outside this range.

This gauge indicates the pressure of the gear-shifting system.
