Operation & Maintenance Manual──LG936L Wheel Loader

during lifting.

All the levers (or handles) should be in the middle position.

Stop the engine, lock all the equipment using keys and then remove.

No one is allowed to stay in the operator cab.

Never lift the machine using steel wire connecting the two hooks on the front frame.

It is allowed to lift the machine using 4 steel wires of the same length (no shorter than 7m).

Keep the machine horizontal during lifting.

Prevent damage to hood, operator cab, and hydraulic pipes.

No person or car is allowed to pass under the machine during lifting.

Draw back the lock bar to turn the machine after lifting.

z Connect the turning equipment using the lock bar after lifting onto the ship (train), wedge the tire

and bind the machine tightly to prevent movement during transportation.

Operation & Maintenance Manual──LG936L Wheel Loader

CHAPTER II INTRODUCTION

1 GENERAL VIEW OF THE MACHINE & COMPONENTS’ NAME

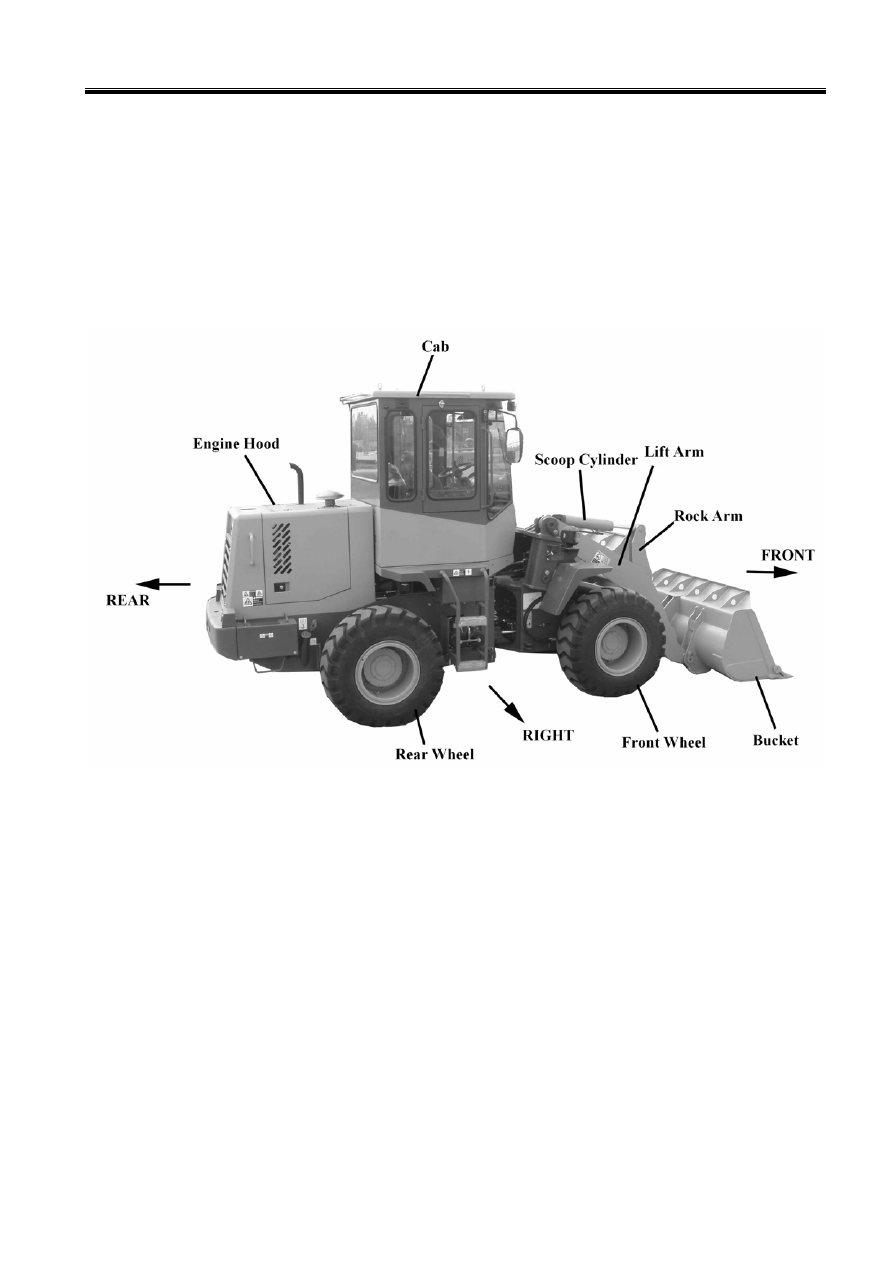

Figure 2-1 General view and components’ name of LG936L wheel loader

Operation & Maintenance Manual──LG936L Wheel Loader

2 GEOMETRICAL DIMENSIONS

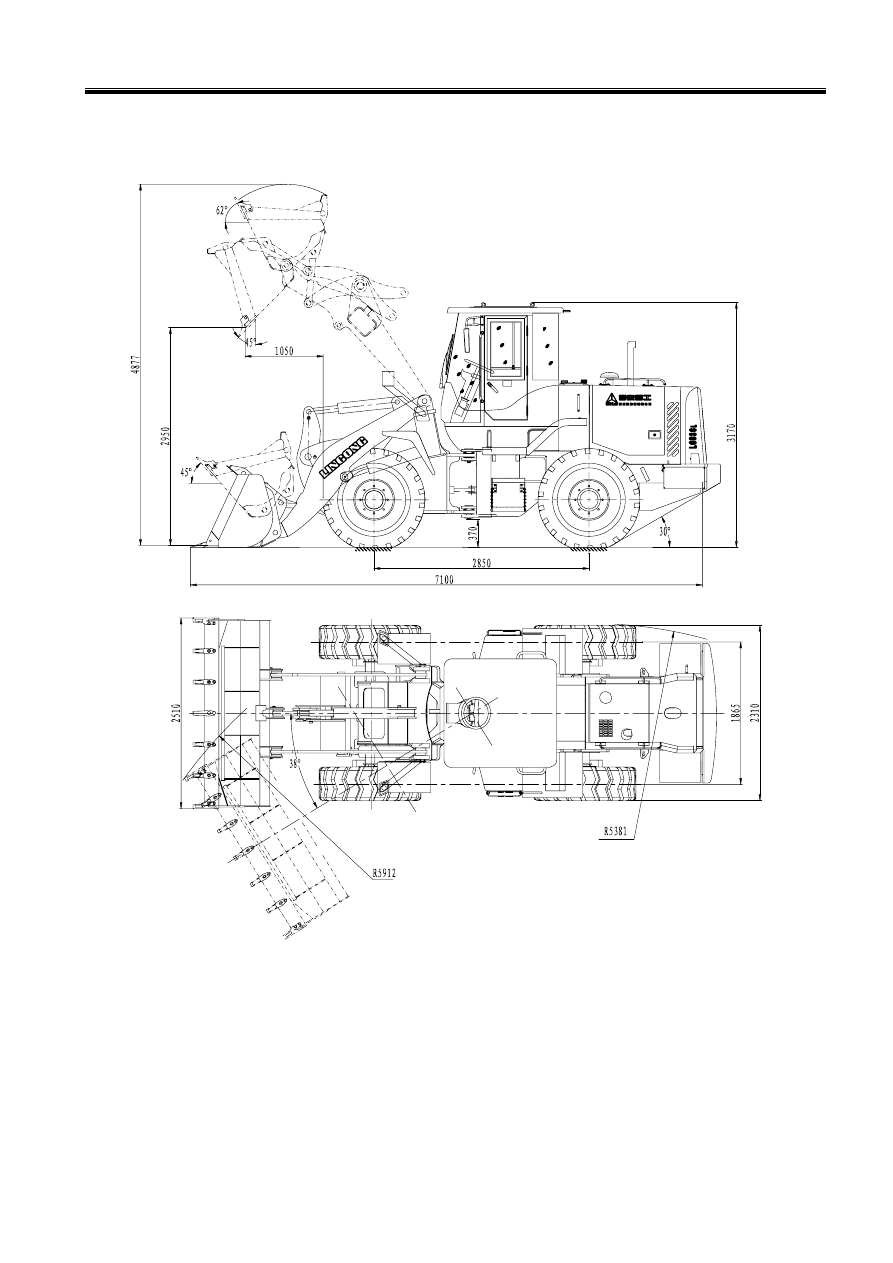

Figure 2-2 Geometrical dimensions of LG936L wheel loader mounted with standard lift arms

Operation & Maintenance Manual──LG936L Wheel Loader

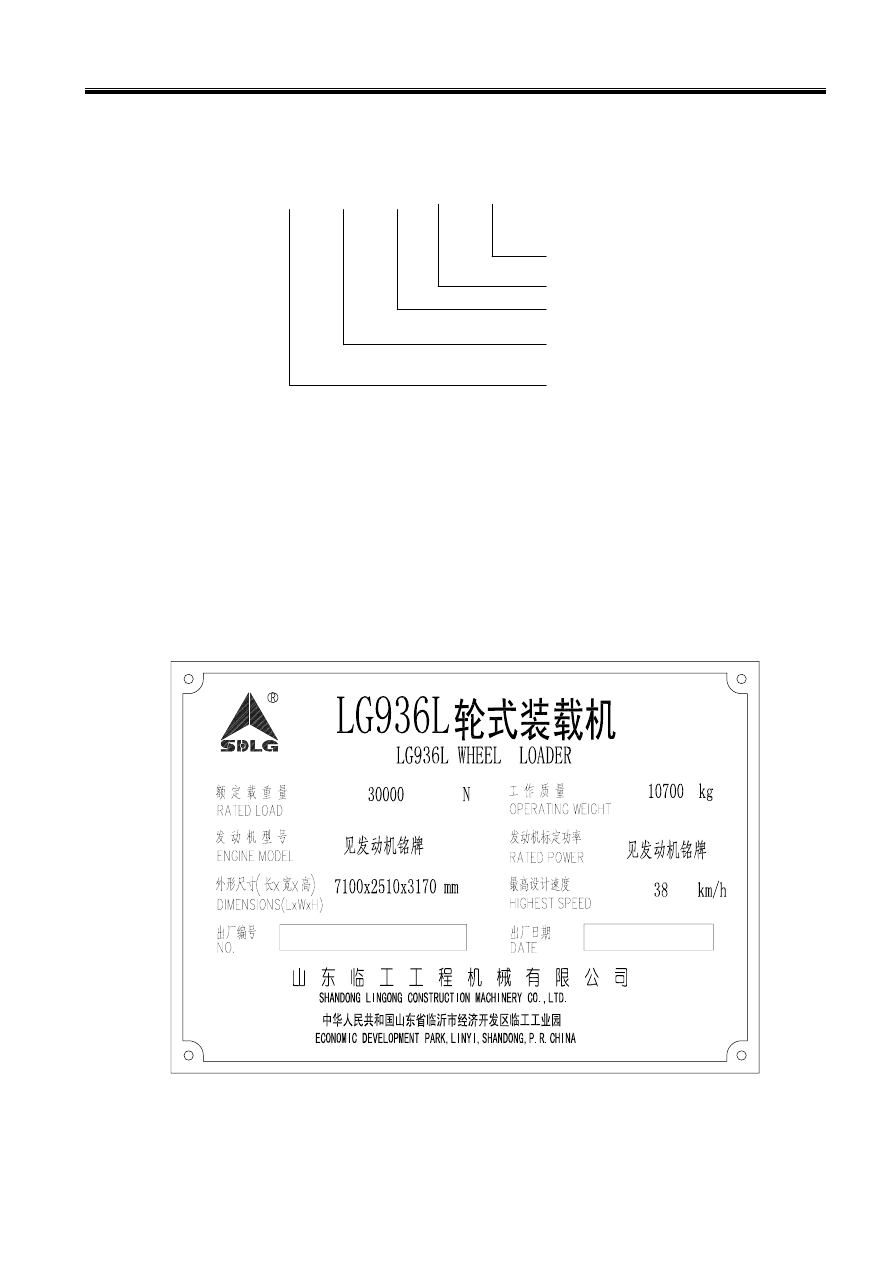

3 PRODUCT TYPE AND ITS MEANING

LG 9 3 6 L

Upgrade code

Template is 8

Load limit is 3 ton

Wheel loader

Shandong Lingong

4 NAMEPLATE

The nameplate is fixed on the left rear side of the front frame, describing the model, serial No.,

production date and manufacturer of the machine. The type of nameplate is shown in Fig. 2-3 and Fig.

2-4. The other configurations of nameplate refer to

CHAPTER II - 8 TECHNICAL

PERFORMANCE & PARAMETERS.

Figure 2-3 Nameplate of LG936L basic configuration loader
