Operation & Maintenance Manual──LG936L Wheel Loader

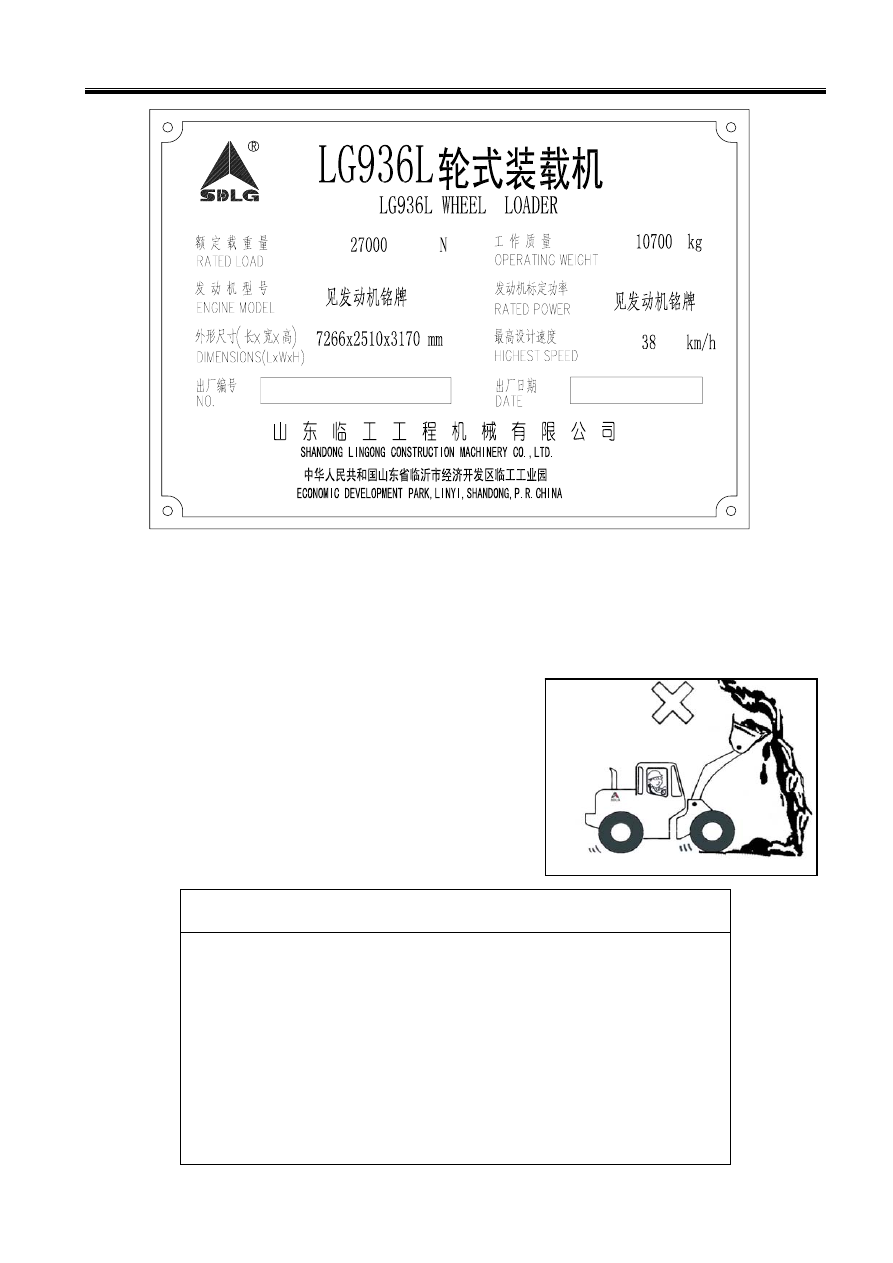

Figure 2-4 Nameplate of LG936L wheel loader mounted with long lift arms

5 USE CONDITIONS

This loader is a multi-purpose large construction machine mainly used for bulk materials. It is widely

used in mineral yards, construction, roads, freight yards and

ports. It can be used for dragging, to flatten the ground,

piling and stacking of bulk soil, sand, sand stone, coal and

garbage.

It can chuck wood, fork grass, clean snow and chuck

box-liked material with proper work equipment.

Please refer to CHAPTER III – 3.5 Operations, for details.

△

WARNING

The following operations are forbidden for the loader:
1.  Over loading.
2.  Unbalanced.
3.  Digging hard material.
4.  Lifting heavy material using a rope hung directly on the

bucket.

5. Dig with the bucket above the machine level.

Operation & Maintenance Manual──LG936L Wheel Loader

6 CIRCUMSTANCES REQUIREMENT

Requirements for this machine follows:

1. Altitude: ≤3000m;

2. Temperature: -15~40

℃;

3. Water depth: ≤400mm.

The loader is a general construction machine, and can be used under the conditions listed in this

manual. Please follow the rules and utilize relative specific purpose equipment. If it is used under

other conditions or potentially dangerous circumstances, such as areas with flammable materials,

explosives and asbestos dust, the manufacturer assumes no responsibility for the potentially resulting

damage and injury.

7 FEATURES

z Luxury streamline appearance and generous figuration.

z The working equipment is optimized, so that the lift weight is larger and the full-efficiency of

bucket is high to improve the working efficient.

z Both the wheel base and operating weight are large, so the vertical stability is high.

z Provide 5-ton-grade LG transmission whose reliability is higher.

z Power matches suitably. Select the work pump with large displacement to improve the working

efficient.

z Employ dustproof design on the position of pins to prolong the using life

z Employ hydraulic controlling mechanism with patent right to provide portable operation and high

reliability.

z Articulated frame structure and big steering angle (38°), the radius of turning is small, son that

the whole is mobile and flexible.

z Employ the optimized and improved hydraulic pipe seal structure to improve the seal and

reliability of hydraulic system.

z Optimized damping system provides better operating environment; new damping seats with high

shock absorbing properties improve the comfort of drivers.

z New style cab with steel structure providing wide view; optimized inner arrangement of cab,

larger operating room; whole covered interior trimming, seal and stable, better view; fronting

operating floor achieves forward blowing, air conditioners are optional, which can provide

Operation & Maintenance Manual──LG936L Wheel Loader

comfortable environment to the customers.

z Install many kinds of optional working equipment such as wood-clipping fork, grass-grabbing

fork, increasing bucket, rock bucket, side dumping bucket, level fork, snow plowing and replace

quickly attachment.

8 TECHNICAL PERFORMANCE & PARAMETER

8.1 Performance of Whole Machine

Standard lift arm Long lift arm

Bucket capacity

1.8 m

1.6 m

Rated loading capacity

30000N 27000N

Lifting time (full load)

≤5.3 s ≤5.3 s

Lowering time (empty bucket)

≤2.9 s ≤2.9 s

Forward tilting time (empty bucket)

≤1.0 s ≤1.0 s

Travel speed

Forward:

0～13 km/h 0～13 km/h

0～38 km/h 0～38 km/h

Reverse:

0～17 km/h 0～17 km/h

Max. breakout force

≥96 kN ≥92 kN

Max. traction force (supplied by engine)

≥105 kN ≥105 kN

Max tipping load

≥66 kN ≥66 kN

Max. climbing angle

30° 30°

Min. turning radius(outside of rear wheel)

5381 mm 5381 mm

Level passing radius (outside of bucket)

5912 mm 6073 mm

Max turning angle: 38

Tire charge pressure:

Front wheel

0.333~0.353 MPa 0.333~0.353 MPa

Rear wheel

0.275~0.294 MPa 0.275~0.294 MPa

Operation & Maintenance Manual──LG936L Wheel Loader

8.2 Principle Dimension and Weight

Length (bucket on ground)

7100 mm 7266 mm

Width (outside of wheels)

2310 mm 2310 mm

Bucket width

2510 mm 2510 mm

Height

3170 mm 3170 mm

Wheel track

1865 mm 1865 mm

Wheel base

2850 mm 2850 mm

Min. ground clearance

370 mm 370 mm

Max. dumping height(-45° dumping angle)

2950 mm 3278 mm

Dumping space (-45° dumping angle)

1050 mm 1020 mm

Dumping angle

≥45° ≥45°

Operating weight

10700kg 1070kg

8.3 Product Standard and License

Product Standard Q/LGJ 001 wheel loader
