ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD) AND ANTI-LOCK BRAKING SYSTEM (ABS) <VEHICLES WITHOUT TRACTION CONTROL (TCL)>

TSB Revision

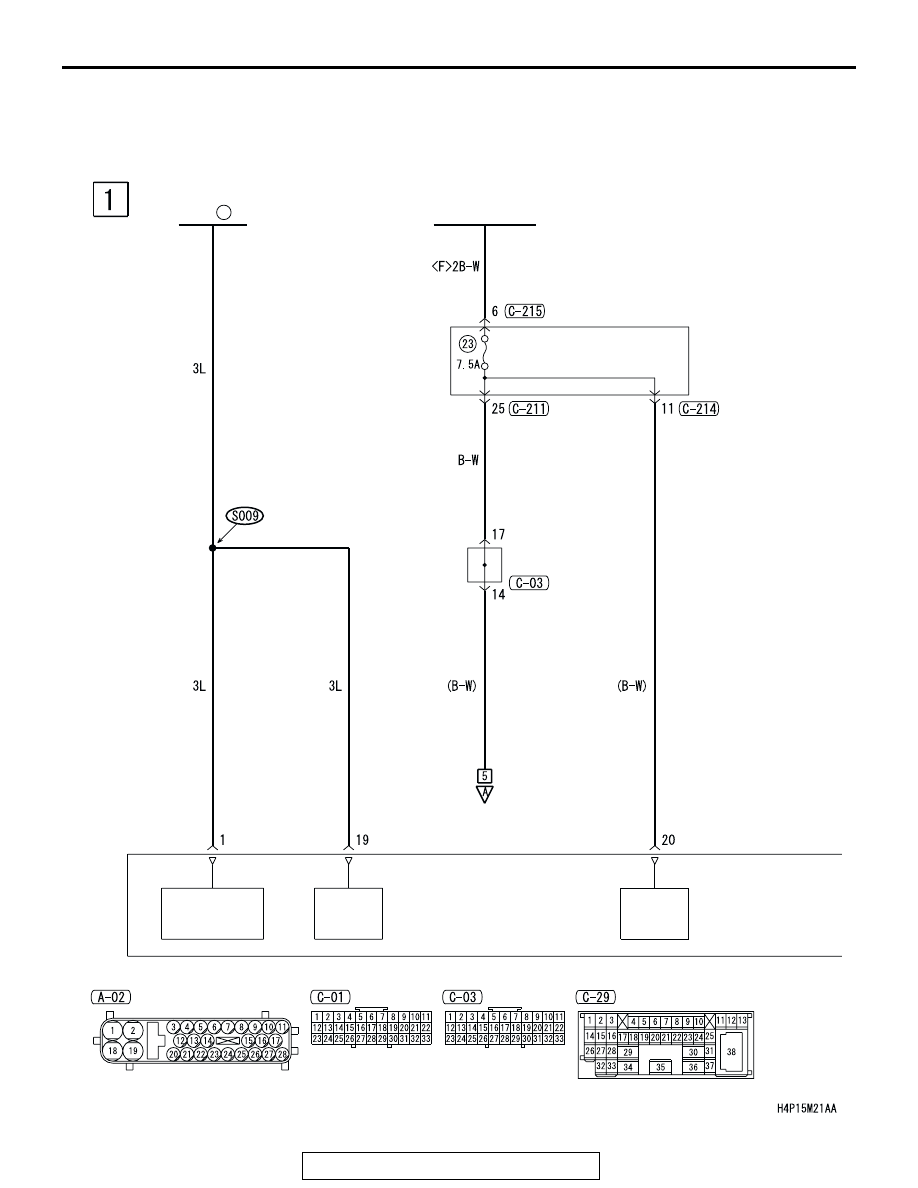

CIRCUIT DIAGRAMS

90-227

HYDRAULIC UNIT

ABS SOLENOID VALVE

MOTOR

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

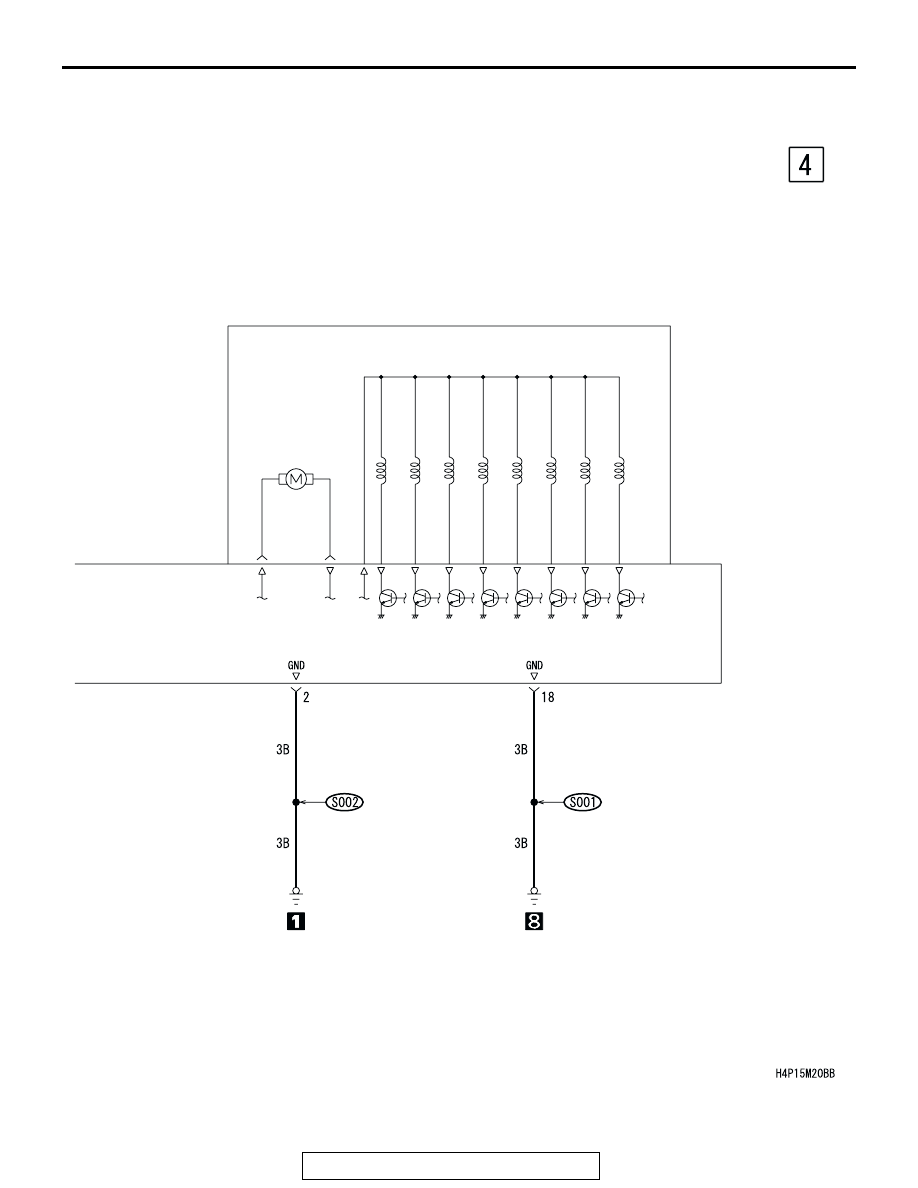

ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD) AND ANTI-LOCK BRAKING SYSTEM (ABS) <VEHICLES WITHOUT TRACTION CONTROL (TCL)>

TSB Revision

CIRCUIT DIAGRAMS

90-228

ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD) AND ANTI-LOCK BRAKING SYSTEM (ABS)
<VEHICLES WITHOUT TRACTION CONTROL (TCL)> (CONTINUED)

RELAY BOX
(FUSE     )

JOINT
CONNECTOR (2)

22

COMBINATION
METER

DATA LINK
CONNECTOR

JOINT
CONNECTOR (3)

POWERTRAIN
CONTROL
MODULE

ABS-ECU

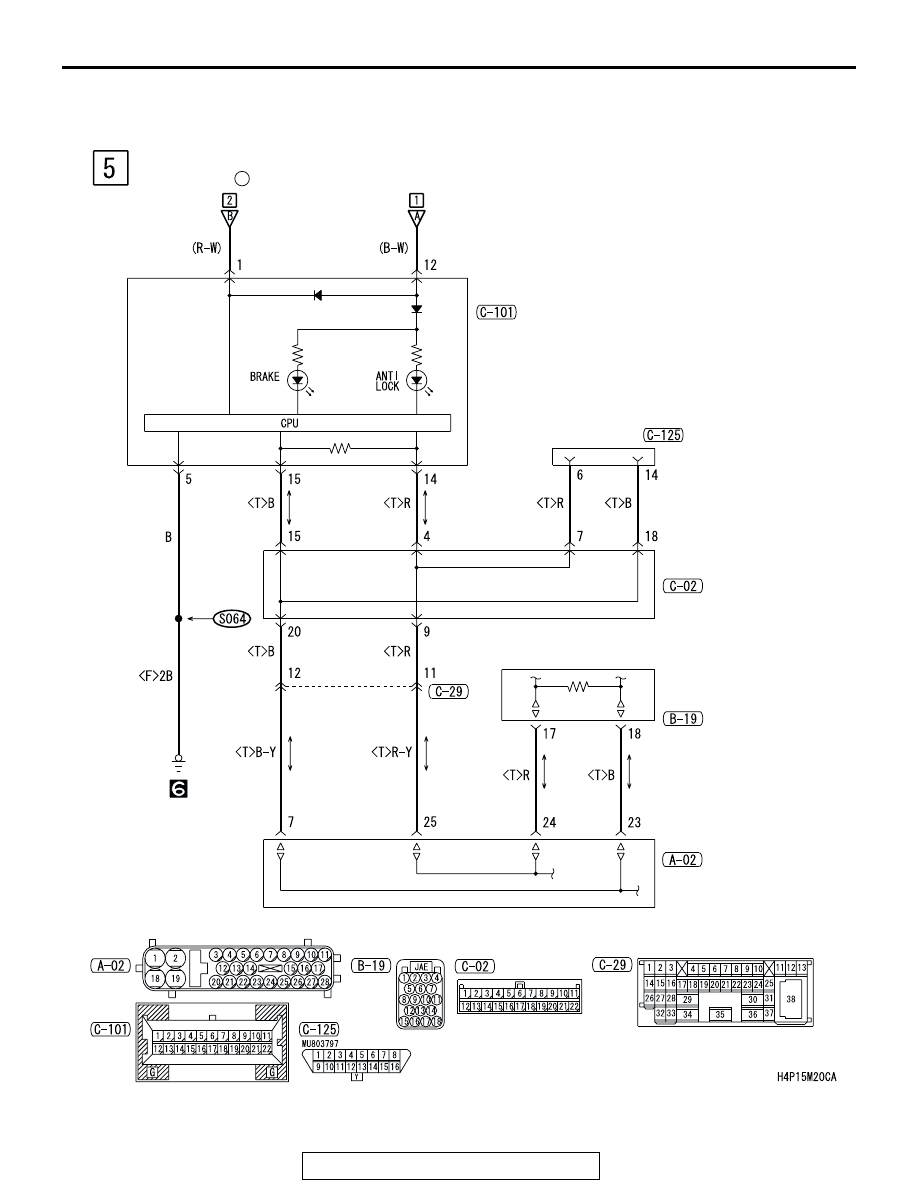

ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD) AND ANTI-LOCK BRAKING SYSTEM (ABS)

TSB Revision

CIRCUIT DIAGRAMS

90-229

NOTES

ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD) AND ANTI-LOCK BRAKING SYSTEM (ABS) <VEHICLES WITH TRACTION CONTROL (TCL)>

TSB Revision

CIRCUIT DIAGRAMS

90-230

ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD) AND

ANTI-LOCK BRAKING SYSTEM (ABS) <VEHICLES WITH

TRACTION CONTROL (TCL)>

FUSIBLE
LINK

3

IGNITION
SWITCH (IG1)

JUNCTION
BLOCK

JOINT
CONNECTOR (2)

SOLENOID
VALVE POWER
SUPPLY

MOTOR
POWER
SUPPLY

POWER
SUPPLY
