ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD) AND ANTI-LOCK BRAKING SYSTEM (ABS) <VEHICLES WITH TRACTION CONTROL (TCL)>
TSB Revision

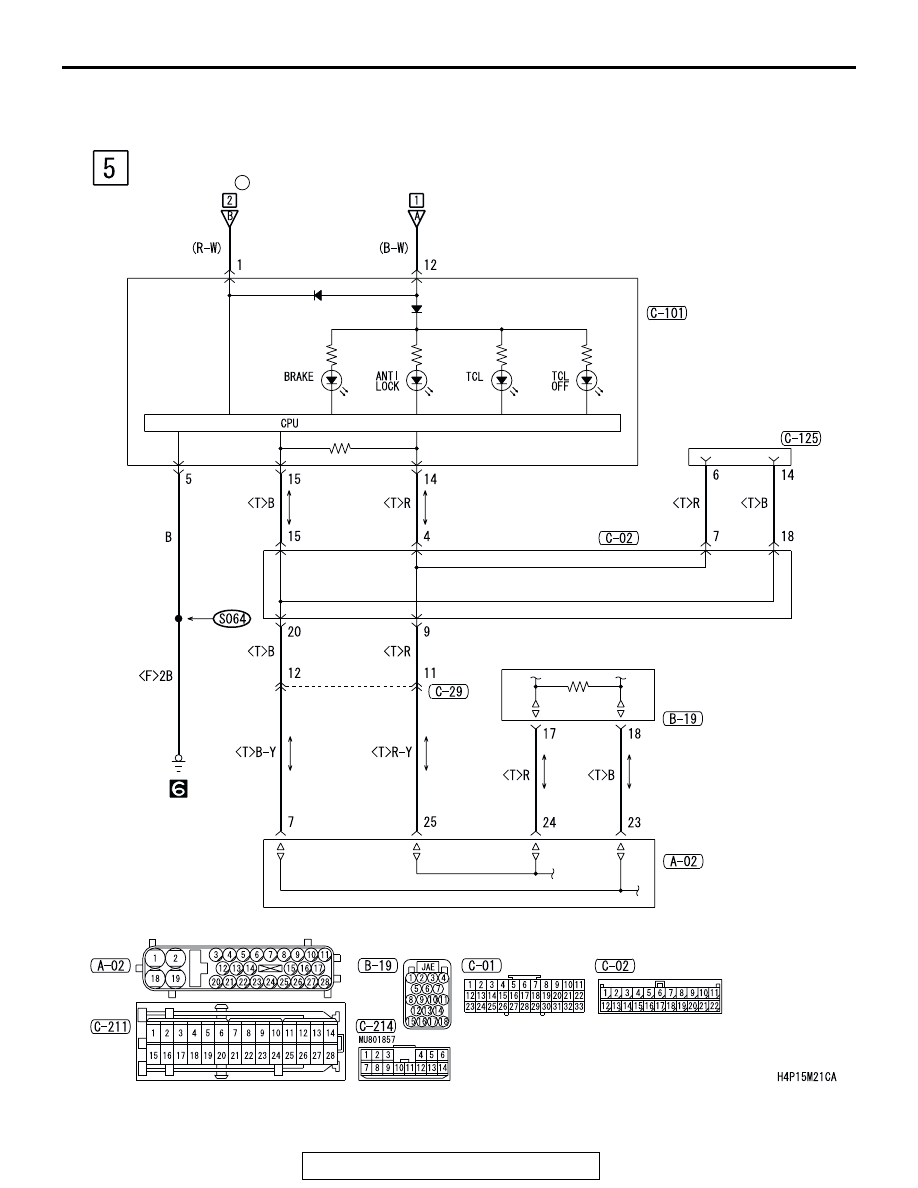

CIRCUIT DIAGRAMS
90-231
BATTERY
RELAY
BOX
STOPLIGHT
SWITCH
·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
POSITION LIGHT,
FRONT SIDE
MARKER LIGHT
AND LICENSE
PLATE LIGHT
·TURN-SIGNAL
LIGHT AND
HAZARD
WARNING LIGHT
·WINDSHIELD
WIPER AND
WASHER
JOINT
CONNECTOR (1)
JOINT
CONNECTOR (1)
STOPLIGHT
·AUDIO SYSTEM
·AUTOMATIC AIR
CONDITIONING
SYSTEM
·CONTROLLER AREA
NETWORK (CAN)
·FOG LIGHT
·FRONT DOME LIGHT,
REAR DOME LIGHT,
TRUNK LIGHT AND
IGNITION KEY HOLE
ILLUMINATION LIGHT
·HEADLIGHT
·MANUAL AIR
CONDITIONING SYSTEM
·MULTI CENTER DISPLAY
·TAILLIGHT, POSITION
LIGHT, FRONT SIDE
MARKER LIGHT AND
LICENSE PLATE LIGHT
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·VANITY MIRROR LIGHT
·WINDSHIELD WIPER AND
WASHER
ABS/TCL-ECU
WIRE COLOR CODE
B : BLACK SB : SKY BLUE
BR : BROWN LG : LIGHT GREEN
G : GREEN P : PINK GR : GRAY
R : RED L : BLUE Y : YELLOW
V : VIOLET W : WHITE O : ORANGE
