AUTO-CRUISE CONTROL SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-219

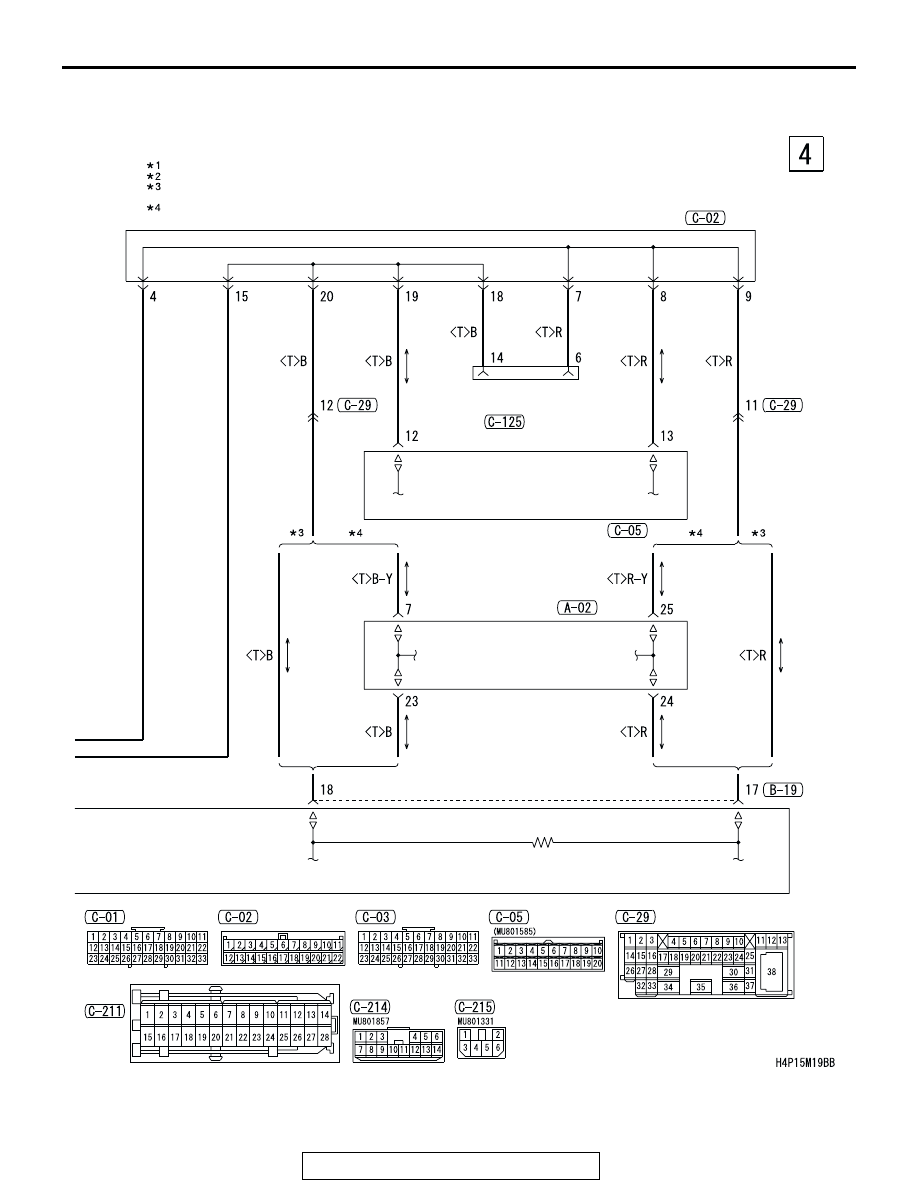

JOINT
CONNECTOR (3)

DATA LINK
CONNECTOR

MULTI CENTER DISPLAY UNIT

ABS-ECU OR
ABS/TCL-ECU

NOTE

2.4L ENGINE
3.8L ENGINE
·WITHOUT ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
 AND ANTI-LOCK BRAKING SYSTEM (ABS)
·WITH ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
 AND ANTI-LOCK BRAKING SYSTEM (ABS)

:
:
:

:

AUTO-CRUISE CONTROL SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-220

AUTO-CRUISE CONTROL SYSTEM (CONTINUED)

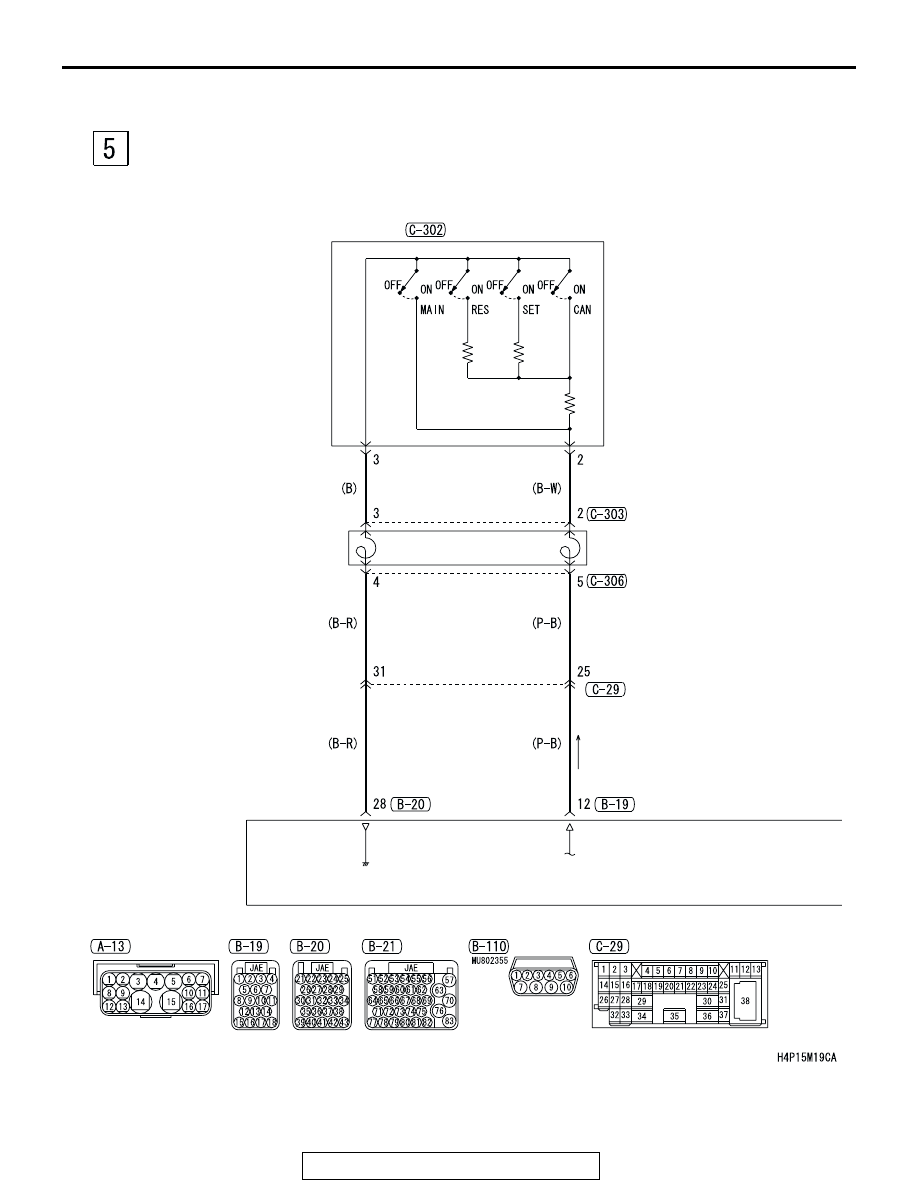

AUTO-CRUISE
CONTROL
SWITCH

CLOCK
SPRING

AUTO-CRUISE CONTROL SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-221

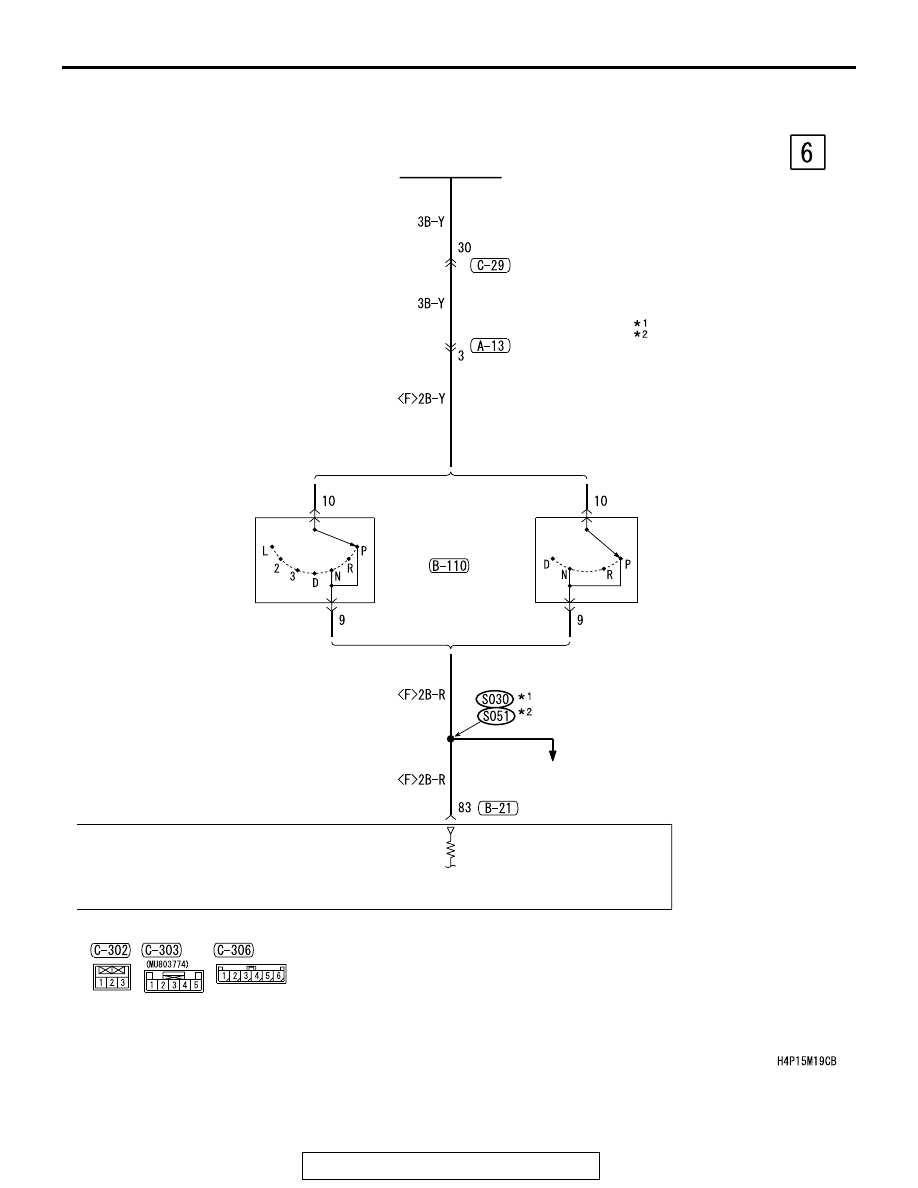

IGNITION
SWITCH (ST)

TRANSMISSION
RANGE
SWITCH

2.4L ENGINE

3.8L ENGINE

STARTING
SYSTEM

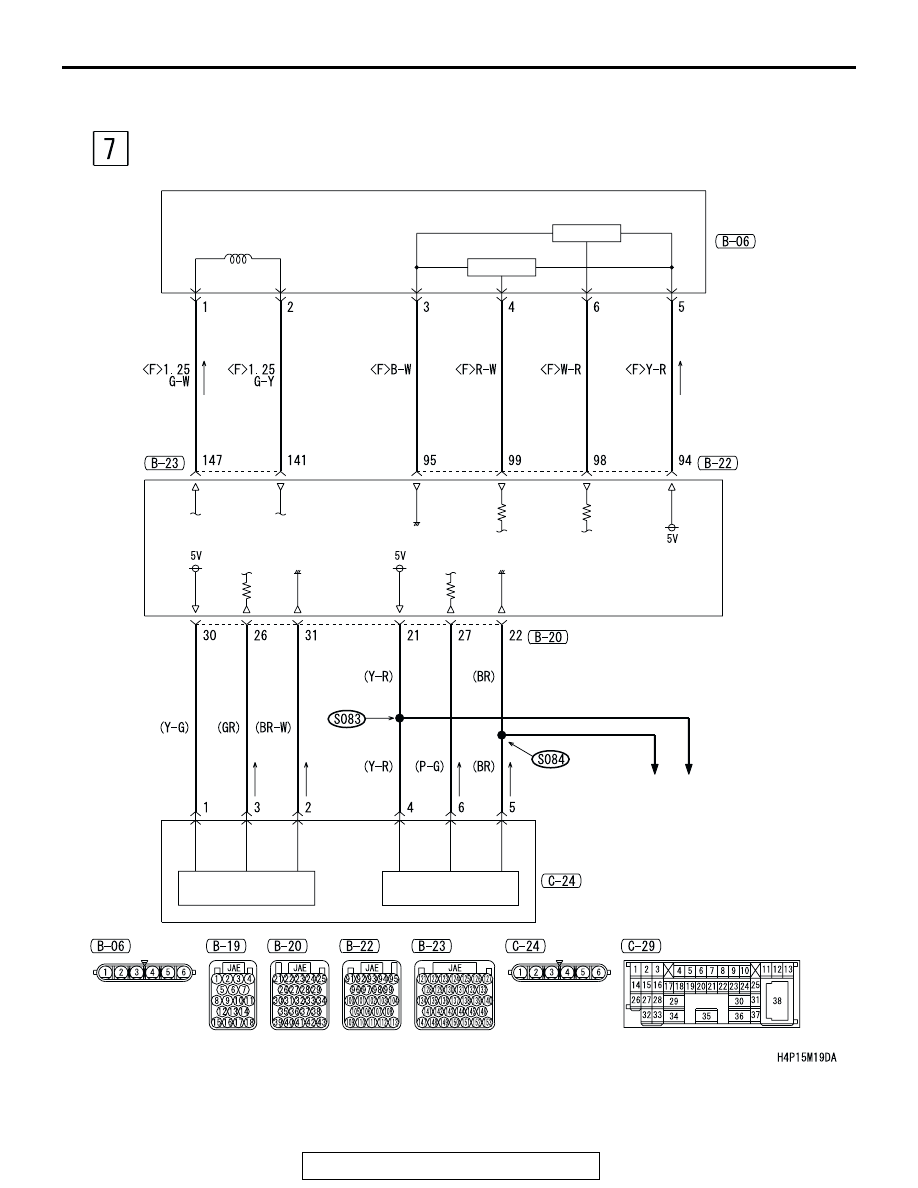

POWERTRAIN
CONTROL
MODULE

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

NOTE

: 2.4L ENGINE
: 3.8L ENGINE

AUTO-CRUISE CONTROL SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-222

AUTO-CRUISE CONTROL SYSTEM (CONTINUED)

POWERTRAIN
CONTROL
MODULE

ACCELERATOR
PEDAL
POSITION
SENSOR

MFI SYSTEM

THROTTLE
ACTUATOR
CONTROL
MOTOR

THROTTLE
BODY
ASSEMBLY

HALL IC

(SUB)

HALL IC

(MAIN)

HALL IC

(MAIN)

HALL IC

(SUB)
