EXTERIOR –

Rear Wiper and Washer

51-16

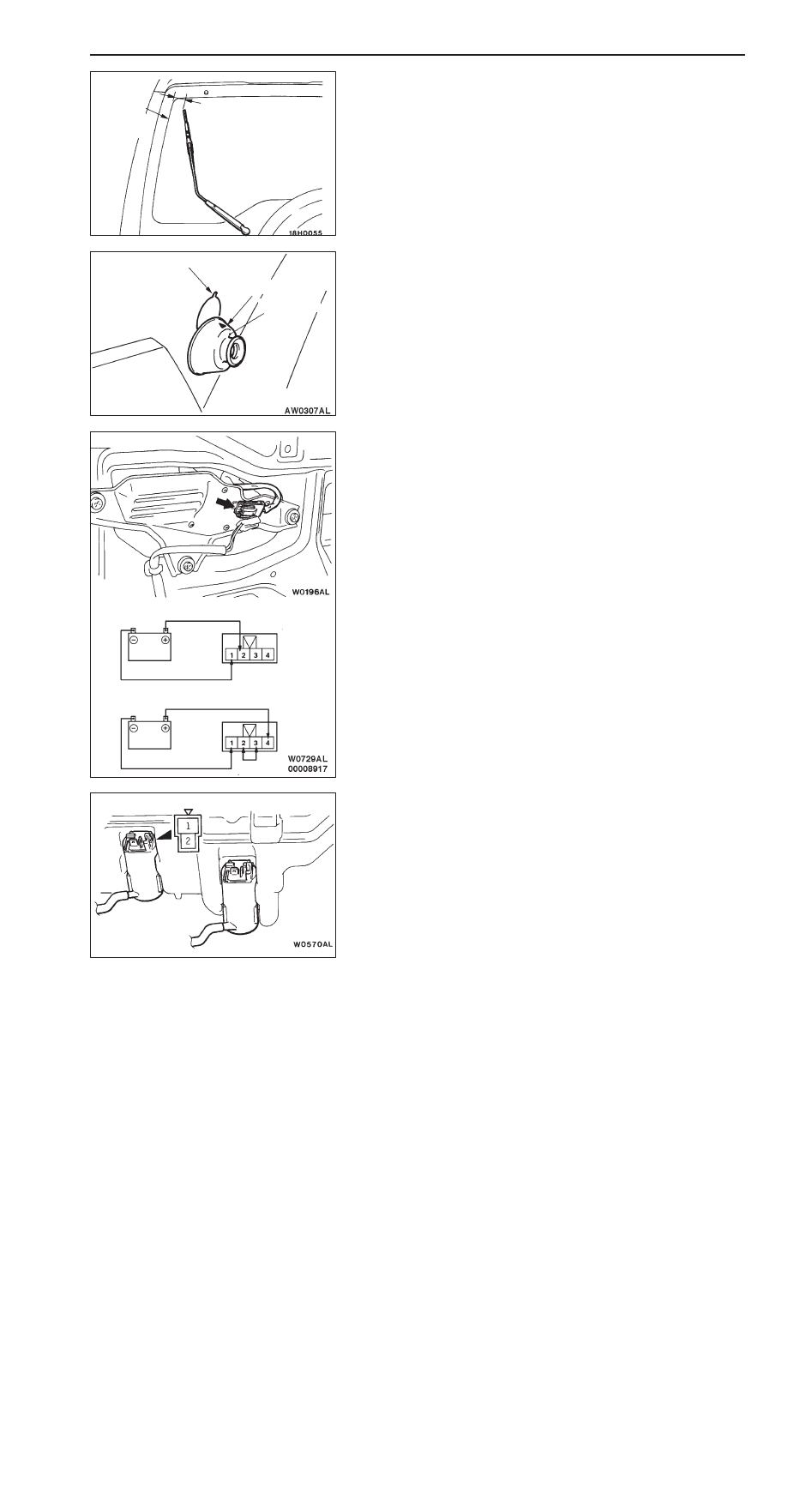

INSTALLATION SERVICE POINT

"

A

A

WIPER ARM AND BLADE ASSEMBLY
INSTALLATION

Install so that the wiper blade is positioned at the shown position
when the wiper arm stops.

Standard value (A): 33

±

 5 mm

"

B

A

GROMMET INSTALLATION

Align the mating mark of grommet and the notch of installation
hole.

INSPECTION

WIPER MOTOR CHECK

Disconnect the wiring harness connector, and check the wiper
motor operation with the wiper motor remaining installed to
the body.

Wiper Motor Operation

Connect a battery to the wiper motor as shown in the illustration
and check the motor operation.

Wiper Motor Stop Position

1.

Operate the wiper motor, and then disconnect the battery
to stop the wiper motor while the wiper motor is operating.

2.

Reconnect the battery as shown in the illustration, and
confirm that after the motor starts turning, it stops at the
automatic stop position.

WASHER MOTOR CHECK

1.

With the washer motor installed to the washer tank, fill
the washer tank with water.

2.

Check that the water squirts out strongly when system
voltage is applied to terminal 2 and terminal 1 is earthed.

Back
door
glass
ceramic
end line

A

Grommet

Mating mark

Notch

Operation check

Battery

Stop position check

Battery

EXTERIOR –

Rear Wiper and Washer/Headlamp Washer

51-17

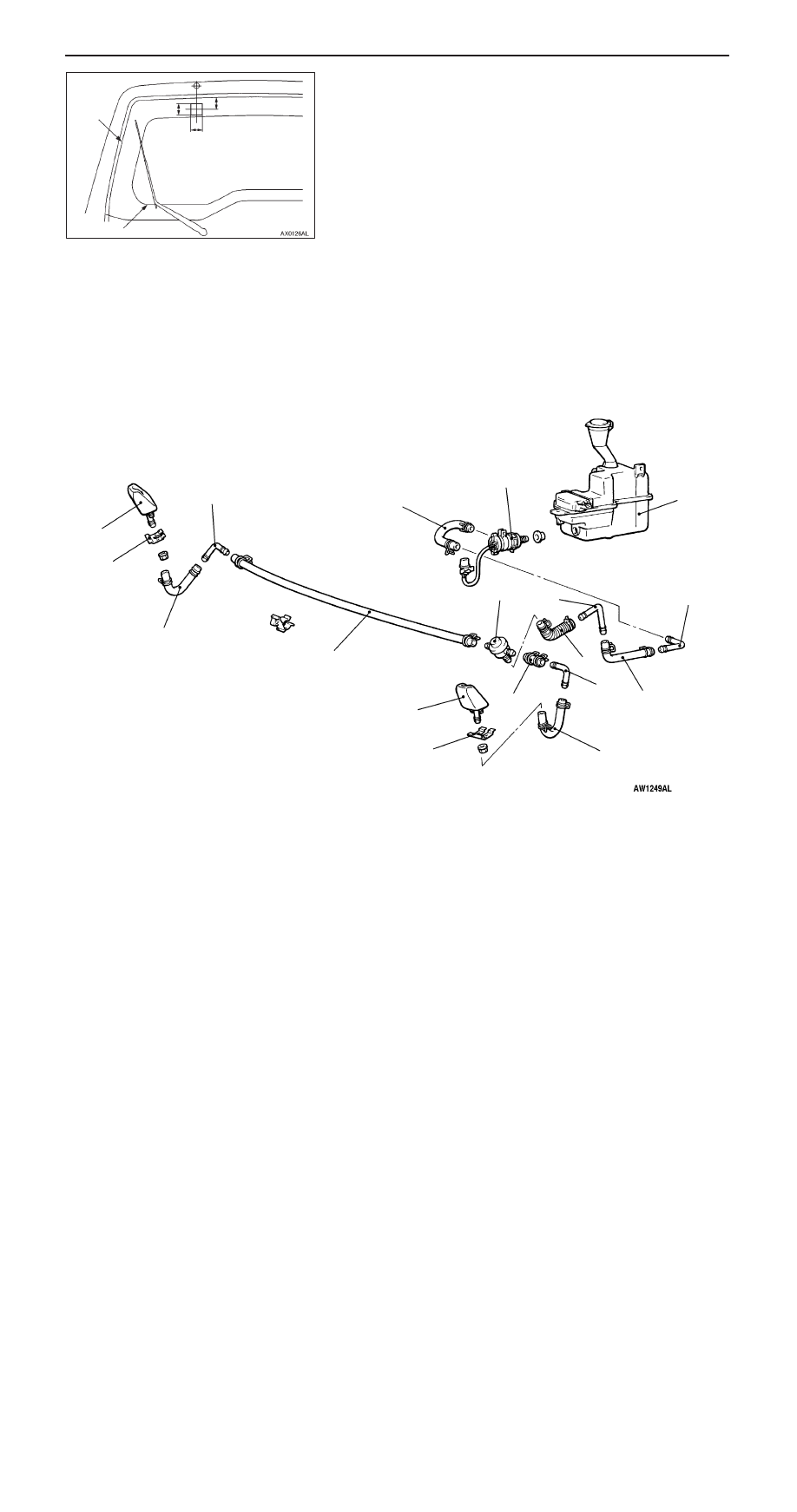

WASHER FLUID  EJECTION POINT CHECK

Adjust the ejection angle by moving the nozzle.

HEADLAMP WASHER

TROUBLESHOOTING

The headlamp washer is controlled by the Smart Wiring System (SWS). For troublesshooting, refer to
GROUP 54B – Troubleshooting.

HEADLAMP WASHER

REMOVAL AND INSTALLATION

4

6

1

2

2

7

4

5

3

3

2

2

2

2

3

3

8

5

Nozzle and check valve removal
steps

Draining of washer fluid
Front bumper (Refer to P.51-2.)

1. Check valve
2. Washer hose
3. Joint
4. Bracket
5. Nozzle

Washer tank removal steps

Draining of washer fluid
Air cleaner
Intake duct

6. Washer hose
7. Washer tank assembly
8. Headlamp washer motor

50 mm

50 mm

50 mm

Ceramic end line

Moulding
end line

EXTERIOR –

Headlamp Washer

51-18

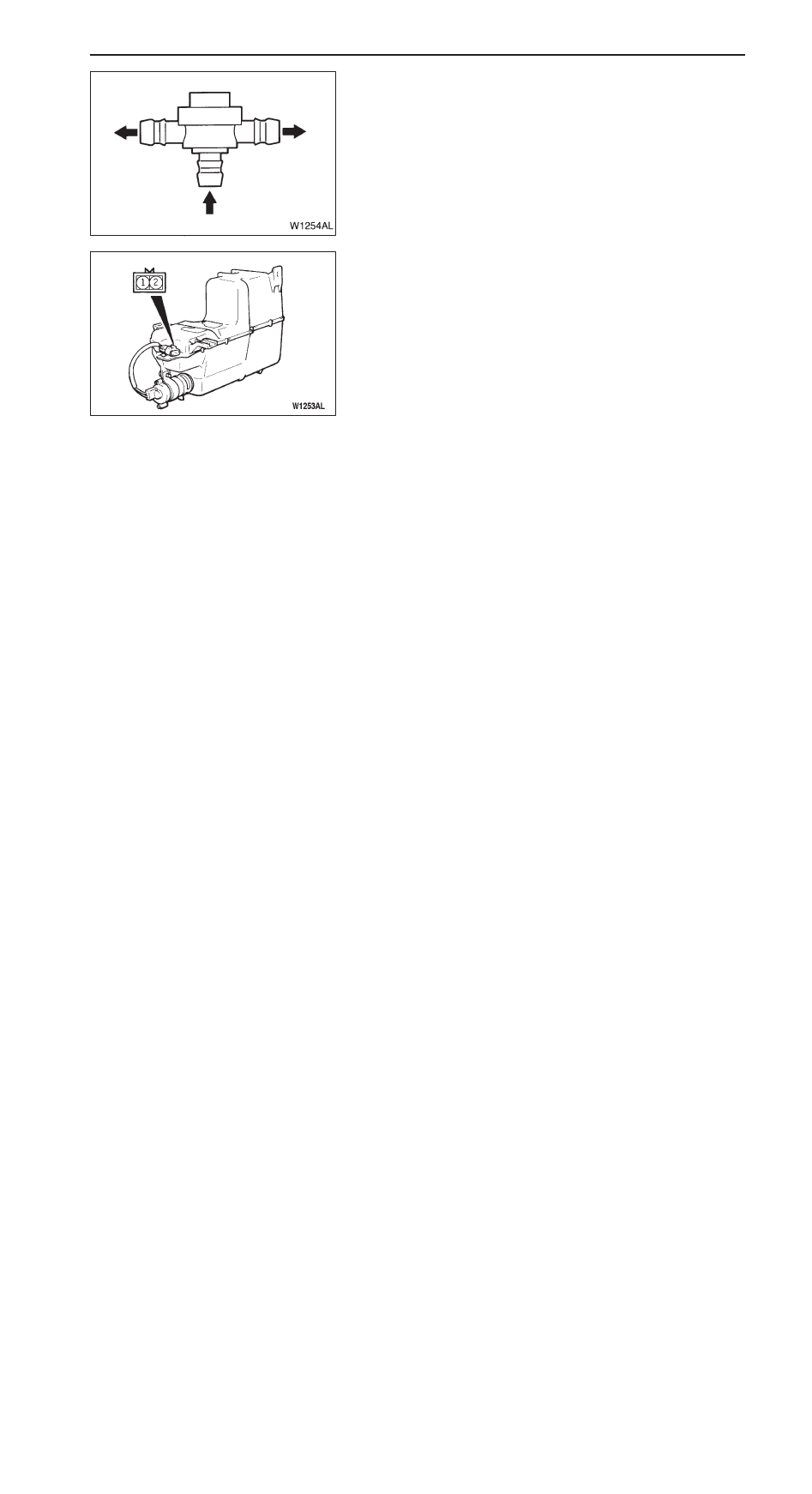

INSPECTION

CHECK VALVE CHECK

Apply pressure to the inlet of the check valve to check its
opening pressure.

Opening pressure: 78 kPa

HEADLAMP WASHER MOTOR CHECK

1.

With the washer motor installed to the washer tank, fill
the washer tank with water.

2.

Connect battery (+) and (–) cables to terminals (1) and
(2) respectively to see that the washer motor runs and
water is injected.

EXTERIOR –

Marks

EXTERIOR –

Marks

51-19

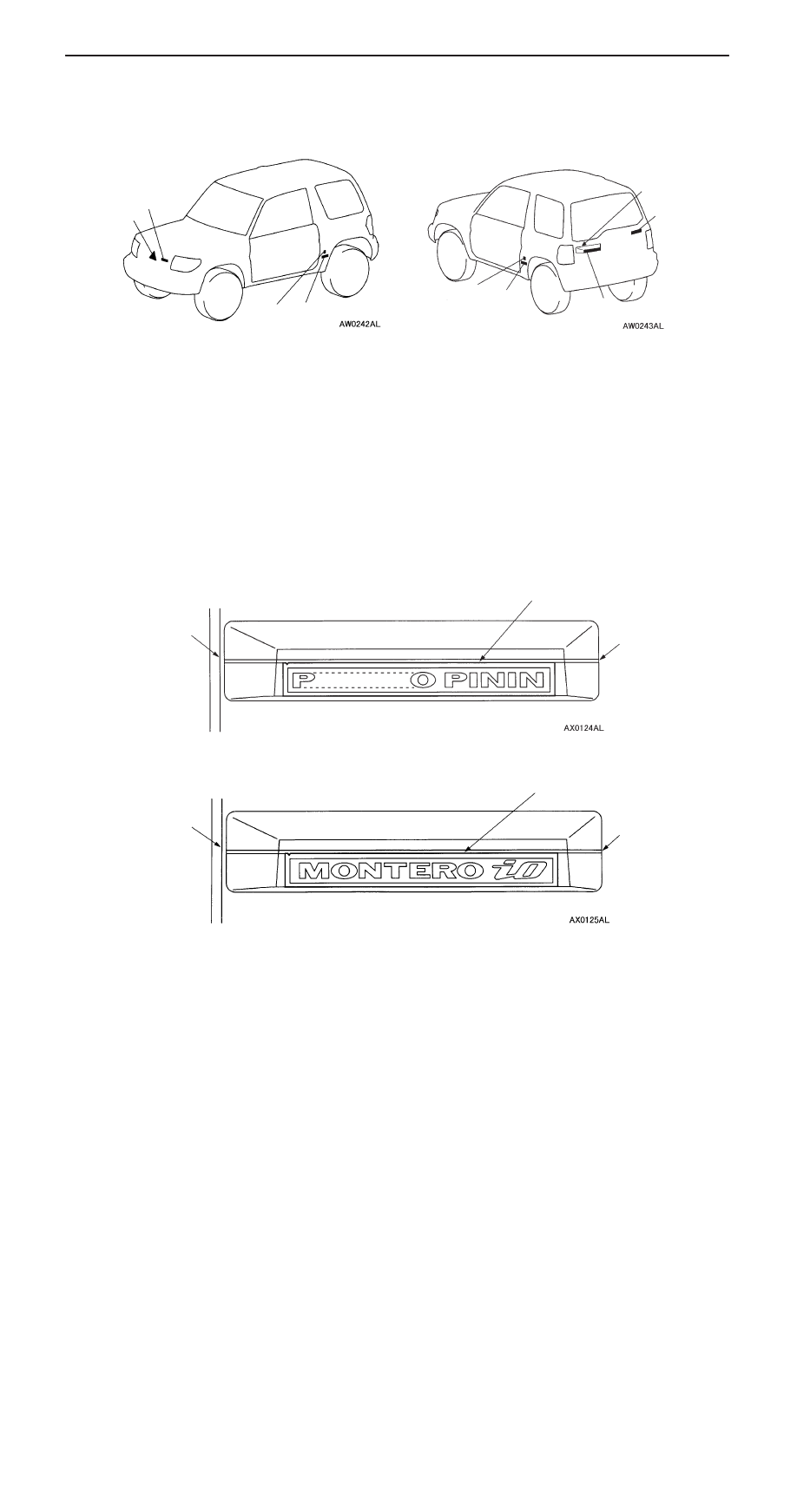

MARKS

REMOVAL AND INSTALLATION

1

2

7

6

5

4

3

4

3

1. Three diamonds mark
2. “GDI” mark
3. Pininfarina mark
4. Pininfarina logo mark

"

A

A

5. Vehicle name decal

"

A

A

6. Three diamonds mark

"

A

A

7. “GDI” mark

INSTALLATION SERVICE POINT

"

A

A

INSTALLATION OF MARKS

1.

APPLICATION POSITION

(5) Vehicle name decal
    <Vehices except for Spain>

<Vehicles for Spain>

Back door end line

Align the application tape end with this slit.

Slit

Back door end line

Align the application tape end with this slit.

Slit
