EXTERIOR –

Windshield Wiper and Washer

51-12

REMOVAL SERVICE POINT

A

A

"

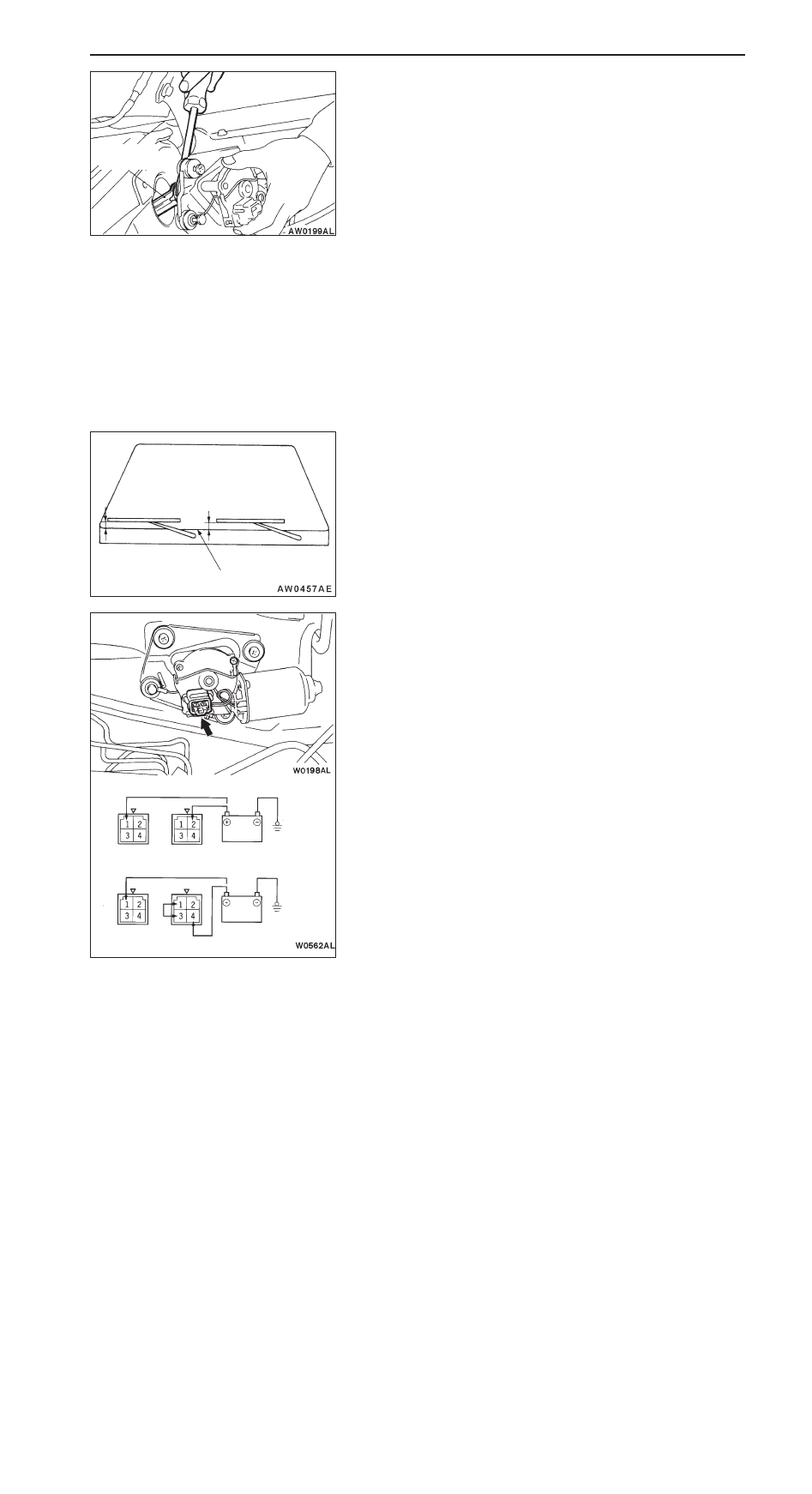

WIPER MOTOR REMOVAL

1.

Remove the wiper motor mounting bolts.

2.

Use a flat-tipped screwdriver to separate the wiper motor
crank arm from the linkage assembly, and then remove
the wiper motor.

Caution
Because the installation angle of the crank arm and
the wiper motor has been set, do not remove them
unless it is necessary to do so. If they must be
removed, remove them only after marking their
mounting positions.

INSTALLATION SERVICE POINTS

"

A

A

WIPER ARM AND BLADE ASSEMBLY
INSTALLATION

Install the wiper blade so that the wipers stops at the specified
stop position (standard value) as shown in the illustration.

Standard value (A): 20

±

 5 mm <L.H. drive vehicles>

 30

±

 5 mm <R.H. drive vehicles>

INSPECTION

WIPER MOTOR CHECK

Disconnect the wiring harness connector, and then check the
wiper motor operation with the wiper motor remaining installed
to the body.

Wiper Motor Operation Speed

Connect a battery to the wiper motor as shown in the illustration
and check the operation speed.

Stop Position

1.

Connect a battery to the wiper motor as shown in the
(A) of the illustration. While the wiper motor operates at
low speed, disconnect the battery to stop the wiper motor.

2.

Connect the terminals via a jumper wire and a battery
to the wiper motor as shown in the (B) of the illustration.
After the motor starts turning at low speed, it should stop
at the automatic stop position.

Linkage
assembly

Windshield lower moulding end

A

A

Operation speed check

Low speed High speed

Stop position check

(A) Low
     speed

(B) Automatic stop

EXTERIOR –

Windshield Wiper and Washer

51-13

WASHER MOTOR CHECK

1.

With the washer motor installed to the washer tank, fill
the washer tank with water.

2.

Check that the water squirts out strongly when battery
voltage is applied to terminal (2) and terminal (1) is earthed.

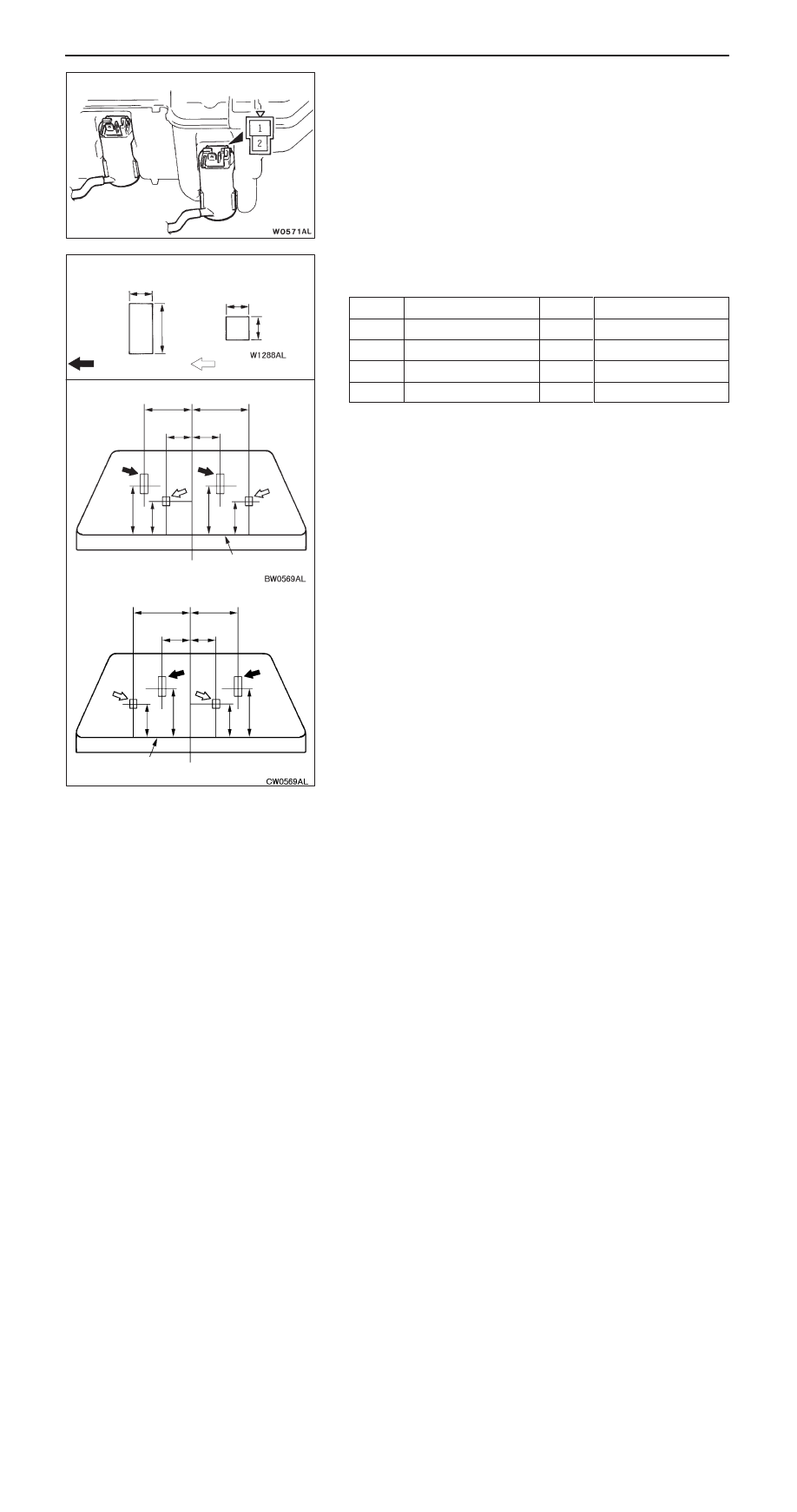

WASHER FLUID  EJECTION POINT CHECK

Adjust the ejection angle by moving the nozzle.

Item

Distance mm

Item

Distance mm

A

350

E

320

B

475

F

200

C

165

G

310

D

200

H

200

50 mm

Area to be ejected

<Passen-
ger’s side>

Ceramic end line

A

B

D

E

G

H

<Driver’s side>

50 mm

A

Ceramic end line

C

C

F

F

G

B

E

H

D

<Passen-
ger’s side>

L.H. drive vehicles

R.H. drive vehicles

<Driver’s side>

50 mm

110 mm

Area to be ejected

EXTERIOR –

Rear Wiper and Washer

51-14

REAR WIPER AND WASHER

SERVICE SPECIFICATION

Items

Standard value

Park position of rear wiper arm and blade assembly (Distance between wiper blade and back
door glass ceramic end line) mm

33

$

 5

TROUBLESHOOTING

The rear wiper and washer is controlled by the Smart Wiring System (SWS). For troublesshooting, refer
to GROUP 54B – Troubleshooting.

EXTERIOR –

Rear Wiper and Washer

51-15

REAR WIPER AND WASHER

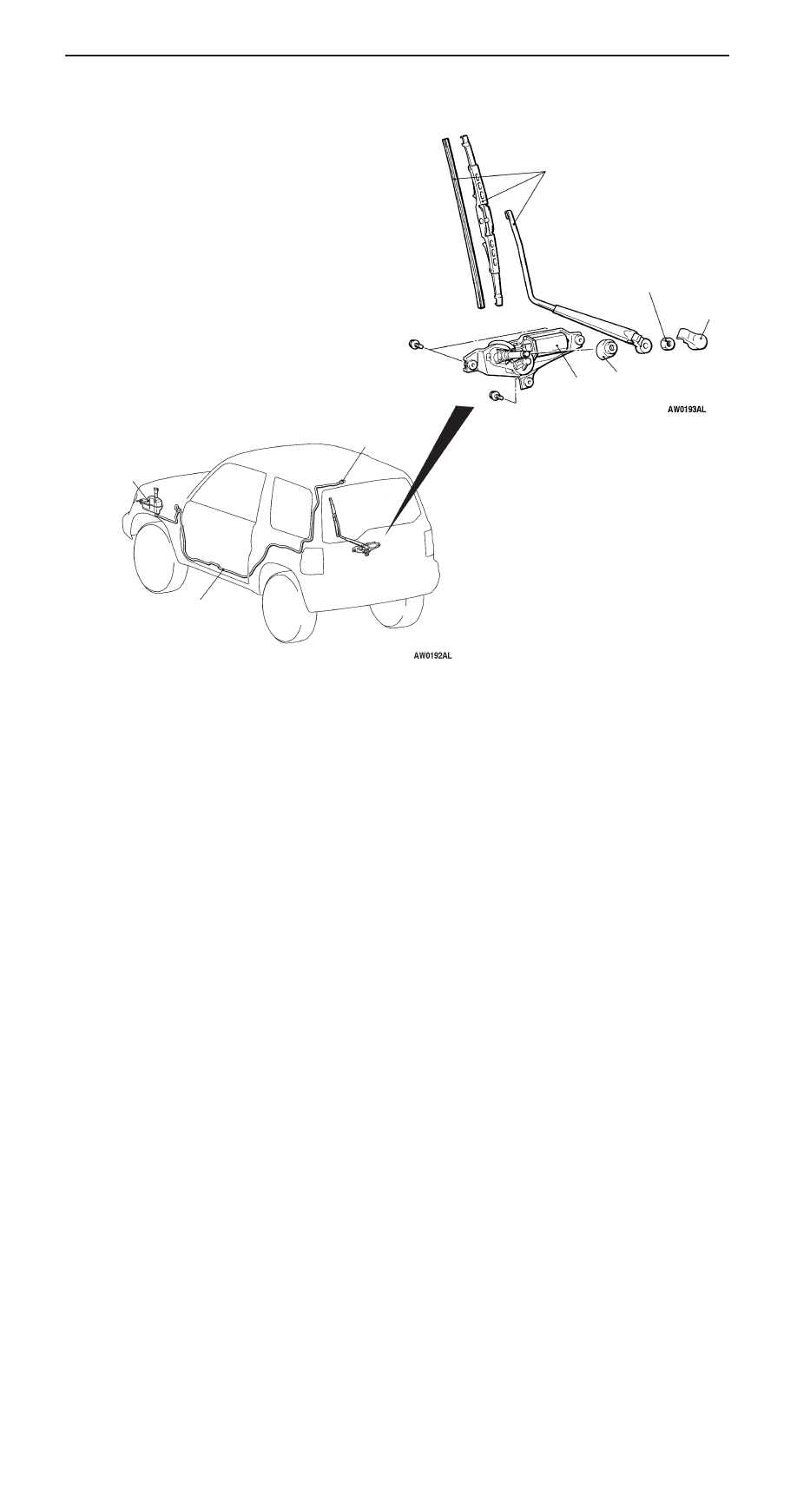

REMOVAL AND INSTALLATION

2

3

4

5

6

7

1

8 Nm

Wiper motor assembly removal
steps

D

Back door trim (Refer to GROUP 42.)

1. Cover

"

A

A

2. Wiper arm and blade assembly

"

B

A

3. Grommet
4. Wiper motor assembly

Washer tank and washer motor
removal

5. Washer tank and washer motor

(Refer to P.51-11.)

Rear washer hose removal steps

D

Rear seat (Refer to GROUP 52A.)

D

Scuff plate and quarter trim (Refer to
GROUP 52A.)

D

Headlining (Refer to GROUP 52A.)

6. Washer nozzle
7. Washer hose

NOTE
For removal and installation of the column switch
assembly (wiper and washer switch), refer to GROUP
37A – Steering Wheel and Shaft.
