EXTERIOR –

Moulding and Garnish

51-8

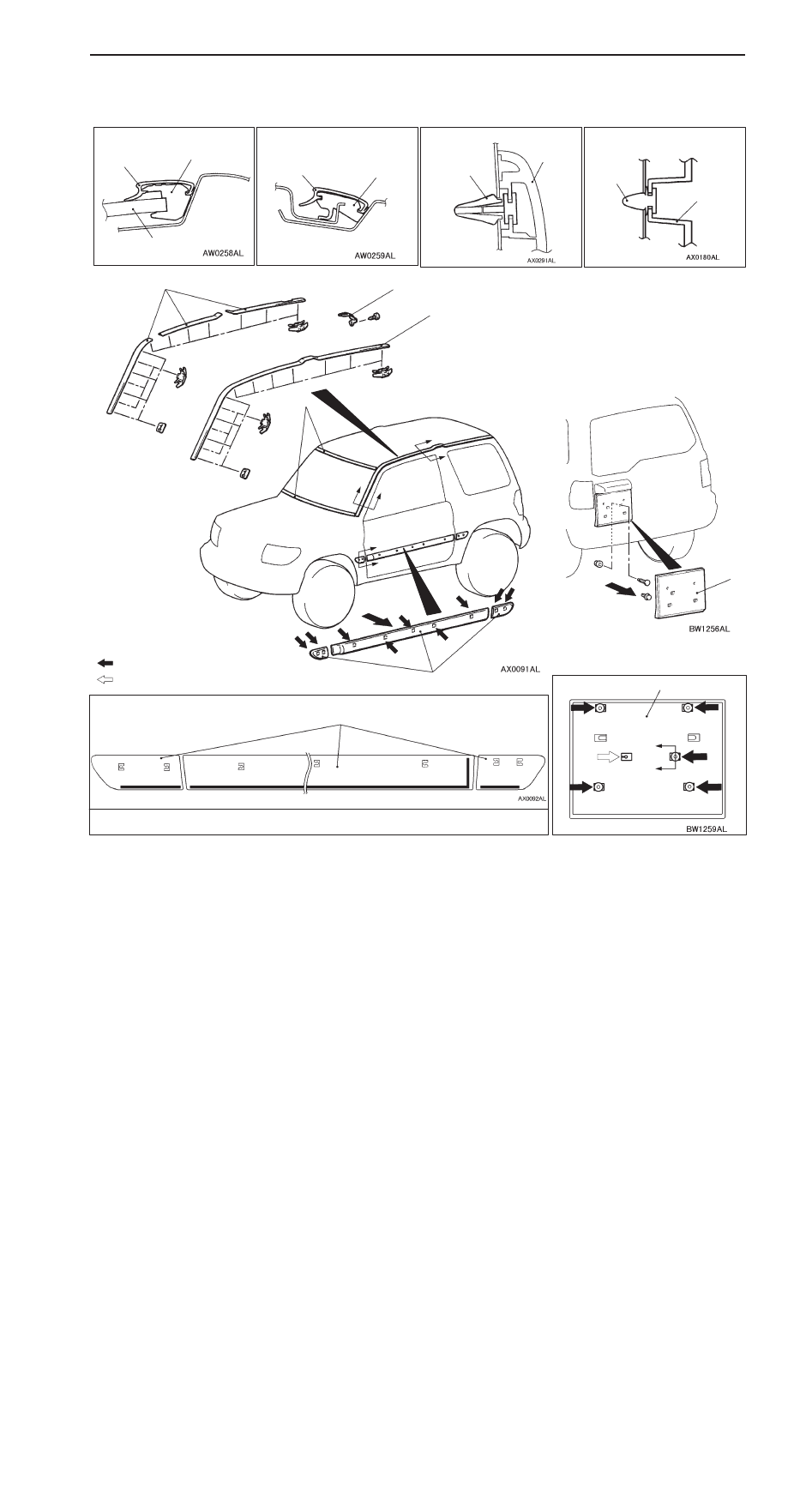

MOULDING AND GARNISH

REMOVAL AND INSTALLATION

2

2

3

4

2

Section A – A

Clip

Section B – B

Clip

Windshield

B

A

A

Section C – C

Clip

Adhesive: double-sided tape [5 mm width and 0.8 mm thickness]

B

A

1

2

C

C

View B

View A

4

4

5

5

<Vehicles with roof rail>

<Vehicles without roof rail>

B

: Clip positions

NOTE

: Bolt positions

Section D – D

Clip

5

D

D

Roof drip moulding removal steps

D

Roof rail assembly <Vehices with roof
rail> (Refor to P.51-6)

1. Roof drip cover

A

A

"

2. Roof drip moulding
3. Windshield moulding

(Refer to GROUP 42 – Windshield.)

Side protector moulding removal

A

B

" "

A

A

4. Side protector moulding

Rear licence plate garnish removal
steps

D

Back door trim (Refer to GROUP 42
– Back door.)

5. Rear licence plate garnish

EXTERIOR –

Moulding and Garnish

51-9

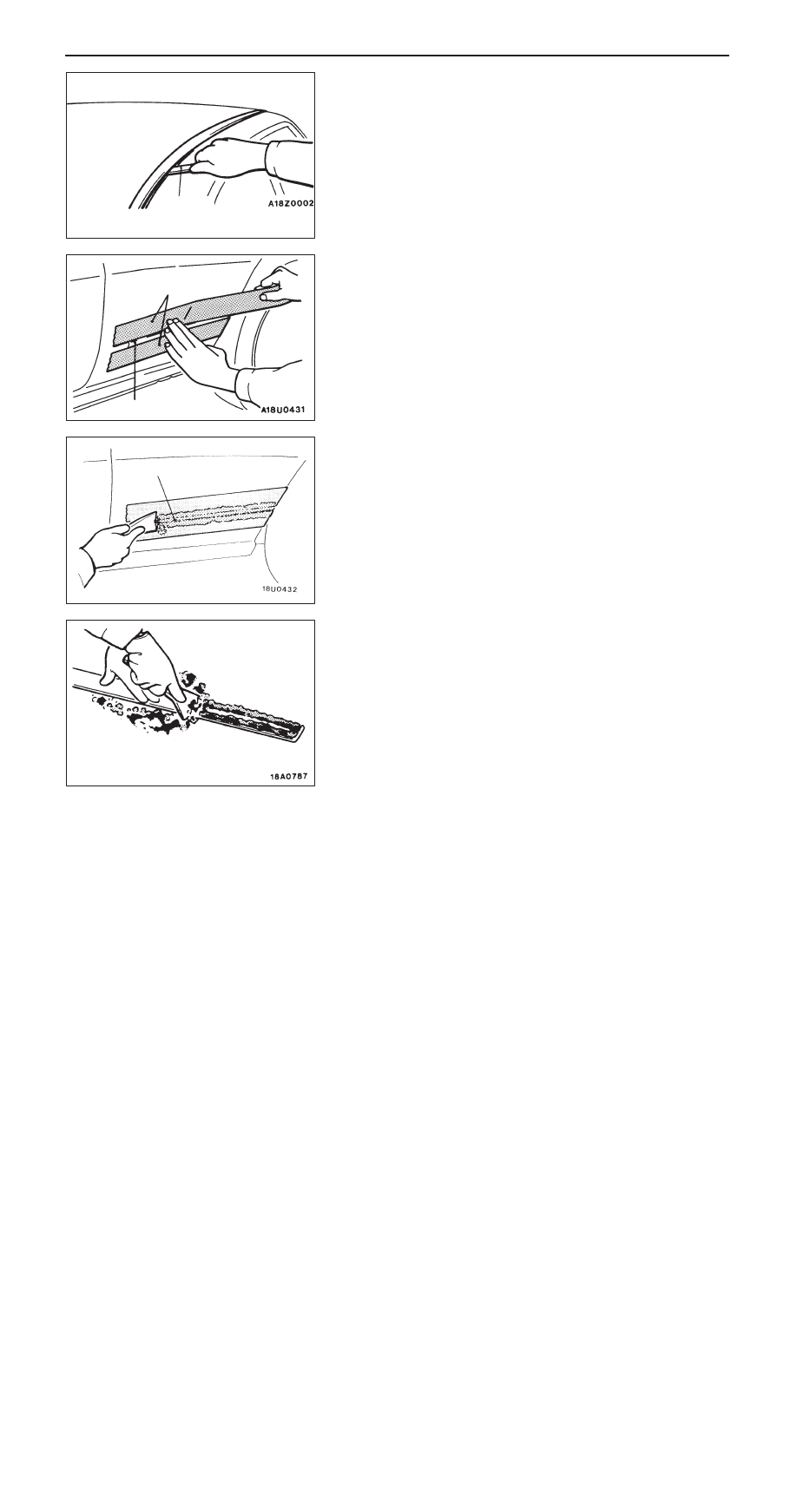

REMOVAL SERVICE POINT

A

A

"

ROOF DRIP MOULDING REMOVAL

Use the special tool to lever out the moulding.

Caution
If the moulding has become warped, it should not be
reused.

A

B

"

SIDE PROTECT MOULDING REMOVAL

1.

Attach protection tape all the way along the edges of the
double-sided tape which is still adhering to the body.

2.

Use a resin spatula to scrape off the double-sided tape.

3.

Peel off the protection tape.

4.

Wipe the body surface and clean it with a rag moistened
with isopropyl alcohol.

INSTALLATION SERVICE POINTS

"

A

A

SIDE PROTECT MOULDING INSTALLATION

Double-sided tape affixing to the side protect
moulding (when reusing)

1.

Scrape off the double-sided tape with a resin spatula or
gasket scraper.

2.

Wipe off the side protect moulding adhesion surface and
clean it with a shop towel moistened with isopropyl alcohol.

3.

Affix the specified double sided tape to the side protect
moulding. (Refer to P.51-8.)

Specified adhesive tape:

Double-sided tape: 5 mm width and 0.8 mm
thickness

MB990449

Protection tape

Double-sided tape

Double-sided tape

EXTERIOR –

Moulding and Garnish/Windshield Wiper and Washer

51-10

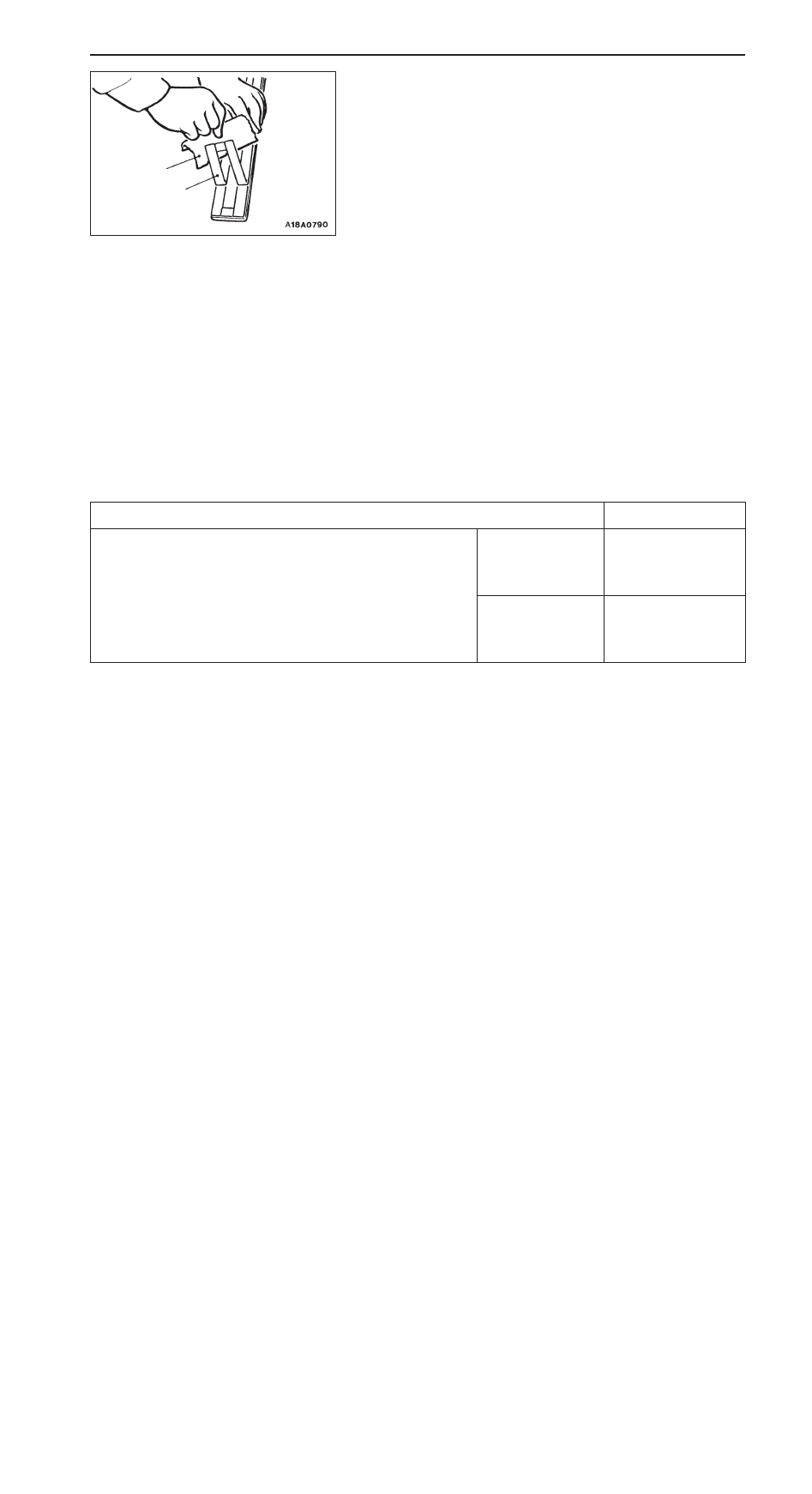

4.

Remove strip paper from the pressure sensitive
double-sided tape.

NOTE
Affix double-sided tape to the end of strip paper for ease
of strip paper removal. (Refer to P.51-8.)

5.

Install the side protect moulding.

NOTE
If it is hard to affix the double-sided tape in winter, heat
the application surfaces at both the vehicle body and the
side protect moulding.

Body 40 – 60 C

Side protect moulding 20 – 30  C

Apply pressure fully to the side protect moulding.

WINDSHIELD WIPER AND WASHER

SERVICE SPECIFICATIONS

Items

Standard value

Park position of windshield wiper arm and blade assembly (Distance
between wiper blade and windshield lower moulding) mm

Driver’s side

20

$

 5

< L.H. drive vehicles>
30

$

 5

< R.H. drive vehicles >

Passenger’s side

20

$

 5

<L.H. drive vehicles >
30

$

 5

<R.H. drive vehicles >

TROUBLESHOOTING

The windshield wiper and washer is controlled by the Smart Wiring System (SWS). For troublesshooting,
refer to GROUP 54B – Troubleshooting.

Adhesive tape

Backing paper

EXTERIOR –

Windshield Wiper and Washer

51-11

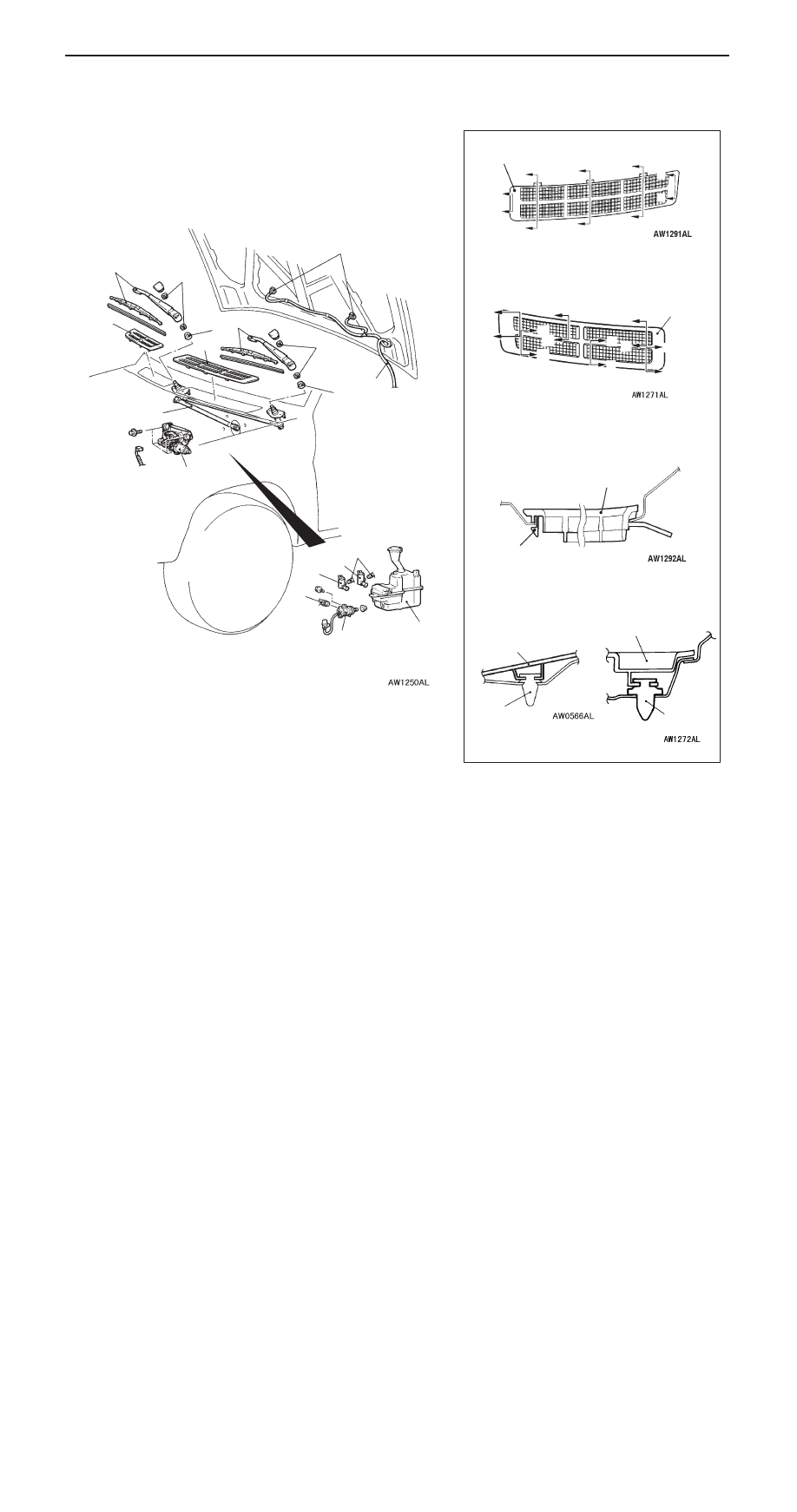

WINDSHIELD WIPER AND WASHER

REMOVAL AND INSTALLATION

Section A – A

Section B – B

3

13 Nm

2

4

9

A

A

B

B

7

6

8

1

5

Section C – C

Clip

Claw

Cli
p

13 Nm

C

C

B

B

A

A

A

A

C

C

C

C

C

C

C

C

C

C

6

5

6

6

5

1

1

3

4

10

11

12

1. Washer hose connection
2. Washer nozzle

Wiper motor and linkage removal
steps

"

A

A

3. Wiper arm and blade assembly
4. Washer
5. Front deck garnish

<R.H. drive vehicles>

6. Front deck garnish

<L.H. drive vehicles>

A

A

"

7. Wiper motor
8. Linkage assembly

Washer tank removal steps

D

Air cleaner

D

Intake duct

1. Washer hose connection
9. Headlamp washer motor

<Vehicles with headlamp washer>

10. Front washer motor

11. Rear washer motor

12. Washer tank assembly

NOTE
For removal and installation of the column switch
assembly (wiper and washer switch), refer to GROUP
37A – Steering Wheel and Shaft.
