Mitsubishi Lancer Evolution 7. Manual - part 266





MANUAL TRANSMISSION OVERHAUL -

Output Shaft

22B-29

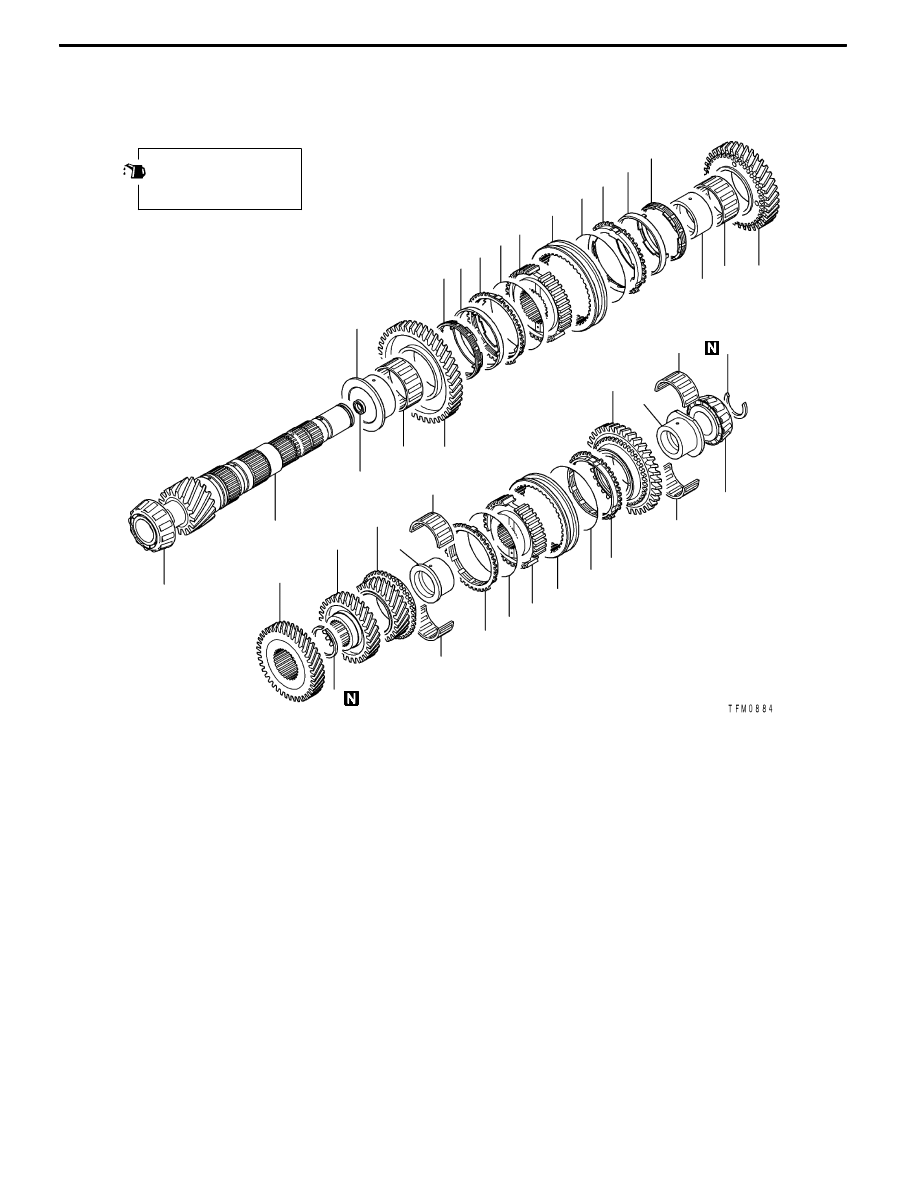

OUTPUT SHAFT

DISASSEMBLY AND REASSEMBLY

32

Apply gear oil on

all sliding sections

before installing.

36

23

30

33

35

26

29

34

28

25

24

31

16

13

10

7

11

8

9

6

5

3

4

1

4

2

21

22

17

27

12

13

15

14

20

19 18

Disassembly steps

"

PA 1. Snap ring

A

A" "OA 2. Taper roller bearing

A

B" "NA 3. Reverse gear sleeve

"

NA 4. Needle roller bearing

"

NA 5. Reverse gear

6. Synchronizer ring

"

LA 7. Synchronizer spring

"

FA 8. Synchronizer sleeve

A

C" "MA 9. 5th-reverse speed synchronizer hub

10. Synchronizer ring

"

LA 11. Synchronizer spring

12. 5th speed gear

13. Needle roller bearing

"

KA 14. 5th speed gear sleeve

"

JA 15. 4th speed gear

"

IA 16. Snap ring

A

D" "HA 17. 3rd speed gear

18. 2nd speed gear

19. Needle roller bearing

A

E" "GA 20. 2nd speed gear sleeve

21. Inner synchronizer ring

22. Synchronizer cone

23. Outer synchronizer ring

"

DA 24. Synchronizer spring

"

FA 25. Synchronizer sleeve

"

EA 26. 1st-2nd speed synchronizer hub

27. Outer synchronizer ring

"

DA 28. Synchronizer spring

29. Inner synchronizer ring

30. Synchronizer cone

31. 1st speed gear

32. Needle roller bearing

A

F" "CA 33. 1st speed gear sleeve

A

G" "BA 34. Taper roller bearing

"

AA 35. Oil seal

36. Output shaft

MANUAL TRANSMISSION OVERHAUL -

Output Shaft

22B-30

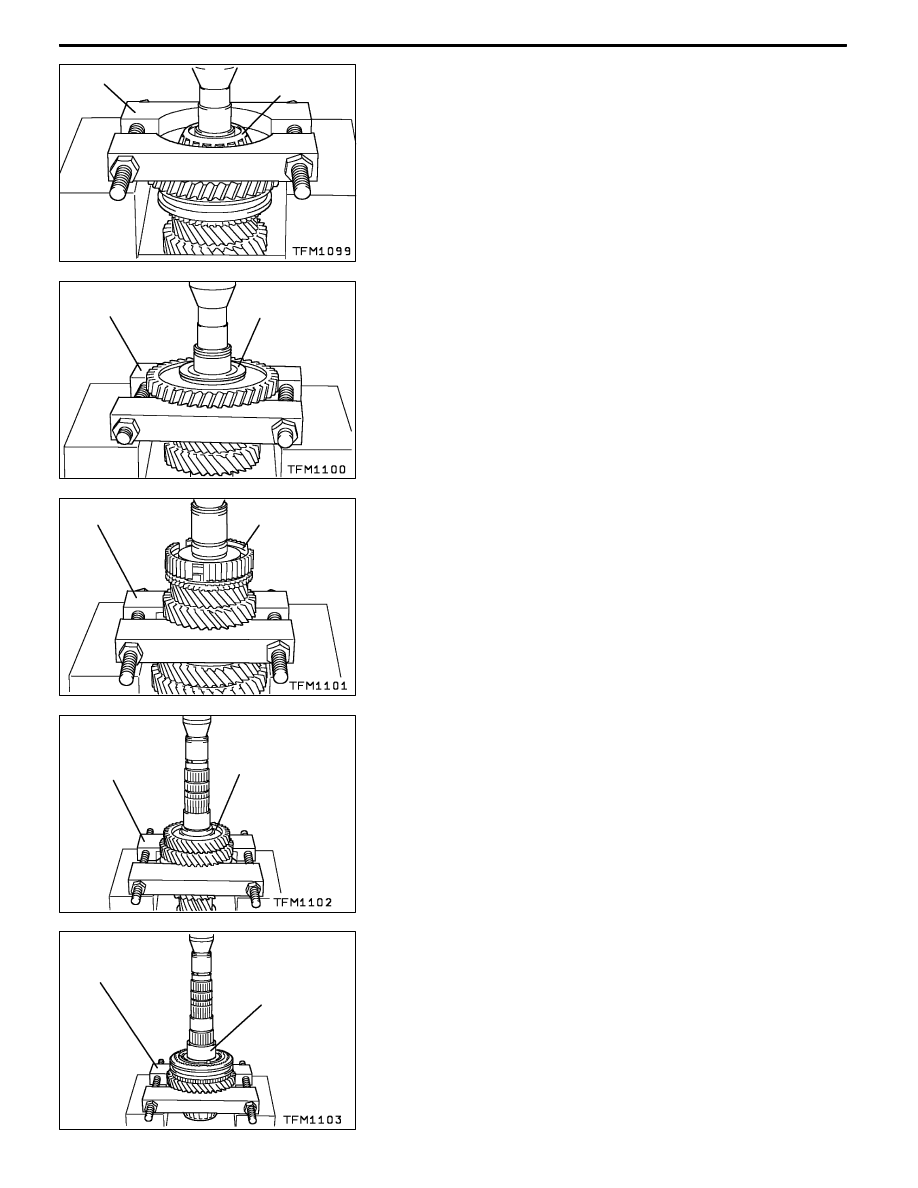

DISASSEMBLY SERVICE POINTS

A

ATAPER ROLLER BEARING REMOVAL

Using the special tool, remove the taper roller bearing from

the output shaft.

A

BREVERSE GEAR BEARING SLEEVE REMOVAL

Install the special tool on the reverse gear, and remove the

reverse gear bearing sleeve from the output shaft.

A

C5TH-REVERSE SPEED SYNCHRONIZER HUB

REMOVAL

Install the special tool on the 4th speed gear, and remove

5th-reverse synchronizer hub.

A

D3RD SPEED GEAR REMOVAL

Install the special tool on the 2nd speed gear, and remove

the 3rd speed gear.

A

E2ND SPEED GEAR SLEEVE REMOVAL

Install the special tool on the 1st speed gear, and remove

the 2nd speed gear sleeve.

MD998801

Taper roller

bearing

MD998801

Sleeve

MD998801

Synchronizer hub

MD998801

3rd speed gear

MD998801

Sleeve

MANUAL TRANSMISSION OVERHAUL -

Output Shaft

22B-31

A

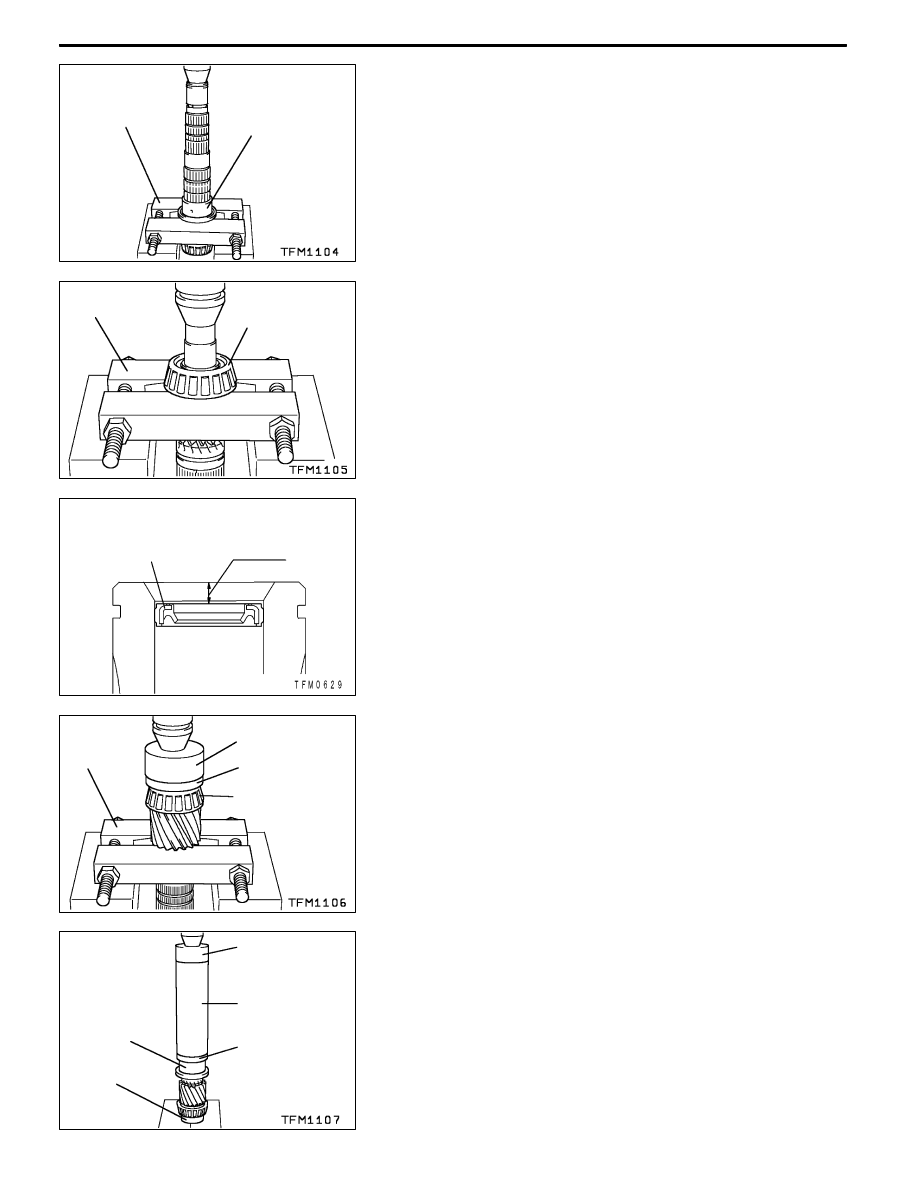

F1ST SPEED GEAR SLEEVE REMOVAL

Using the special tool, remove the 1st speed gear sleeve

from the output shaft.

A

G"TAPER ROLLER BEARING REMOVAL

Using the special tool, remove the taper roller bearing from

the output shaft.

REASSEMBLY SERVICE POINTS

"

AOIL SEAL INSTALLATION

Accurately tap in the oil seal to the dimensions shown in

the illustration.

"

BTAPER ROLLER BEARING INSTALLATION

Using the special tool, install the roller bearing onto the output

shaft.

"

C1ST SPEED GEAR SLEEVE INSTALLATION

Using the special tool, install the 1st speed gear sleeve onto

the output shaft.

MD998801

Sleeve

MD998801

Taper roller

bearing

Oil seal

3.5 mm

MD998801

MD998812

MD998819

Taper roller

bearing

MD998364

Sleeve

MD998812

MD998814

MD998824

MANUAL TRANSMISSION OVERHAUL -

Output Shaft

22B-32

"

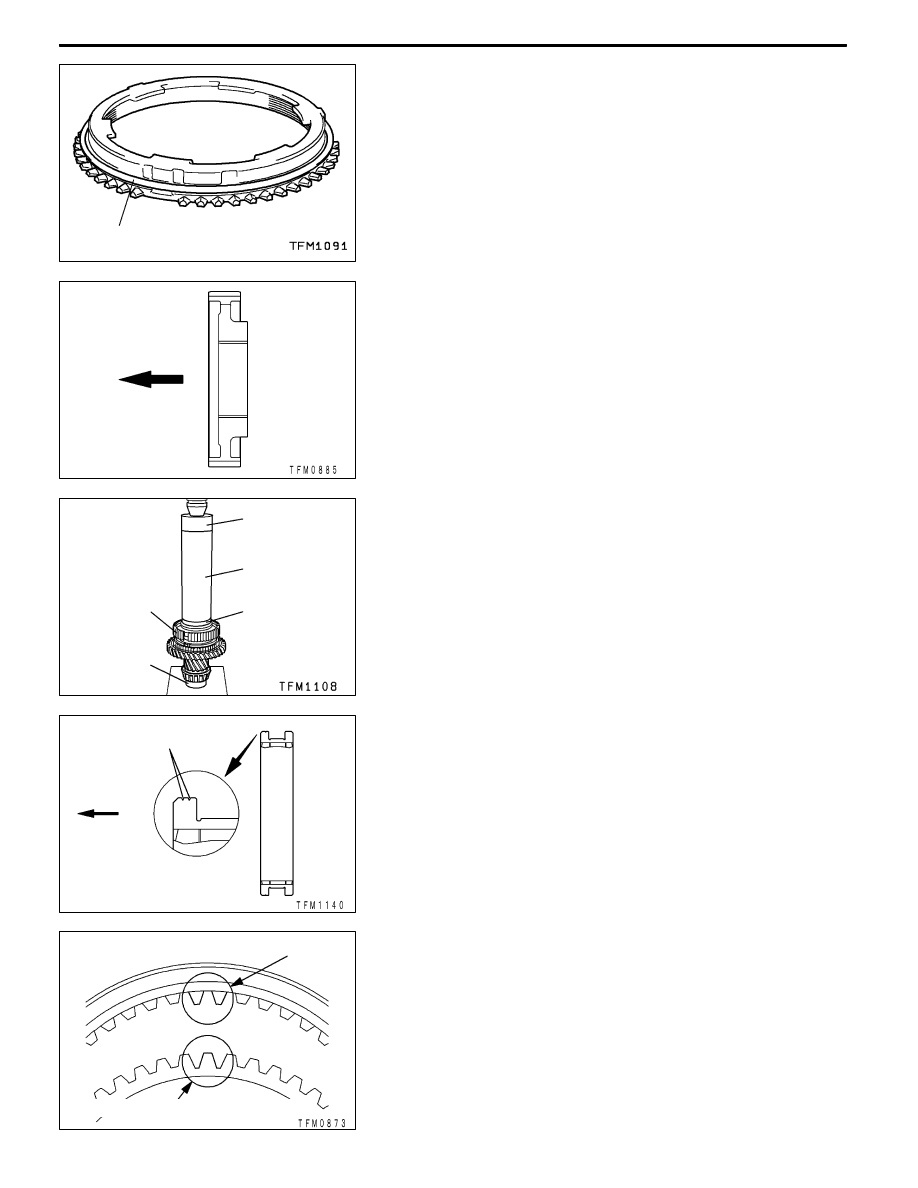

DSYNCHRONIZER SPRING INSTALLATION

Install the synchronizer spring at the position shown in the

illustration.

"

E1ST-2ND SPEED SYNCHRONIZER HUB

Using the special tool, install the 1st-2nd speed synchronizer

hub onto the output shaft in the direction shown in the

illustration.

Caution

(1) Press in so that the synchronizer ring does not bite

in.

(2) After assembling, confirm that the 1st speed gear

rotates smoothly.

"

FSYNCHRONIZER SLEEVE INSTALLATION

(1) Install the synchronizer sleeve onto the output shaft at

the direction shown in the illustration.

(2) Align the synchronizer hub deep grooves with the sleeve

protrusions and install onto the output shaft.

Synchronizer

spring

2nd

speed

side

1st

speed

side

Installation

direction

MD998364

Synchronizer hub

MD998812

MD998814

MD998824

Identification

groove

2nd

speed

side

1st

speed

side

Installation

direction

Synchronizer sleeve protrusion section

Synchronizer hub deep groove section
