MANUAL TRANSMISSION OVERHAUL -

Transmission

22B-21

"

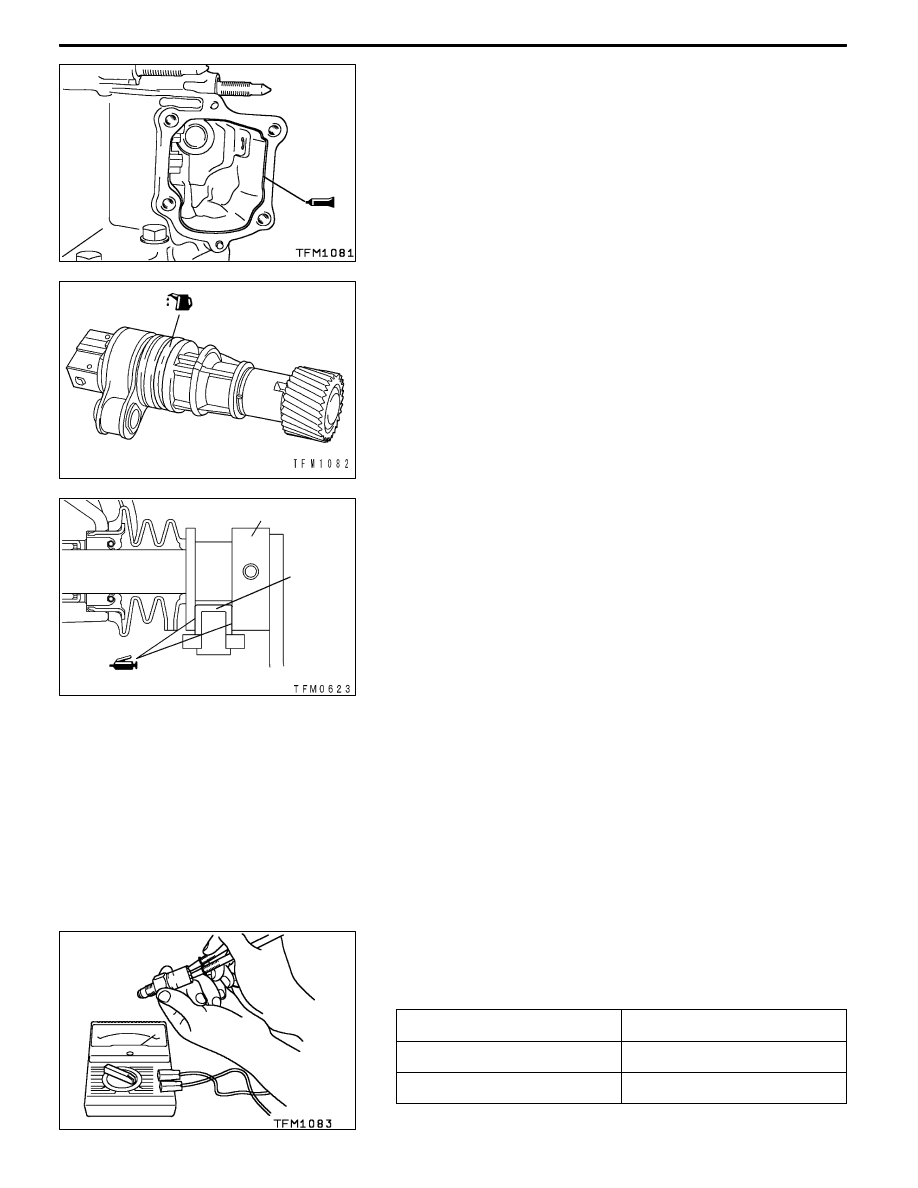

GACONTROL HOUSING INSTALLATION

Apply sealant at the positions of the transmission case shown

in the illustration.
Sealant

Specified sealant:

MITSUBISHI genuine sealant Part No.MD997740 or

equivalent

Caution

Evenly squeeze out the agent so that it is not insufficient

or excessive.

"

HSPEEDOMETER GEAR INSTALLATION

Apply transmission oil on the O-ring for the speedometer

gear.
Transmission oil

Specified oil:

MITSUBISHI genuine “DIA-QUEEN” multi gear oil

<75W/85W> or equivalent

"

ISELECT LEVER INSTALLATION

Apply grease on the sliding section of the select lever shoe’s

control shaft.
Grease

Specified grease:

MITSUBISHI genuine grease Part No.0101011 or

equivalent

"

JO-RING INSTALLATION

Apply transmission oil on the O-ring.
Transmission oil

Specified oil:

MITSUBISHI genuine “DIA-QUEEN” multi gear oil

<75W/85W> or equivalent

INSPECTION

BACKUP LIGHT SWITCH
Check the continuity between the terminals.

Items

Continuity

Switch pressed

Continuity not established

Switch released

Continuity established

Control shaft

Select

lever

shoe

MANUAL TRANSMISSION OVERHAUL -

Input Shaft

22B-22

INPUT SHAFT

DISASSEMBLY AND REASSEMBLY

2

8

1

Apply gear oil on

all sliding sections

before installing.

13

19

11

12

18

10

15

14

21

22

20

17

16

4

3

5

6

7

9

18

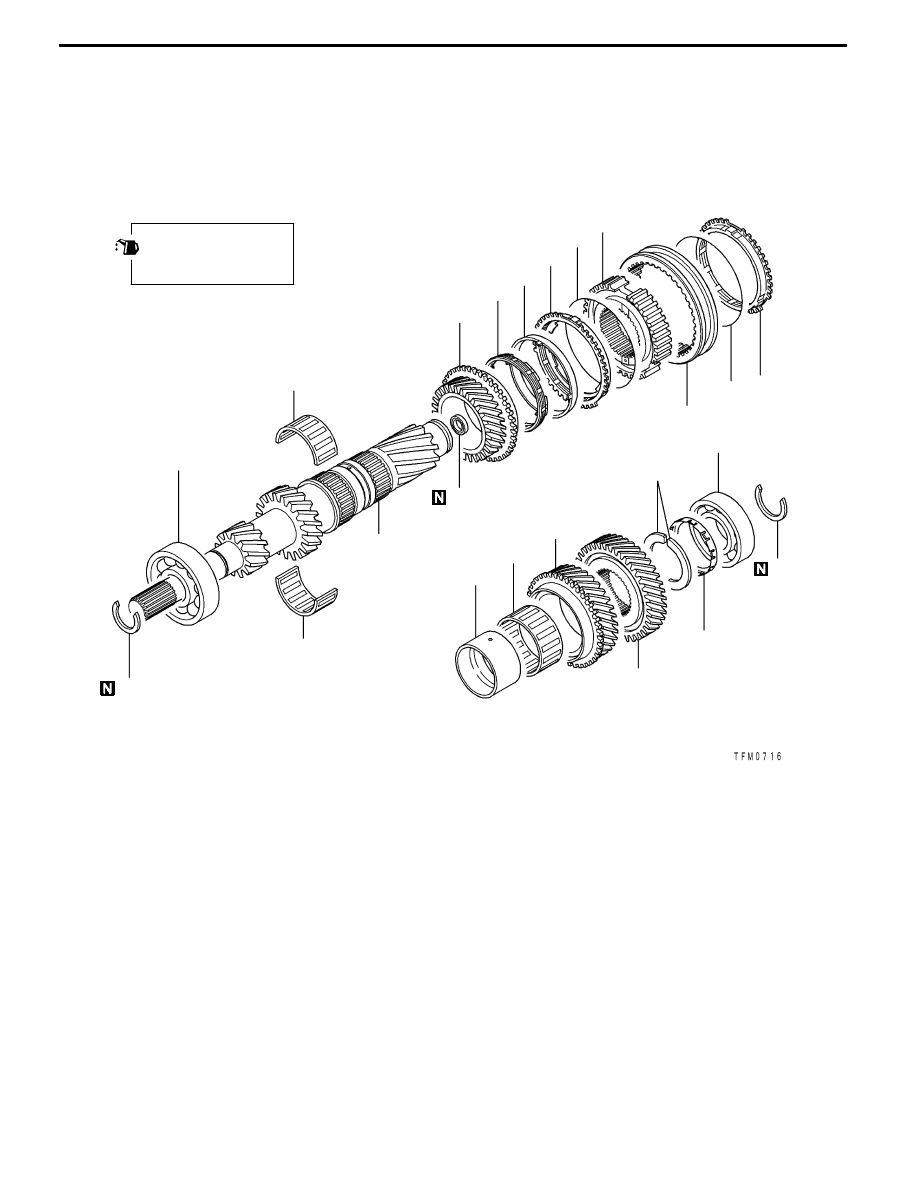

Disassembly steps

"

MA 1. Snap ring

A

A" "LA 2. Ball bearing

A

B" "KA 3. Thrust plate stopper

"

JA 4. Thrust plate

A

C" "IA

5. 5th speed gear

6. 4th speed gear

7. Needle roller bearing

A

D" "HA 8. 4th speed gear sleeve

9. Synchronizer ring

"

GA 10. Synchronizer spring

"

FA 11. Synchronizer sleeve

"

EA 12. 3rd-4th speed synchronizer hub

13. Outer synchronizer ring

"

DA 14. Synchronizer spring

15. Synchronizer cone

16. Inner synchronizer ring

17. 3rd speed gear

18. Needle roller bearing

"

CA 19. Snap ring

A

E" "BA 20. Ball bearing

"

AA 21. Oil seal

22. Input shaft

MANUAL TRANSMISSION OVERHAUL -

Input Shaft

22B-23

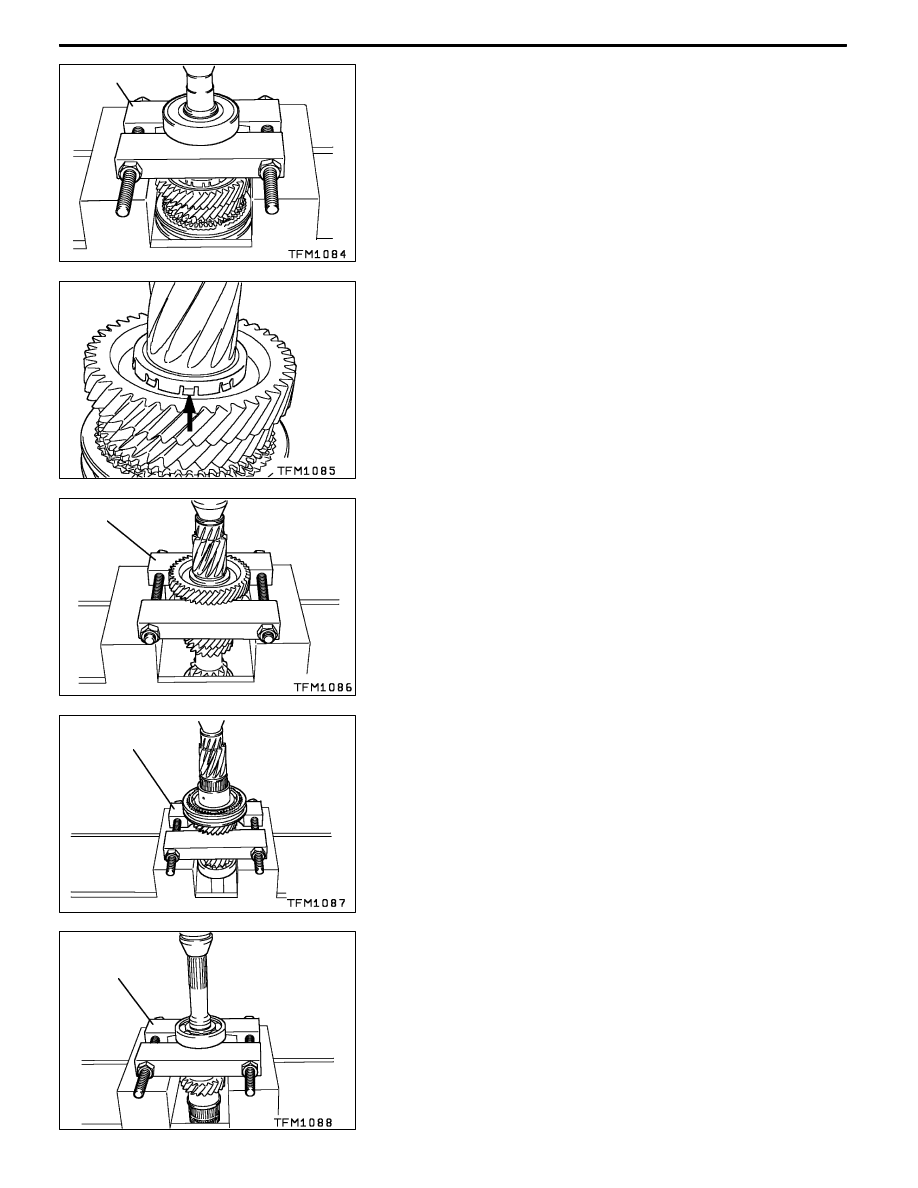

DISASSEMBLY SERVICE POINTS

A

ABALL BEARING REMOVAL

Using the special tool, remove the ball bearing from the input

shaft.

A

BTHRUST PLATE STOPPER REMOVAL

Using a screwdriver, lift the stopper at the position shown

in the illustration, and remove the thrust plate stopper.

A

C5TH SPEED GEAR REMOVAL

Using the special tool, remove the 5th speed gear from the

input shaft.

A

D4TH SPEED GEAR SLEEVE REMOVAL

Install the special tool on the 3rd speed gear, and remove

the 4th speed gear sleeve from the input shaft.

A

EBALL BEARING REMOVAL

Using the special tool, remove the ball bearing from the input

shaft.

MD998801

MD998801

MD998801

MD998801

MANUAL TRANSMISSION OVERHAUL -

Input Shaft

22B-24

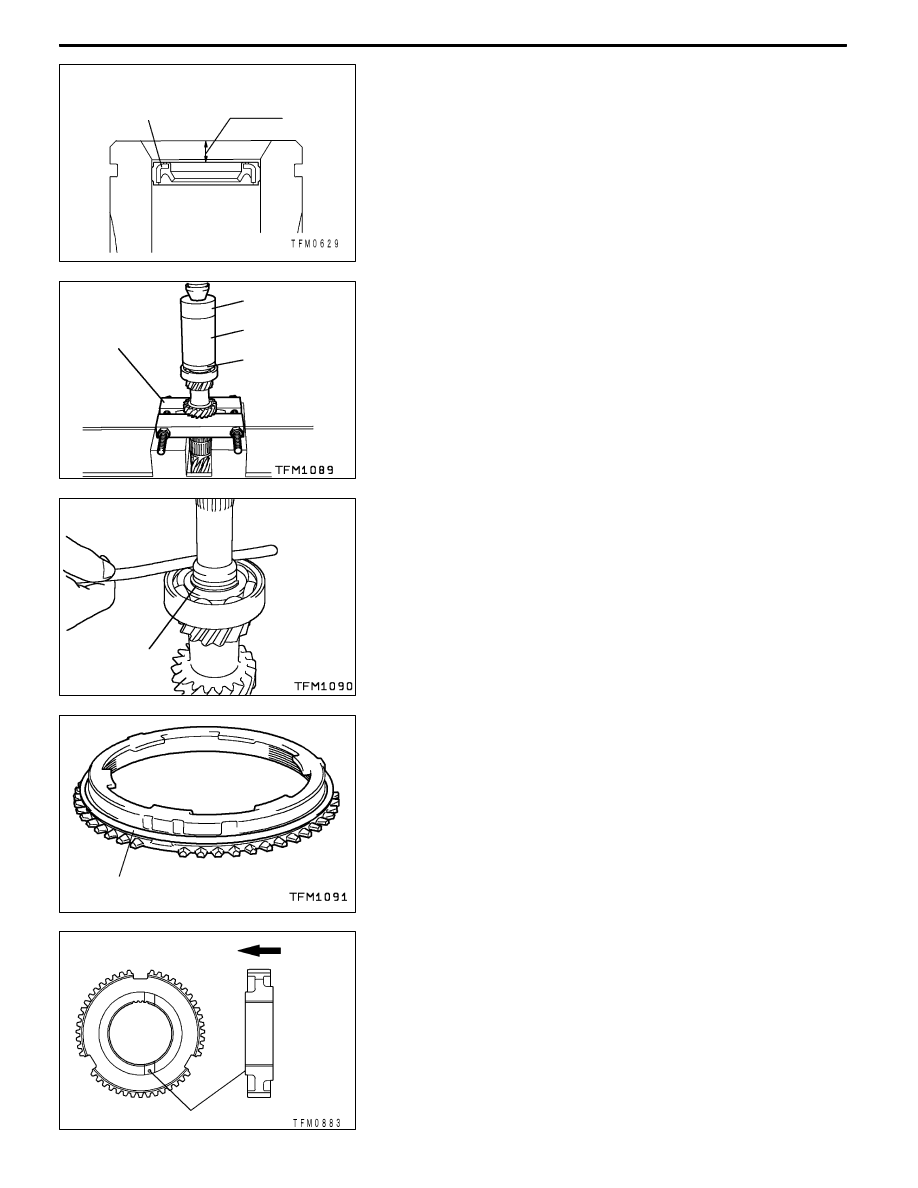

REASSEMBLY SERVICE POINTS

"

AOIL SEAL INSTALLATION

Accurately tap in the oil seal to the dimensions shown in

the illustration.

"

BBALL BEARING INSTALLATION

Using the special tool, install the ball bearing onto the input

shaft.

"

CSNAP RING INSTALLATION

Select and install the snap ring so that the input shaft front

bearing clearance is at the standard value.
Standard value: 0.01 mm tight to 0.12 mm loose

"

DSYNCHRONIZER SPRING INSTALLATION

Accurately install the synchronizer spring onto the position

of the synchronizer ring shown in the illustration.

"

E3RD-4TH SPEED SYNCHRONIZER HUB

INSTALLATION

Install the 3rd-4th speed synchronizer hub onto the input

shaft at the direction shown in the illustration.

Oil seal

3.5 mm

MD998812

MD998813

MD998818

MD998801

Snap ring

Synchronizer spring

Identification mark

3rd

speed

side

4th speed

side

Installation

direction
