OUTSIDE MIRROR
EXTERIOR
51-108
INSPECTION
M1511006500703

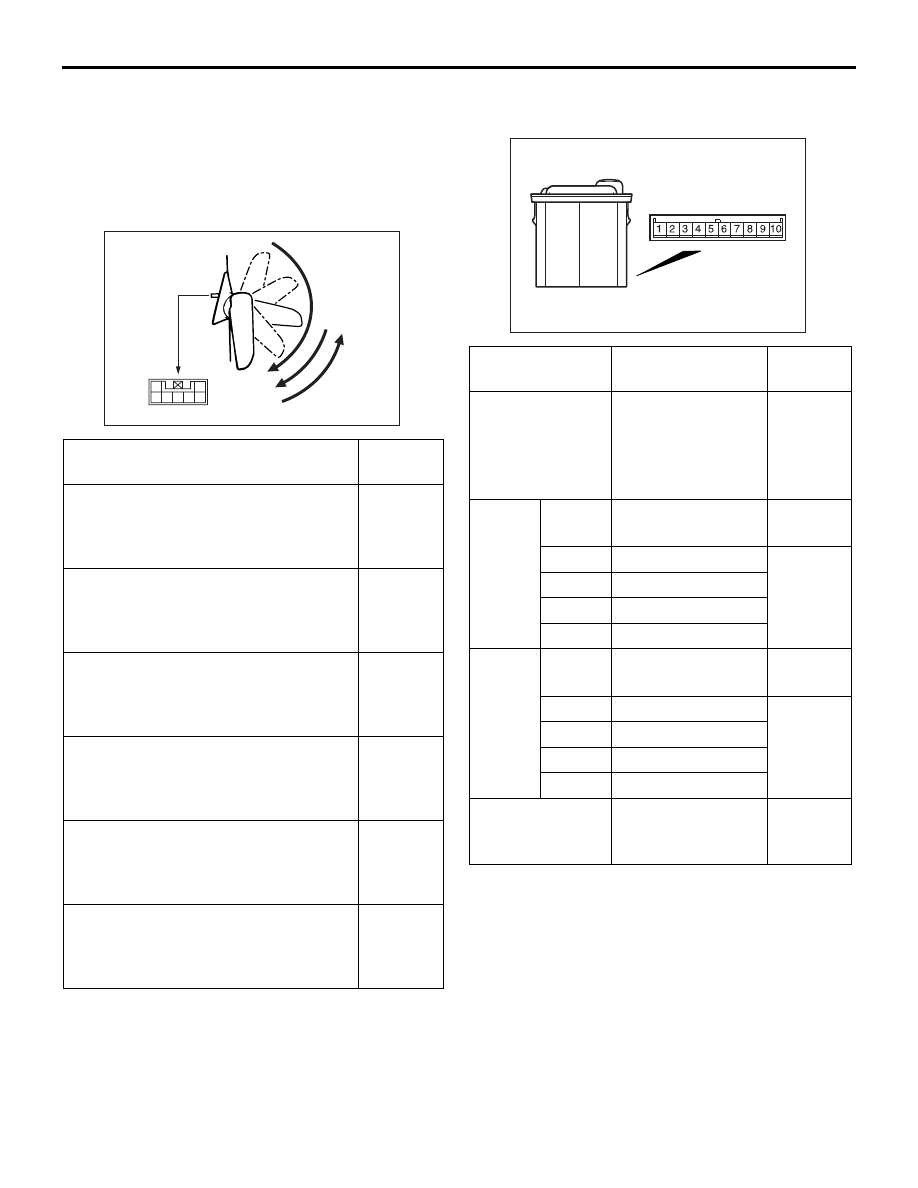

DOOR MIRROR ASSEMBLY OPERATION
CHECK
Remove the front door sash trim, and then connect
the battery to the door mirror body assembly connec-
tor to check that the door mirror operates.
AC502785
4
3
1
5
7
2
6
AB
Return
Retract
Forward-folding
Battery connection
Direction
operation
• Connect terminal 5 to the negative
battery terminal.
• Connect terminal 7 to the positive
battery terminal.
Up
• Connect terminal 5 to the positive
battery terminal.
• Connect terminal 7 to the negative
battery terminal.
Down
• Connect terminal 6 to the negative
battery terminal.
• Connect terminal 5 to the positive
battery terminal.
Right
• Connect terminal 6 to the positive
battery terminal.
• Connect terminal 5 to the negative
battery terminal.
Left
• Connect terminal 4 to the positive
battery terminal.
• Connect terminal 3 to the negative
battery terminal.
Retract
• Connect terminal 4 to the negative
battery terminal.
• Connect terminal 3 to the positive
battery terminal.
Return

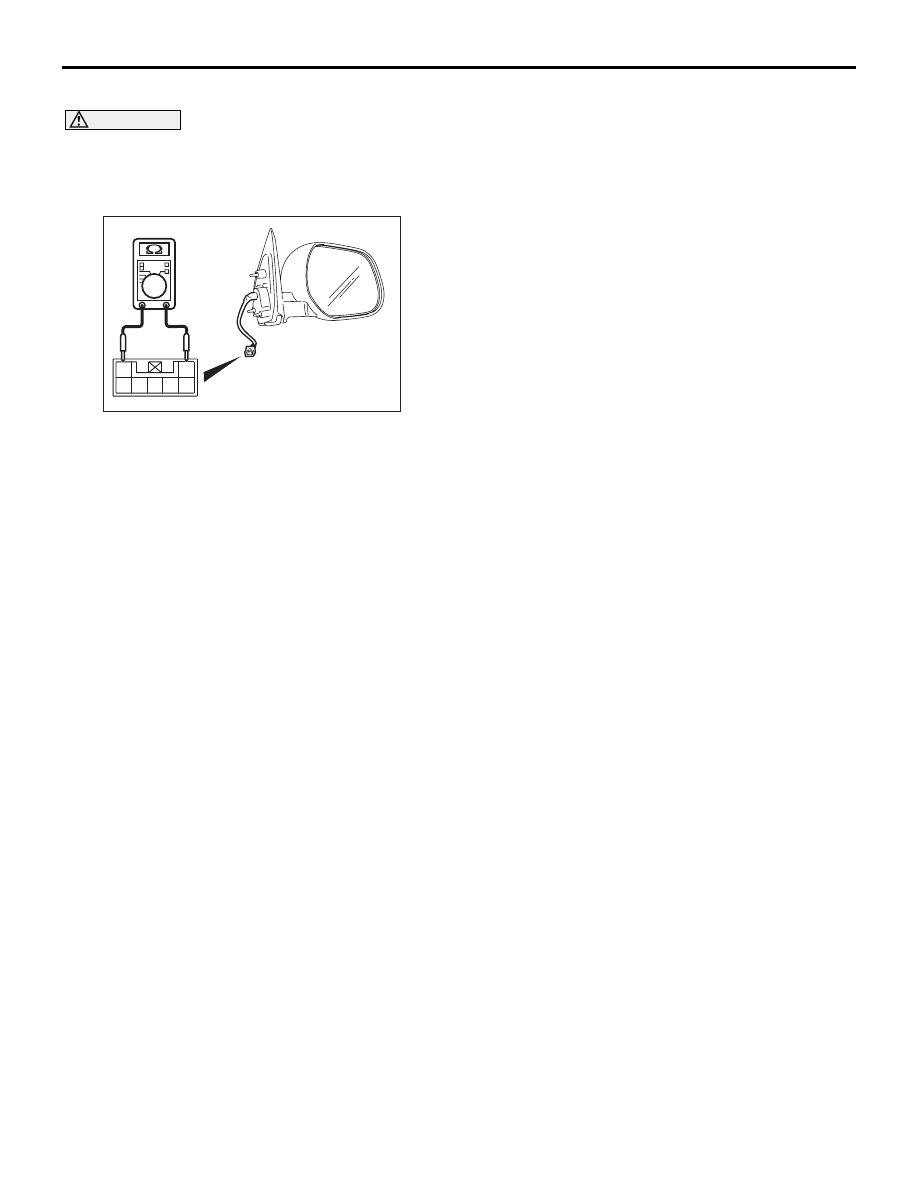

DOOR MIRROR CONTROL SWITCH CON-
TINUITY CHECK
AC208667
AC502793
Switch position
Tester connection Specified
condition
OFF
3
− 1, 3 − 2, 3 − 5, 3
− 6, 3 − 7, 3 − 8, 3 −
9, 4
− 1, 4 − 2, 4 − 5,
4
− 6, 4 − 7, 4 − 8, 4
− 9
Open
circuit
Left
side
OFF
3
− 5, 3 − 6, 3 − 7, 4
− 5, 4 − 6, 4 − 7
Open
circuit
Up
3
− 7, 4 − 5
Continuity
exists (2
Ω or less)
Down
3
− 5, 4 − 7
Right
3
− 5, 4 − 6
Left
3
− 6, 4 − 5
Right
side
OFF
3
− 5, 3 − 8, 3 − 9, 4
− 5, 4 − 8, 4 − 9
Open
circuit
Up
3
− 8, 4 − 5
Continuity
exists (2
Ω or less)
Down
3
− 5, 4 − 8
Right
3
− 5, 4 − 9
Left
3
− 9, 4 − 5
Retract and return 1
− 4, 2 − 4
Continuity
exists (2
Ω or less)
