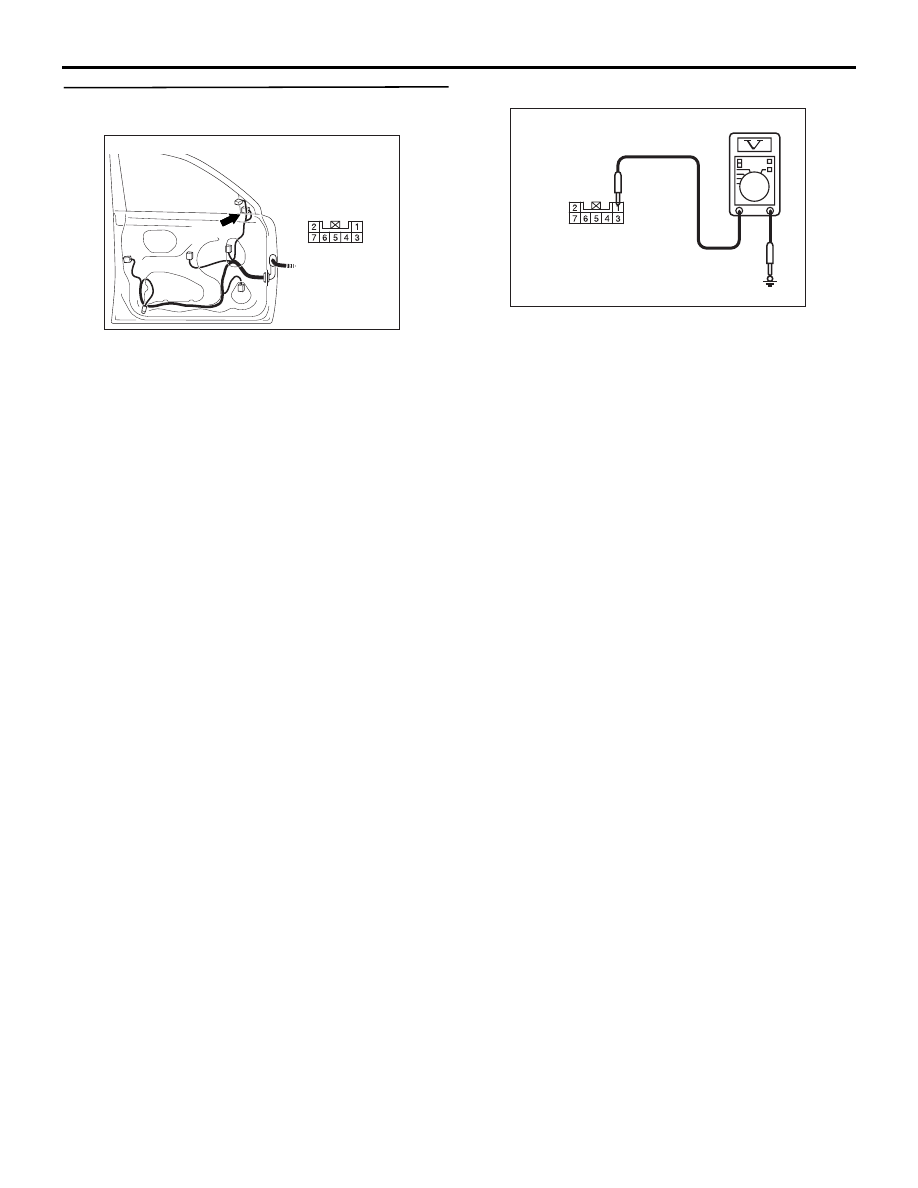

STEP 13. Voltage measurement at the E-17 door
mirror assembly (LH) connector.

AC509952

Connector: E-17 (LH)

AE

Harness side

(1) Turn the ignition switch to the ON position.
(2) Rear window defogger switch: ON
(3) Disconnect the connector, and measure at the

wiring harness side.

AC310507 IX

Connector E-17

(Harness side)

(4) Voltage between E-17 door mirror assembly

connector terminal No.1 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Go to Step 14.

OUTSIDE MIRROR

EXTERIOR

51-105

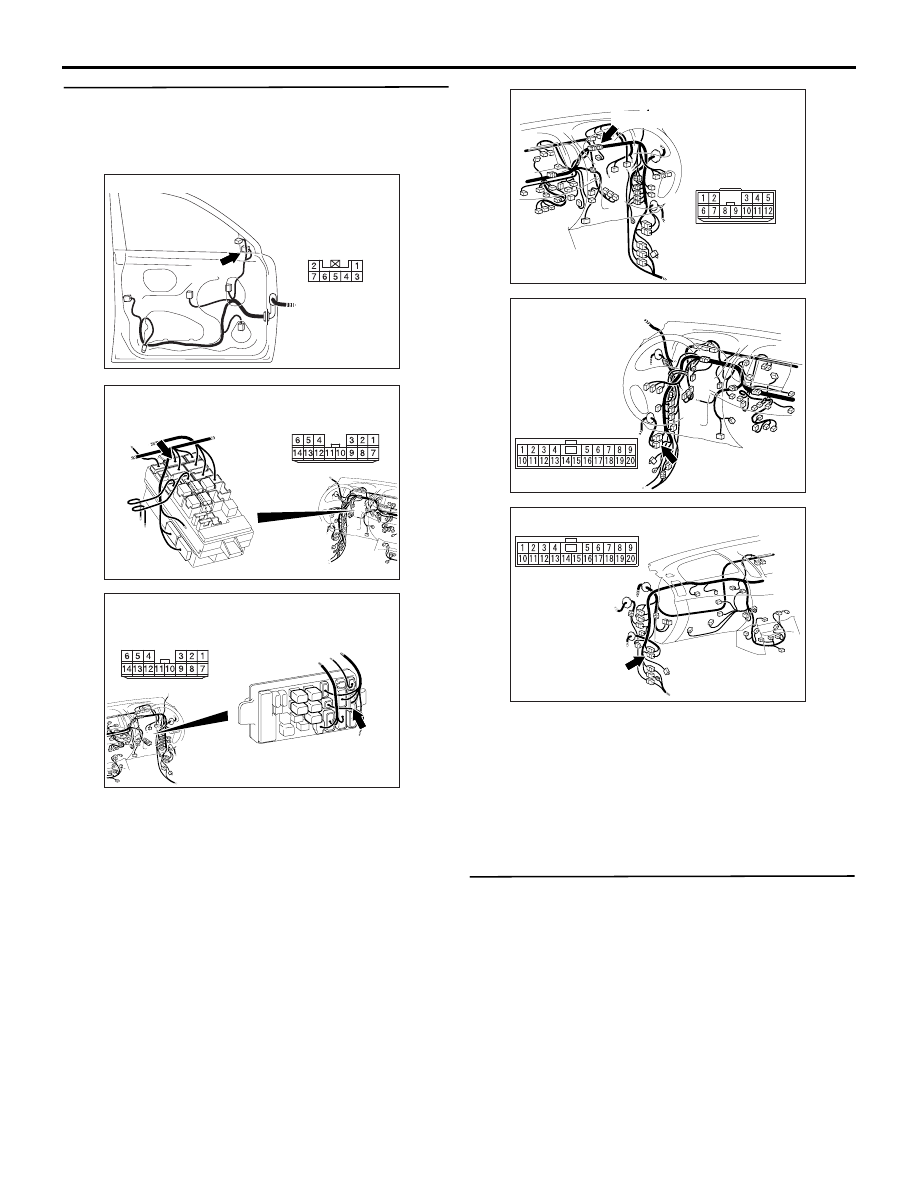

STEP 14. Check the wiring harness between E-17
door mirror assembly (LH) connector terminal
No.1 and C-208 junction block connector
terminal No.10.

AC509952

Connector: E-17 (LH)

AE

Harness side

AC509934

Connectors: C-208 <LHD>

Junction block (Front view)

C-208

AH

Harness side

AC509936

Connector: C-208 <RHD>

Harness side

CD

Junction block
(Front view)

NOTE:

AC903868

Connector: C-08 <RHD>

C-08 (B)

CG

AC903856

Connector: C-133 <LHD>

AN

AC903865

Connector: C-133 <RHD>

AL

Prior to the wiring harness inspection, check joint
connector C-08 <RH drive vehicles>, intermediate
connector C-133 and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the wiring harness.

STEP 15. Retest the system.
Check that the heater element works normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the door mirror assembly (LH).

OUTSIDE MIRROR

EXTERIOR

51-106

OUTSIDE MIRROR

REMOVAL AND INSTALLATION

M1511006400955

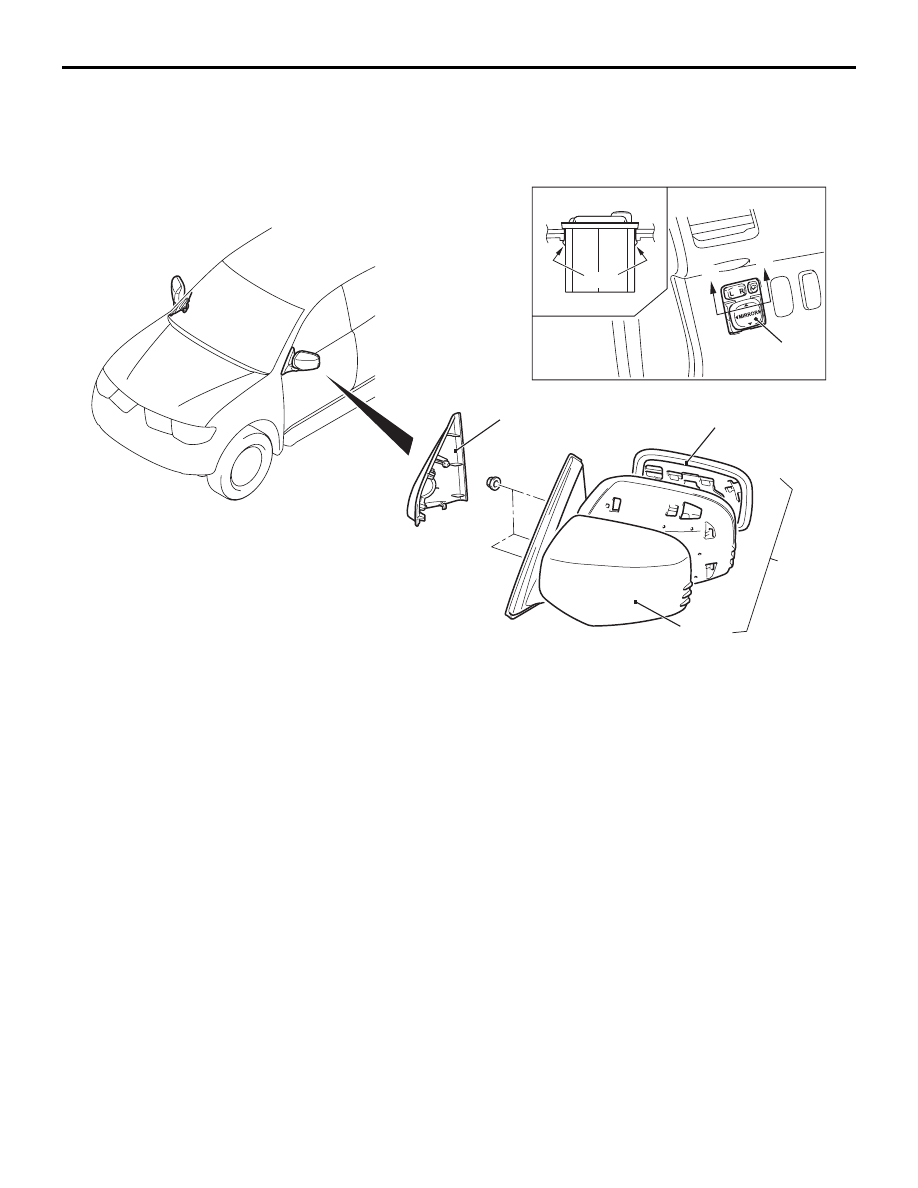

AC711271

5

3

2

1

4

AB

Section A – A

Claw

A

A

Door mirror assembly removal
steps

1. Front door sash trim
•

Door mirror connector connection

>>

A

<< 2. Door mirror assembly

Mirror removal

<<

A

>>

3. Mirror

Door mirror outer cover removal
steps

<<

A

>>

3. Mirror

<<

B

>>

4. Door mirror outer cover

Remote controlled mirror switch
removal steps

•

Lower panel assembly (Refer to
GROUP 52A, Instrument panel .)

5. Remote controlled mirror switch

OUTSIDE MIRROR

EXTERIOR

51-107

REMOVAL SERVICE POINTS

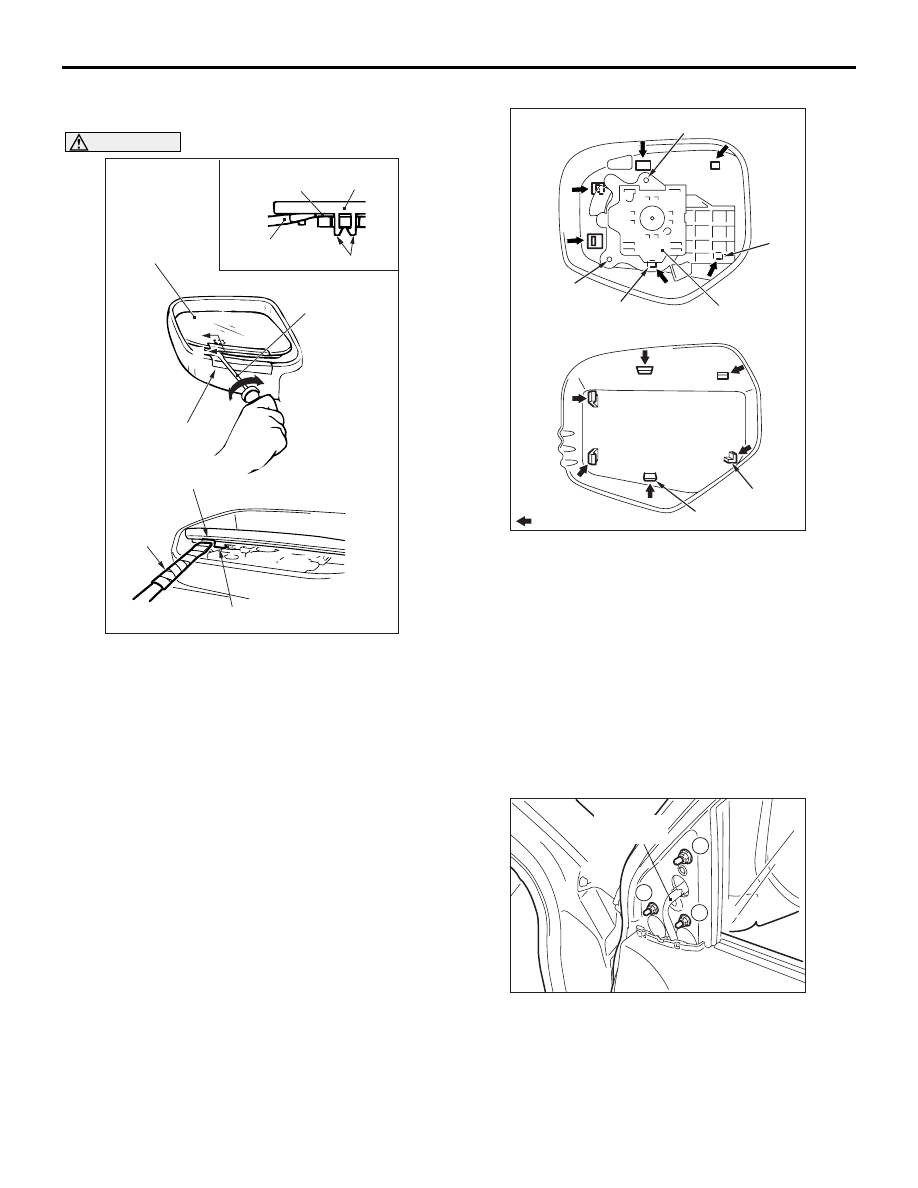

<<A>> MIRROR REMOVAL

AC711361

AB

Section A – A

Mirror

Flat-tipped
screwdriver

Flat-tipped
screwdriver

Mirror

Protective
tape

Protective
tape

Notch

Claw

Claws

Pivot plate

A

A

CAUTION

The claw of the mirror is prone to breakage when
working in cold temperatures. Always warm up
the mirror claw and claw periphery to 20

°C or

higher before handling.
Slant the mirror upward with your hands. Then insert
a flat-tipped screwdriver wrapped with protective
tape between the pivot plate and mirror through the
cut-out from behind the mirror. Now pry off the mirror
claw and remove the mirror as shown.

<<B>> DOOR MIRROR OUTER COVER REMOVAL

AC602948AB

A

A

B

C

D

B

: Claw positions

<Door mirror outer cover (rear view)>

Actuator

<Door mirror assembly>

1. Remove the mirror.
2. Release the claws of door mirror outer cover from

the door mirror assembly as shown in the
illustration.

NOTE: Because the claws A and B are not accessi-
ble, disengage the points C and D of the door mirror
actuator and release the claws.
3. Remove the cover from the door mirror assembly.

INSTALLATION SERVICE POINT

>>A<< DOOR MIRROR BODY ASSEMBLY
INSTALLATION

AC502784

1

2

3

AB

Door mirror
harness

Install the door mirror body assembly with the nuts in
the numerical order as shown in the illustration.
