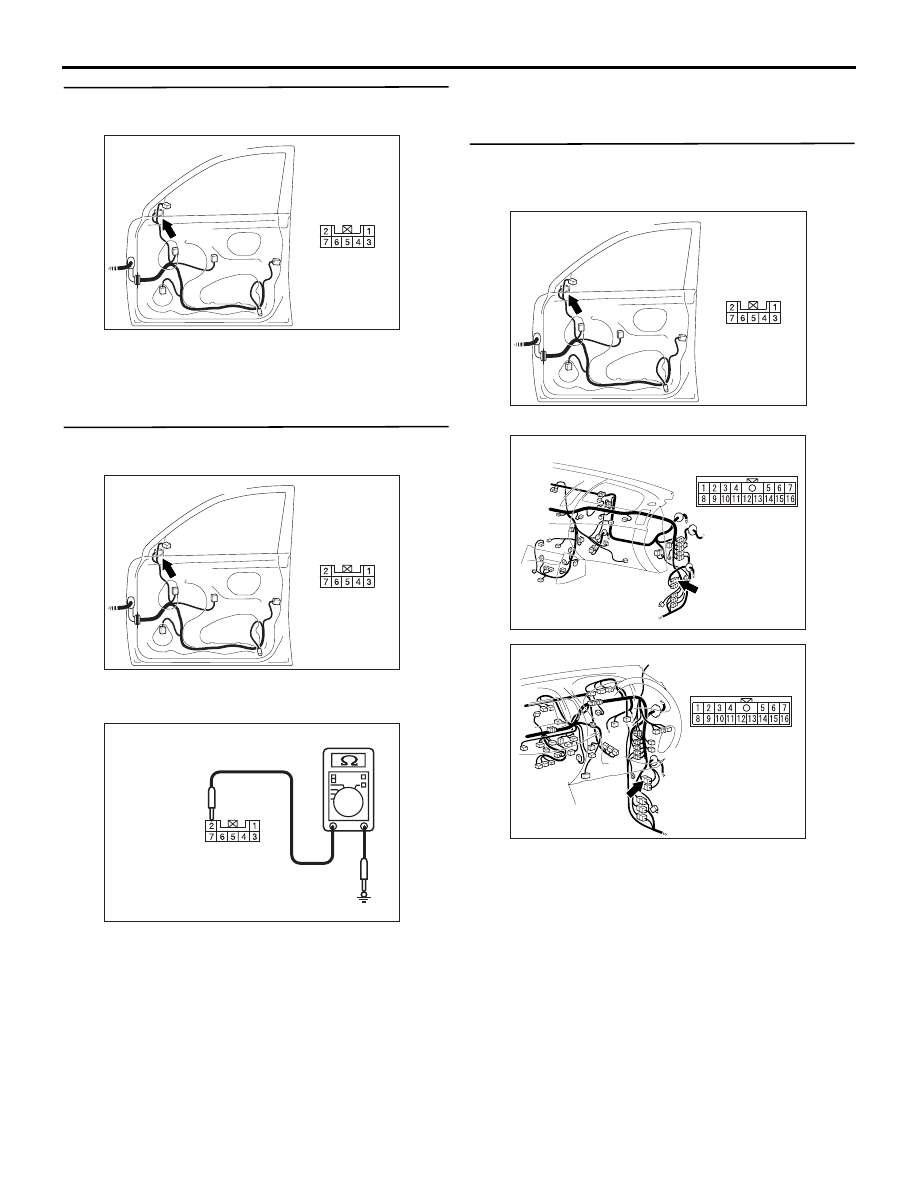

STEP 3. Connector check: E-02 door mirror
assembly (RH) connector.

AC509954AE

Harness side

Connector: E-02 (RH)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

STEP 4. Resistance measurement at the E-02
door mirror assembly (RH) connector.

AC509954AE

Harness side

Connector: E-02 (RH)

(1) Disconnect the connector, and measure at the

wiring harness side.

AC310506

Connector E-02

HS

(Harness side)

(2) Resistance between E-02 door mirror assembly

connector terminal No.2 and body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

STEP 5. Check the wiring harness between E-02
door mirror assembly (RH) connector terminal
No.2 and body earth.

AC509954AE

Harness side

Connector: E-02 (RH)

NOTE:

AC903853

Connector: C-122 <LHD>

AG

AC903868

AG

Connector: C-122 <RHD>

Harness side

Prior to the wiring harness inspection, check interme-
diate connector C-122, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

OUTSIDE MIRROR

EXTERIOR

51-101

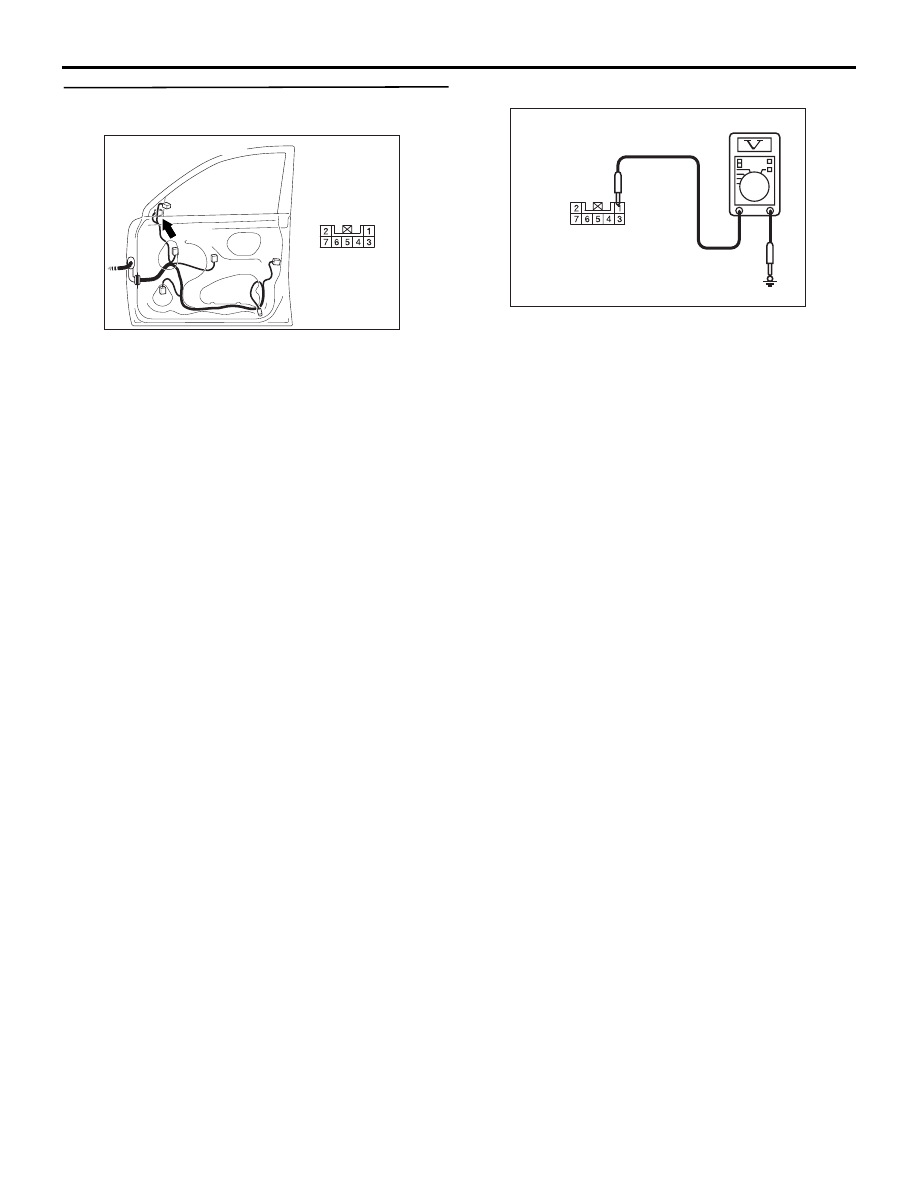

STEP 6. Voltage measurement at the E-02 door
mirror assembly (RH) connector.

AC509954AE

Harness side

Connector: E-02 (RH)

(1) Turn the ignition switch to the ON position.
(2) Rear window defogger switch: ON
(3) Disconnect the connector, and measure at the

wiring harness side.

AC310507 IW

Connector E-02

(Harness side)

(4) Voltage between E-02 door mirror assembly

connector terminal No.1 and body earth.

OK: System voltage

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Go to Step 7.

OUTSIDE MIRROR

EXTERIOR

51-102

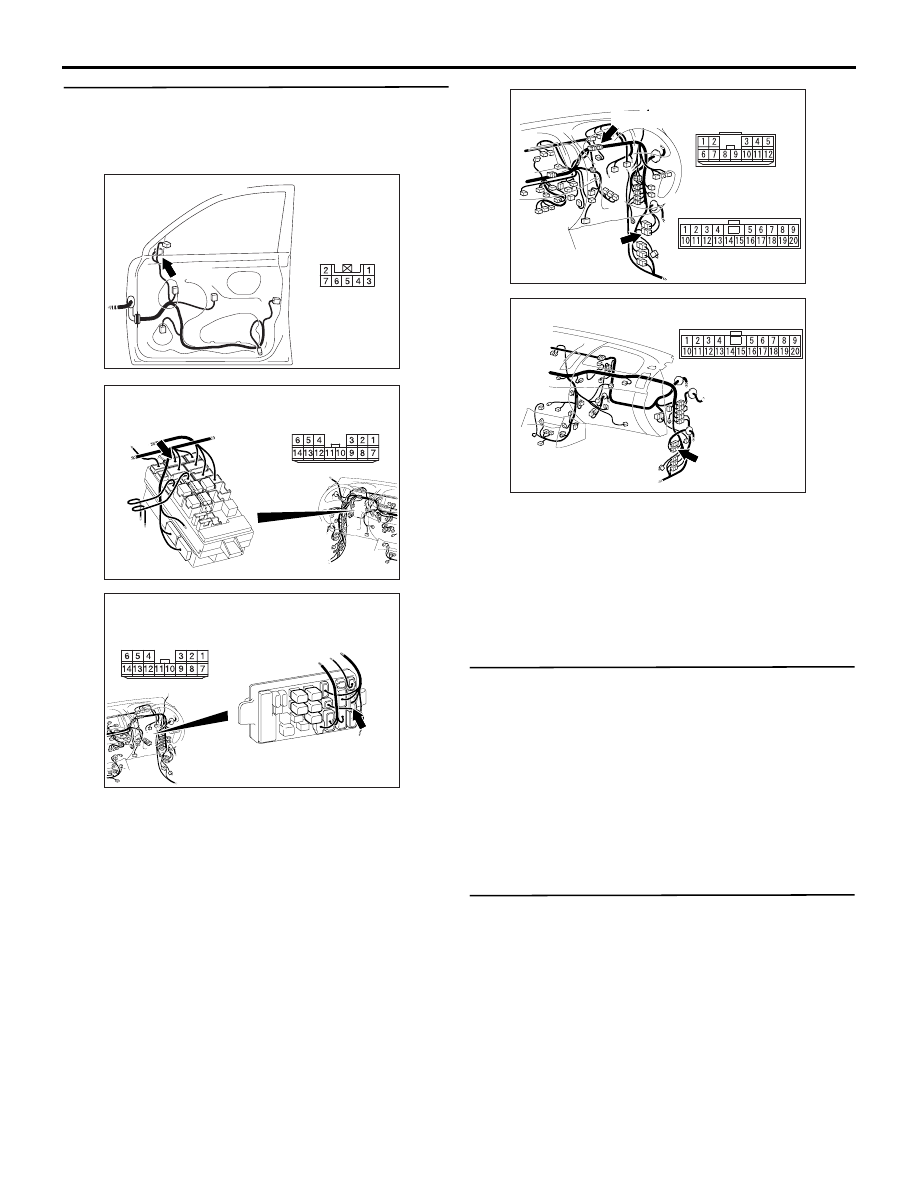

STEP 7. Check the wiring harness between E-02
door mirror assembly (RH) connector terminal
No.1 and C-208 junction block connector
terminal No.10.

AC509954AE

Harness side

Connector: E-02 (RH)

AC509934

Connector: C-208 <LHD>

Junction block (Front view)

DA

Harness side

AC509936

Connector: C-208 <RHD>

Harness side

CD

Junction block
(Front view)

NOTE:

AC903868

Connectors: C-08, C-121 <RHD>

C-08 (B)

CF

C-121

C-08

C-121

AC903853

Connector: C-121 <LHD>

AI

Prior to the wiring harness inspection, check joint
connector C-08 <RH drive vehicles>, intermediate
connector C-121, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the wiring harness.

STEP 8. Retest the system.
Check that the heater element of the door mirror
(RH) functions normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the door mirror assembly (RH).

STEP 9. Check the heater element of the door
mirror (LH)
Check the heater element of the door mirror (LH)
(Refer to

P.51-108

).

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Replace the mirror glass of the door mirror
assembly (LH).

OUTSIDE MIRROR

EXTERIOR

51-103

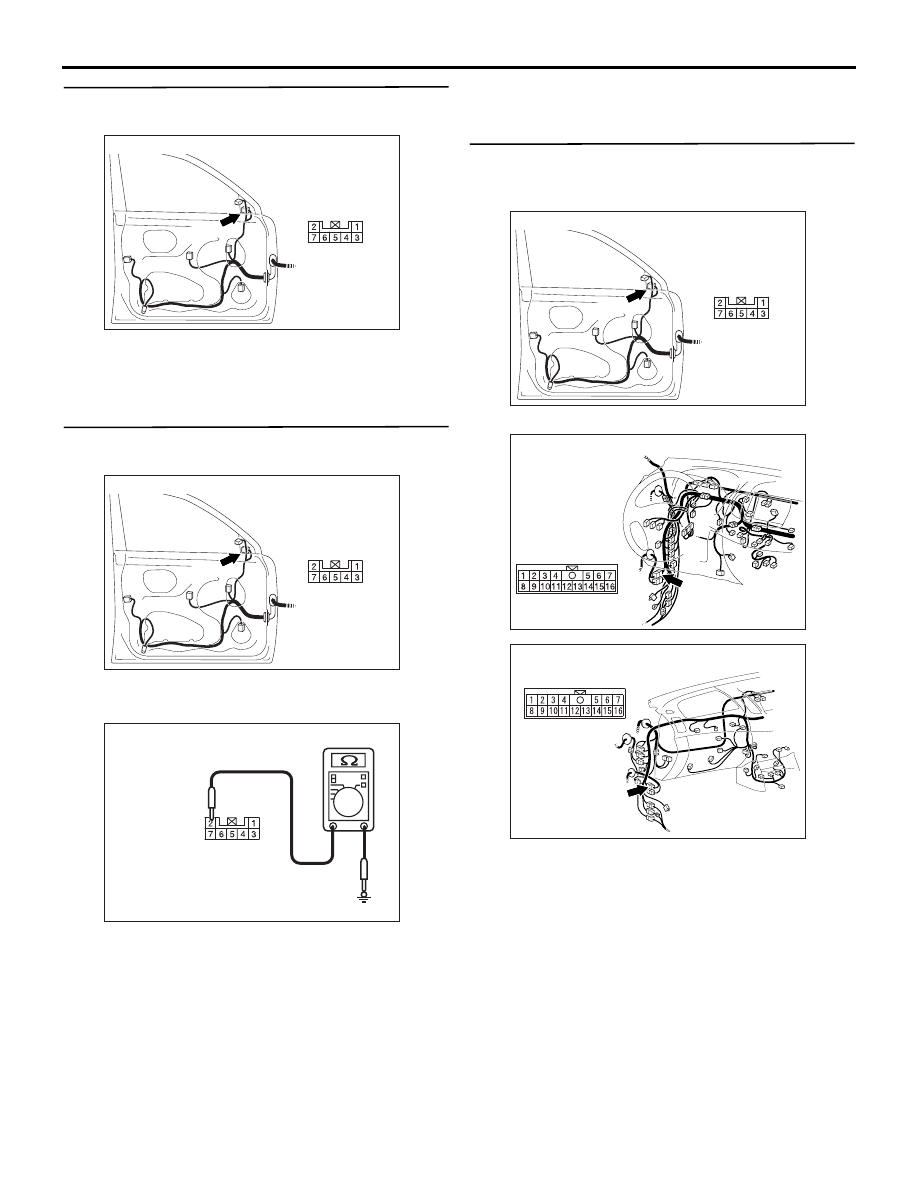

STEP 10. Connector check: E-17 door mirror
assembly (LH) connector.

AC509952

Connector: E-17 (LH)

AE

Harness side

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the defective connector.

STEP 11. Resistance measurement at the E-17
door mirror assembly (LH) connector.

AC509952

Connector: E-17 (LH)

AE

Harness side

(1) Disconnect the connector, and measure at the

wiring harness side.

AC310506HT

(Harness side)

Connector E-17

(2) Resistance between E-17 door mirror assembly

connector terminal No.2 and body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Go to Step 12.

STEP 12. Check the wiring harness between E-17
door mirror assembly (LH) connector terminal
No.2 and body earth.

AC509952

Connector: E-17 (LH)

AE

Harness side

NOTE:

AC903856AG

Connector: C-134 <LHD>

Harness side

AC903865

Connector: C-134 <RHD>

AF

Prior to the wiring harness inspection, check interme-
diate connector C-134 and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.
