Mazda 6. Manual - part 342





AIR BAG SYSTEM

T–127

T

End Of Sie

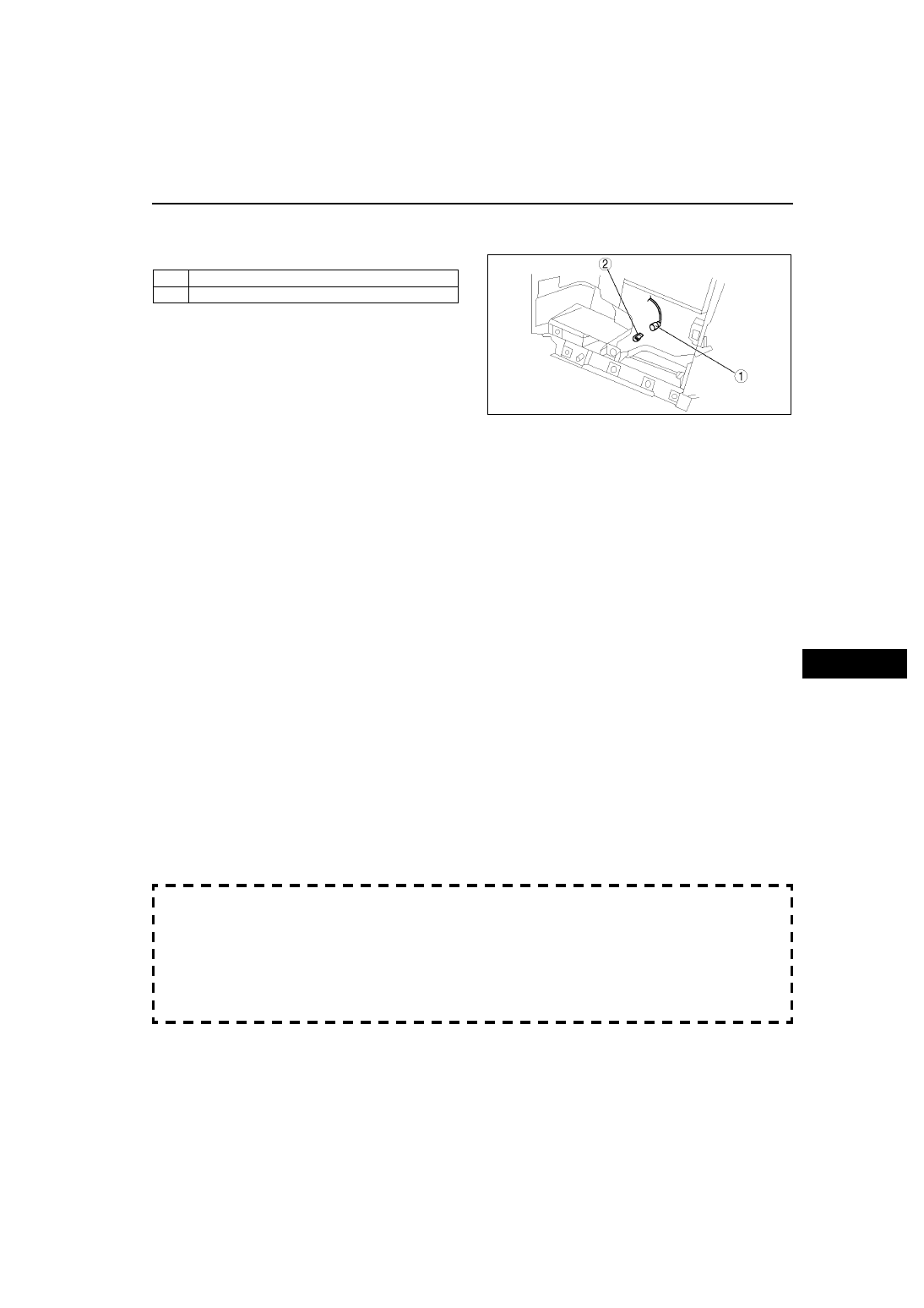

PASSENGER-SIDE AIR BAG CUT-OFF INDICATOR LIGHT REMOVAL/INSTALLATION

A6E813001046W02

1. Remove the center panel module. (See

T–96 CENTER PANEL MODULE REMOVAL/INSTALLATION

.)

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES

A6E813057000W01

Warning

• A live (undeployed) air bag module and pre-tensioner seat belt may accidentally deploy when it is

disposed of and cause serious injury. Do not dispose of a live (undeployed) air bag module and
pre-tensioner seat belt. If the SSTs (Deployment tool and Adapter harness) are not available,
consult the nearest Mazda representative for assistance.

Caution

• Deploying the air bag modules and pre-tensioner seat belts inside the vehicle may cause damage

to the vehicle interior. When the vehicle is not to be scrapped, always deploy the air bag modules
and pre-tensioner seat belts outside the vehicle.

• When the vehicle is to be scrapped, deploy the air bag modules and pre-tensioner seat belts inside the vehicle.

(See

T–127 Deployment Procedure for Inside of Vehicle (Only When Vehicle Is To Be Scrapped)

.)

• When the vehicle is not to be scrapped, deploy the air bag modules and pre-tensioner seat belts outside the

vehicle. (See

T–131 Deployment Procedure for Outside of Vehicle

.)

Note

• When disposing of deployed air bag module and pre-tensioner seat belt, refer to the disposal procedure,

(See

T–139 AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES

.)

Deployment Procedure for Inside of Vehicle (Only When Vehicle Is To Be Scrapped)

1. Inspect the SST (Deployment tool). (See

T–140 INSPECTION OF SST (DEPLOYMENT TOOL)

.)

2. Move the vehicle to an open space, away from strong winds, and close all of the vehicle’s doors and windows.
3. Turn the ignition switch to LOCK position.
4. Disconnect the negative battery cable and wait for more than 1 minute.
5. Follow the appropriate procedure for deploying the driver-side air bag module, passenger-side air bag module,

side air bag module, curtain air bag module, or pre-tensioner seat belt.

Driver-side air bag module

Warning

• The driver-side air bag module is a dual inflator type. If one inflator is forced to operate (deploy),

the other may operate (deploy) accidentally. To prevent injury while disposing of the air bag
module, make sure to operate (deploy) both driver-side air bag module inflators simultaneously,
following the procedure below.

Note

• The SSTs, two types of adapter harnesses (for inflators No.1 and No.2) and two deployment tools are to

be used to operate (deploy) the driver-side air bag module.

1. Remove the driver-side air bag module. (See

T–120 DRIVER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION

.)

1

Socket

2

Passenger-side air bag cut-off indicator light bulb

A6E8130W057

T–128

AIR BAG SYSTEM

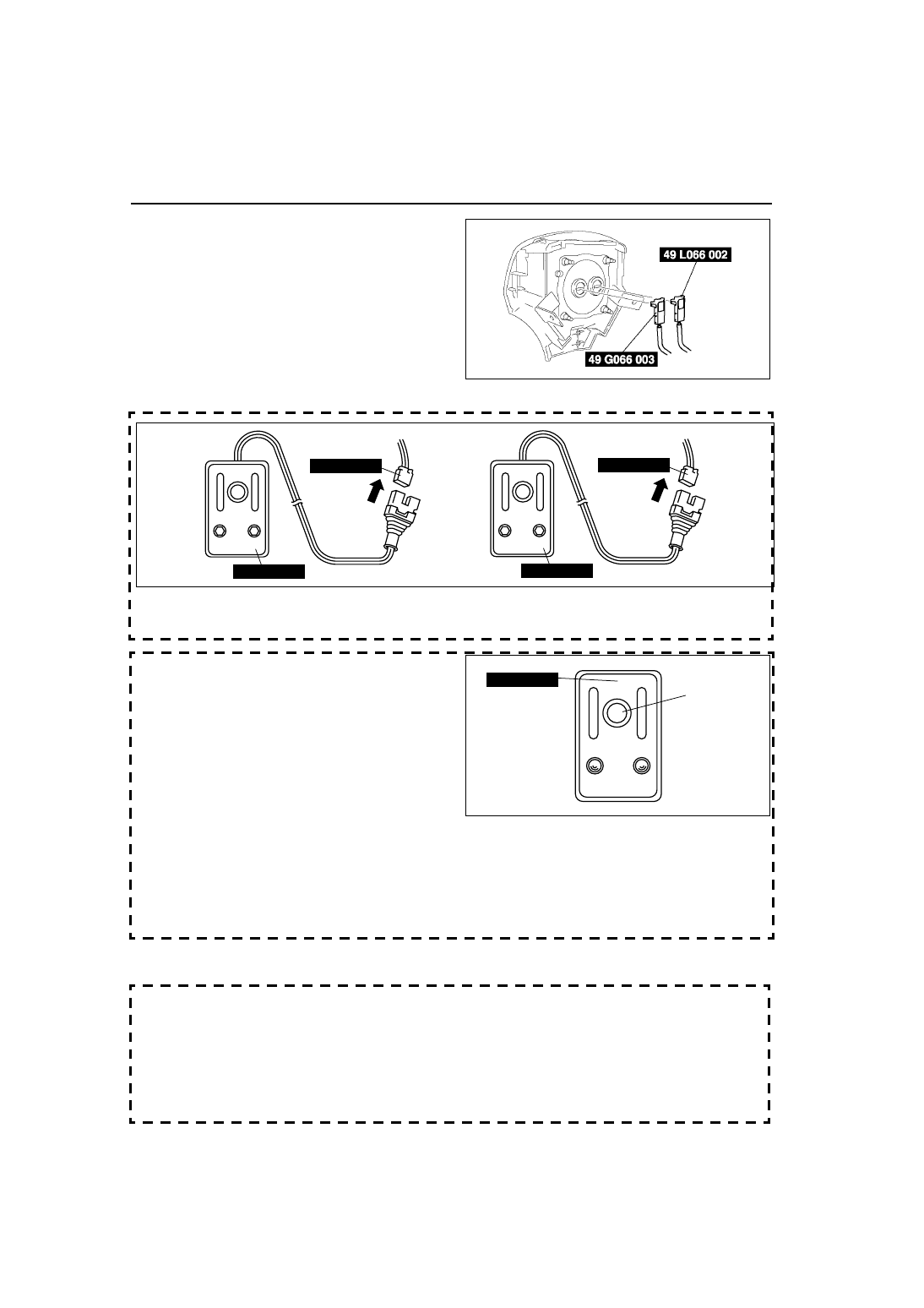

2. Connect the SST (Adapter harness) to the driver-

side air bag module as shown in the figure.

3. Install the driver-side air bag module. (See

T–120

DRIVER-SIDE AIR BAG MODULE REMOVAL/
INSTALLATION

.)

4. Connect the SSTs (Deployment tool) to the SSTs (Adapter harness).

5. Connect both SSTs (Deployment tool) to the battery. Connect the power supply red clip to the positive battery

terminal, and the black clip to the negative battery terminal.

6. Verify that the red lamp on both SSTs (Deployment tool) is illuminated.
7. Make sure all persons are standing at least 6 m {20 ft} away from the vehicle.
8. Press the activation switch on the SST

(Deployment tool) connected with 49 L066 002 (a
yellow connector) of the SST (Adapter harness),
and after 3 s, press the activation switch on the
other SST (Deployment tool) to operate (deploy)
the air bag module (both inflators).

Warning

• Verify that air bag module operation

(explosive) sound occurs twice. If no
operation (explosive) sound was heard or
a single operation (explosive) sound was
heard, both inflators would not have
operated (deployed) properly. This may
cause serious injury because the air bag module may operate (deploy) accidentally. If the two
operation (explosive) sounds are not heard, perform Step 8 again. In case that the two operation
(explosive) sounds in total are not verified even though Step 8 is performed again, leave the air
bag module alone for 30 min or more before getting near it again.

• The air bag module is very hot immediately after it is operated (deployed). You can get burned. Do

not touch the air bag module for at least 15 min after deployment.

9. Disconnect the SST (Deployment tool) from the SST (Adapter harness).

Passenger-side air bag module

Warning

• The passenger-side air bag module is a dual inflator type. If one inflator is forced to operate

(deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air
bag module, make sure to operate (deploy) both passenger-side air bag module inflators
simultaneously, following the procedure below.

Note

• The SSTs, two types of adapter harnesses (for inflators No.1 and No.2) and two deployment tools are to

be used to operate (deploy) the passenger-side air bag module.

A6E8130W011

49 G066 003

49 H066 002

49 L066 002

49 H066 002

CHU0810W301

49 H066 002

ACTIVATION
SWITCH

A6E8130W028

AIR BAG SYSTEM

T–129

T

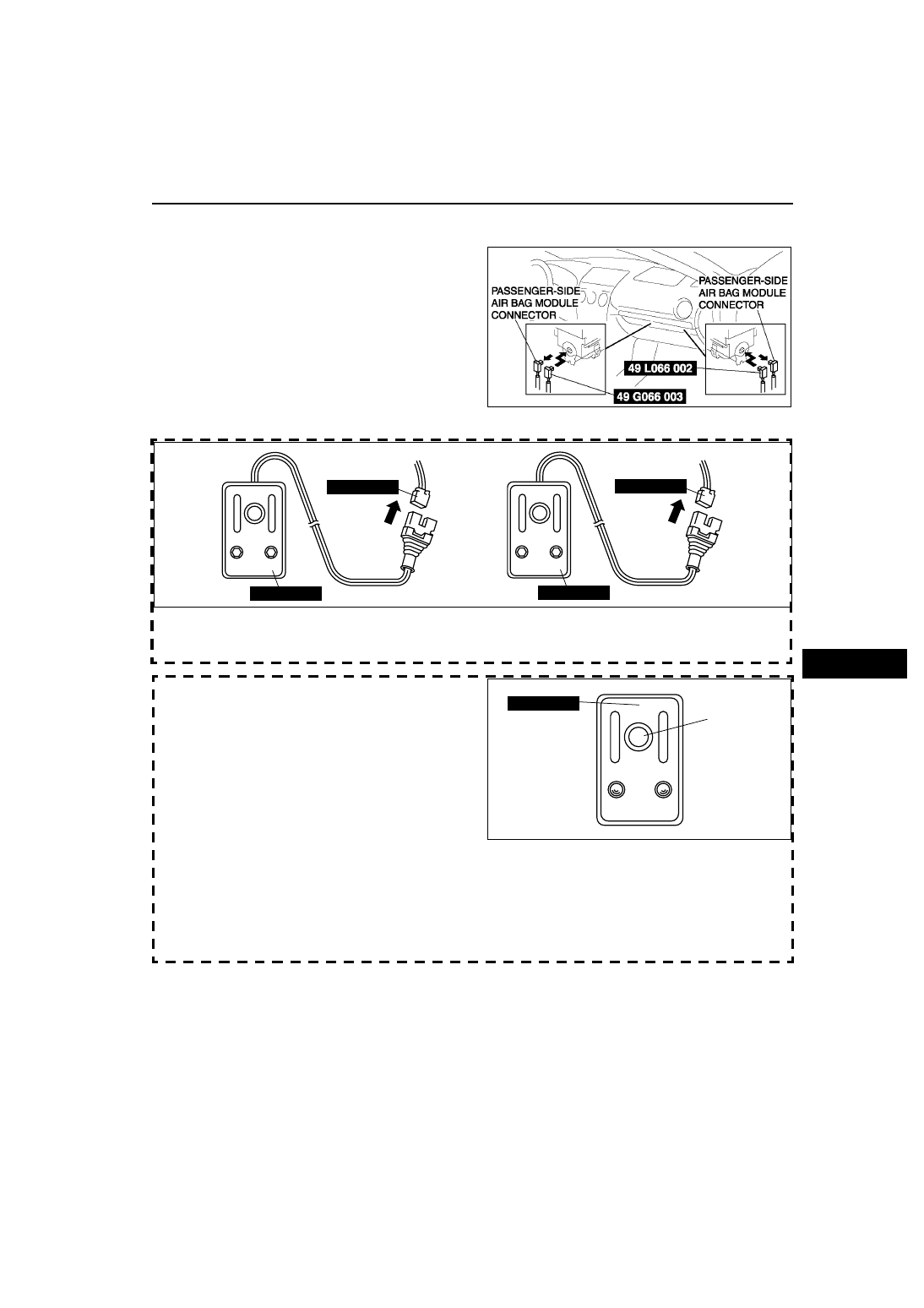

1. Remove the glove compartment.
2. Disconnect the passenger-side sir bag module connector.
3. Connect the SST (Adapter harness) to the

passenger-side air bag module as shown it the
figure.

4. Connect the SST (Deployment tool) to the SST (Adapter harness).

5. Connect both SSTs (Deployment tool) to the battery. Connect the power supply red clip to the positive battery

terminal, and the black clip to the negative battery terminal.

6. Verify that the red lamp on both SSTs (Deployment tool) is illuminated.
7. Make sure all persons are standing at least 6 m {20 ft} away from the vehicle.
8. Press the activation switch on the SST

(Deployment tool) connected with 49 L066 002 (a
yellow connector) of the SST (Adapter harness),
and after 3 s, press the activation switch on the
other SST (Deployment tool) to operate (deploy)
the air bag module (both inflators).

Warning

• Verify that air bag module operation

(explosive) sound occurs twice. If no
operation (explosive) sound was heard or
a single operation (explosive) sound was
heard, both inflators would not have
operated (deployed) properly. This may
cause serious injury because the air bag module may operate (deploy) accidentally. If the two
operation (explosive) sounds are not heard, perform Step 8 again. In case that the two operation
(explosive) sounds in total are not verified even though Step 8 is performed again, leave the air
bag module alone for 30 min or more before getting near it again.

• The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do

not touch the air bag module for at least 15 min after deployment.

9. Disconnect the SST (Deployment tool) from the SST (Adapter harness).

A6E8130W014

49 G066 003

49 H066 002

49 L066 002

49 H066 002

CHU0810W301

49 H066 002

ACTIVATION
SWITCH

A6E8130W028

T–130

AIR BAG SYSTEM

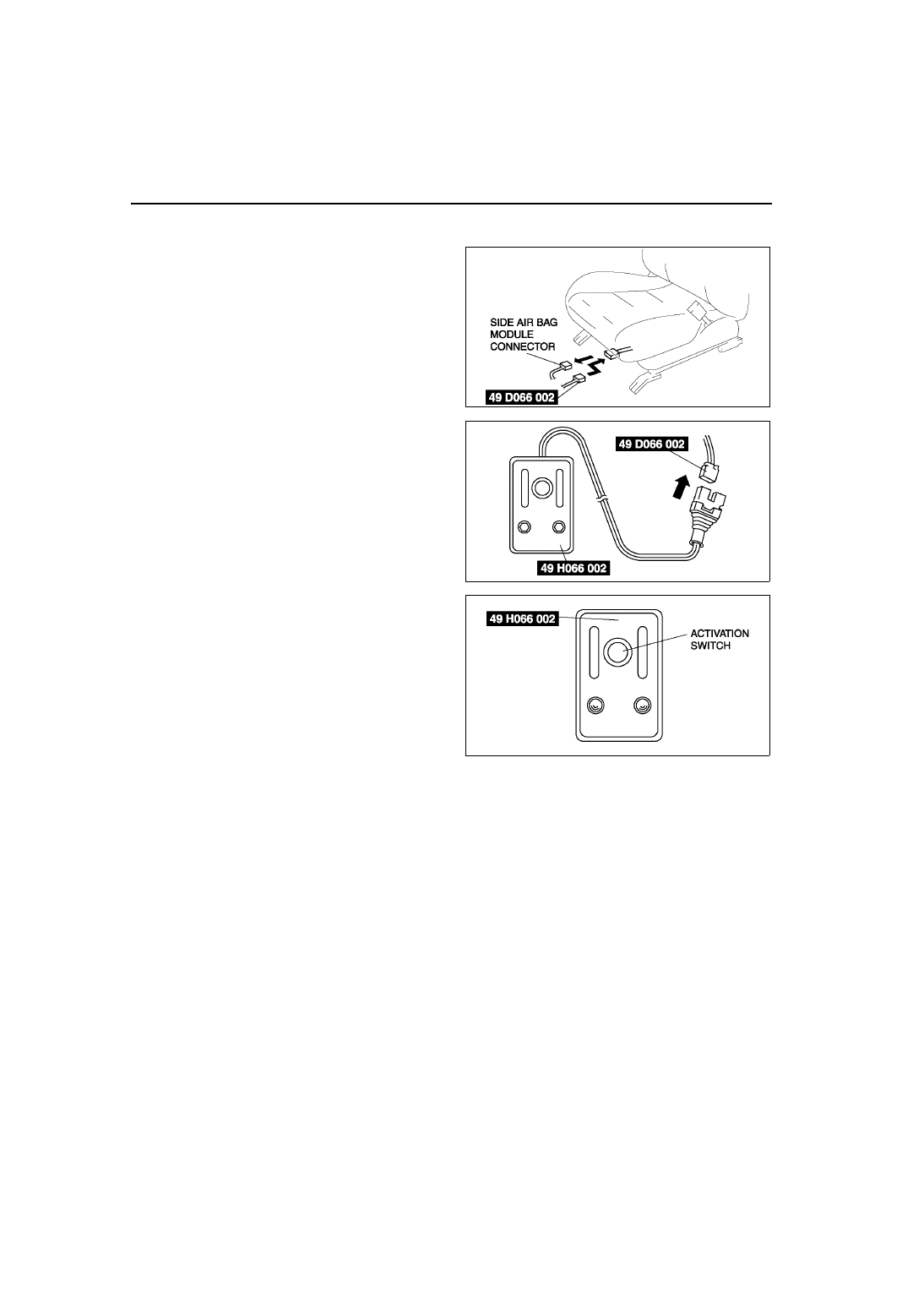

Side air bag module

1. Disconnect the side air bag module connector.
2. Connect the SST (Adapter harness) to the side

air bag module.

3. Connect the SST (Deployment tool) to the SST

(Adapter harness).

4. Connect the red clip of the SST (Deployment tool)

to the positive battery terminal and the black clip
to the negative battery terminal.

5. Verify that the red light on the SST (Deployment

tool) is illuminated.

6. Make sure all persons are standing at least 6 m

{20 ft} from the vehicle.

7. Press the activation switch on the SST

(Deployment tool) to deploy the side air bag
module.

Curtain air bag module

1. Remove the side tire house trim. (4SD)
2. Remove the side trunk side trim. (5HB)

End Of Sie

A6E8130W029

A6E8130W027

A6E8130W028
