Mazda 6. Manual - part 340





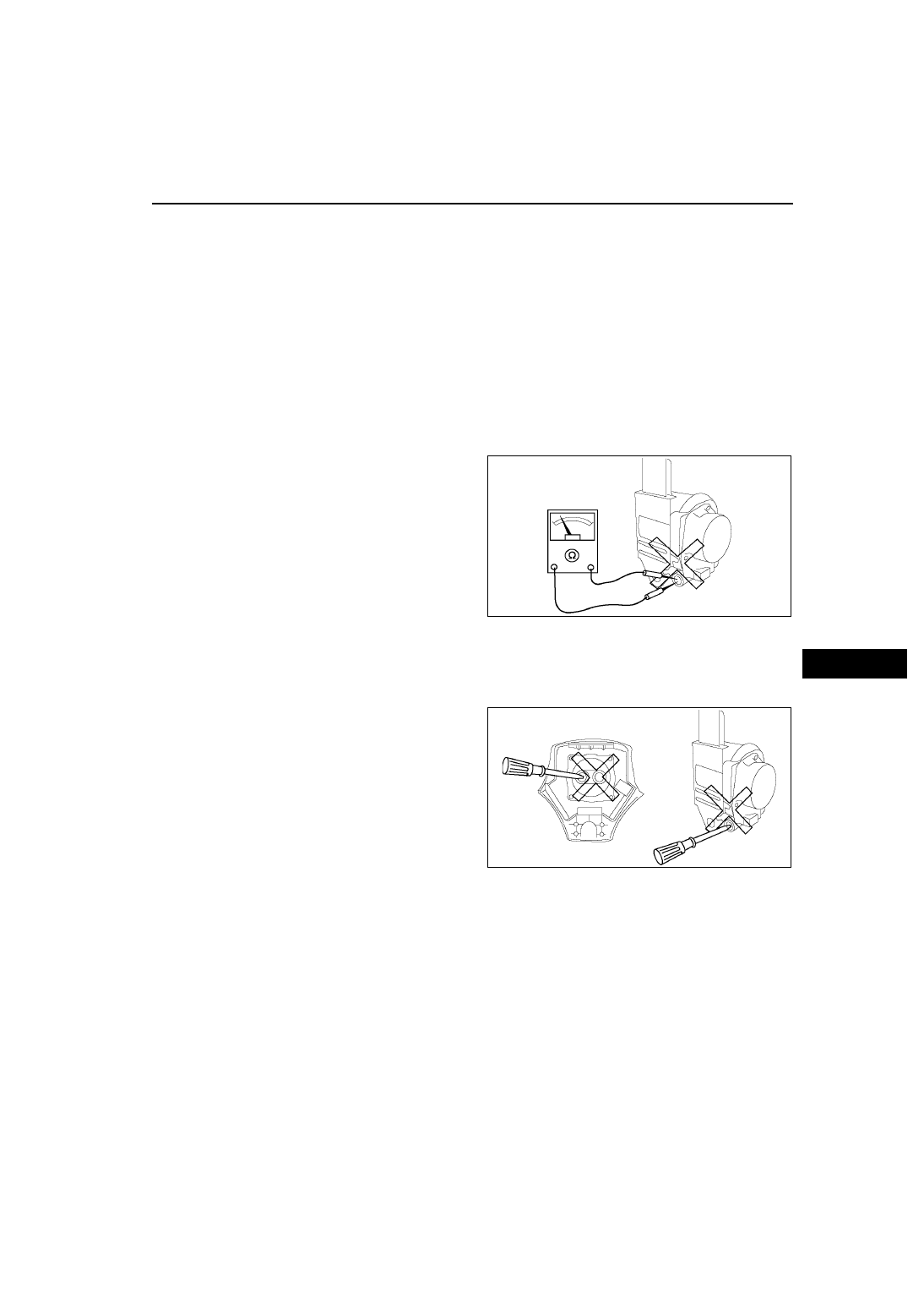

AIR BAG SYSTEM

T–119

T

Side Air Bag Sensor Handling

• Disconnecting the side air bag sensor connector or removing the side air bag sensor with the ignition

switch at ON position can cause the side air bag sensor to operate and the side air bag module to
deploy, which may seriously injure you. Before disconnecting the side air bag sensor connector or
removing the side air bag sensor, always turn the ignition switch to LOCK position, then disconnect
the negative battery cable and wait for more than 1 minute to allow the backup power supply of the
SAS control module to deplete its stored power.

• If the side air bag sensor is subjected to shock or the sensor is disassembled, the side air bag module

may operate (deploy) suddenly and cause injury, or it may fail to operate normally and cause a serious
accident. Do not subject the side air bag sensor to shock or disassemble the sensor.

• Because a sensor is built into the side air bag sensor, when the side air bag module operates

(deploys), there may be a problem, such as an internal malfunction, even if there is not any external
damage or deformation. If the side air bag sensor is reused, the side air bag module may fail to operate
normally and cause a serious injury. Always replace the side air bag sensor with a new part. The side
air bag sensor cannot be bench-checked or self-checked.

Pre-tensioner Seat Belt Inspection

• Inspecting a pre-tensioner seat belt using an

ohmmeter can deploy the pre-tensioner seat
belt, which can cause serious injury. Do not
use an ohmmeter to inspect the pre-tensioner
seat belt. Always use the on-board diagnostic
to diagnose the pre-tensioner seat belt for
malfunctions.

Component Handling

• Oil, grease, water, etc on components may cause the air bag modules and pre-tensioner seat belts to

fall to deploy in an accident, which may cause serious injury. Do not allow oil, grease, water, etc., on
components.

• Inserting a screwdriver, etc., into the

connector of an air bag module or a pre-
tensioner seat belt may damage the connector
and cause the air bag module or the pre-
tensioner seat belt to deploy improperly,
which may cause serious injury. Do not insert
any foreign objects into the connector.

Component Reuse

• Even if an air bag module or a pre-tensioner seat belt does not deploy in a collision and does not have

any external signs of damage, it may have been damaged internally, which may cause improper
operation. Improper operation may cause serious injury. Always self-check the undamaged air bag
module or pre-tensioner seat belt to determine whether it can be reused.

End Of Sie

A6E8130W025

A6E8130W023

T–120

AIR BAG SYSTEM

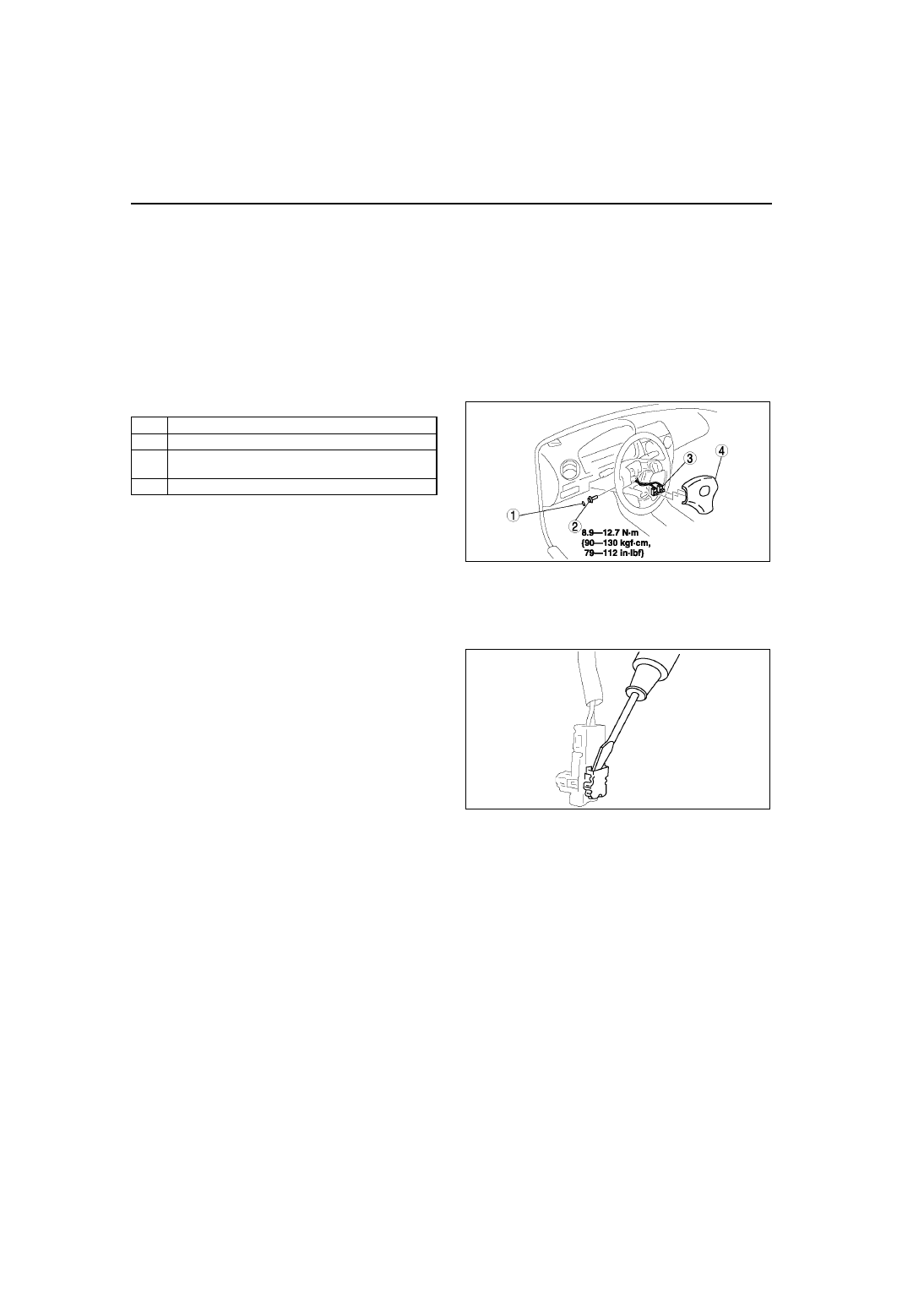

DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION

A6E813057010W01

Warning

• Handling the air bag module improperly can accidentally deploy the air bag module, which may

seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the air bag
module. (See

T–117 SERVICE WARNINGS

.)

• Due to the adoption of 2-step deployment control in both the driver-side air bag module,

depending on the impact force, it is possible that inflator No. 2 might not deploy. In such cases,
before disposing of the air bag module, make sure to follow the inflator deployment procedures
and verify complete deployment of inflator No. 1 and 2.

1. Turn the ignition switch to LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
5. Turn the ignition switch to ON position.
6. Verify that the air bag system warning light

illuminates for approximately 6 seconds and
then goes off.

• If the air bag system warning light does not

operate in the manner described above, there are malfunctions in the system. Inspect the system using the
on-board diagnostic.

Connector Removal Note

1. Using a flathead screwdriver, pry out the

connector's stopper plate.

2. Disconnect the connector.

End Of Sie

1

Cover

2

Bolt

3

Connector
(See

T–120 Connector Removal Note

)

4

Driver-side air bag module

A6E8130W001

A6E8130W002

AIR BAG SYSTEM

T–121

T

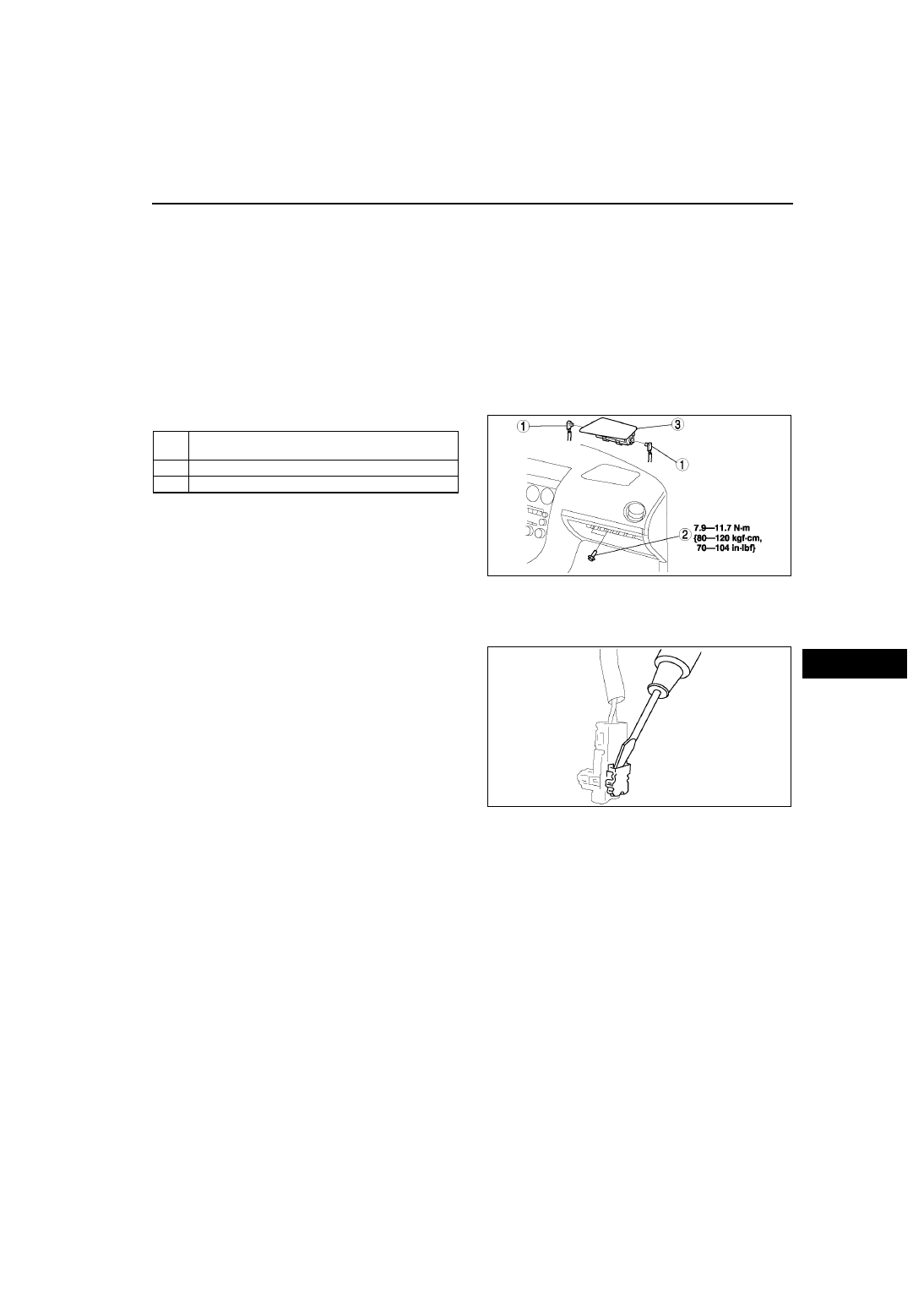

PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION

A6E813057050W01

Warning

• Handling the air bag module improperly can accidentally deploy the air bag module, which may

seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the air bag
module. (See

T–117 SERVICE WARNINGS

.)

• Due to the adoption of 2-step deployment control in both the passenger-side air bag module,

depending on the impact force, it is possible that inflator No. 2 might not deploy. In such cases,
before disposing of the air bag module, make sure to follow the inflator deployment procedures
and verify complete deployment of inflator No. 1 and 2.

1. Turn the ignition switch to LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove the glove compartment.
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
6. Turn the ignition switch to ON position.
7. Verify that the air bag system warning light

illuminates for approximately 6 seconds and
then goes off.

• If the air bag system warning light does not

operate in the manner described above, there
are malfunctions in the system. Inspect the system using the on-board diagnostic.

Connector Removal Note

1. Using a flathead screwdriver, pry out the

connector's stopper plate.

2. Disconnect the connector.

End Of Sie

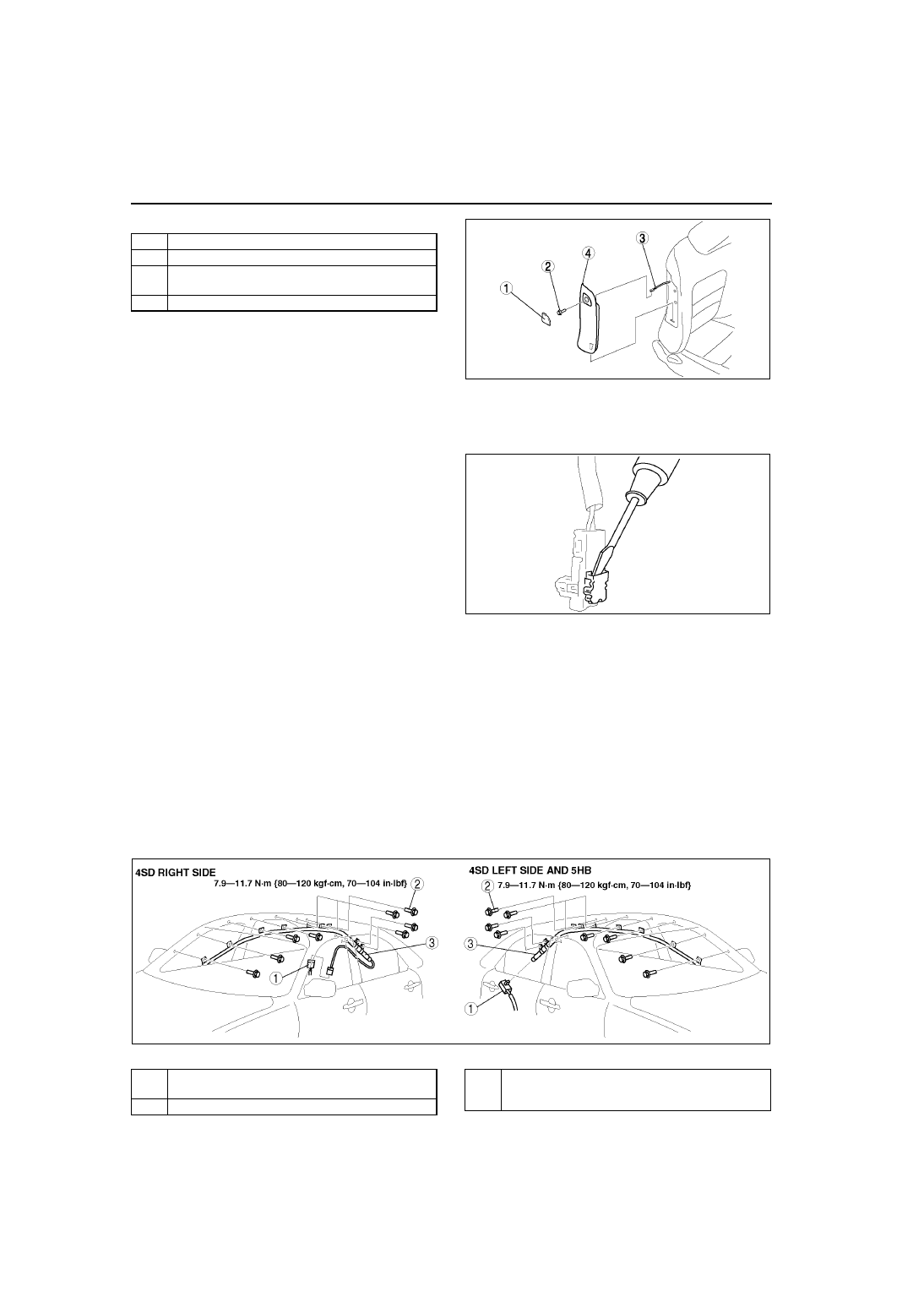

SIDE AIR BAG MODULE REMOVAL/INSTALLATION

A6E813000147W01

Warning

• Handling the air bag module improperly can accidentally deploy the air bag module, which may

seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the air bag
module. (See

T–117 SERVICE WARNINGS

.)

Warning

• If the side air bag module is installed with debris in the seat back, the foreign material may be

scattered when the side air bag module operates (deploys), causing injury. Verify that there is no
foreign material in the seat back before installing the side air bag module.

1

Connector
(See

T–121 Connector Removal Note

)

2

Bolt

3

Passenger-side air bag module

A6E8130W003

A6E8130W002

T–122

AIR BAG SYSTEM

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.
3. Turn the ignition switch to ON position.
4. Verify that the air bag system warning light

illuminates for approximately 6 seconds and
then goes off.

• If the air bag system warning light does not

operate in the manner described above, there
are malfunctions in the system. Inspect the system using the on-board diagnostic.

Connector Removal Note

1. Using a flathead screwdriver, pry out the

connector's stopper plate.

2. Disconnect the connector.

End Of Sie

CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION

A6E813000171W01

Warning

• Handling the air bag module improperly can accidentally deploy the air bag module, which may

seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the air bag
module. (See

T–117 SERVICE WARNINGS

.)

1. Turn the ignition switch to LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove the headliner.
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Turn the ignition switch to ON position.
7. Verify that the air bag system warning light illuminates for approximately 6 seconds and then goes off.

• If the air bag system warning light does not operate in the manner described above, there are malfunctions

in the system. Inspect the system using the on-board diagnostic.

.

1

Cover

2

Bolt

3

Connector
(See

T–122 Connector Removal Note

)

4

Side air bag module

A6E8130W004

A6E8130W002

A6E8130W026

1

Connector
(See

T–123 Connector Removal Note

)

2

Bolt

3

Curtain air bag module
(See

T–123 Curtain Air Bag Module Installation

Note (4SD Right Side)

)
