T–40

EXTERIOR LIGHTING SYSTEM

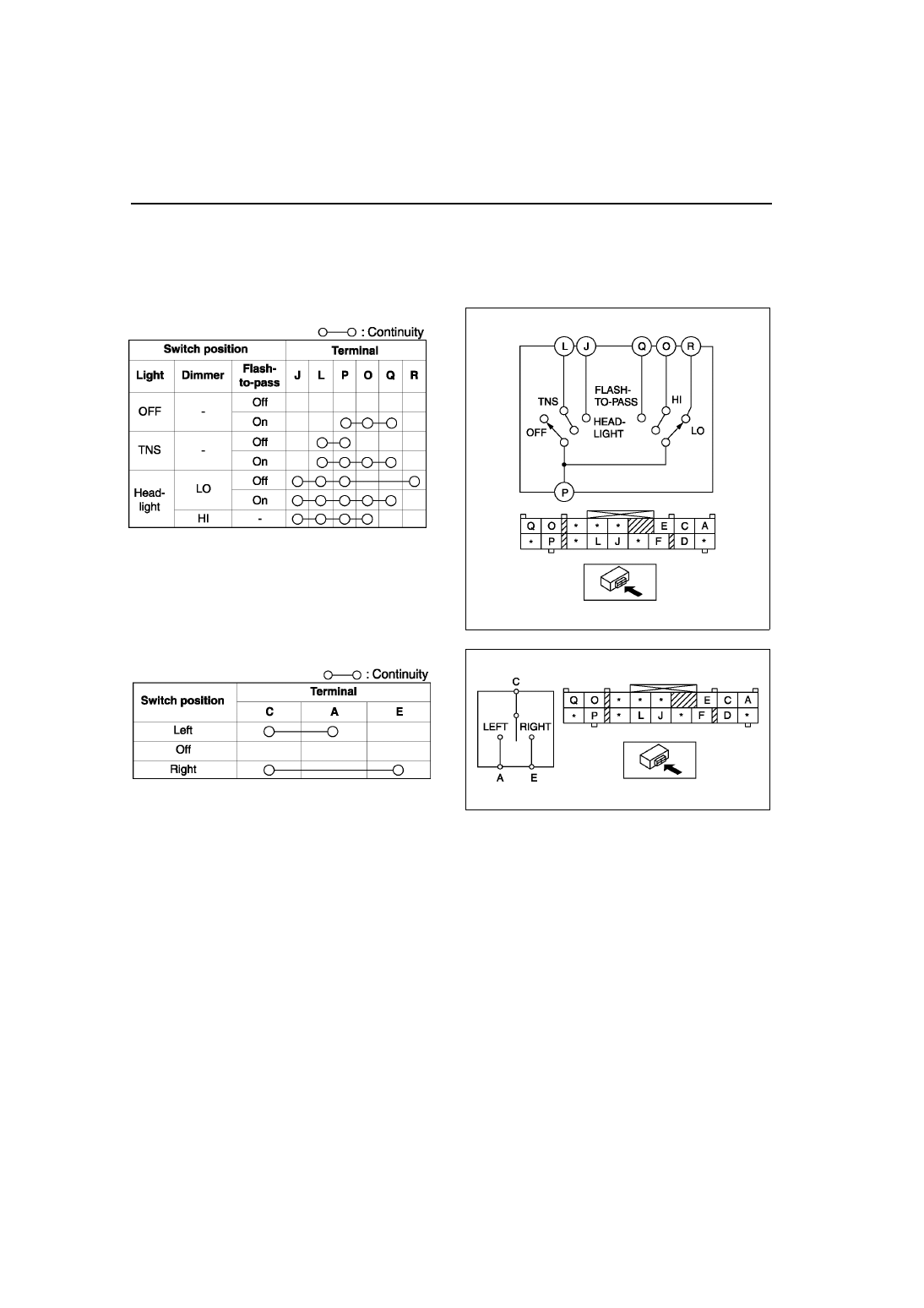

LIGHT SWITCH INSPECTION

A6E811266121W02

Light switch LH side

1. Remove the light switch. (See

T–39 LIGHT SWITCH REMOVAL/INSTALLATION

)

2. Inspect for continuity between the light switch terminals using an ohmmeter.

• If not as specified, replace the light switch.

Headlight switch

Turn switch

A6E8112W144

A6E8112W129

A6E8112W145

A6E8112W130

EXTERIOR LIGHTING SYSTEM

T–41

T

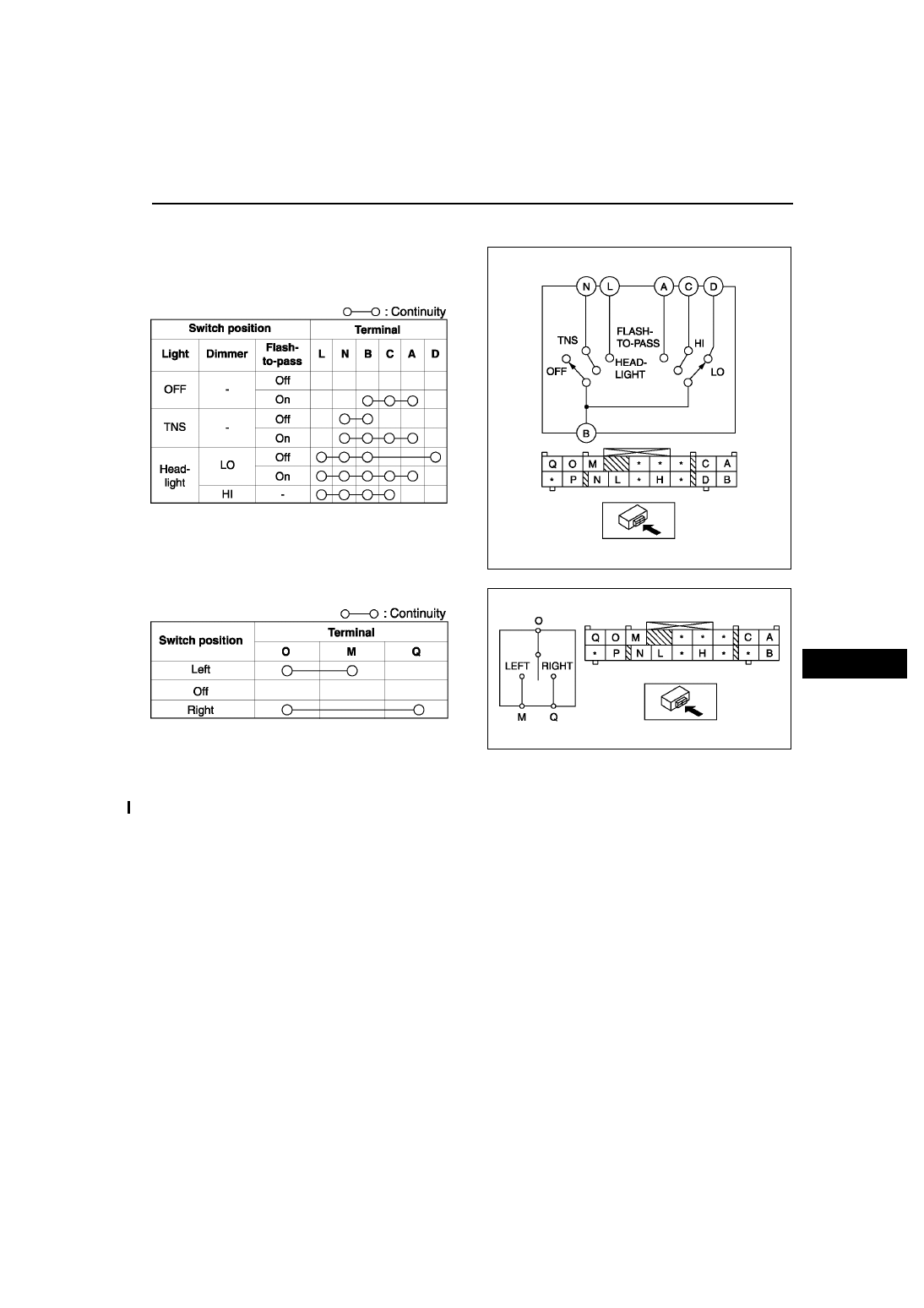

Light switch RH side

1. Remove the light switch. (See

T–39 LIGHT SWITCH REMOVAL/INSTALLATION

)

2. Inspect for continuity between the light switch

terminals using an ohmmeter.

• If not as specified, replace the light switch.

Headlight switch

Turn switch

End Of Sie

HAZARD WARNING SWITCH INSPECTION

A6E811266401W01

1. Inspection the hazard warning switch. (See

U–47 CLIMATE CONTROL UNIT INSPECTION

)

End Of Sie

A6E8112W146

A6E8112W131

A6E8112W147

A6E8112W139

T–42

EXTERIOR LIGHTING SYSTEM

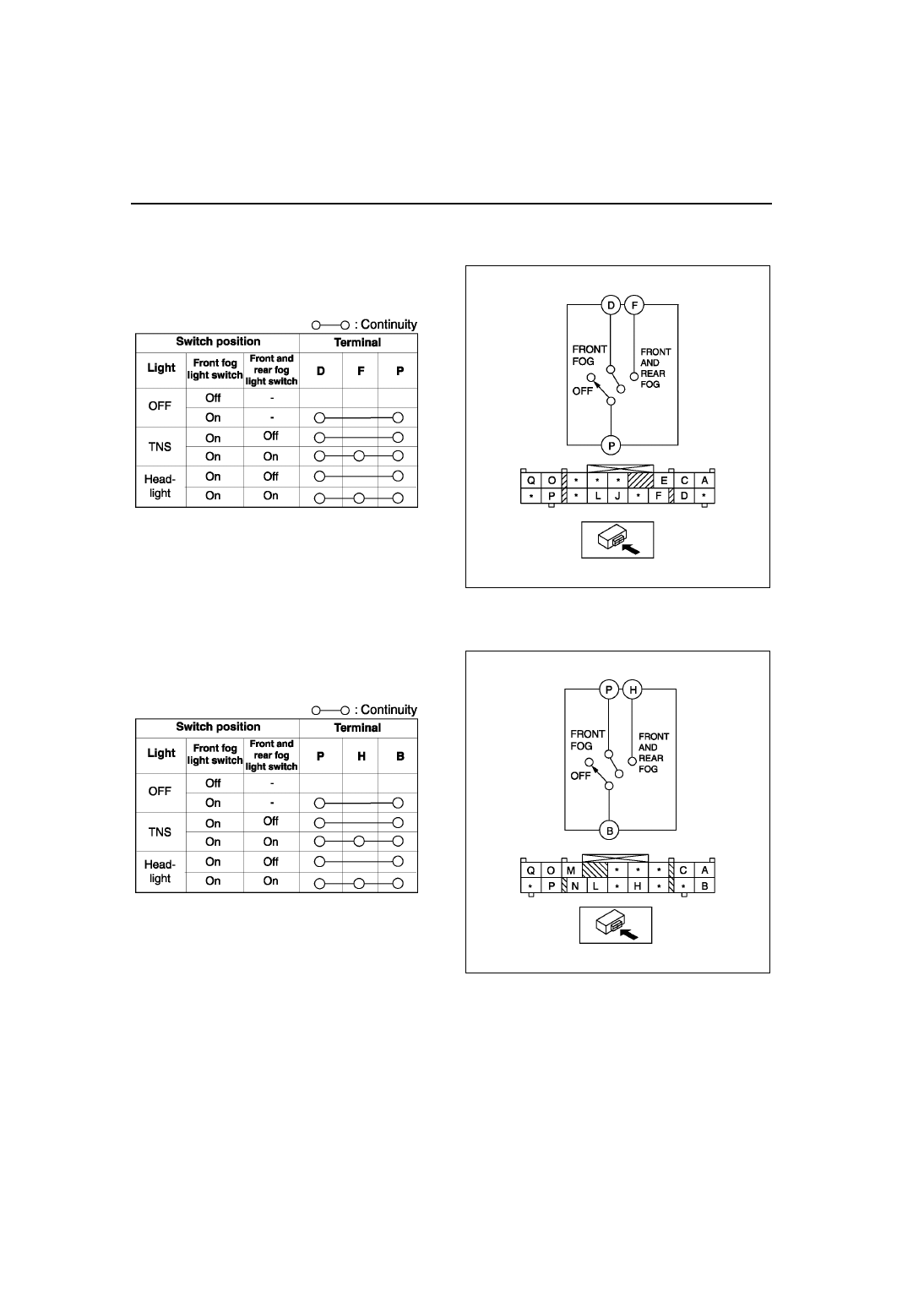

FRONT AND REAR FOG LIGHT SWITCH INSPECTION

A6E811266402W01

Light switch LH side

1. Remove the light switch. (See

T–39 LIGHT SWITCH REMOVAL/INSTALLATION

.)

2. Inspect for continuity between the light switch

terminals using an ohmmeter.

• If not as specified, replace the light switch.

Light switch RH side

1. Remove the light switch. (See

T–39 LIGHT SWITCH REMOVAL/INSTALLATION

.)

2. Inspect for continuity between the light switch

terminals using an ohmmeter.

• If not as specified, replace the light switch.

End Of Sie

A6E8112W148

A6E8112W140

A6E8112W167

A6E8112W166

EXTERIOR LIGHTING SYSTEM

T–43

T

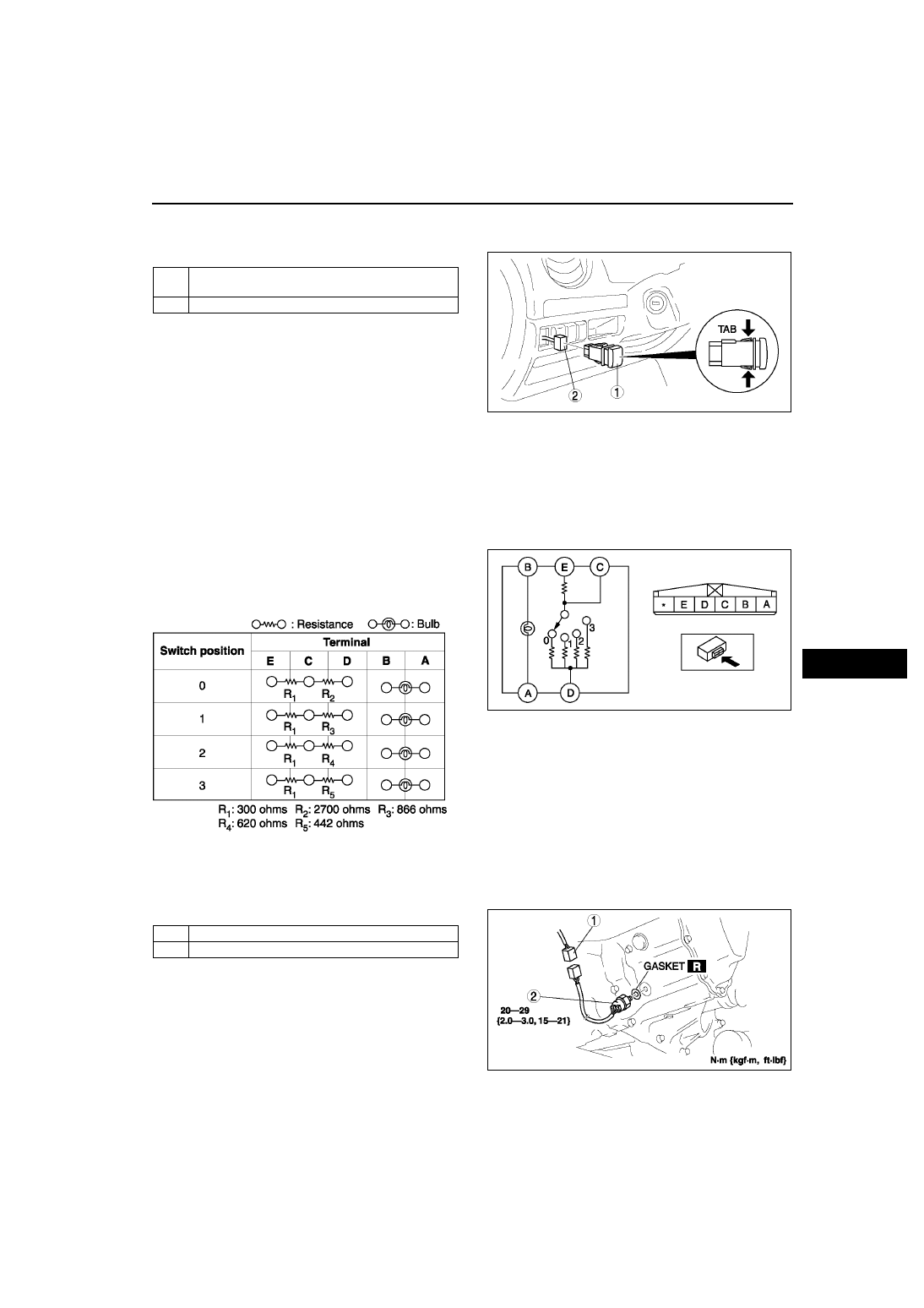

HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION

A6E811251030W08

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

Headlight Leveling Switch Removal Note

1. Insert your hand from the lower side of the dashboard and squeeze the tabs of the headlight leveling switch.
2. Pull the headlight leveling switch forward to remove it.

End Of Sie

HEADLIGHT LEVELING SWITCH INSPECTION

A6E811251030W09

1. Remove the headlight leveling switch. (See

T–43 HEADLIGHT LEVELING SWITCH REMOVAL/

INSTALLATION

.)

2. Inspect for continuity between the headlight

leveling switch terminals using an ohmmeter.

• If not as specified, replace the headlight

leveling switch.

End Of Sie

BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION

A6E811217640W01

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

1

Headlight leveling switch (See

T–43 Headlight

Leveling Switch Removal Note

)

2

Connector

A6E8112W138

A6E8112W152

A6E8112W151

1

Connector

2

Back-up light switch

A6E8112W104
