T–36

EXTERIOR LIGHTING SYSTEM

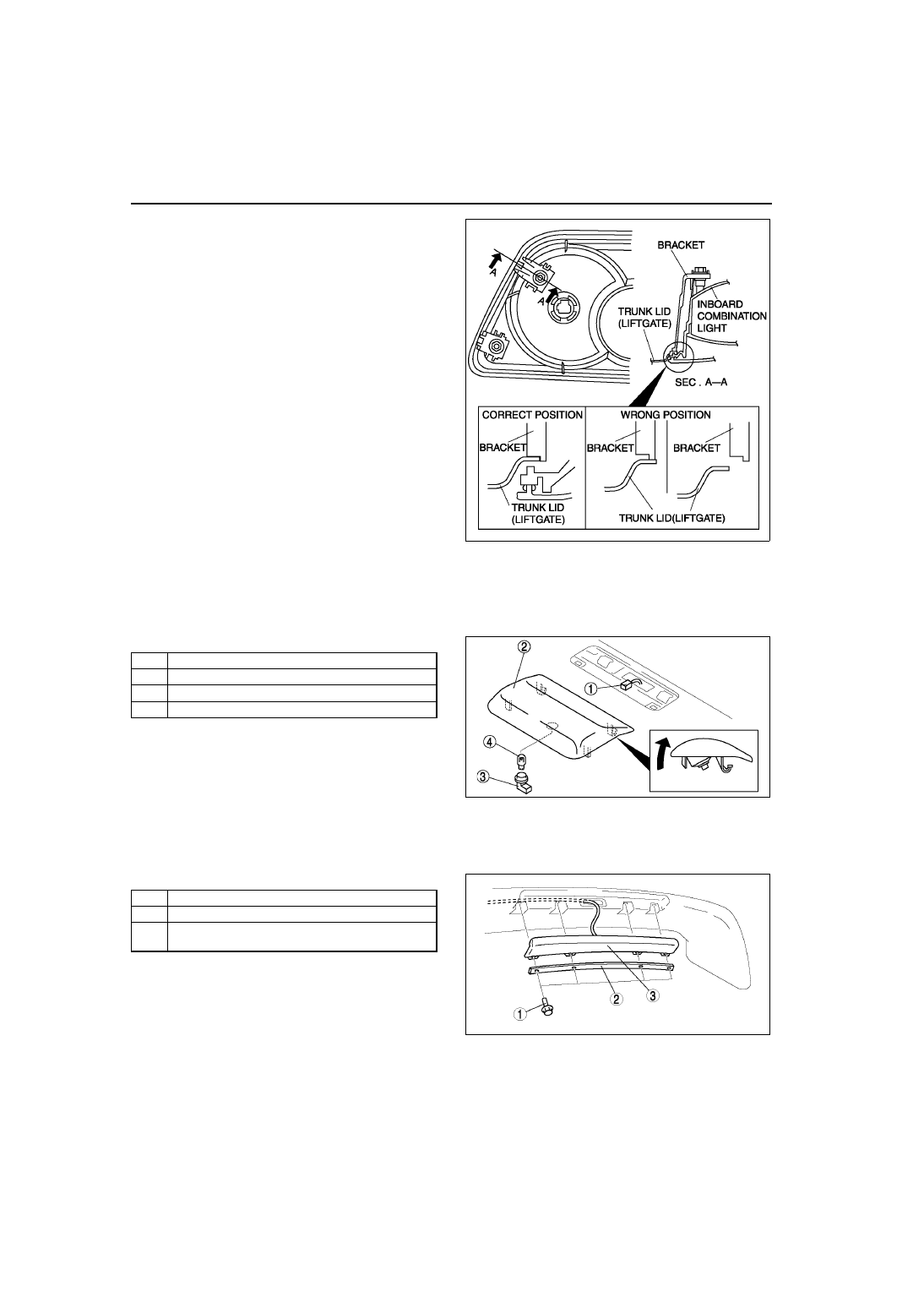

2. Pleace the bracket in the proper position as

shown in the figure and press it to the trunk lid
(liftgate) to attach.

End Of Sie

HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION

A6E811251580W01

4SD
In-vehicle-type

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

Rear spoiler type

1. Disconnect the negative battery cable.
2. Remove the rear spoiler. (See

S–54 REAR SPOILER REMOVAL/INSTALLATION

)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

A6E8112W121

1

Connector

2

High-mount brake light

3

Socket

4

High-mount brake light bulb

A6E8112W123

1

Bolt

2

Cover

2

High-mount brake light (See

T–37 High-mount brake

light removal note

)

A6E8112W115

EXTERIOR LIGHTING SYSTEM

T–37

T

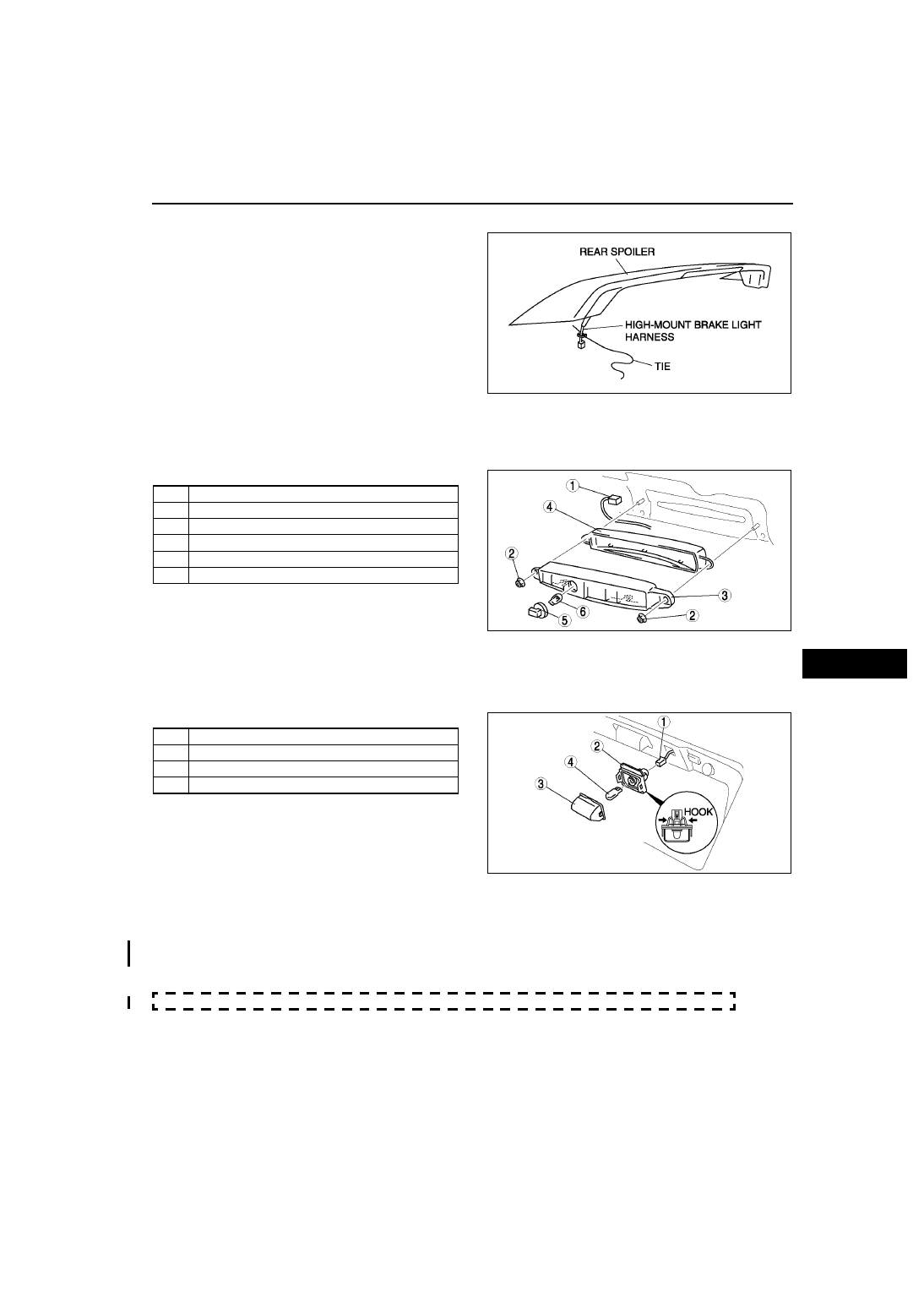

High-mount brake light removal note

1. Tie a string to the end of the connector of the

high-mount brake light beforehand so that the
connector can be passed easily through the rear
spoiler during installation.

5HB

1. Disconnect the negative battery cable.
2. Remove the liftgate lower trim. (See

S–95 LIFTGATE LOWER TRIM REMOVAL/INSTALLATION

)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

LICENSE PLATE LIGHT REMOVAL/INSTALLATION

A6E811251270W01

1. Disconnect the negative battery cable.
2. Remove the rear finisher. (See

S–54 REAR FINISHER REMOVAL/INSTALLATION

)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

COMBINATION SWITCH REMOVAL/INSTALLATION

A6E811266120W01

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See

T–120 DRIVER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION

.)

3. Remove the steering wheel. (See

N–7 STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION

.)

4. Remove the column cover. (See

S–84 COLUMN COVER REMOVAL/INSTALLATION

)

5. Remove the clock spring. (without DSC) (See

T–125 CLOCK SPRING REMOVAL/INSTALLATION

.)

A6E8112W116

1

Connector

2

Nut

3

High-mount brake light

4

Lens

5

Socket

6

High-mount brake light bulb

A6E8112W142

1

Connector

2

License plate light

3

Lens

4

License plate light bulb

A6E8112W108

T–38

EXTERIOR LIGHTING SYSTEM

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

End Of Sie

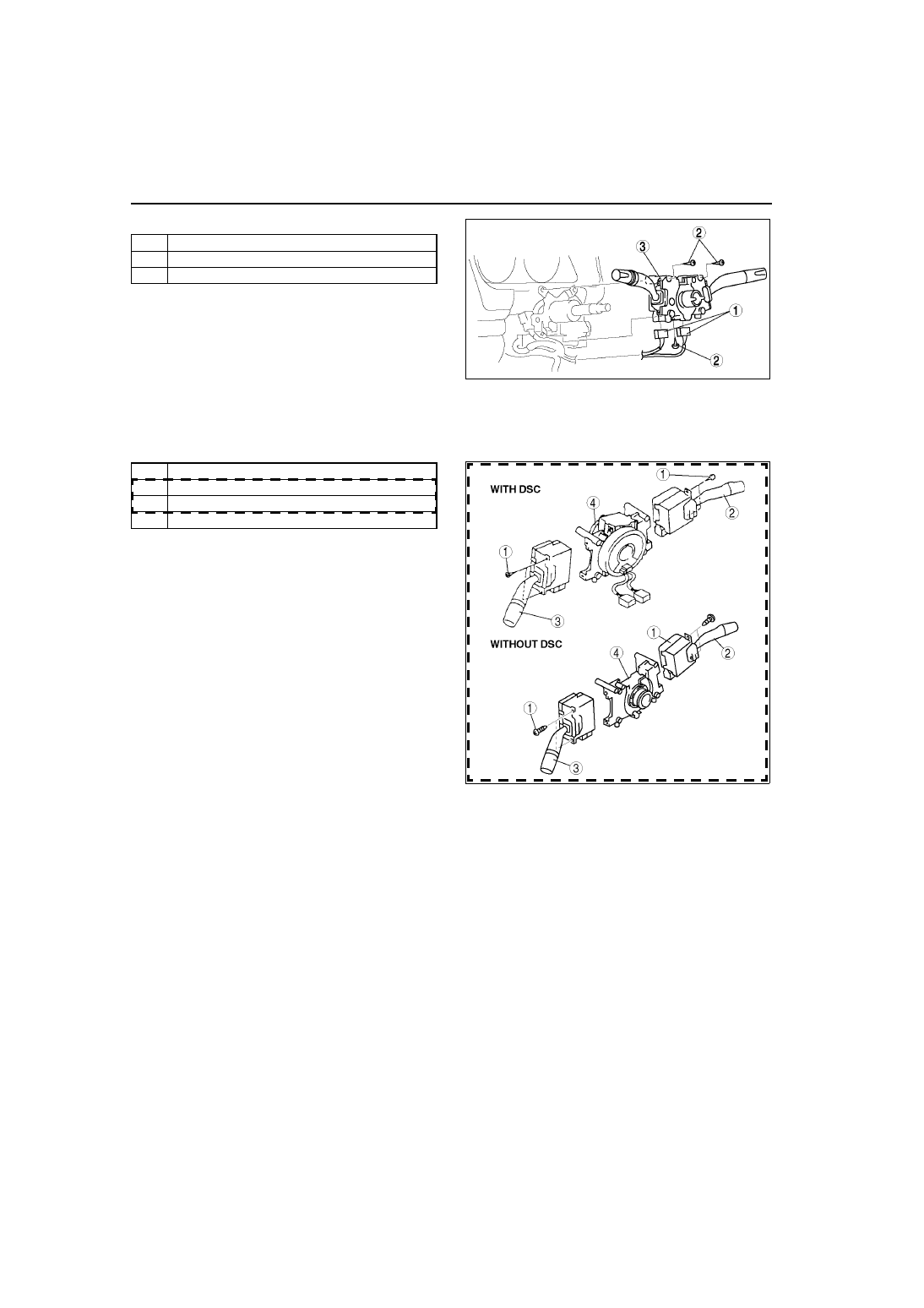

COMBINATION SWITCH DISASSEMBLY/ASSEMBLY

A6E811266120W02

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

End Of Sie

1

Connector

2

Screw

3

Combination switch

A6E8112W102

1

Screw

2

Wiper and washer switch (Light switch)

3

Light switch (Wiper and washer switch)

4

Body

A6E8112W103

EXTERIOR LIGHTING SYSTEM

T–39

T

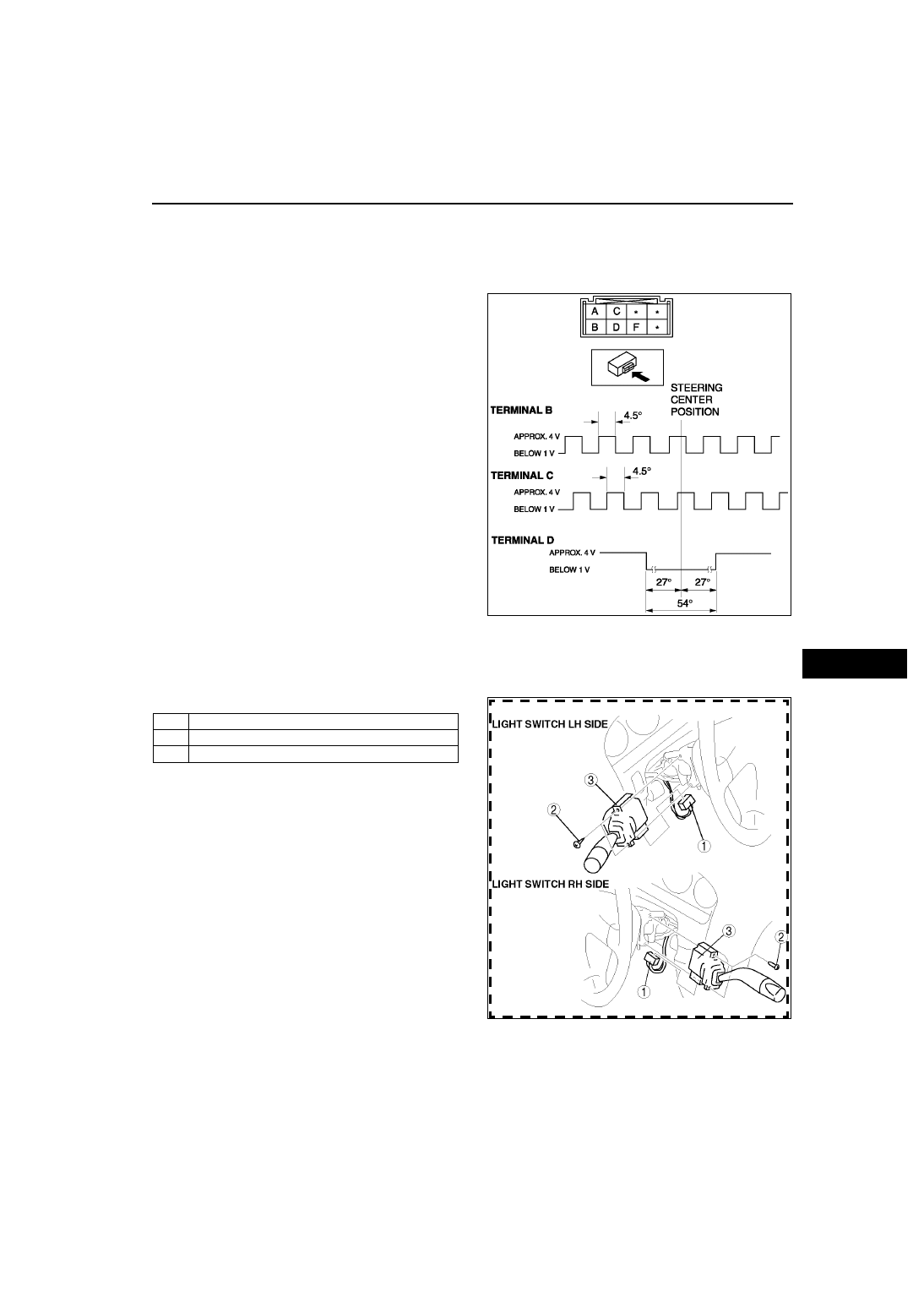

STEERING ANGLE SENSOR INSPECTION

A6E811266120W03

With DSC

1. Remove the column cover. (See

S–84 COLUMN COVER REMOVAL/INSTALLATION

)

2. Disconnect the steering angle sensor connector.
3. Connect battery positive voltage to terminal A and ground to terminal F of the steering angle sensor.
4. Turn the steering wheel to the right and left, and

verify that the voltage and pulses at the terminals
are as shown in the figure.

• If not as specified, replace the body of the

combination switch.

End Of Sie

LIGHT SWITCH REMOVAL/INSTALLATION

A6E811266121W01

1. Disconnect the negative battery cable.
2. Remove the column cover. (See

S–84 COLUMN COVER REMOVAL/INSTALLATION

)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

A6E8112W143

1

Connector

2

Screw

3

Light switch

A6E8112W112
