BUMPER

S–47

S

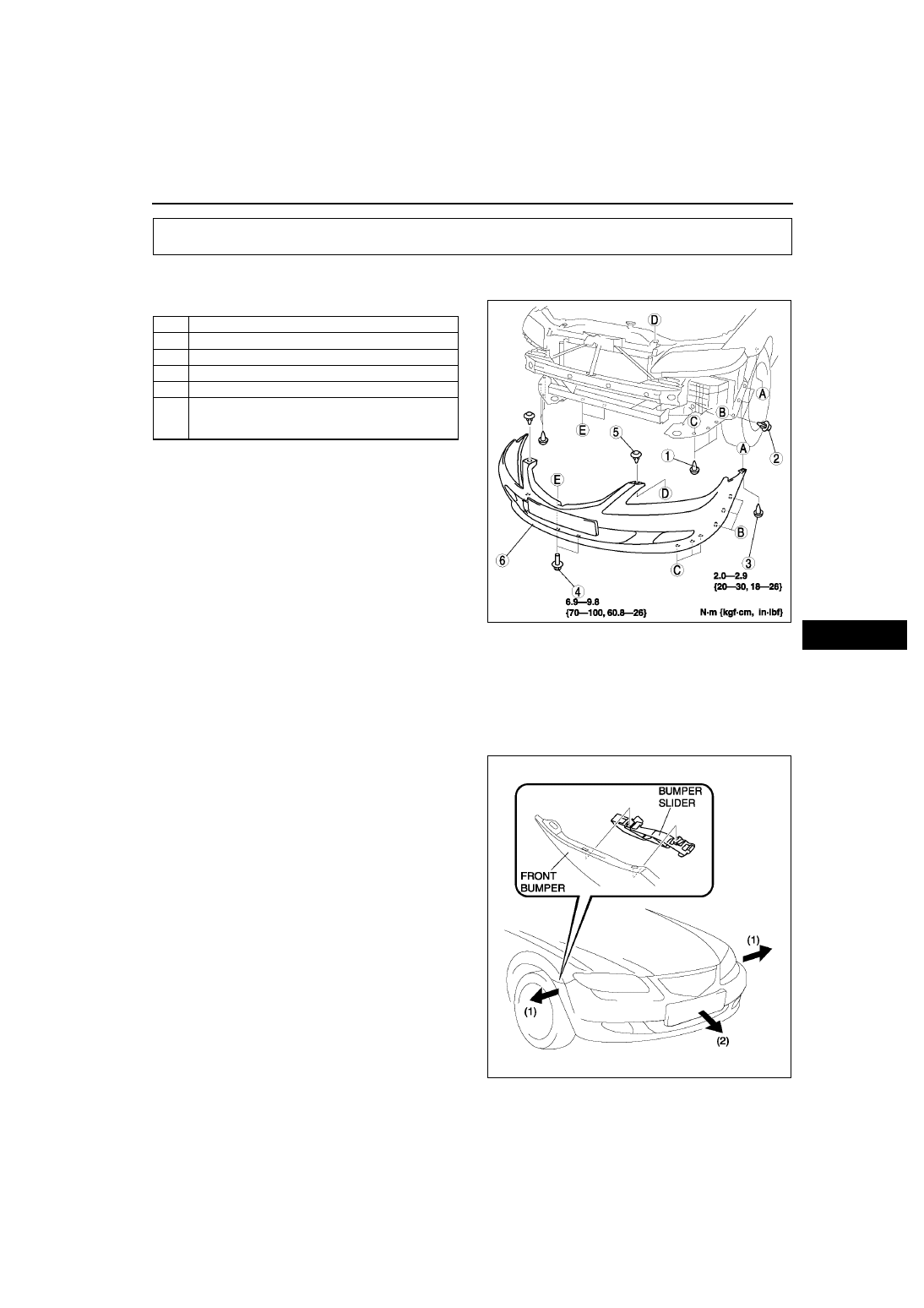

FRONT BUMPER REMOVAL/INSTALLATION

A6E772650031W01

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

Front Bumper Removal Note

1. Pull the front bumper ends (wheel arch) outward to disengage from the bumper slider.

Caution

• If only one side of the front bumper is disengaged from the bumper slider and the bumper falls, it

could be damaged. When disengaging the front bumper from the slider, secure the bumper so that
it does not fall.

2. Remove the front bumper from the body.

BUMPER

1

Screw  A

2

Fastener A

3

Screw  B

4

Bolt

5

Fastener B

6

Front bumper
(See

S–47 Front Bumper Removal Note

)

(See

S–48 Front Bumper Installation Note

)

A6E7726W003

A6E7726W006

S–48

BUMPER

Front Bumper Installation Note

1. Spread the front bumper ends (wheel arches) apart.
2. Attach the front bumper to the body.
3. Press the front bumper connection portion into the body to engage with the bumper slider.

End Of Sie

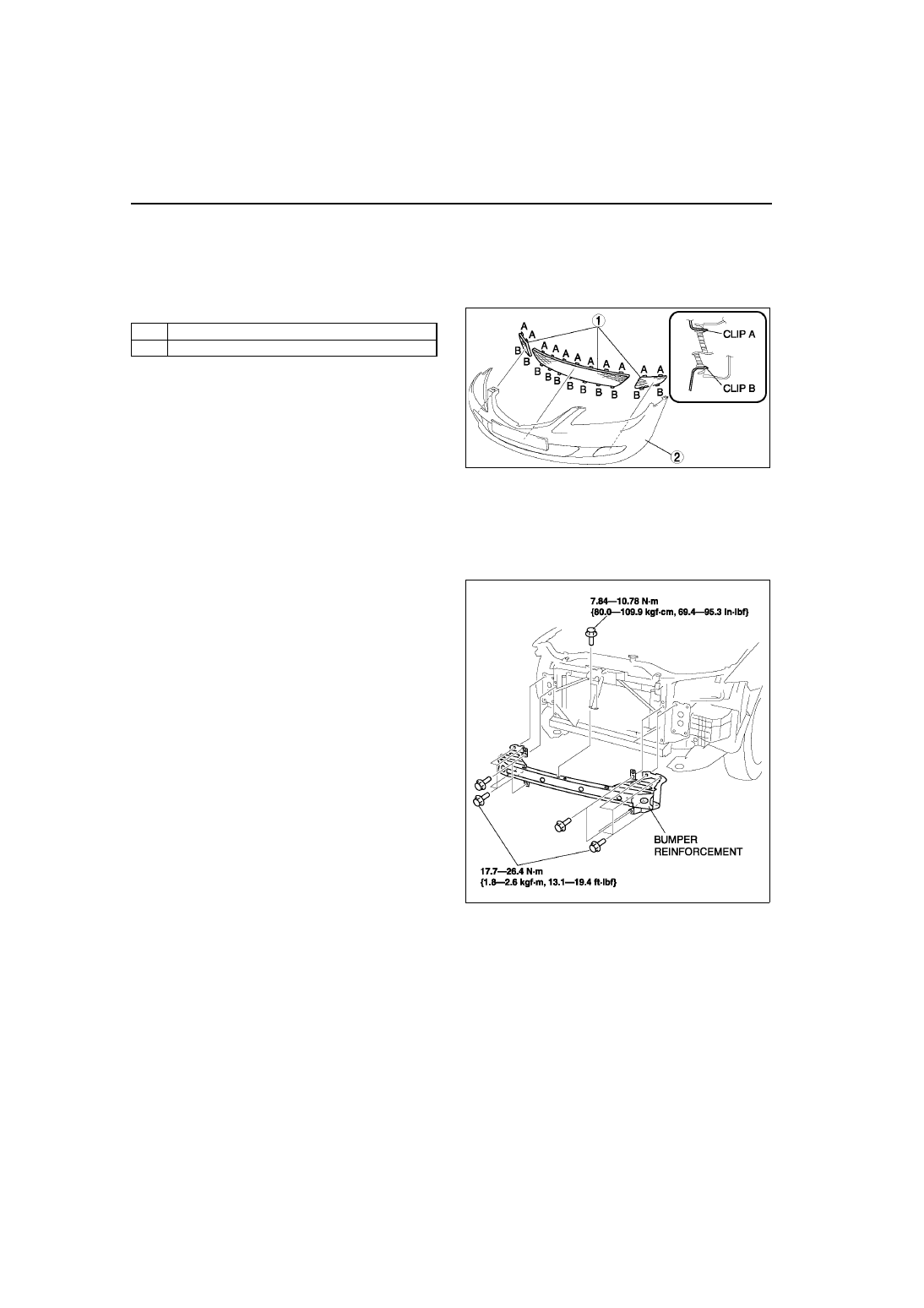

FRONT BUMPER DISASSEMBLY/ASSEMBLY

A6E772650031W02

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

End Of Sie

BUMPER REINFORCEMENT REMOVAL/INSTALLATION

A6E772650031W03

1. Disconnect the negative battery cable.
2. Remove the front bumper. (See

S–47 FRONT BUMPER REMOVAL/INSTALLATION

.)

3. Remove the headlight. (See

T–26 FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

.)

4. Suport the radiator and the condenser using the wire.
5. Remove the bolt.
6. Remove the bumper reinforcement.
7. Install in the reverse order of removal.

End Of Sie

1

Front bumper mesh

2

Front bumper fascia

A6E7726W004

A6E7726W005

BUMPER

S–49

S

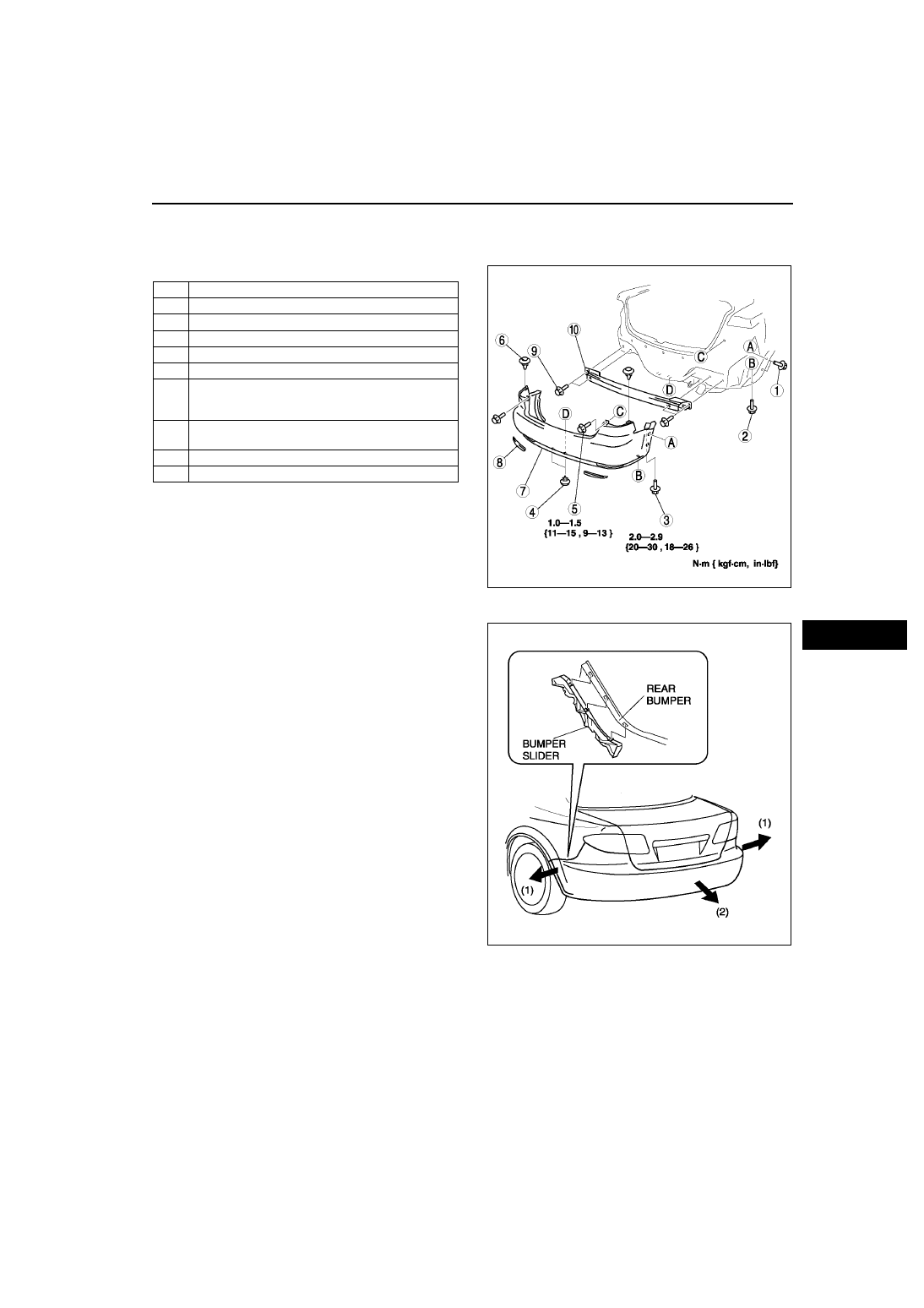

REAR BUMPER REMOVAL/INSTALLATION

A6E772650221W01

1. Disconnect the negative battery cable.
2. Remove the rear combination light.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Rear Bumper Removal Note

1. Pull the rear bumper ends (wheel arch) outward

to disengage with the bumper slider.

Caution

• If only one side of the rear bumper is

disengaged from the bumper slider and
the bumper falls, it could be damaged.
When disengaging the rear bumper from
the slider, secure the bumper so that it
does not fall.

Rear Bumper Installation Note

1. Spread the rear bumper ends (wheel arches) apart.
2. Attach the rear bumper to the body.
3. Press the rear bumper connection portion into the body to engage with the bumper slider.

1

Screw  A

2

Screw  B

3

Screw  C

4

Fastener A

5

Bolt  A

6

Fastener B

7

Rear bumper
(See

S–49 Rear Bumper Removal Note

)

(See

S–49 Rear Bumper Installation Note

)

8

Refractor
(See

S–50 Refractor Removal Note

)

9

Bolt  B

10

Rear bumper reinforcement

A6E7726W001

A6E7726W007

S–50

BUMPER, EXTERIOR ATTACHMENT

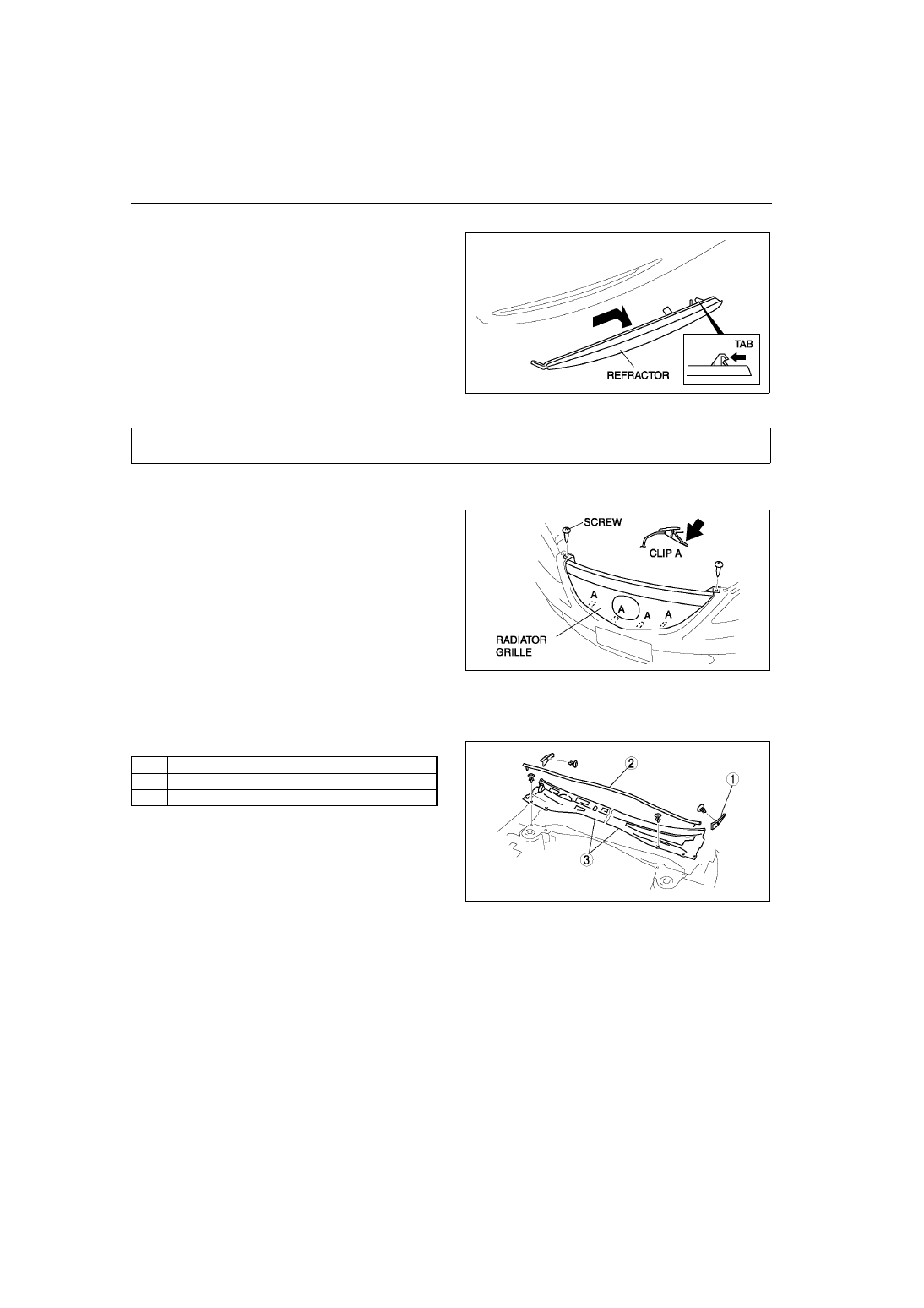

Refractor Removal Note

1. Lift the refractor up in the direction of the arrow,

then unhook it from the rear bumper.

End Of Sie

RADIATOR GRILLE REMOVAL/INSTALLATION

A6E772850710W01

1. Remove the screws.
2. Press clip A in the direction of the arrow, pll the

radiator grille outward and remove from the front
bumper.

3. Install in the reverse order of removal.

End Of Sie

COWL GRILLE REMOVAL/INSTALLATION

A6E772850790W01

1. Remove the windshield wiper arm and blade. (See

T–57 WINDSHIELD WIPER ARM AND BLADE REMOVAL/

INSTALLATION

.)

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

A6E7726W002

EXTERIOR ATTACHMENT

A6E7728W005

1

Front fender molding

2

Weatherstrip

3

Cowl grille

A6E7728W004
