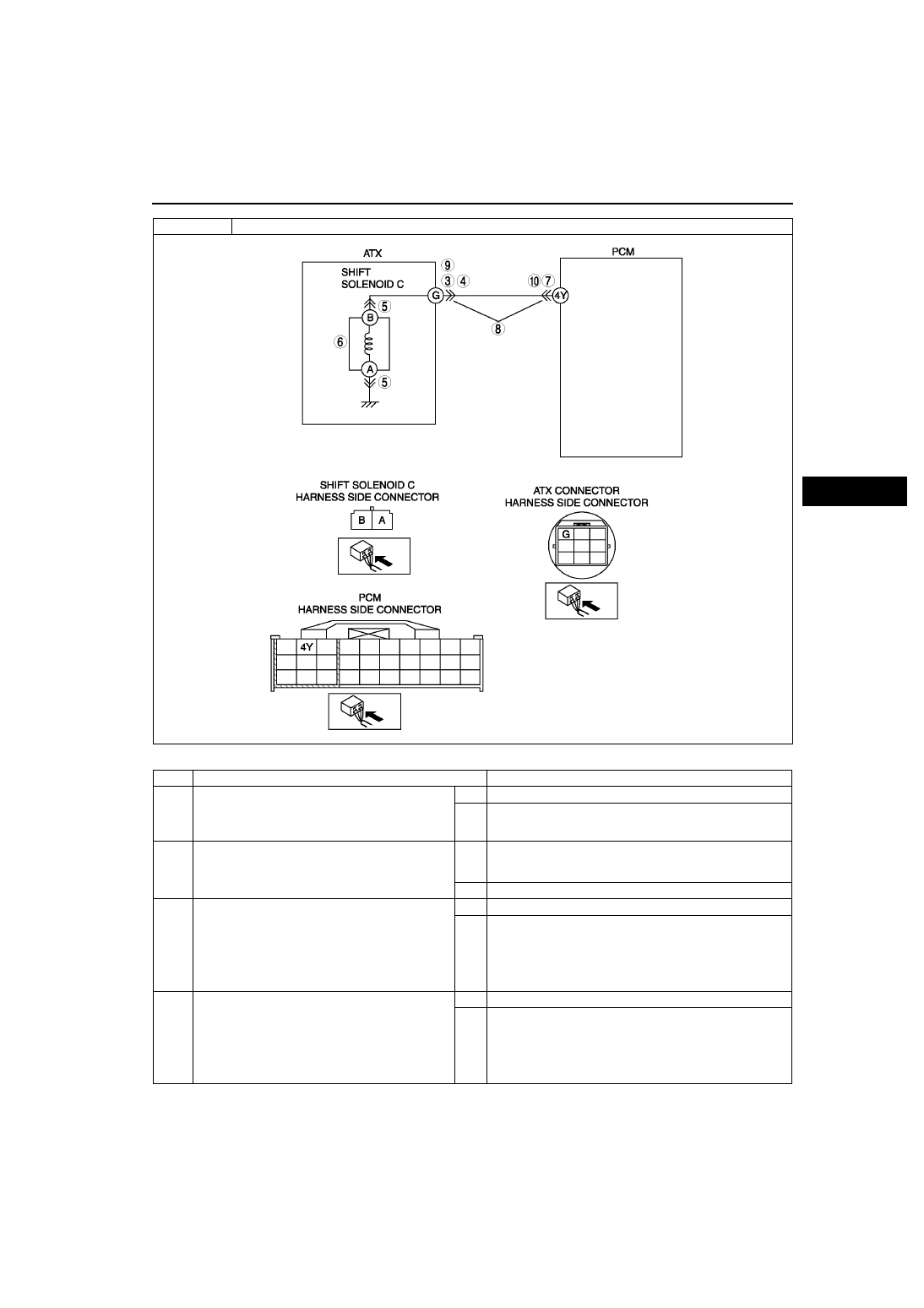

ON-BOARD DIAGNOSTIC K–97 K Diagnostic procedure STEP INSPECTION ACTION 1 VERIFY FREEZE FRAME DATA HAS BEEN • Has FREEZE FRAME PID DATA been recorded? Yes Go to next step. No Record FREEZE FRAME PID DATA on repair order, then 2 VERIFY RELATED REPAIR INFORMATION • Check for related Service Bulletins availability. • Is any related repair information available? Yes Perform repair or diagnosis according to available repair information. • If vehicle is not repaired, go to next step. No Go to next step. 3 INSPECT ATX CONNECTOR FOR POOR • Turn ignition key to OFF. • Disconnect ATX connector. • Check for poor connection (damaged/pulled- out terminals, corrosion, etc.). • Is connection okay? Yes Go to next step. No Repair or replace connector and/or terminals, then go to 4 INSPECT RESISTANCE • Inspect resistance between ATX connector terminal G (transaxle case side) and body • Is resistance within 1.0—4.2 ohms? K–26 Resistance Inspection (On-Vehicle Yes Go to Step 7. No Go to next step. DTC P0763 Shift solenoid C malfunction (electrical) |
