OUTLINE

P–3

P

SPECIFICATIONS

A6E690201020T03

Bold frames: New specifications

End Of Sie

Item

Specification

Mazda6 (GG) (4SD, 5HB)

626 (GF) (4SD, 5HB)

Brake pedal

Type

Suspended

Pedal lever ratio

2.7

3.7

Max. stroke

(mm {in})

128.5 {5.06}

116 {4.57}

Master
cylinder

Type

Tandem (with level sensor)

Cylinder diameter

(mm {in})

20.64 {0.813}

23.81 {0.937}

Front brake
(disc)

Type

Ventilated disc

Cylinder bore

(mm {in})

57.15 {2.250}

Pad dimensions (area

×

 thickness)

L8: 4,220 {6.75}

×

 10.0 {0.39}

LF, L3: 4,010 {6.42}

×

 12.5 {0.02}

4,800 {7.44}

×

 10.0 {0.39}

(mm

2

{in

2

}

×

 mm {in})

Disc plate dimensions
(outer diameter

×

 thickness)

L8: 274 {10.8}

×

 24.0 {0.945}

LF, L3: 283 {11.1}

×

 25.0 {0.984}

258 {10.2}

×

 24.0 {0.945}

(mm {in})

Rear brake
(disc)

Type

Solid disc

Cylinder bore

(mm {in})

34.93 {1.375}

Pad dimensions (area

×

 thickness)

2,820 {4.51}

×

 8.0 {0.31}

(mm

2

{in

2

}

×

 mm {in})

Disc plate dimensions
(outer diameter

×

 thickness)

280 {11.0}

×

 10.0 {0.39}

261 {10.3}

×

 10.0 {0.39}

(mm {in})

Rear brake
(drum)

Type

–

Leading-trailing

Wheel cylinder inner
diameter

(mm {in})

–

20.64 {0.813}

Lining dimension
(outer diameter

×



thickness)

(mm {in})

–

42.0 {1.65}

×

 229.4 {9.03}

×



4.5 {0.18}

Drum inner diameter

(mm {in})

–

228.6 {9.000}

Shoe clearance adjustment

–

Automatic adjuster

Power brake
unit

Type

Vacuum multiplier, single diaphragm

Diameter

(mm {in})

276 {10.9}

239 {9.41}

Braking force
control device

Type

With ABS: EBD (Electronic Brakeforce Distribution)

Without ABS: Dual proportioning valve

Parking brake

Type

Mechanical two-rear-wheel control

Operation system

Center lever type

Brake fluid

Type

European (L.H.D. U.K.) specs.: SAE J1703, FMVSS 116 DOT3 OR

DOT4

GCC specs.: SAE J1703, FMVSS 116 DOT3

P–4

OUTLINE

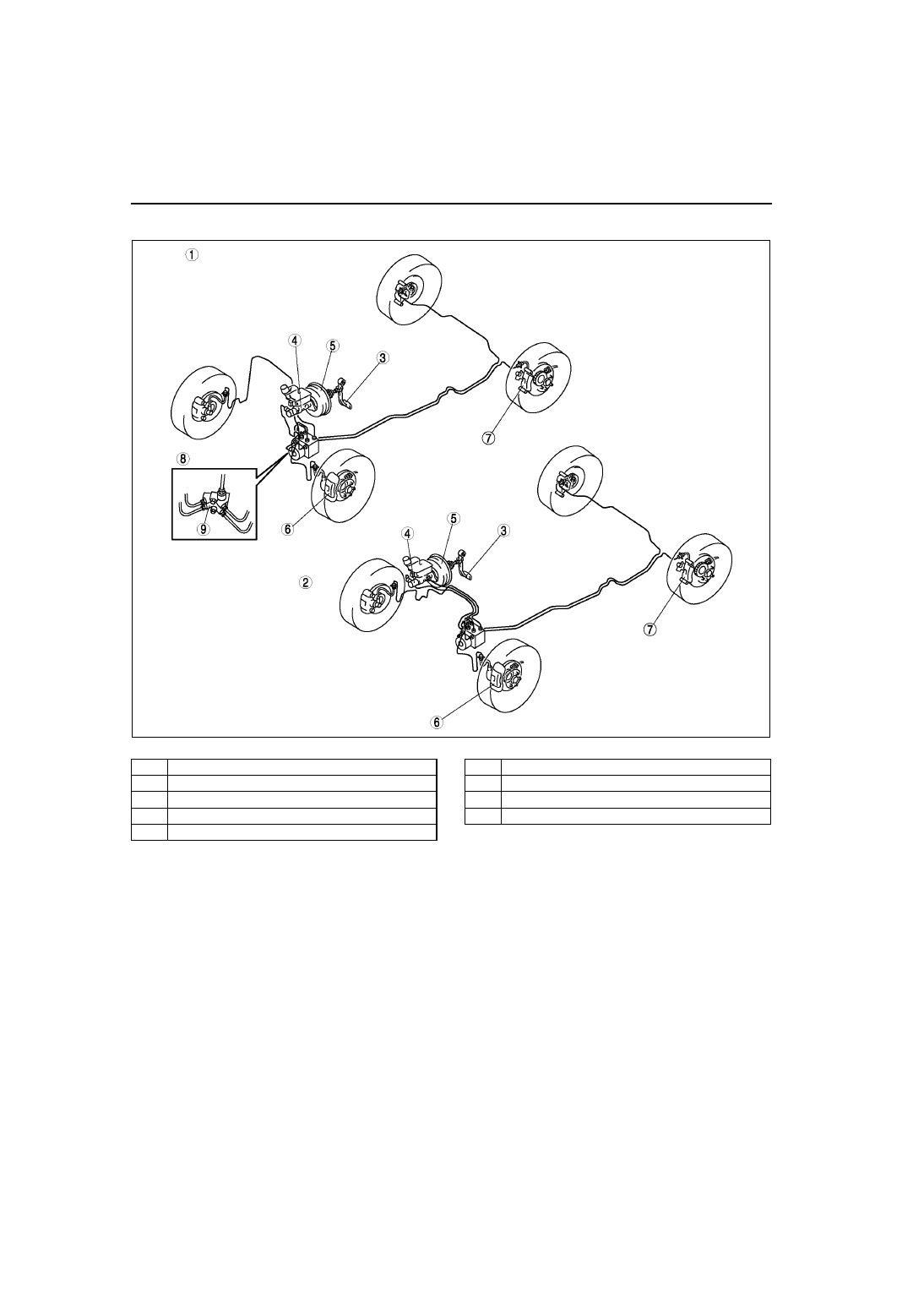

STRUCTURAL VIEW

A6E690201020T04

.

End Of Sie

A6E6912T001

1

L.H.D.

2

R.H.D.

3

Brake pedal

4

Master cylinder

5

Power brake unit

6

Front brake (disc)

7

Rear brake (disc)

8

Without ABS

9

Dual proportioning valve

CONVENTIONAL BRAKE SYSTEM

P–5

P

INTRUSION-MINIMIZING BRAKE PEDAL

A6E691201020T01

Function

•

An intrusion-minimizing brake pedal construction, which minimizes the amount of backward thrust of the pedal,
has been adopted. It has been designed to soften the force of impact on the lower body of the driver.

Structure/operation

•

During a frontal collision, the backward thrust of the engine and other parts forces brake pedal bracket A
rearward and it separates from brake pedal bracket B.

•

The rearward movement of the brake pedal arm, connected at the fulcrum of brake pedal bracket A, is
prevented due to the stopper on brake pedal bracket B.

•

Due to this, the rearward movement of the brake pedal arm is suppressed by the displacement of brake pedal
bracket A.

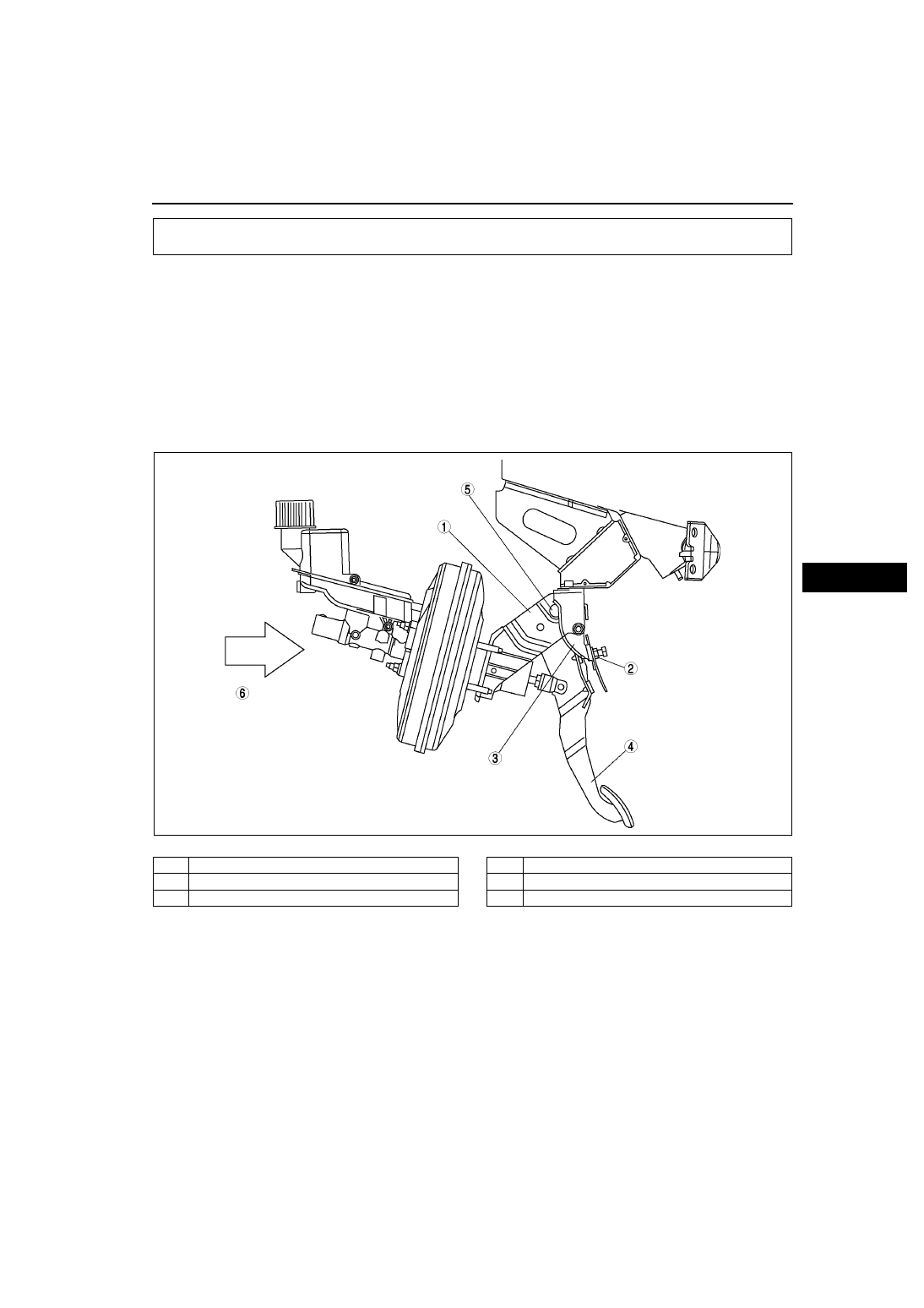

Before collision

.

CONVENTIONAL BRAKE SYSTEM

A6E6912T002

1

Brake pedal bracket A

2

Stopper

3

Brake pedal bracket B

4

Brake pedal arm

5

Fulcrum

6

Backward thrust

P–6

CONVENTIONAL BRAKE SYSTEM

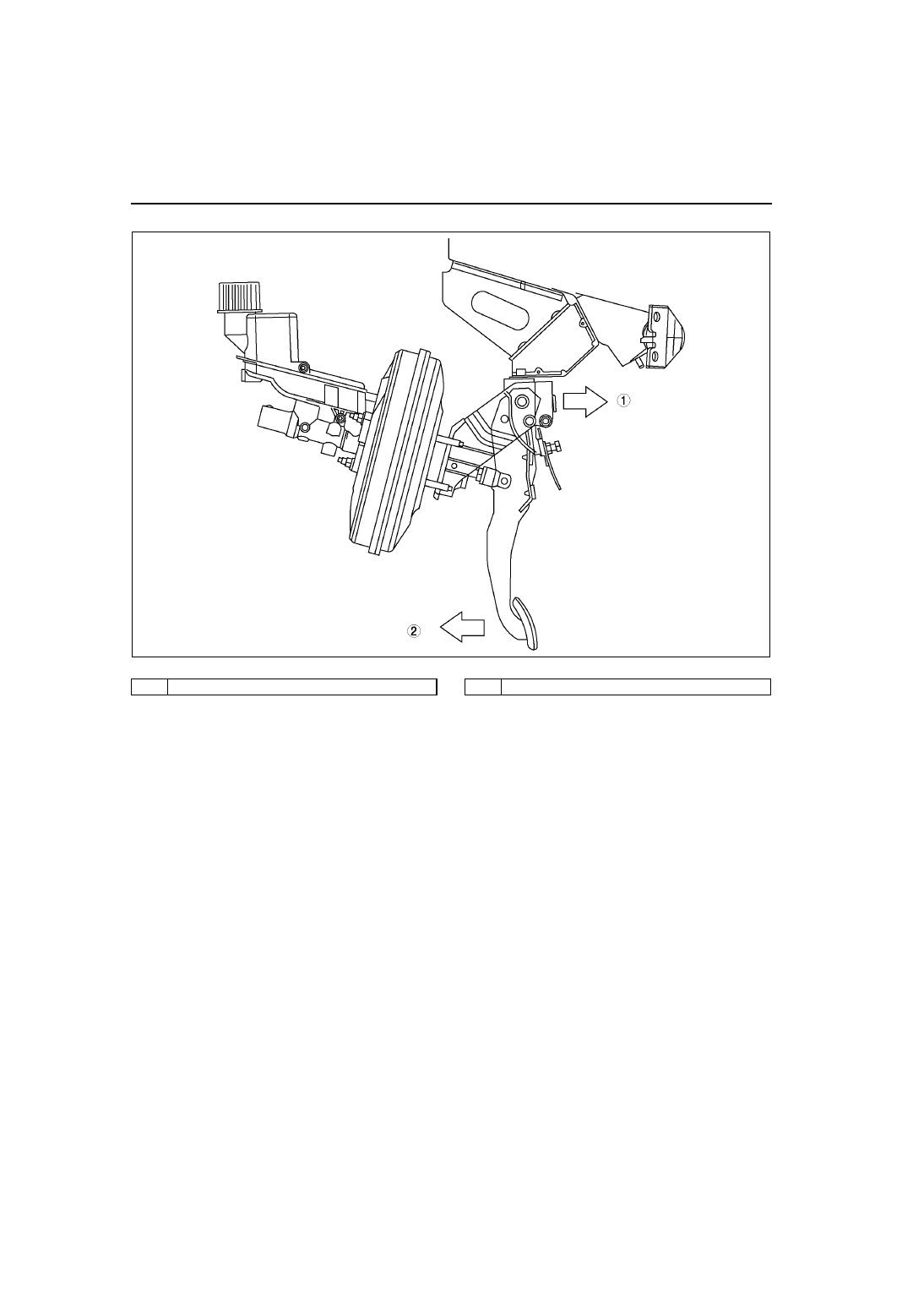

After collision

.

End Of Sie

A6E6912T003

1

Backward thrust

2

Pivot away from the driver
