OUTLINE

N–3

N

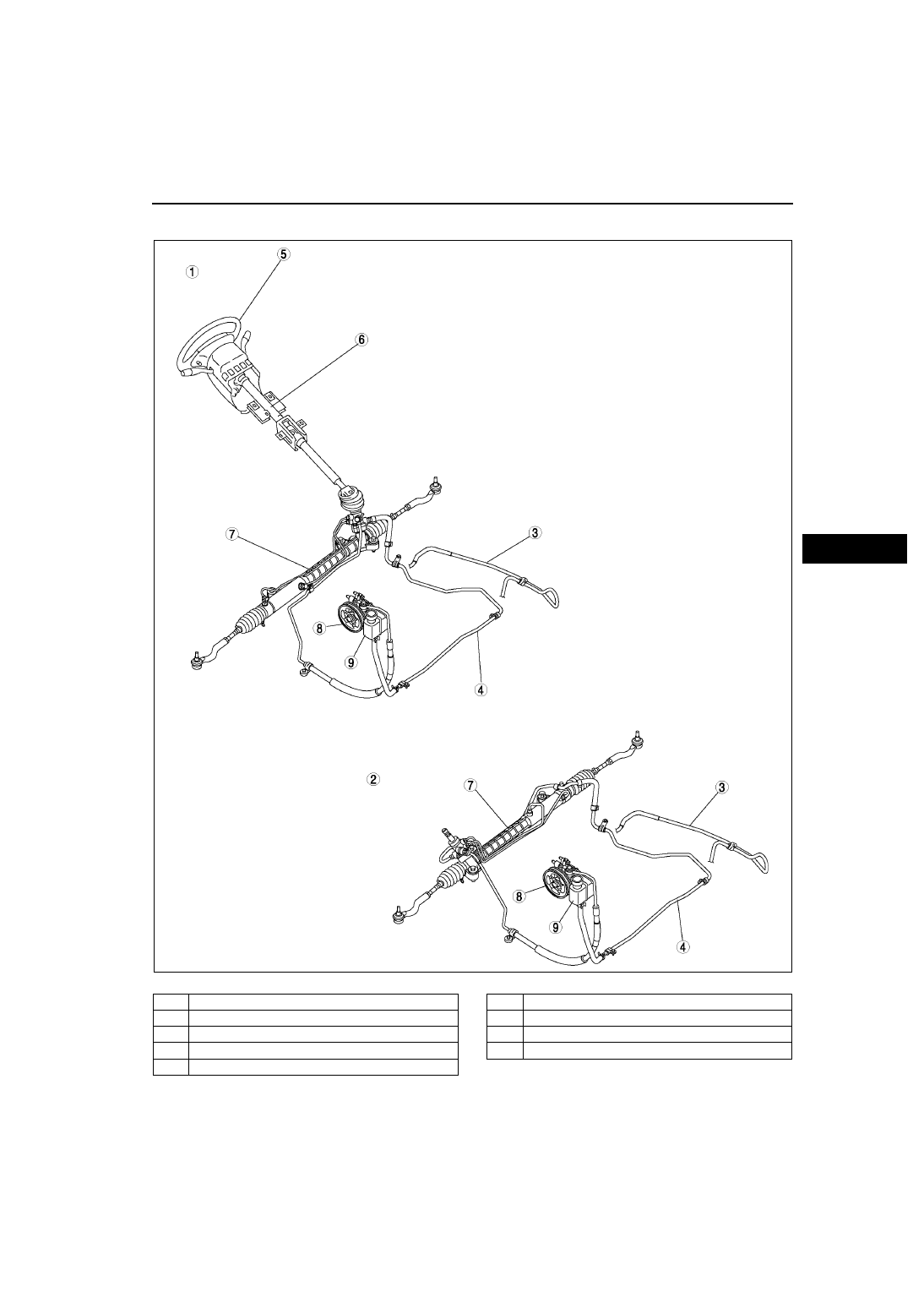

STRUCTURAL VIEW

A6E660201036T04

.

End Of Sie

A6E6602T001

1

L.H.D.

2

R.H.D.

3

ATX

4

MTX

5

Steering wheel

6

Steering column and shaft

7

Steering gear

8

Power steering oil pump

9

Fluid reservoir

N–4

ENGINE SPEED SENSING POWER STEERING

ENERGY ABSORBING SYSTEM

A6E661432010T01

 Structure and Operation

•

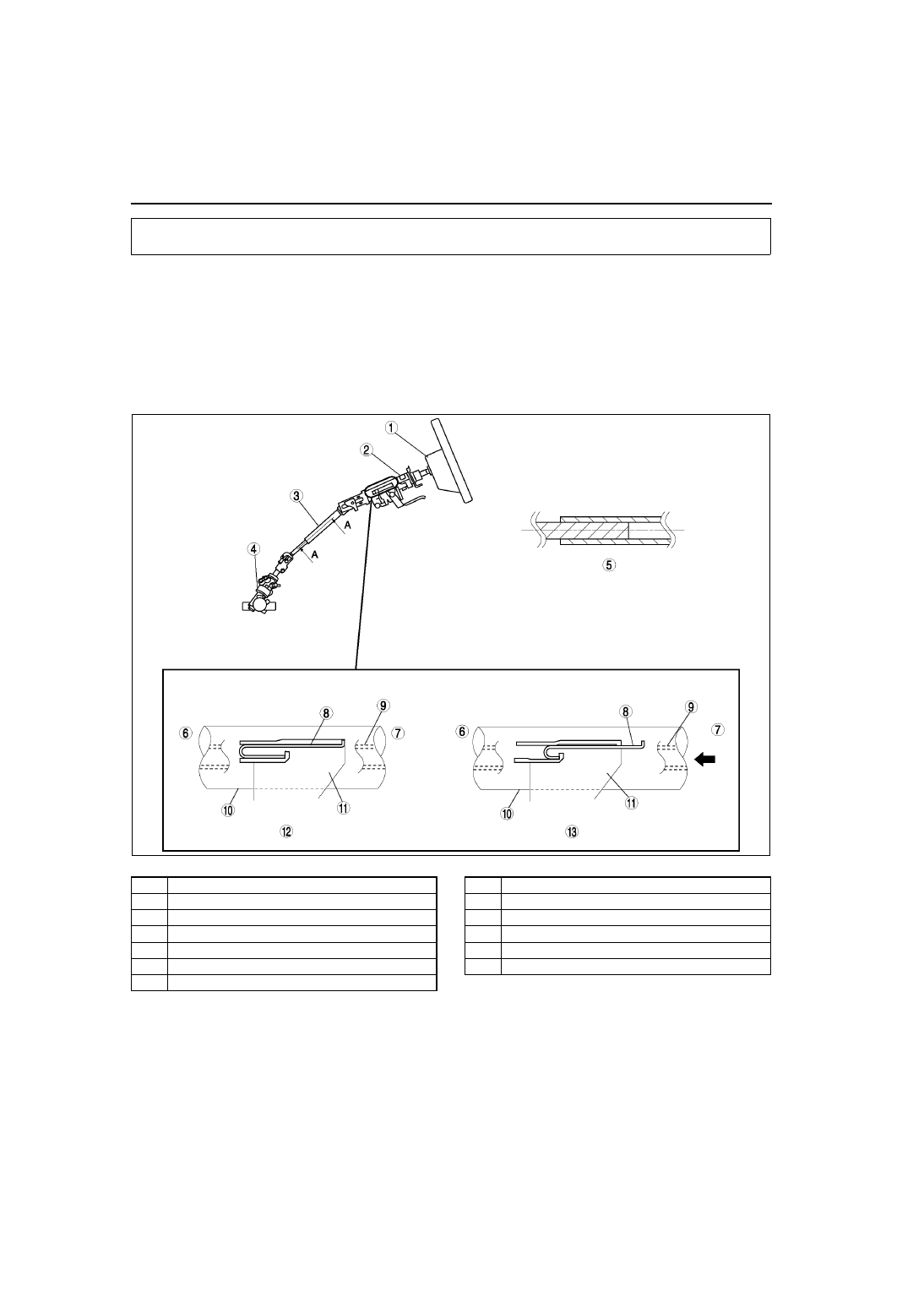

The steering gear is joined to the steering shaft through the intermediate shaft.

•

In a collision, the intermediate shaft is crushed as the steering gear moves rearward, thereby absorbing the
impact.

•

If the driver’s body hits the steering wheel, the force applied to the steering wheel is transmitted through the
inner shaft, outer column, and fixing bracket. As a result, the fixing bracket is disengaged from the dashboard,
and the whole steering shaft will move forward.
At this moment, the U-shaped plate, which is fixed to the dashboard at one end and held by the fixing bracket
at the other, will deform and absorb the impact.

.

End Of Sie

ENGINE SPEED SENSING POWER STEERING

A6E6614T001

1

Steering wheel

2

Steering shaft

3

Intermediate shaft

4

Steering gear

5

Section A—A

6

Steering gear side

7

Steering wheel side

8

U-shaped plate

9

Inner shaft

10

Outer column

11

Fixing bracket

12

Normal condition

13

During collision

P–1

P

P

BRAKING SYSTEM

ABBREVIATIONS .................................................. P-2

ABBREVIATIONS ................................................ P-2

OUTLINE ................................................................ P-2

OUTLINE OF CONSTRUCTION.......................... P-2
FEATURES .......................................................... P-2
SPECIFICATIONS ............................................... P-3
STRUCTURAL VIEW........................................... P-4

CONVENTIONAL BRAKE SYSTEM ...................... P-5

INTRUSION-MINIMIZING BRAKE PEDAL .......... P-5

ABS/TCS ................................................................ P-7

OUTLINE.............................................................. P-7

DYNAMIC STABILITY CONTROL ......................... P-9

OUTLINE.............................................................. P-9
DSC INDICATOR LIGHT ................................... P-13
DSC OFF SWITCH, DSC OFF LIGHT............... P-14
COMBINE SENSOR .......................................... P-15
DSC HU/CM....................................................... P-16
BRAKE ASSIST CONTROL............................... P-16
CONTROLLER AREA NETWORK (CAN) ......... P-17

ON-BOARD DIAGNOSTIC ................................... P-18

OUTLINE............................................................ P-18

P–2

ABBREVIATIONS , OUTLINE

ABBREVIATIONS

A6E690100000T01

End Of Sie

OUTLINE OF CONSTRUCTION

A6E690201020T01

•

The construction and operation of the conventional braking system is essentially carried over from that of the
626 (GF), except for the following features and specifications. (See 626 Training Manual 3303-10-97D.)

•

The construction and operation of the ABS/TCS/DSC and on-board diagnosis system is essentially carried
over from that of the current 323 (BJ), except for the following features. (See 323 Workshop Manual
Supplement 1704-1*-00J.)

End Of Sie

FEATURES

A6E690201020T02

Improved Braking Stability

•

Large diameter front disc plate has been adopted.

•

Large diameter rear disc plate has been adopted.

Improved Safety and Marketability

•

DSC OFF switch has been adopted.

•

Electrical brake assist has been adopted.

•

Intrusion-minimizing brake pedal has been adopted.

Improved Serviceability

•

Integrated DSC HU/CM has been adopted.

•

Combine sensor has been adopted.

•

CAN communication function has been adopted.

•

TBS terminal of DLC has been eliminated.

End Of Sie

ABBREVIATIONS

CAN

Controller area network

CM

Control module

DSC

Dynamic stability control

EBD

Electronic brakeforce distribution

HU

Hydraulic unit

IG

Ignition switch

LF

Left front

LR

Left rear

RF

Right front

RR

Right rear

4SD

4 door sedan

5HB

5 door hatchback

OUTLINE
