OUTLINE

M–3

M

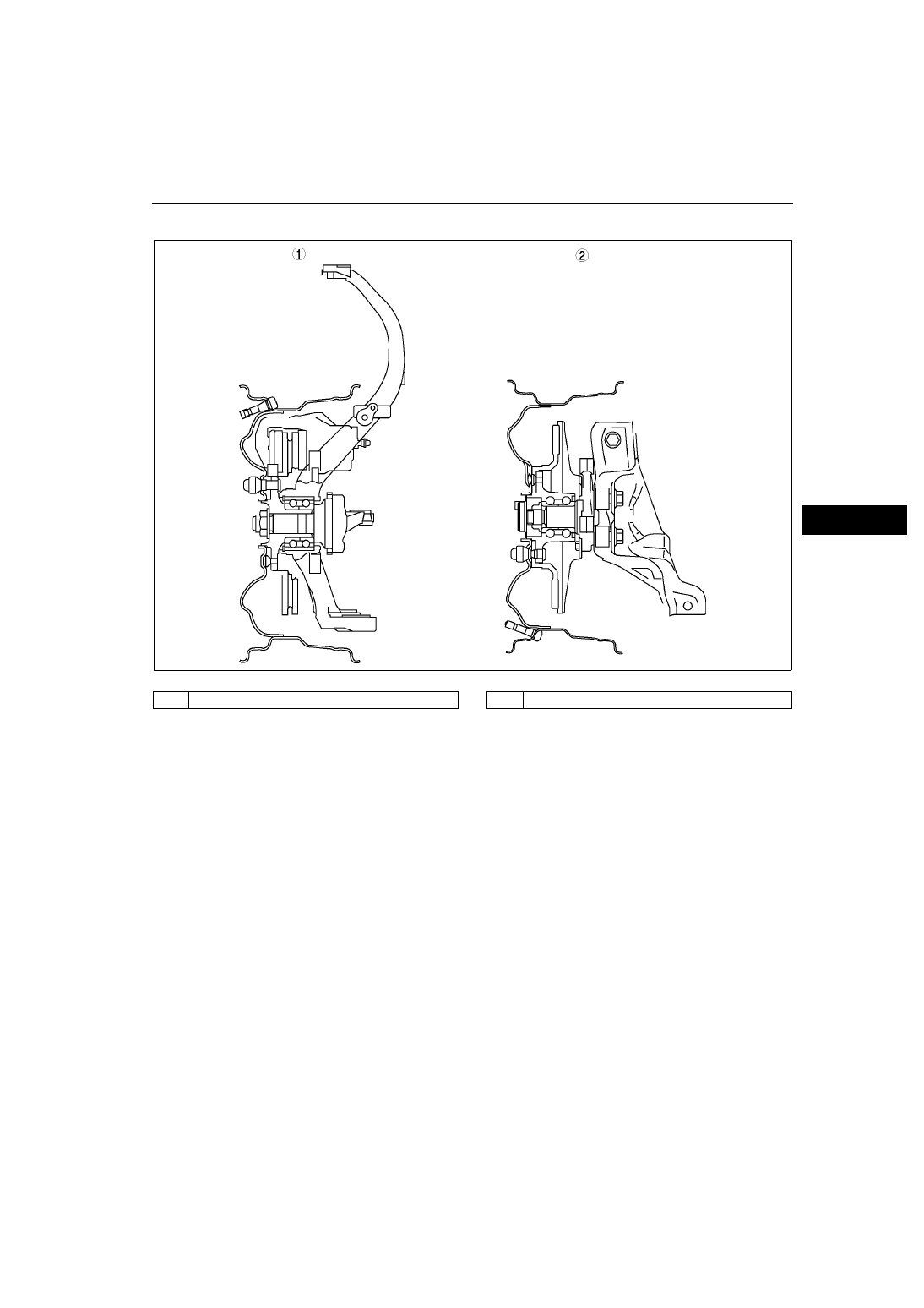

CROSS-SECTIONAL VIEW

A6E630201018T03

.

End Of Sie

A6E6302T001

1

Front  axle

2

Rear axle

M–4

DRIVE SHAFT

DRIVE SHAFT OUTLINE

A6E631625500T01

•

Construction of the joint is essentially carried over from that of the previous tripod joint.

•

A free ring has been adopted for the transaxle side joint. A contact region between the outer ring and free ring
has been formed to reduce axial vibratory force when the joint slides (LF ATX model).

End Of Sie

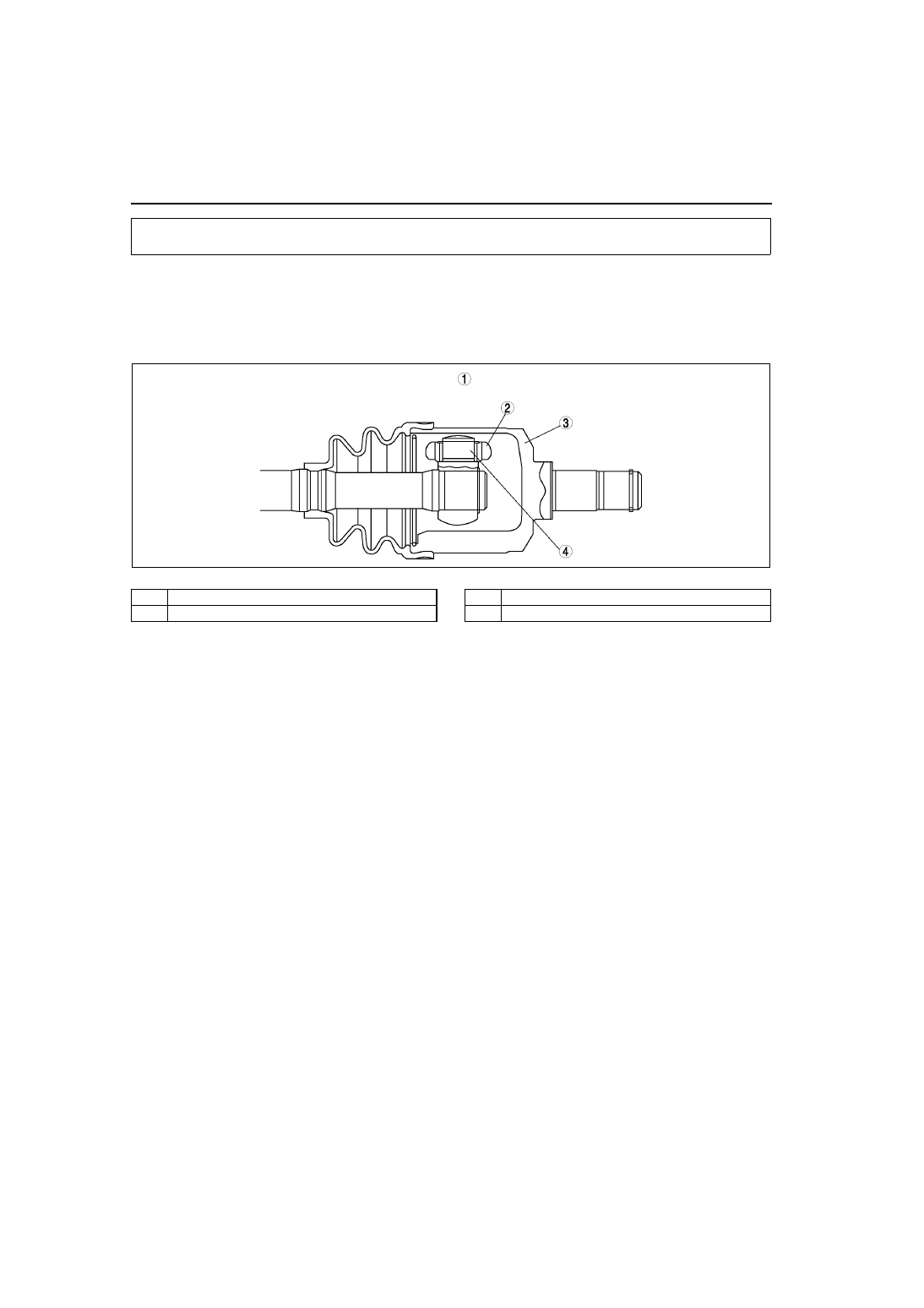

DRIVE SHAFT (LF ATX) CROSS-SECTIONAL VIEW

A6E631625500T02

.

End Of Sie

DRIVE SHAFT

A6E6316T001

1

Transaxle side joint

2

Free ring

3

Outer ring

4

Tripod joint

N–1

N

N

STEERING SYSTEM

ABBREVIATIONS ..................................................N-2

ABBREVIATIONS ................................................N-2

OUTLINE ................................................................N-2

OUTLINE OF CONSTRUCTION..........................N-2
FEATURES ..........................................................N-2
SPECIFICATIONS ...............................................N-2
STRUCTURAL VIEW...........................................N-3

ENGINE SPEED SENSING POWER STEERING ..N-4

ENERGY ABSORBING SYSTEM........................N-4

N–2

ABBREVIATIONS , OUTLINE

ABBREVIATIONS

A6E660100000T01

End Of Sie

OUTLINE OF CONSTRUCTION

A6E660201036T01

•

The construction and operation of the steering system is essentially carried over from that of the 626 (GF)
model, except for the following features. (See 626 Training Manual 3303-10-97D.)

End Of Sie

FEATURES

A6E660201036T02

Improved Operability

•

Tilt and telescope mechanism has been adopted.

Improved Safety in Collision

•

Steering shaft with energy absorbing system has been adopted.

End Of Sie

SPECIFICATIONS

A6E660201036T03

*

: When reservoir tank is at maximum volume

End Of Sie

ABBREVIATIONS

ATX

Automatic transaxle

MTX

Manual transaxle

4SD

4 door sedan

5HB

5 door hatchback

OUTLINE

Item

Mazda6 (GG) (4SD, 5HB)

626 (GF) (4SD, 5HB)

Steering wheel

Outer diameter

mm {in}

370 {14.6}

380 {15.0}

Lock-to-lock

(turns)

2.75

2.8

Steering gear
and linkage

Type

Rack-and-pinion

Rack-and-pinion

Rack stroke

mm {in}

146.8—148.8 {5.78—5.85}

130—132 {5.11—5.19}

Steering column
and shaft

Shaft type

Collapsible

Collapsible

Joint type

2-cross joint

2-cross joint

Amount of tilt

mm {in}

45 {1.8}

40 {1.6}

Amount of
telescope

mm {in}

50 {2.0}

–

Power steering
system

Power assist type

Engine speed sensing

Engine speed sensing

Power steering
fluid

Type

M-

III

 or equivalent

(e.g. Dexron

®

II

)

M-

III

 or equivalent

(e.g. Dexron

®

II

)

Fluid capacity

*



(approximate quantity)

0.80 {0.85, 0.70} (MTX)

0.87 {0.92, 0.77} (ATX)

0.98 {1.04, 0.86}

(L {US qt, Imp qt})
