Jaguar X-Type Sedan and Estate (Wagon). Manual

Published: 11-May-2011

Steering Column - Steering Wheel

Removal and Installation

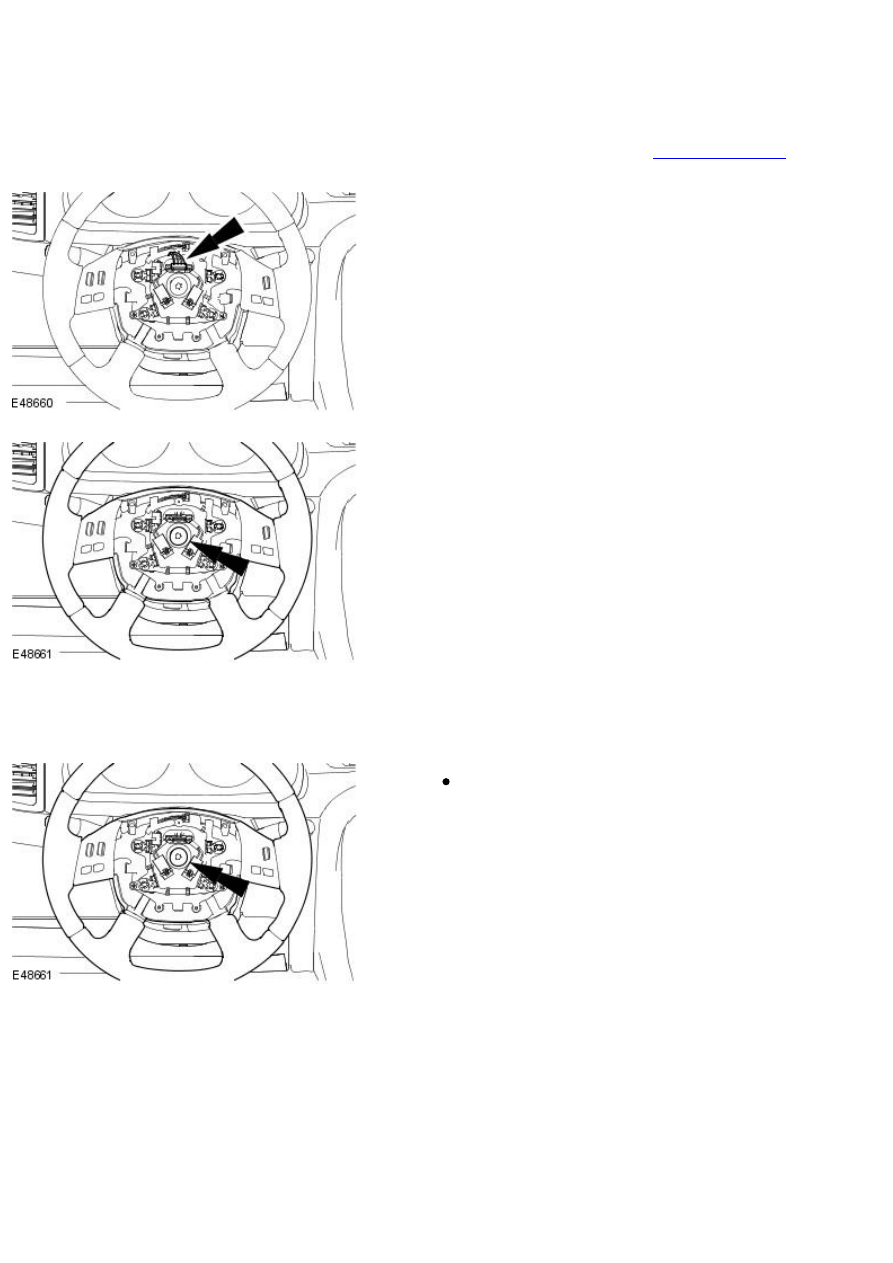

Removal

1. Position the front wheels in a straight ahead position and centralize

steering wheel.

2. Remove the driver airbag module.

For additional information, refer to:

Driver Air Bag Module

(501-20B

Supplemental Restraint System, Removal and Installation).

3. Disconnect the electrical connector.

4. Remove the steering wheel.

5. Using suitable insulation/masking tape, secure the clockspring to

prevent movement from the centralized position.

Installation

1. To install, reverse the removal procedure.

Tighten to 47 Nm.

Published: 11-May-2011

Steering Column Switches - Steering Column Switches

Description and Operation

Steering Column Multifunction Switch RH

The steering column multifunction switch RH controls the following functions when the ignition switch is in position II:

Flick Wipe

Flick wipe operation:

Is obtained by pulling the switch stalk towards the driver.
Features continuous wipe action at slow speed while the switch stalk position is held.

Intermittent Wipe

In the intermittent wipe position:

The wiper operates intermittently, with a variable time delay between wipes.
The time delay may be varied by rotating the column switch collar. This switch has six positions and varies the delay between 1 and
22 seconds. The collar is turned counter-clockwise to increase the delay.

Slow Speed Wiper

In the slow speed position:

The wiper operates continuously at slow speed.

High Speed Wiper

In the high speed position:

The wiper operates continuously at high speed.

Windscreen Wash/Wipe

The wash/wipe function:

Is operated by the button at the end of the switch stalk.
If the switch stalk is in the off or intermittent position the washers will operate for the duration the button is being pressed. The
wipers will operate at the slow speed while the button is being pressed and provides an additional three sweeps of the wipers after
the button is released.
If the switch stalk is in the flick, slow or high speed position the washers will operate for the duration the button is being pressed.
The wipers will operate at the slow or high speed respectively while the button is being pressed.
Is disabled if the 'Washer Fluid Low' message is displayed but manual operation is still available.

Headlamp Power Wash (if equipped)

The headlamp power wash function:

Operates only when the headlamps are on and the windscreen wash/wipe button is pressed.
Provides one short burst to the headlamps for approximately 0.5 of a second.

After the initial application, the headlamp power wash operates on every fifth operation of the wash/wipe button.

Rain Sensing/Auto Wipe (if equipped)

The rain sensing/auto wipe function:

Operates if the wash/wipe switch is set to the intermittent position and the variable delay is adjusted to the minimum position. If
any other position is selected the rain sensing function is disabled and the system reverts to the intermittent function with position
two being the shortest delay.
When rain sensing/auto wipe is selected the area of the windscreen covered by the rain sensor is monitored for moisture. If moisture
is detected the wipers are activated. The speed of the wipers is dependent on the amount of moisture detected on the windscreen.
When the windscreen is dry the wipers are parked until moisture is detected again.

Steering Column Multifunction Switch LH

The steering column multifunction switch LH controls the following functions when the ignition switch is in position II:

Direction Indicators

The direction indicators:

Operate when the ignition switch is in position II.
Are operated by moving the switch stalk up or down until it latches in position to indicate a right or left turn respectively.
May be operated while the switch stalk is held against spring pressure before reaching the latched position.
Cancel automatically upon completion of a turn. The multifunction switch LH stalk then returns to the center position.

An audible ticking and a flashing green warning lamp on the instrument cluster indicates that the direction indicators are operating. If an
indicator bulb fails, the warning lamp and ticking operate at twice the normal rate.

Main Beam

The main beam switch has two pull positions. Operating the switch to the first position and then releasing it will cause the main beam to
flashed. The main beam can be flashed with the ignition on or off and will remain activated as long as the switch is held.

Operating the switch to the second position will operate main beam continuously if the headlamps are on.

Published: 11-May-2011

Steering Column Switches - Steering Column Switches

Diagnosis and Testing

Inspection and Verification

1. Verify the customer concern.

2. Visually inspect for obvious signs of electrical damage.

Visual Inspection Chart

Electrical

W iring harness for damage or corrosion

Electrical connector(s)

Switch(s)

Relay(s)

Module

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next

step.

4. If the cause is not visually evident, verify the symptom and refer to the Jaguar Approved Diagnostic System.

Jaguar X-Type Sedan and Estate (Wagon). Manual - part 120
