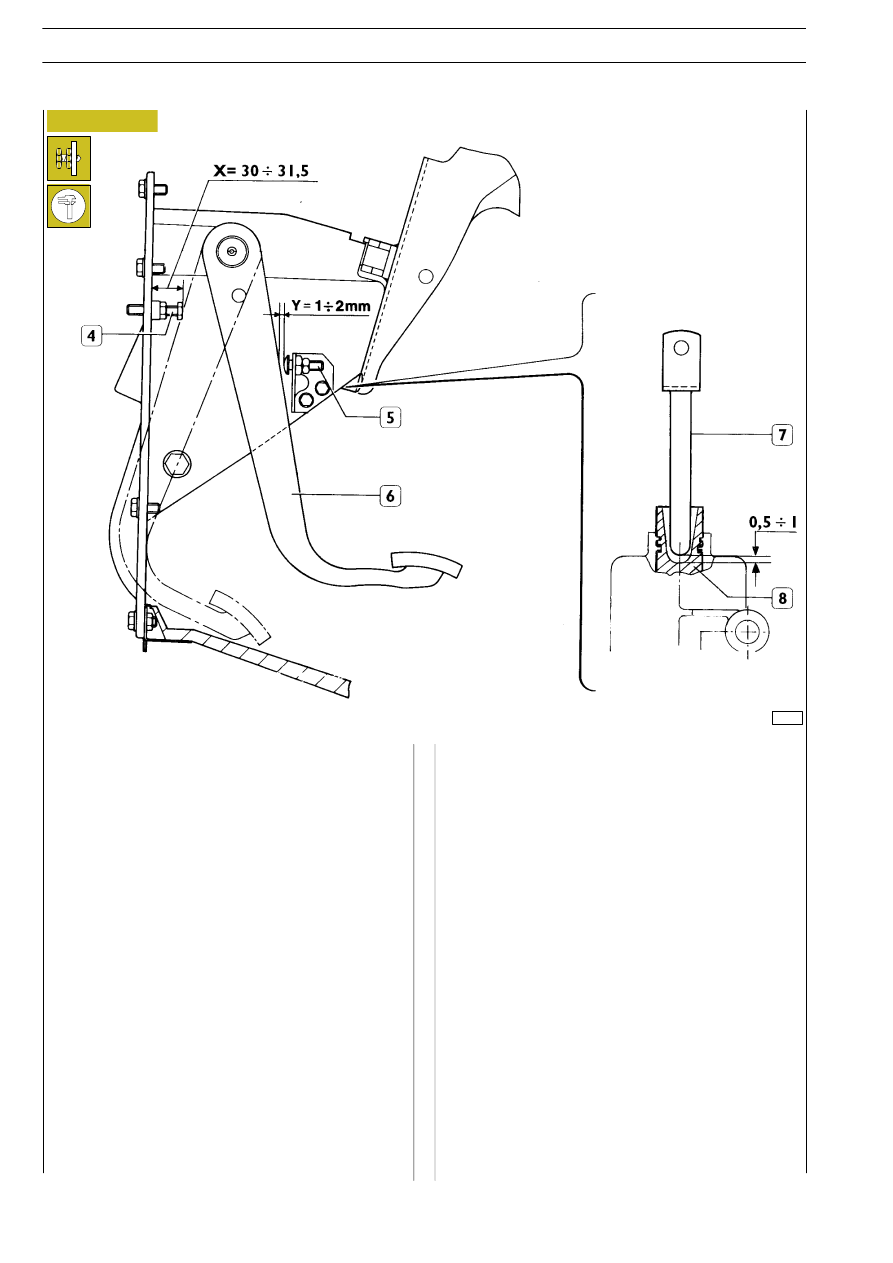

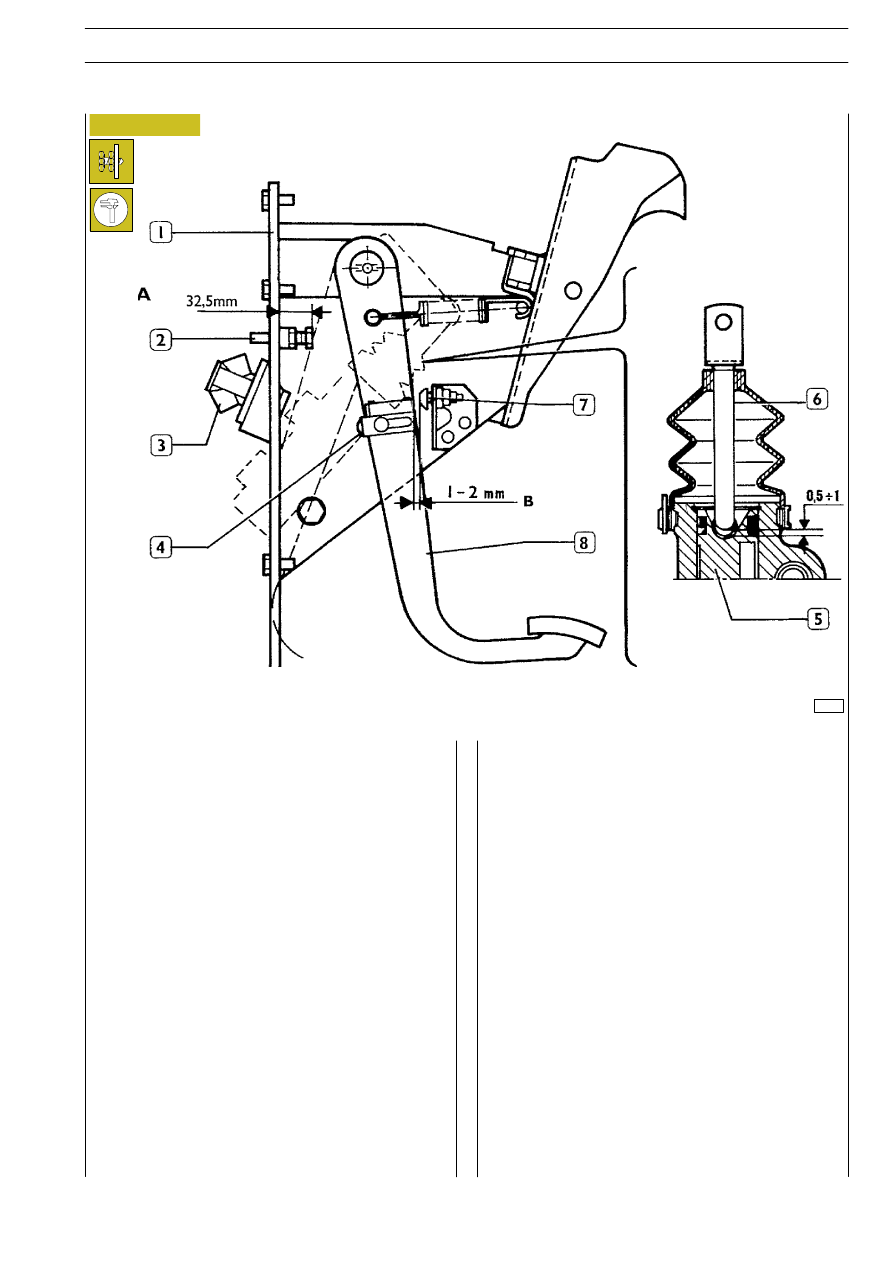

Clutch pedal stop
Check distance X between support and screw (4) end; it must
be 30 to 31.5 mm, otherwise tighten or loosen screw (4).
Clutch pedal idle stroke
Depress the clutch pedal (6) so as to bring rod (7) in contact
with master cylinder piston (8).
Under such condition, check distance Y between clutch pedal
(6) and screw (5) that must be 1-2 mm, otherwise tighten or
loosen screw (5).
Distance Y corresponds to 0.5 to 1 mm clearance between
rod (4) and piston (8) when clutch pedal (6) is in contact with
screw (5).
Figure 19
E
URO
C
ARGO
T
ECTOR
12-26 t
18
CLUTCH
Base - February 2003
