Iveco Stralis AT/AD. Manual - part 343
III.156
ELECTRONIC SYSTEMS
S
TRALIS
AT/AD
Base - January 2003

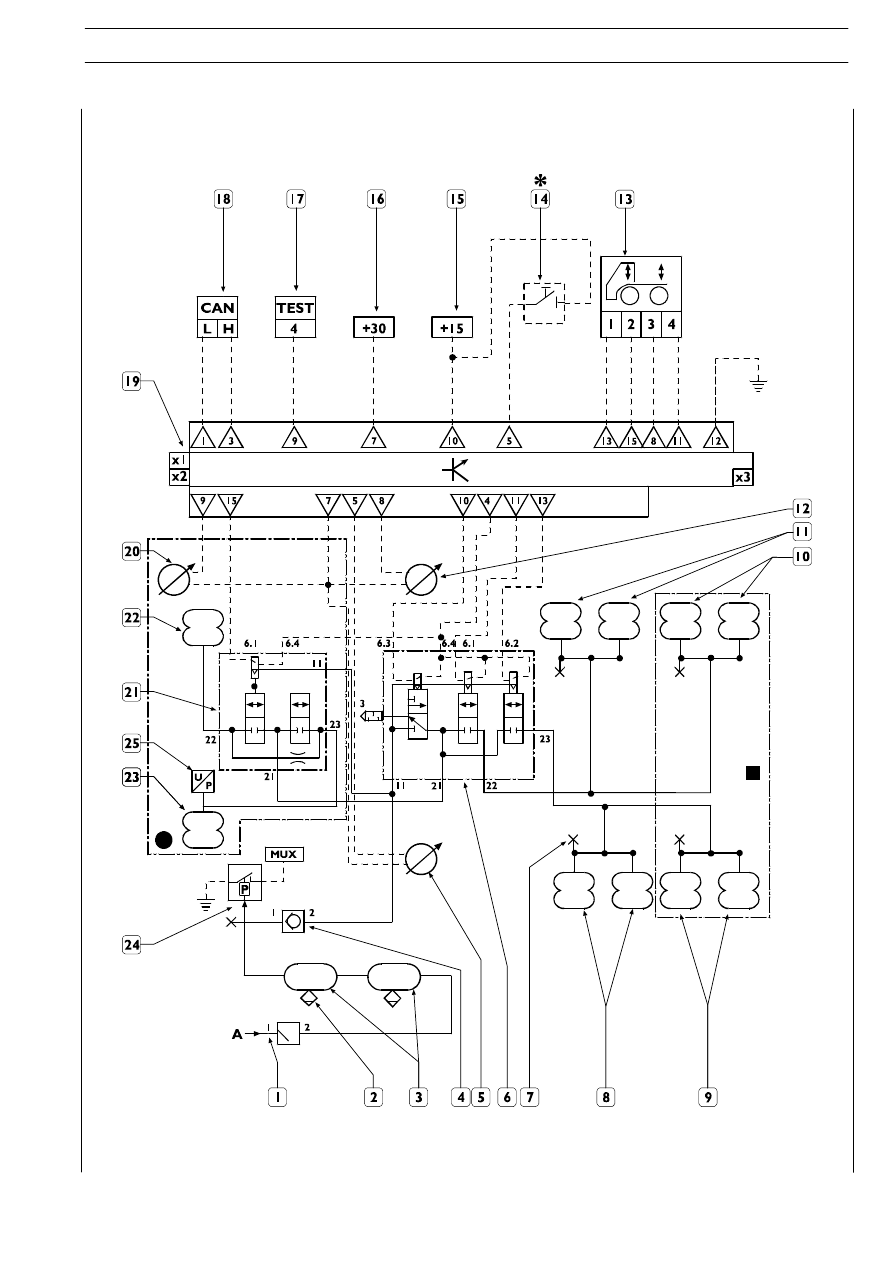

Ref.
Description
1
Limited return controlled pressure valve
2
Manual discharge valve
3
Suspension air reservoirs
4
One-directional valve
5
Left axle level sensor
6
Electro-pneumatic axle distributor
7
Compressed air PTO
8
Left axle air spring
9
Left rear axle air spring
10
Right rear axle air spring
11
Left axle air springs
12
Left axle level sensor
13
Remote control
14
Self-leveling switch
15
Electrical power under key
16
Electrical power direct from battery
17
30-pole diagnosis connector
18
CAN line connection
19
Electronic center
20
Axle level sensor
21
Electro-pneumatic axle distributor
22
Right axle air spring
23
Left axle air spring
24
8 bar low pressure switch
25
Pressure sensor
A
From the APU
*
Optional
D
Only for FP vehicles
J
Only for 6x4 vehicles
