Iveco Stralis AT/AD. Manual - part 332

001996t

1. Electronic center - 2. Duplex distributor with electrical transmitter - 3. Manual stop distributor - 4. Coupling half-joints - 5.

Air reservoirs - 6. Electrical compressed air axle modulator - 7. Stop relay valve - 8. Air reservoir - 9. Spring brake cylinder -

10. Trailer control servo distributor - 11. APU - 12. Membrane brake cylinder - 13. ABS electro valve -

14. Compressor - 15. Axle proportional valve

10 9

III.112

ELECTRONIC SYSTEMS

TRALIS

AT/AD

Base - January 2003

002048t

SERVICES

COMPRESSED

AIR SUSPENSION

ELECTRONIC SYSTEMS

III.113

TRALIS

AT/AD

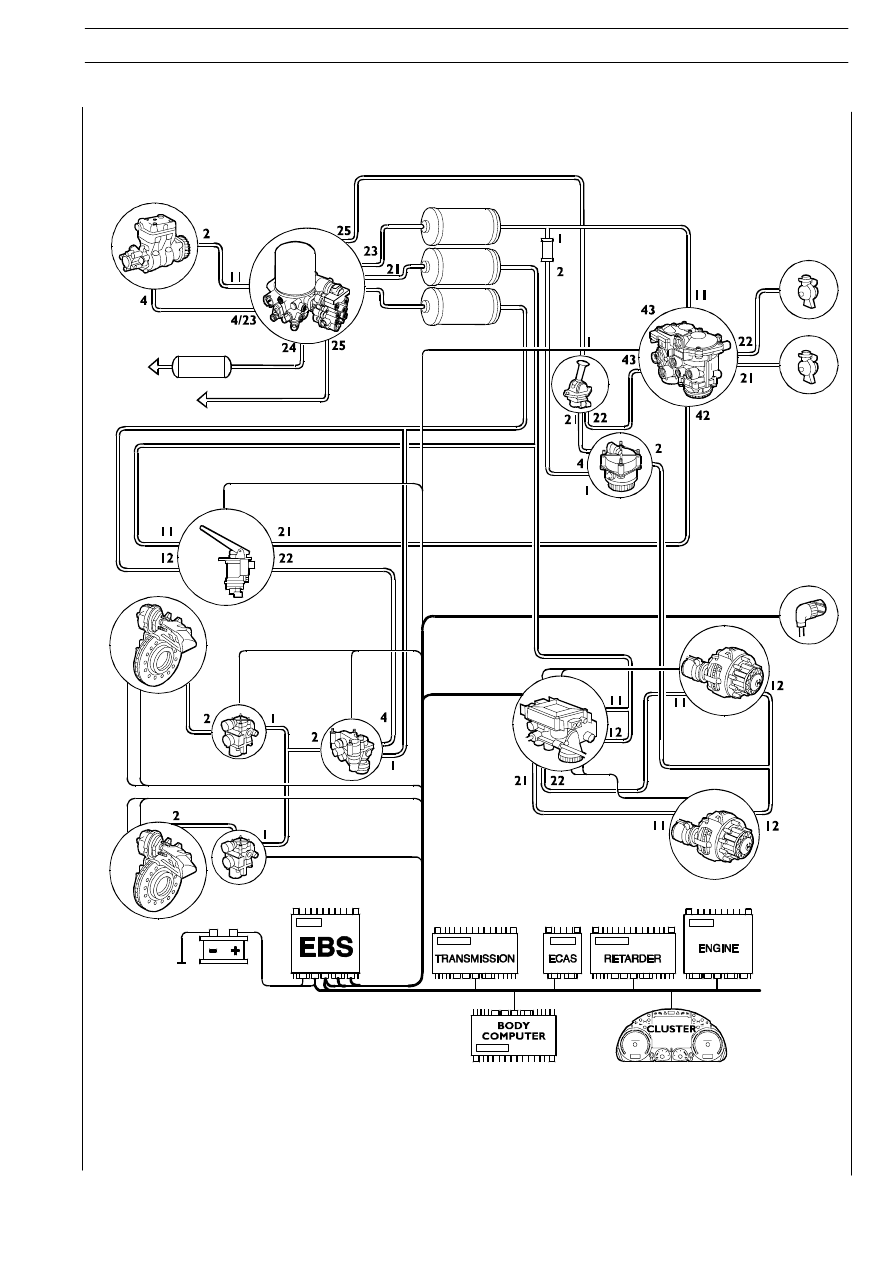

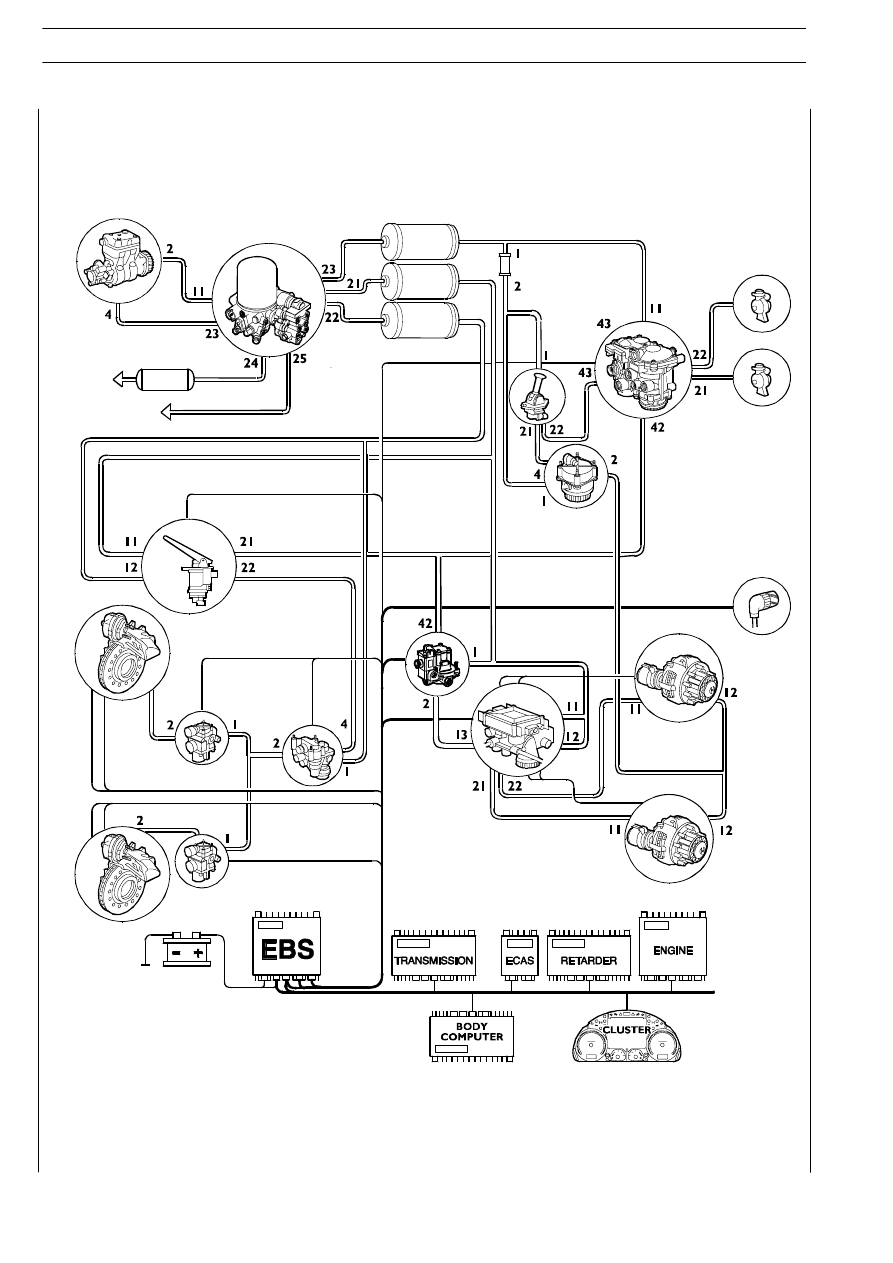

EBS location diagram for tractor variant

001680t

SERVICES

COMPRESSED

AIR SUSPENSION

III.114

ELECTRONIC SYSTEMS

TRALIS

AT/AD

Base - January 2003

001988t

MUX

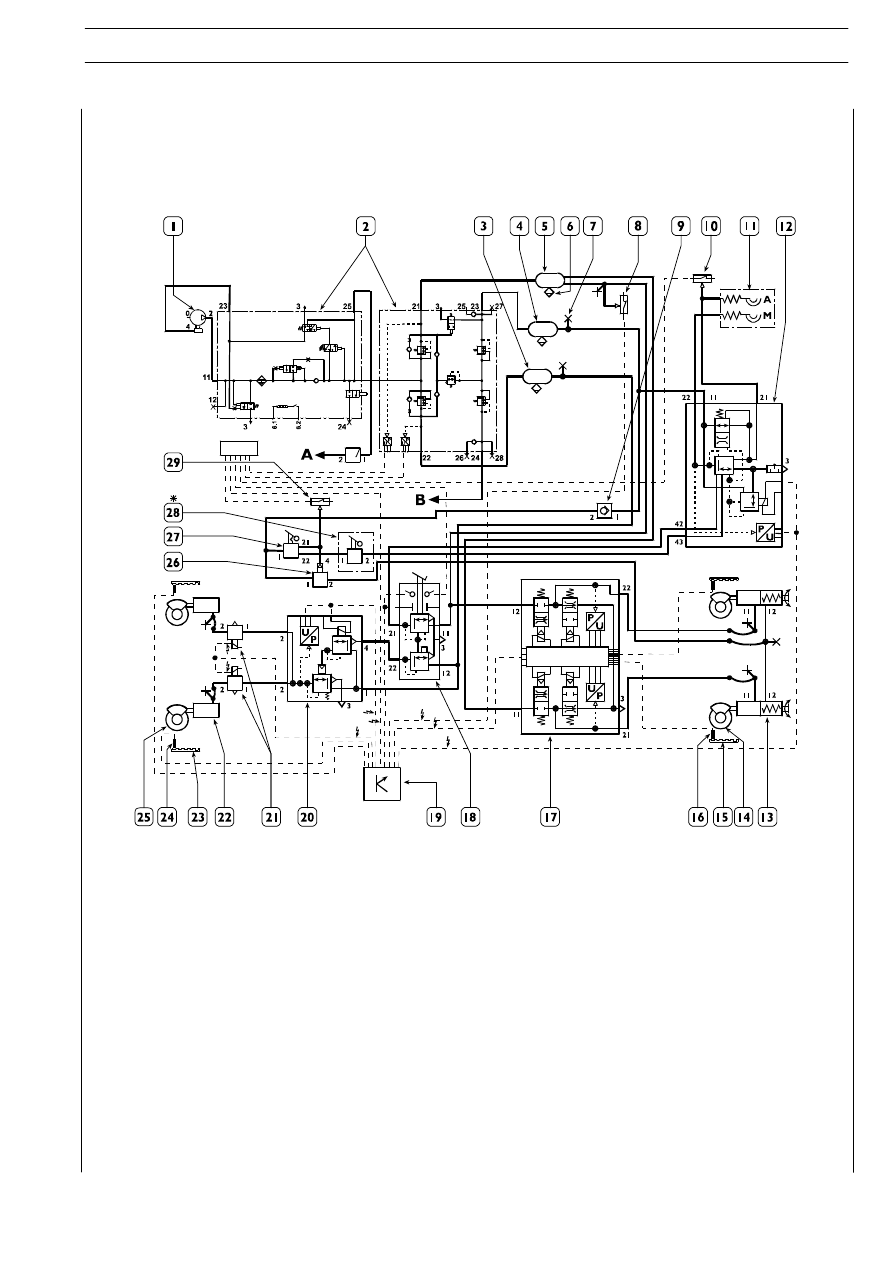

1. 465-cc E.S. two-cylinder compressor - 2. 10.5 bar air Processing Unit - 3. 20-l axle air reservoir - 4. 20-l stop air reservoir -

5. 30-l axle air reservoir - 6. Manual discharge valve - 7. Compressed air PTO - 8. 6.6-bar ASR axle low pressure switch -

9. Stopping system one-way valve - 10. 5.5 bar trailer system low pressure switch - 11. Semi-trailer coupling half-joints -

12. Trailer braking control servo distributor - 13. Axle combined cylinder - 14. Axle disc brake assembly - 15. Axle sound

wheel - 16. Axle speed sensor - 17. Axle braking control electrical compressed air modulator - 18. Duplex distributor -

19. EBS electronic center - 20. Axle braking control electrical compressed air relay valve - 21. Axle ABS electro valves -

22. Axle membrane filter cylinder - 23. Axle sound wheel - 24. Axle speed sensor - 25. Axle disc brake assembly -

26. Stopping control relay valve - 27. Stopping control hand distributor - 28. Trailer deceleration hand distributor -

29. 6.6 bar hand brake on low pressure switch - A. To the compressed air suspension system - B. To the services system -

∗

Optionals

ELECTRONIC SYSTEMS

III.115

TRALIS

AT/AD

Basic EBS compressed air system diagrams
EBS 4x2 Tractors
