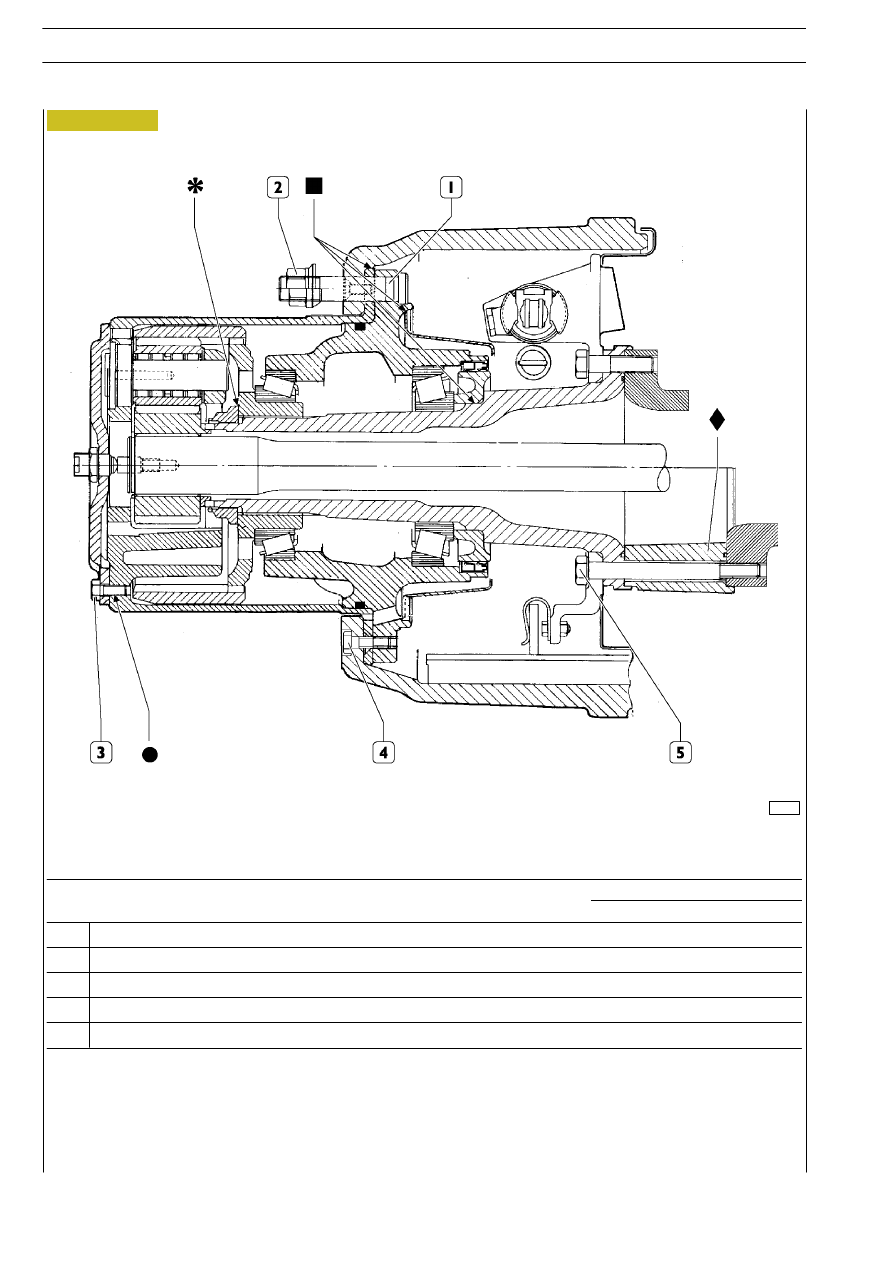

84399 Figure 3 66 REAR AXLE 451391 S TRALIS AT/AD Base - January 2003 PART TORQUE PART Nm kgm 1 Countersunk screw fixing drum 25 ± 3 2.5 ± 0.3 2 Nut fixing wheel 615 ± 35 61.5 ± 3.5 3 Screw fixing cover to side pinion support h 50 ± 5 5 ± 0.5 4 Countersunk screw 50 ± 5 5 ± 0.5 5 Screw fixing load bearing sleeve 295 ± 30 29.5 ± 3 • apply LOCTITE 510 on the contact surface h apply LOCTITE 573 on thread H apply LOCTITE 573 on mating surface : apply MOLYKOTE on the nut contact surface |
